This FCV circuit failed open sheet documents Detroit SPN 3482 FMI 5, an open-circuit reading that carries a 10 percent derate. It first checks for a companion code, then isolates the open in the valve wiring. Follow it before replacing the doser block.
Official document details
| Brand | Detroit |
|---|---|
| Model coverage | DD Series (EPA 2007-Current); also filed under Series 60 (DDEC VI – EPA 2007) |
| System / Group | DTCs — Fuel Cut-off Valve (FCV) Circuit Failed Open |
| Fault code | SPN 3482 / FMI 5 |
| Source | www.TruckFaultCodes.com (© 2017) |
| Pages | 2 |
| File size | 0.2 MB |
| Format | |
| Language | English |
FCV circuit failed open diagnostic guide

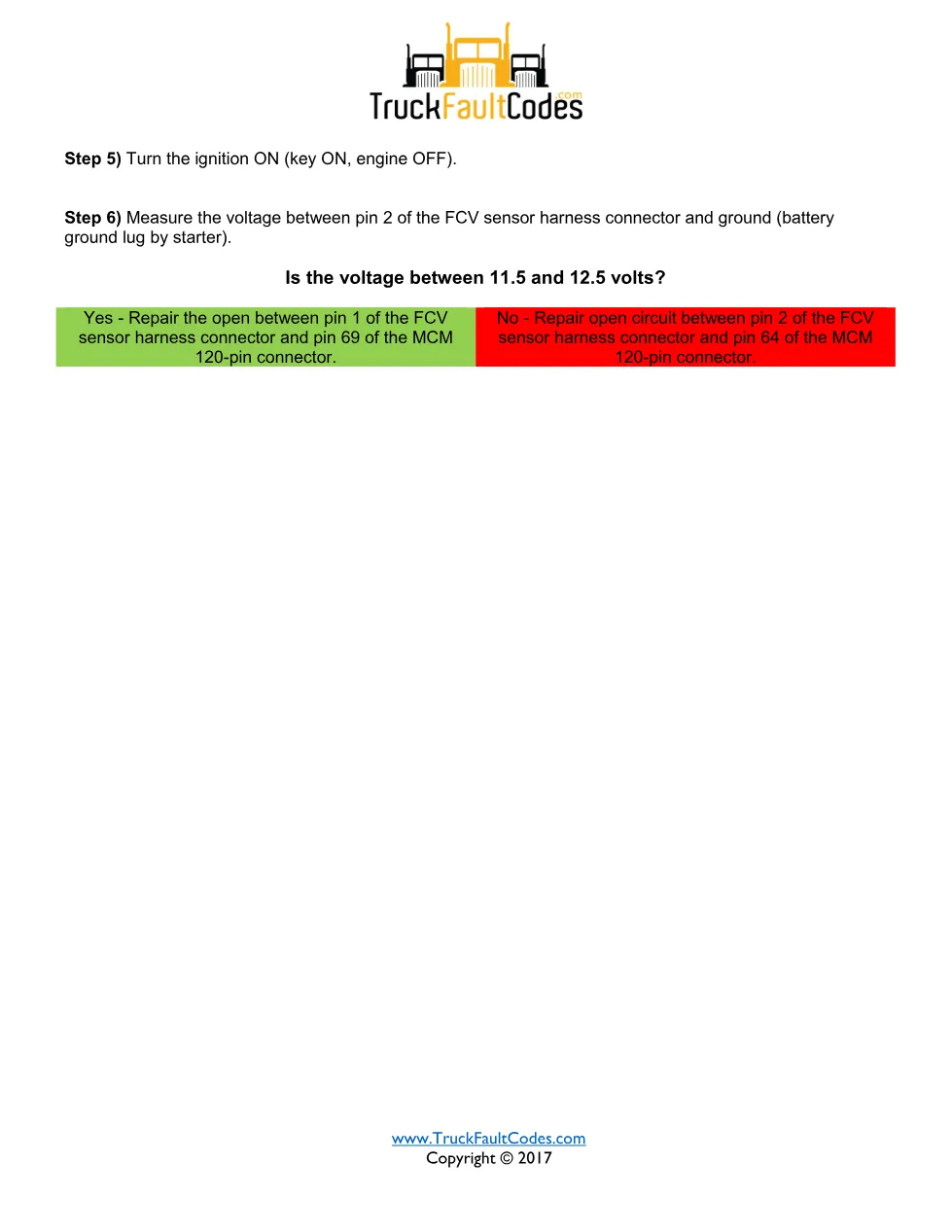

The technician reads multiple codes: an active SPN 3471 FMI 5 alongside points to an open between MCM pin 64 and the electronic dosing valve pin 2 and FCV pin 2. If only the one code is present, resistance across FCV pins 1 and 2 is measured; above 20 ohms calls for a new hydrocarbon doser block assembly. Otherwise, with the key on, voltage between FCV harness pin 2 and battery ground of 11.5 to 12.5 volts places the open on the pin 1 branch to MCM pin 69, while a low reading places it on the pin 2 branch to MCM pin 64.
Document table of contents
- Fault code identification: SPN 3482, FMI 5
- Description, monitored parameter and engine reaction
- Companion code check (SPN 3471 FMI 5)
- FCV resistance and voltage checks
- Open-circuit repair or doser block replacement
Applicable truck models
This procedure applies to Detroit DD Series engines built for EPA 2007 and later, covering all model years (EPA07, EPA10 and GHG14) as printed on the document cover, and the identical SPN/FMI sheet is also filed under Detroit Series 60 (DDEC VI, EPA 2007). Confirm the emissions platform on your truck and cross-check the connector and pin numbers against the official Detroit engine support site before making any repair.
Who needs this FCV circuit failed open manual
A diesel technician on any Detroit DD model year uses this sheet to find an open in the valve wiring and its companion code before condemning the doser block assembly.
