This Fault Code 63 troubleshooting guide is the official Eaton fault isolation procedure for an X-Y Gear Motor circuit problem on the Fuller Advantage Heavy Duty automated transmission. It separates the FMIs and measures resistance through the 38-Way Transmission Harness Connector.
Official document details
| Brand | Eaton |
| Model coverage | Fuller Advantage Heavy Duty automated transmission |
| System / group | Fuller Advantage Heavy Duty / DTCs — Diagnostic Trouble Codes |
| Publication no. | TRTS0980 |
| Revision | 2016.06.20 |
| Pages | 6 |
| File size | 0.61 MB |
| Format | |
| Language | English |
Fault Code 63 troubleshooting contents
The document is organised as a set of numbered fault isolation steps, each with a stated purpose and a clear go-to branch that sends the technician to the next step, a repair or the final verification. The main sections cover:

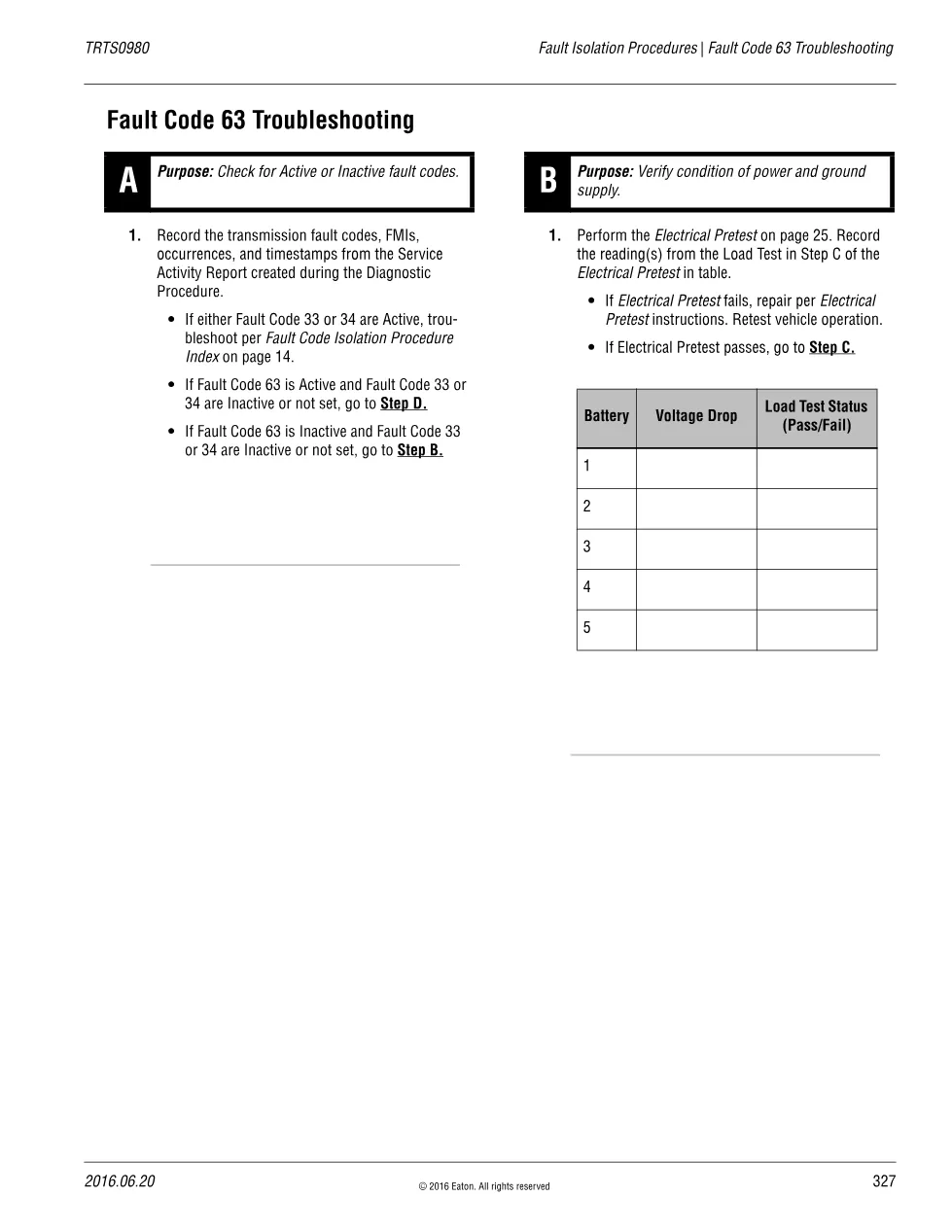

- Checking for related Active or Inactive codes such as 33 and 34
- Performing the Electrical Pretest and battery Load Test

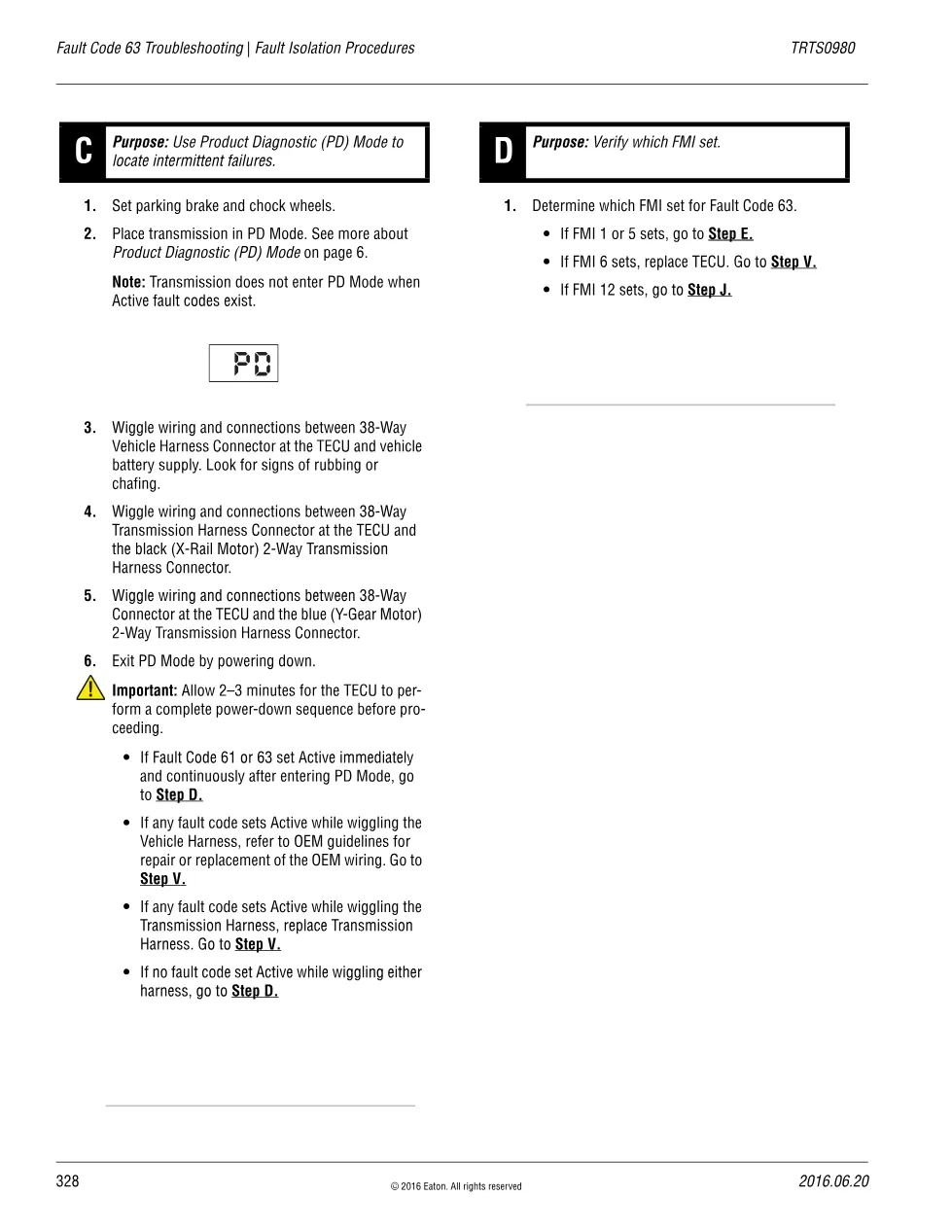

- Using PD Mode while wiggling the Vehicle and Transmission Harnesses
- Determining which FMI (1, 5, 6 or 12) has set

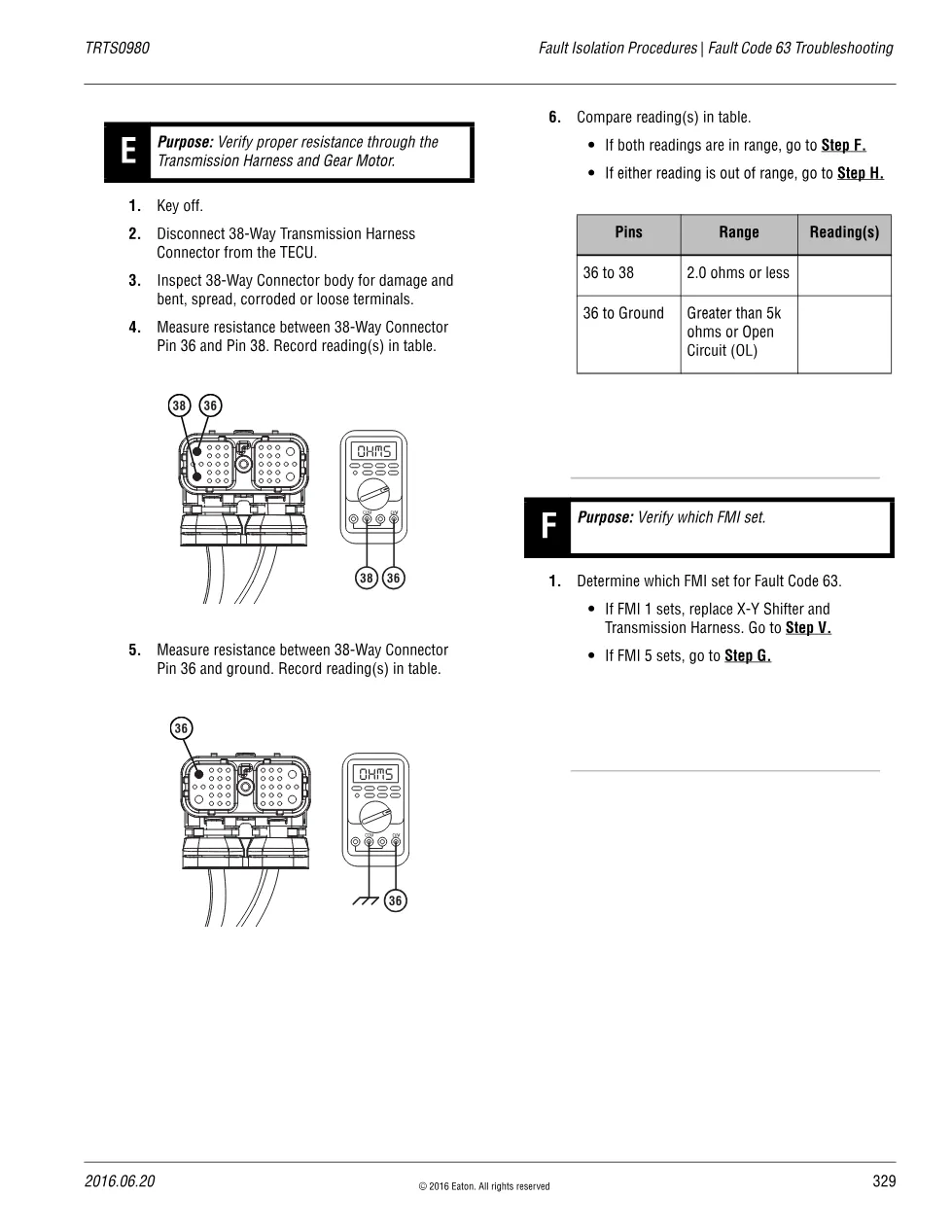

- Measuring Gear Motor circuit resistance at the 38-Way connector
- Load testing the vehicle power supply to the TECU and verifying the repair
Applicable truck models
This Eaton fault isolation procedure applies to trucks fitted with the Fuller Advantage Heavy Duty automated manual transmission, its Transmission Electronic Control Unit (TECU) and X-Y Shifter Gear Motor. Every step is performed with ServiceRanger, the Eaton diagnostic software, and cross-referenced to the wider TRTS0980 Fault Isolation Procedures manual. Manufacturer background and current service literature are published on Eaton’s official transmission website.
Who needs the Fault Code 63 troubleshooting manual
Electrical diagnosticians facing an X-Y Gear Motor open or short use this Eaton procedure to decide between replacing the Transmission Harness, the X-Y Shifter or the TECU on measured resistance values.
Because it is drawn straight from Eaton document TRTS0980, the page gives shop staff the same decision trees, connector pin references and pass-or-fail values the manufacturer uses, which shortens diagnosis time and supports accurate warranty documentation.
Related manuals library
The full 6-page PDF, published as Eaton document TRTS0980, is available in the DiagTechPro manuals library; a free account is required to download.
