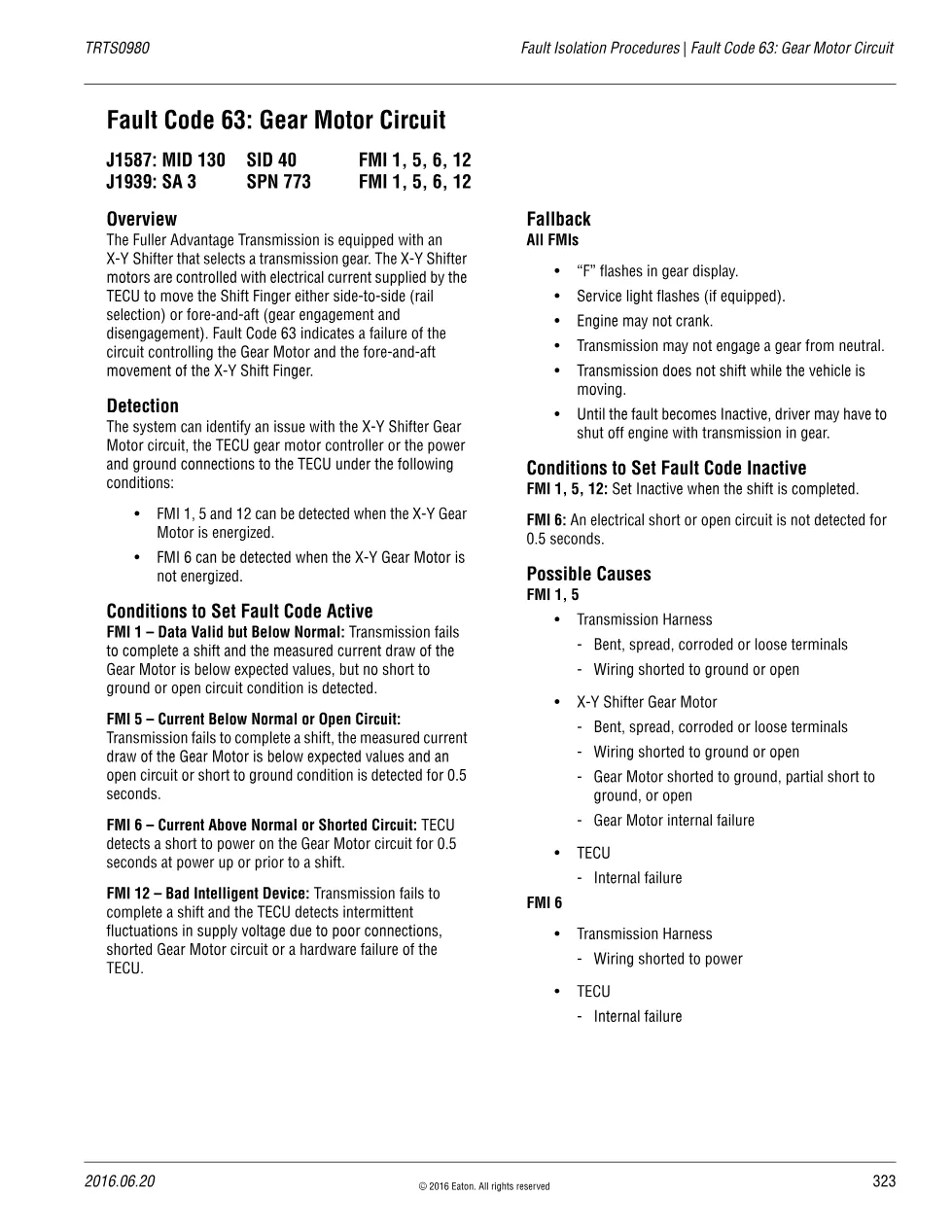

This Fault Code 63 explained reference, drawn from Eaton Fault Isolation Procedure TRTS0980, sets out a failure of the X-Y Shifter Gear Motor circuit. It is logged under J1587 MID 130 SID 40 and J1939 SA 3 SPN 773 with FMI 1, 5, 6 or 12 depending on whether the Gear Motor is energized. The section pairs the SAE J1587 and J1939 identifiers with plain-language detection logic, so a technician can confirm exactly what the transmission is reporting before any part is removed.
Official document details
| Field | Detail |
|---|---|
| Brand | Eaton |
| Model coverage | Fuller Advantage Heavy Duty automated transmissions |
| System / Group | DTCs / Fault Isolation Procedures |
| Publication no. | TRTS0980 |
| Year / Revision | 2016 / Rev. 2016.06.20 |
| Pages | 4 |
| File size | 0.9 MB |
| Format | |
| Language | English |
Document table of contents
- Overview of the X-Y Shifter Gear Motor circuit
- J1587 and J1939 identifiers (SID 40, SPN 773, FMI 1, 5, 6, 12)
- Detection criteria
- Conditions to set the code Active and Inactive
- Fallback behaviour

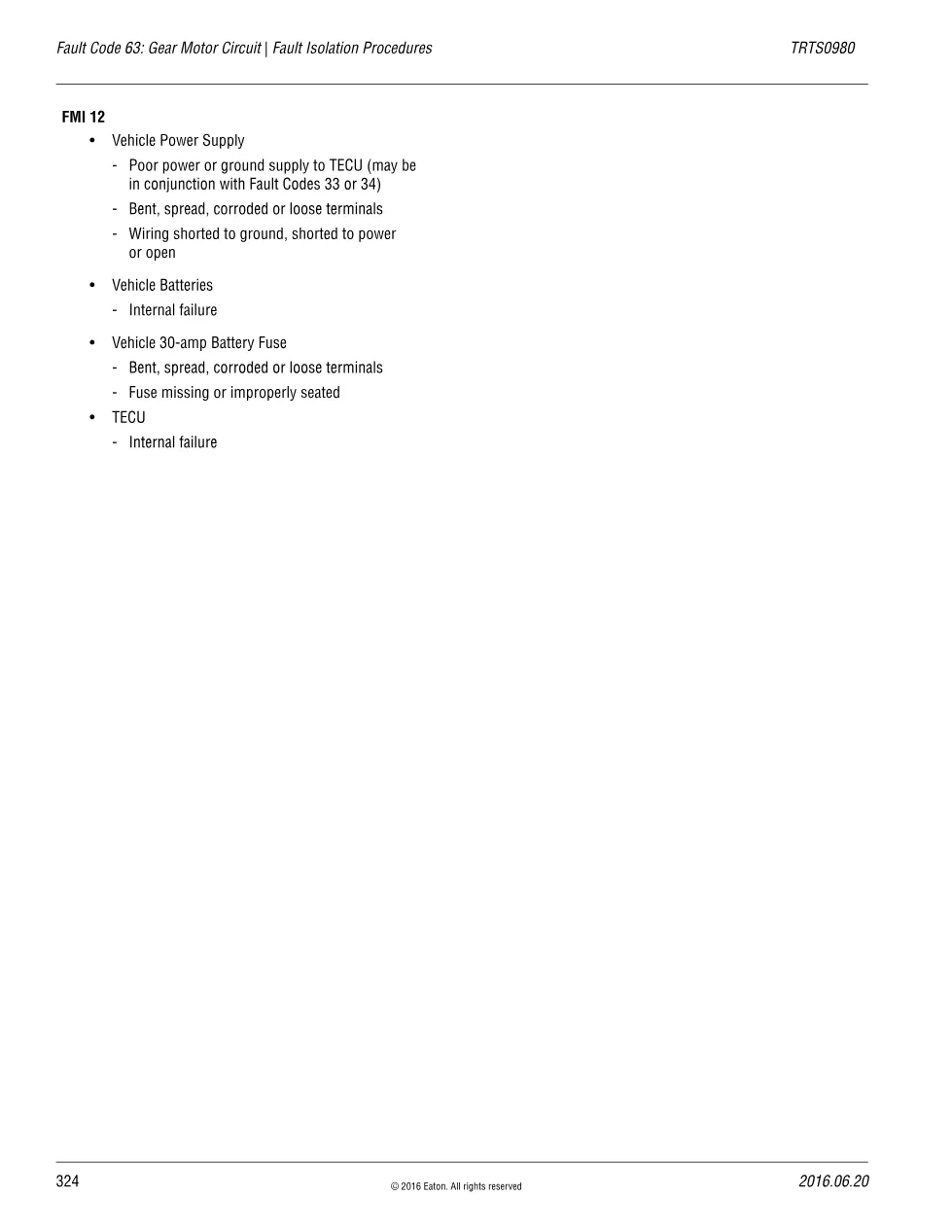

- Possible causes

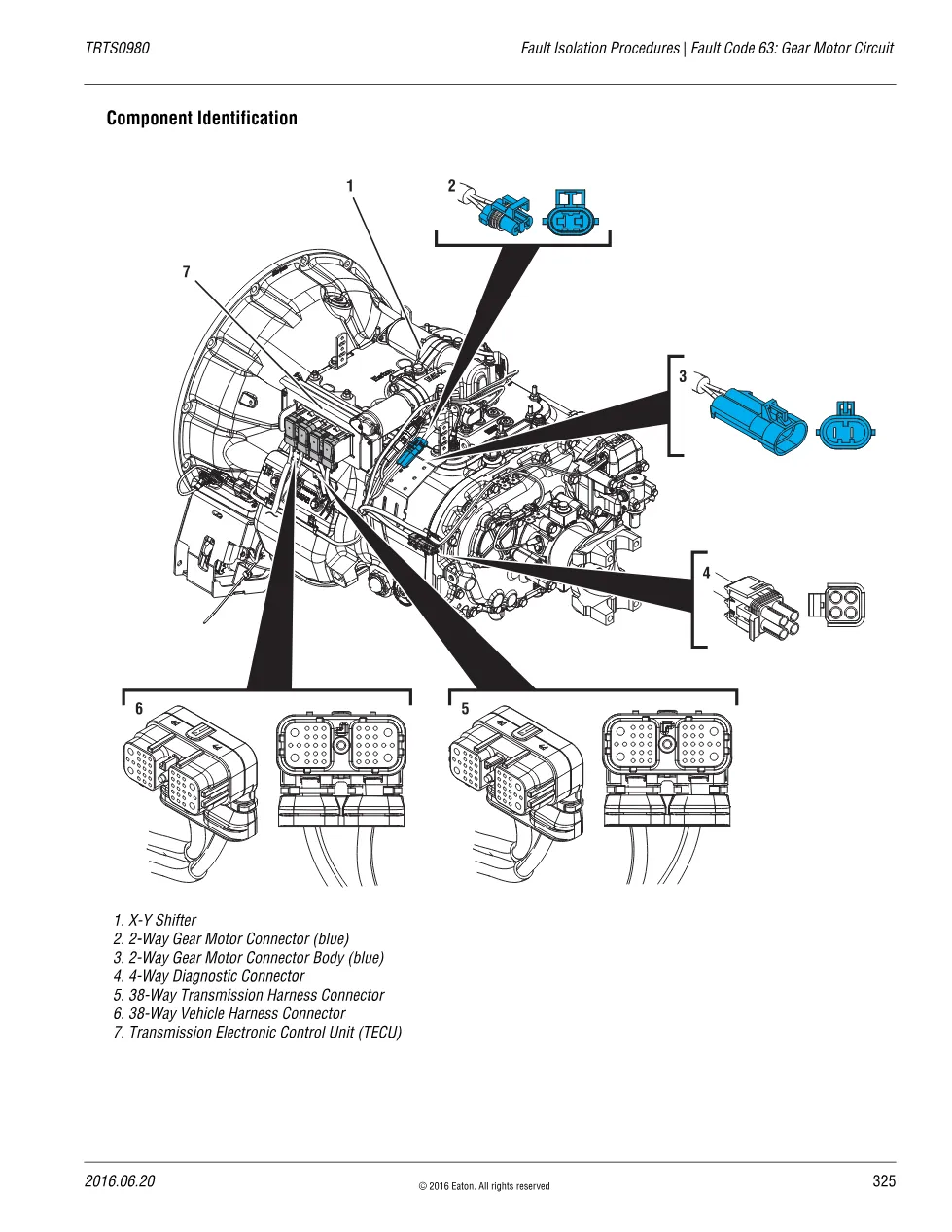

- Component identification (Gear Motor connector, 4-Way diagnostic, TECU)
Applicable trucks for Fault Code 63 explained
This reference covers the Fuller Advantage Heavy Duty transmission whose TECU supplies current to the X-Y Shifter Gear Motor for fore-and-aft Shift Finger movement. Causes are grouped by FMI, spanning Transmission Harness wiring shorted to ground, power or open, a failed Gear Motor, poor control-unit power and ground supply and the 30-amp battery fuse. For manufacturer specifications and OEM cross-references, visit the Eaton Roadranger website.
Who needs this Fault Code 63 explained manual
Technicians use this overview to interpret the FMI set with the code and understand the circuit before running the isolation chart and measuring Gear Motor resistance. Because the PDF preserves the original component names, connector callouts and measurement ranges, it also helps parts specialists confirm the correct sensor, harness or actuator before a repair order is raised.
The complete PDF is available in the DiagTechPro manuals library; a free account is required to download it, along with the related Fuller Advantage fault-code manuals listed below.
