This Fault Code 51 troubleshooting page from the Eaton Fuller Advantage Heavy Duty service set walks a technician through the fault isolation procedure for the X-Y Rail Position Sensor circuit. It is published under document TRTS0980 and lays out the step-by-step checks used to confirm or clear the code.
Official document details
| Brand | Eaton |
| Model coverage | Fuller Advantage Heavy Duty (and Fuller Advantage) automated transmissions |
| System / Group | Fuller Advantage Heavy Duty / DTCs |
| Publication no. | TRTS0980 |
| Year / Revision | 2016.06.20 (© 2016 Eaton) |
| Pages | 4 |
| File size | 0.34 MB |
| Format | |
| Language | English |
Document table of contents
- Step A — Check for Active or Inactive fault codes
- Step B — Product Diagnostic (PD) Mode intermittent check
- Step C — Check for short to ground in the Rail Position circuit
- Step D — Verify Rail Position Sensor circuit resistance
- Steps E and G — Verify which FMI set
- Step F — Measure Rail Position Sensor resistance
- Step V — Verify repair
Applicable truck models
The procedure applies to Eaton Fuller Advantage Heavy Duty automated transmissions that use an X-Y Shifter with a Rail Position Sensor reporting to the TECU through the 38-Way Transmission Harness. Full model coverage and connector pin data are listed in the manufacturer documentation on the Eaton Vehicle Group official website.
Fault Code 51 troubleshooting workflow

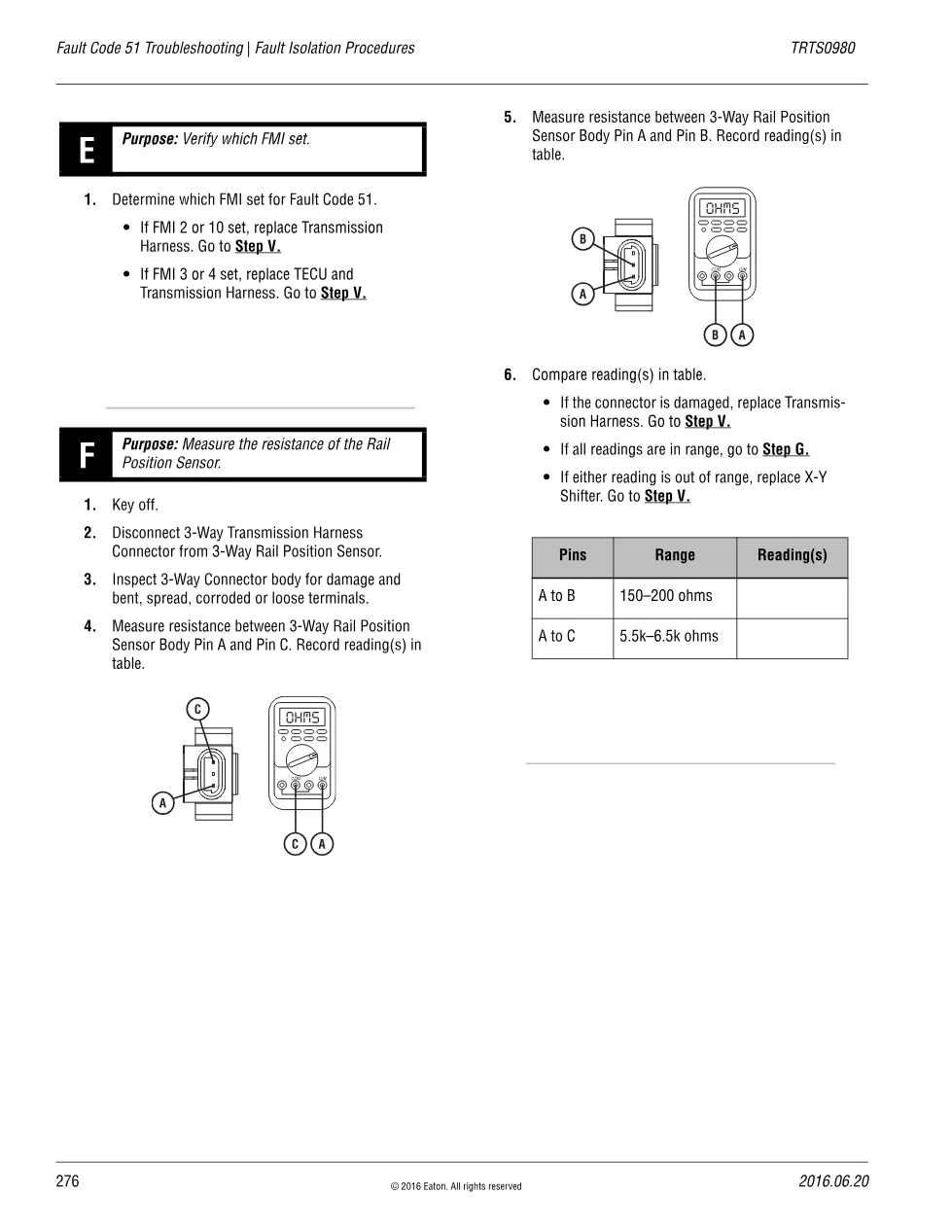

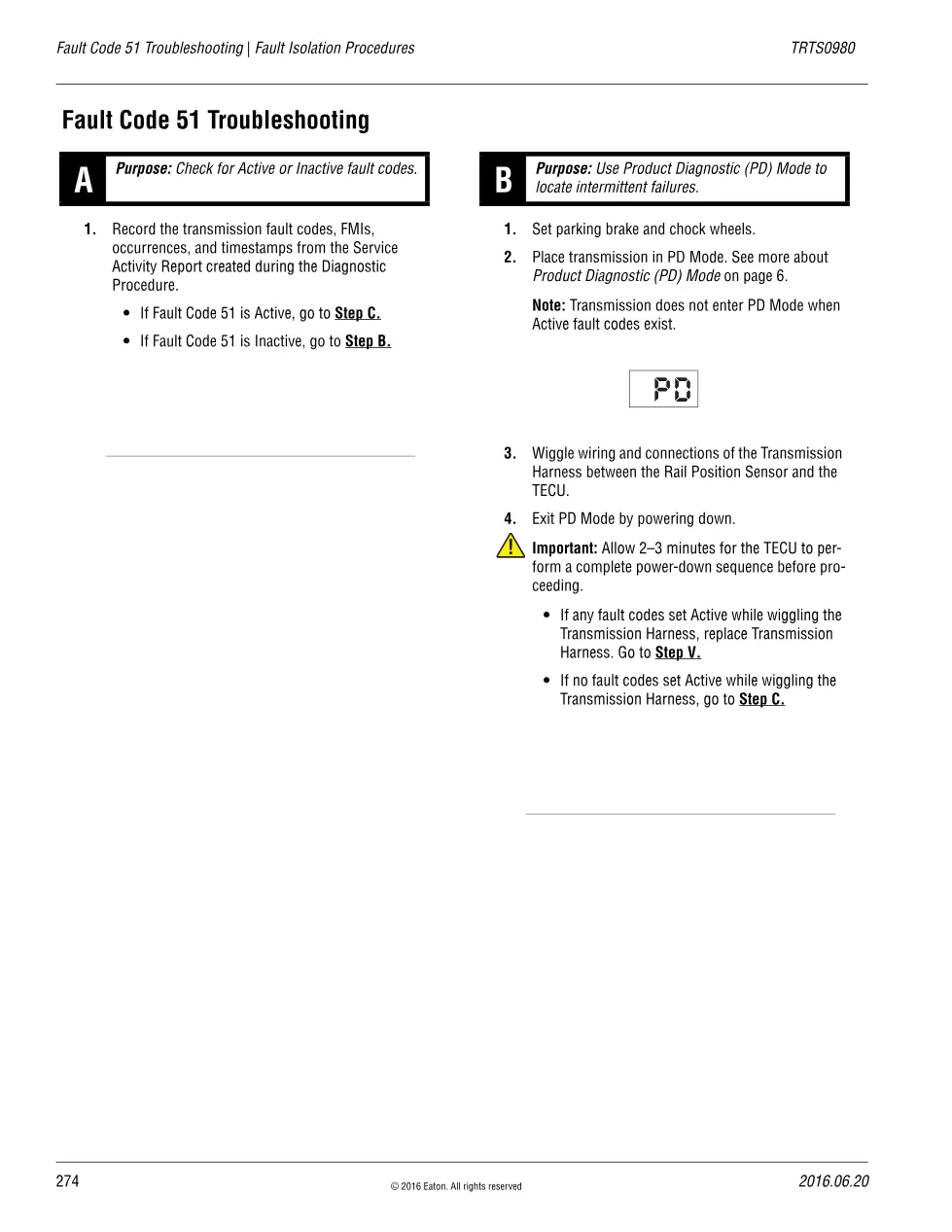

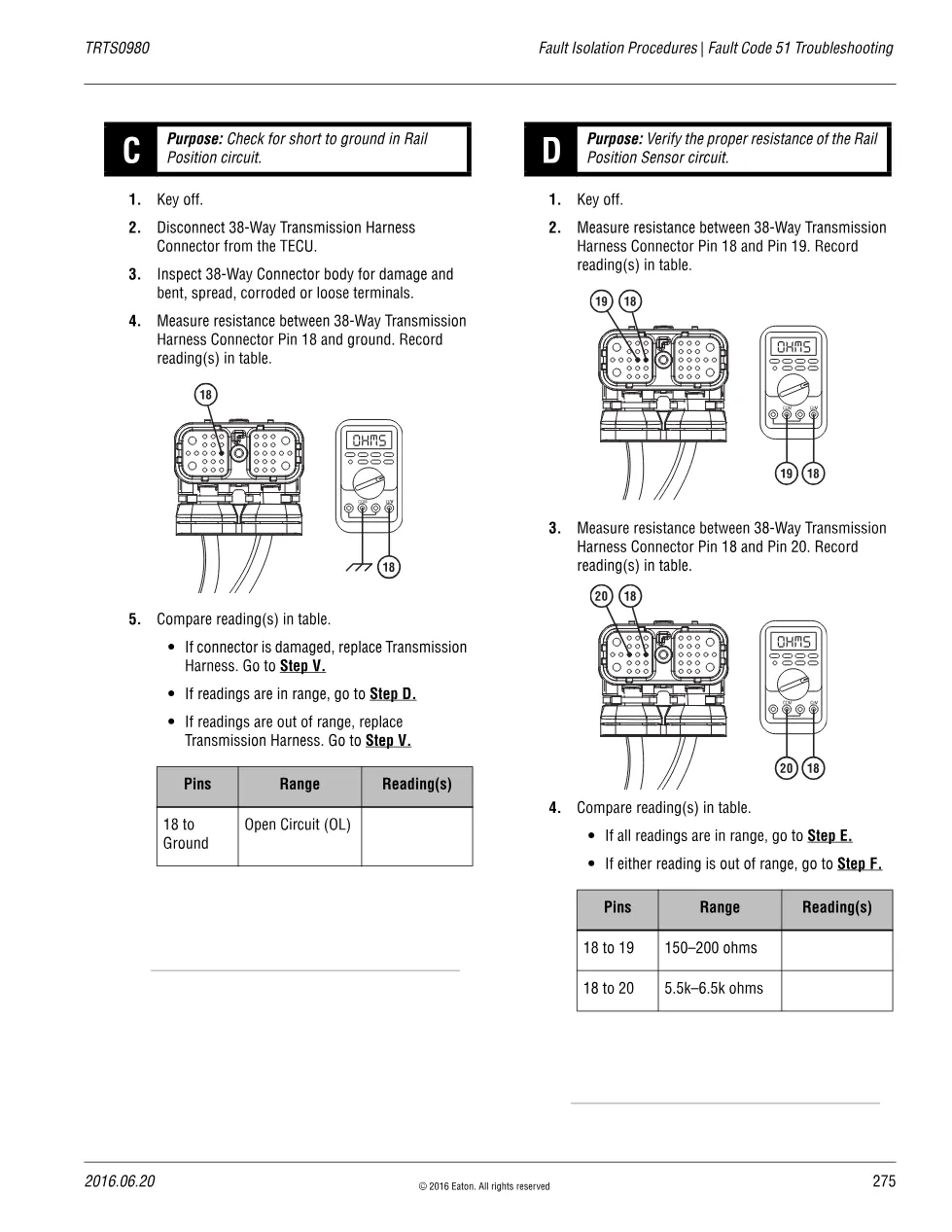

The manual first has the technician record fault codes, FMIs, occurrences and timestamps from the Service Activity Report. It then measures resistance at 38-Way Connector Pin 18 to ground and across Pins 18-19 (150–200 ohms) and 18-20 (5.5k–6.5k ohms), with matching checks at the 3-Way sensor body. FMI 2 or 10 points to the Transmission Harness, while FMI 3 or 4 calls for replacing both the TECU and the harness.
