This Fault Code 45 troubleshooting page from the Eaton Fuller Advantage Heavy Duty service set covers the fault isolation procedure for the Low Capacity Inertia Brake (LCIB). Published as TRTS0980, it combines a ServiceRanger test routine with a physical inspection of the LCIB and ECA Clutch.
Official document details
| Brand | Eaton |
| Model coverage | Fuller Advantage Heavy Duty (and Fuller Advantage) automated transmissions |
| System / Group | Fuller Advantage Heavy Duty / DTCs |
| Publication no. | TRTS0980 |
| Year / Revision | 2016.06.20 (© 2016 Eaton) |
| Pages | 2 |
| File size | 0.03 MB |
| Format | |
| Language | English |
Document table of contents

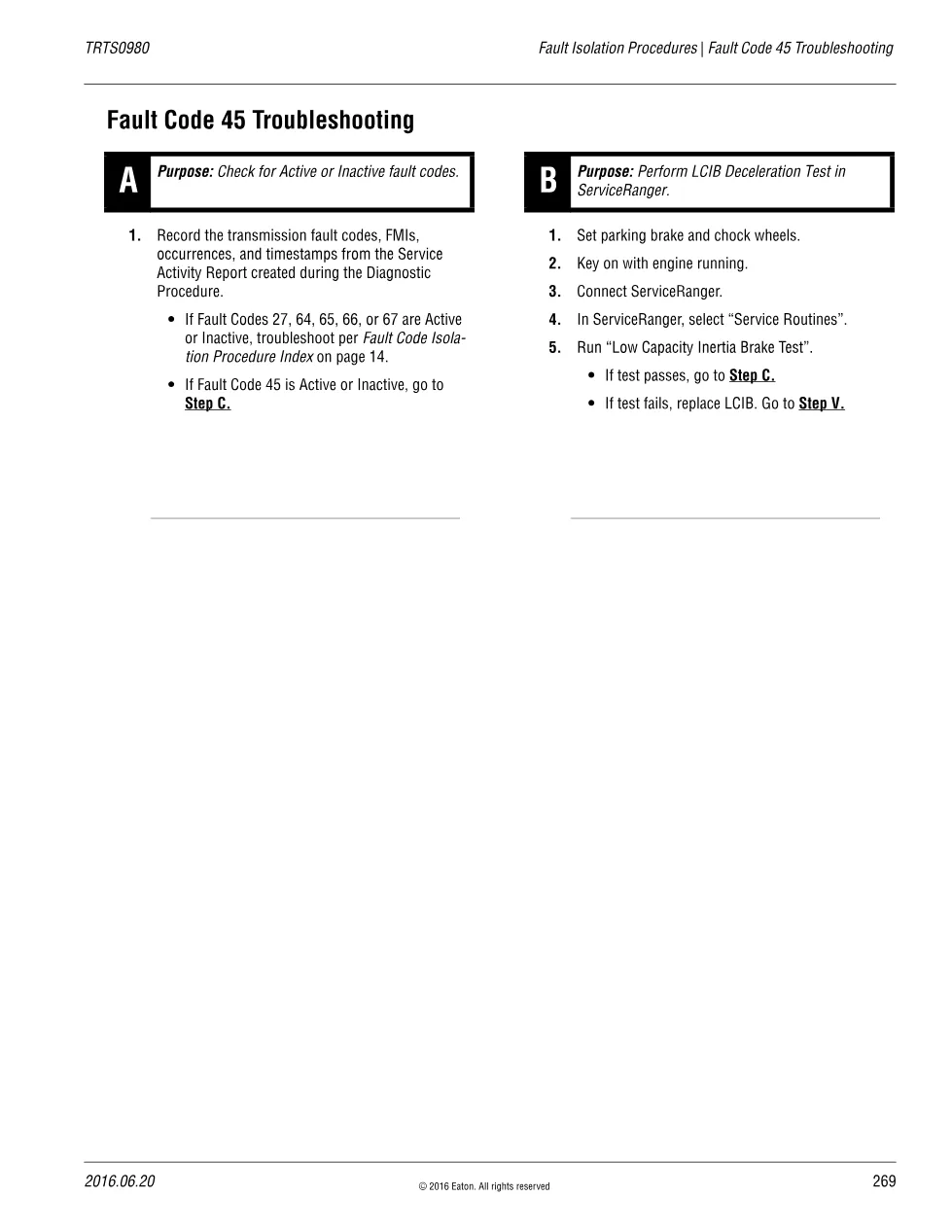

- Step A — Check for Active or Inactive fault codes
- Step B — Perform the LCIB Deceleration Test in ServiceRanger

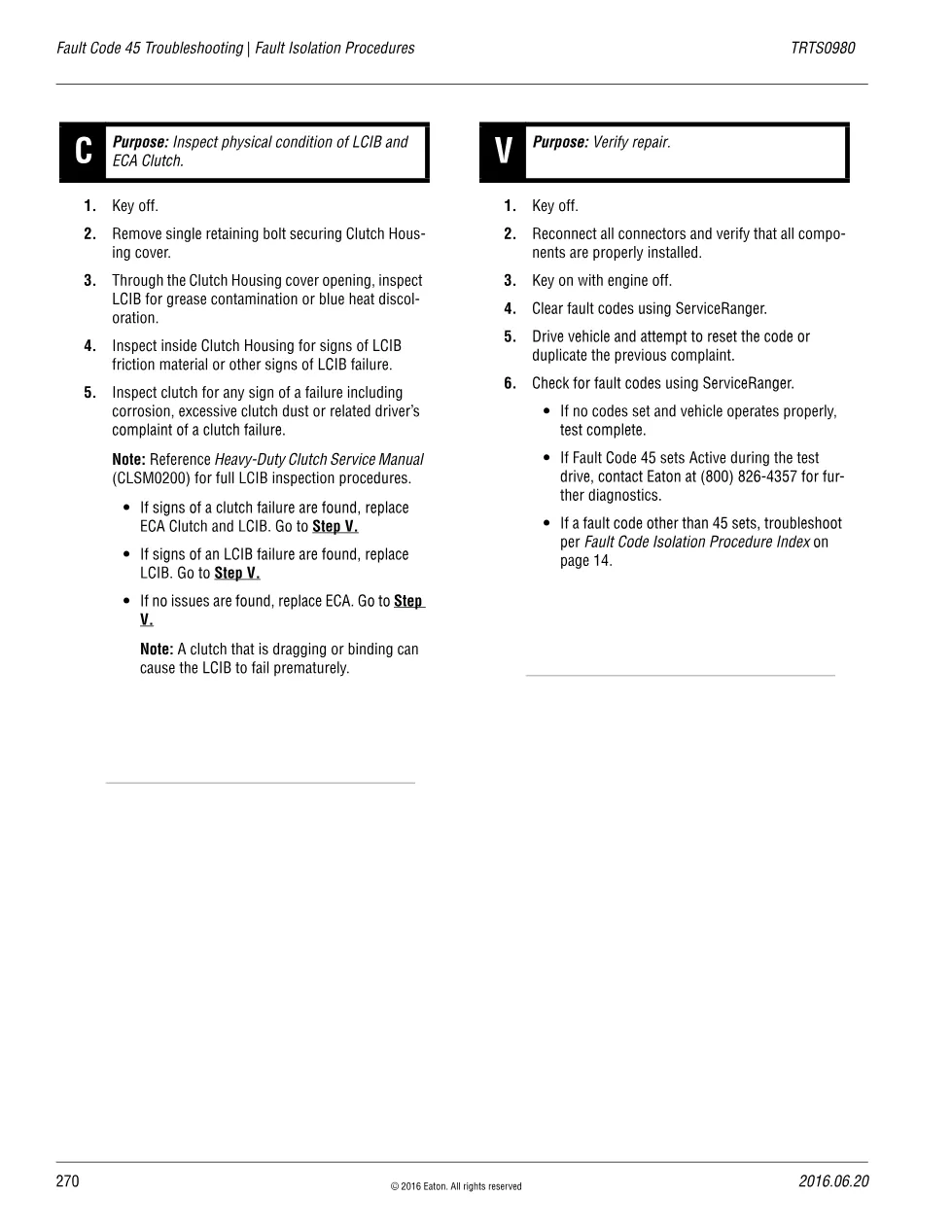

- Step C — Inspect physical condition of LCIB and ECA Clutch
- Step V — Verify repair
Applicable truck models
The procedure applies to Eaton Fuller Advantage Heavy Duty transmissions fitted with a Low Capacity Inertia Brake behind the Clutch Housing. Related service references such as the Heavy-Duty Clutch Service Manual (CLSM0200) and full model data are published on the Eaton Vehicle Group official website.
Fault Code 45 troubleshooting workflow
The technician first runs the Low Capacity Inertia Brake Test in ServiceRanger. If it fails, the LCIB is replaced; if it passes, the Clutch Housing cover is removed to inspect the LCIB for grease contamination or blue heat discolouration and the clutch for signs of failure. Findings decide whether the LCIB, the ECA Clutch or the ECA is replaced.
Who needs this Fault Code 45 troubleshooting manual
Clutch and driveline technicians use this short sheet to separate an inertia-brake failure from a dragging or binding clutch, following the CLSM0200 inspection notes before replacing costly ECA components. The manual also notes that a clutch which drags or binds can cause the LCIB to fail prematurely, and that if the code returns after the repair the technician should contact Eaton for further diagnostics.
