Fault Code 36 J1939 Engine Message is the official Eaton Fuller Advantage Heavy Duty diagnostic reference (publication TRTS0980) covering the case where the TECU can still communicate with other ECUs but has lost communication with the Engine ECU over the J1939 Data Link. This 3-page PDF documents detection, fallback and the possible causes on the Controller Area Network bus.
Fault Code 36 J1939 document details
| Brand | Eaton |
|---|---|
| Model coverage | Fuller Advantage Heavy Duty and Fuller Advantage |
| System / Group | DTCs / Fault Isolation Procedures |
| Publication no. | TRTS0980 |
| Year / Revision | 2016.06.20 (© 2016 Eaton) |
| Pages | 3 |
| File size | 0.6 MB |
| Format | |
| Language | English |
Document sections and coverage

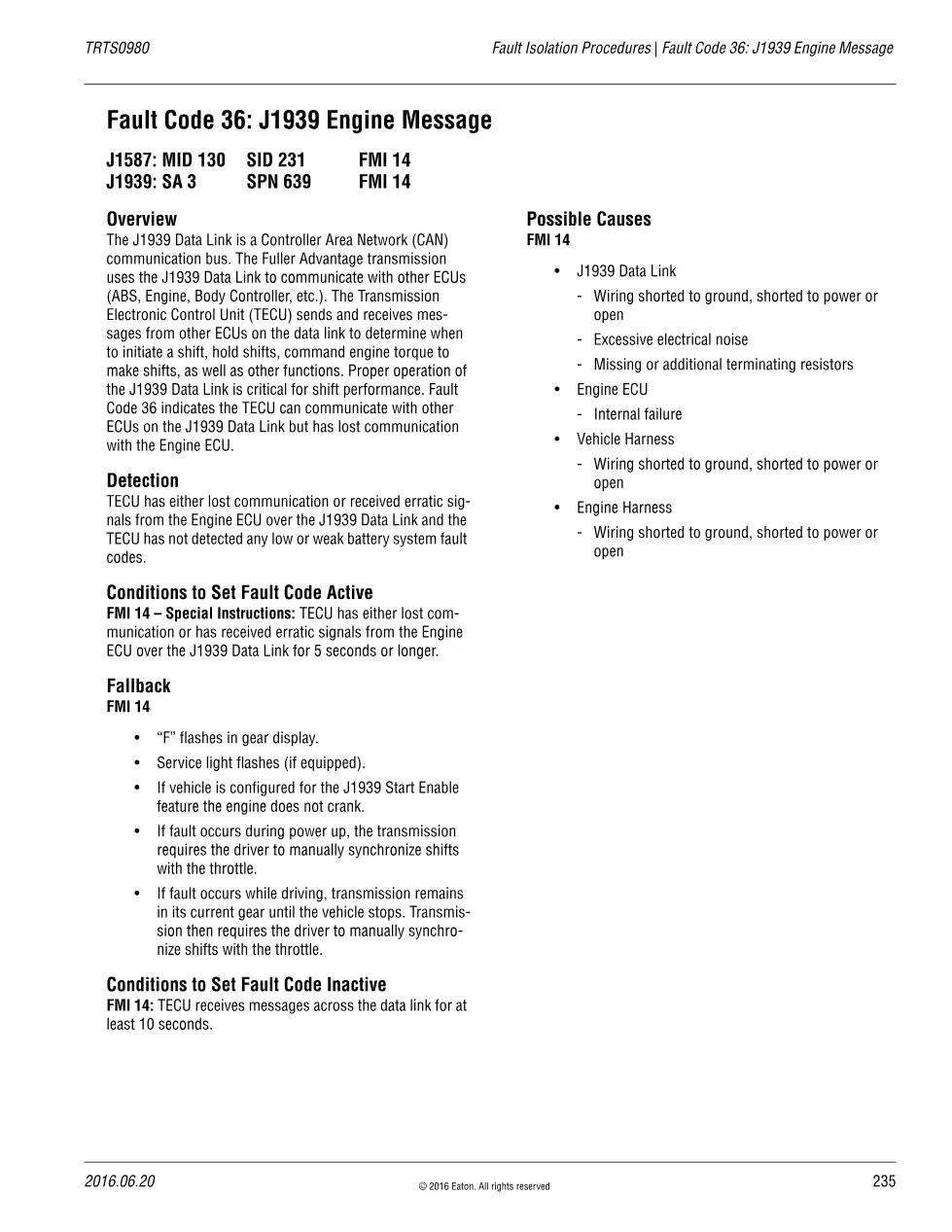

- Overview of the J1939 Data Link and shift-message role (SA 3 SPN 639 FMI 14)
- Detection of lost or erratic Engine ECU messages for 5 seconds or longer
- Conditions to set the fault Active (FMI 14 – Special Instructions)
- Fallback behavior, including manual-synchronize shifting
- Possible causes across the Engine ECU, Vehicle Harness and Engine Harness
Applicable transmissions and ECUs

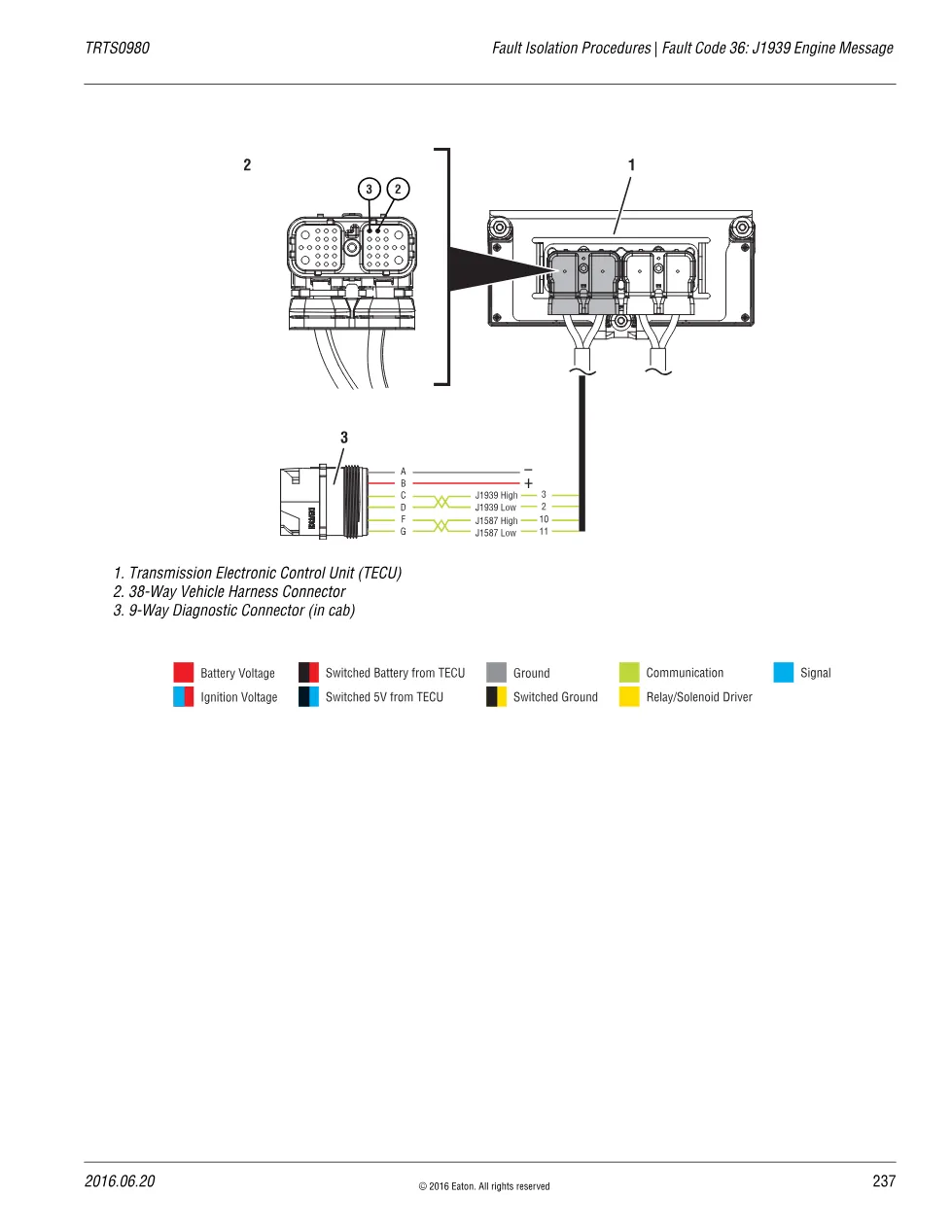

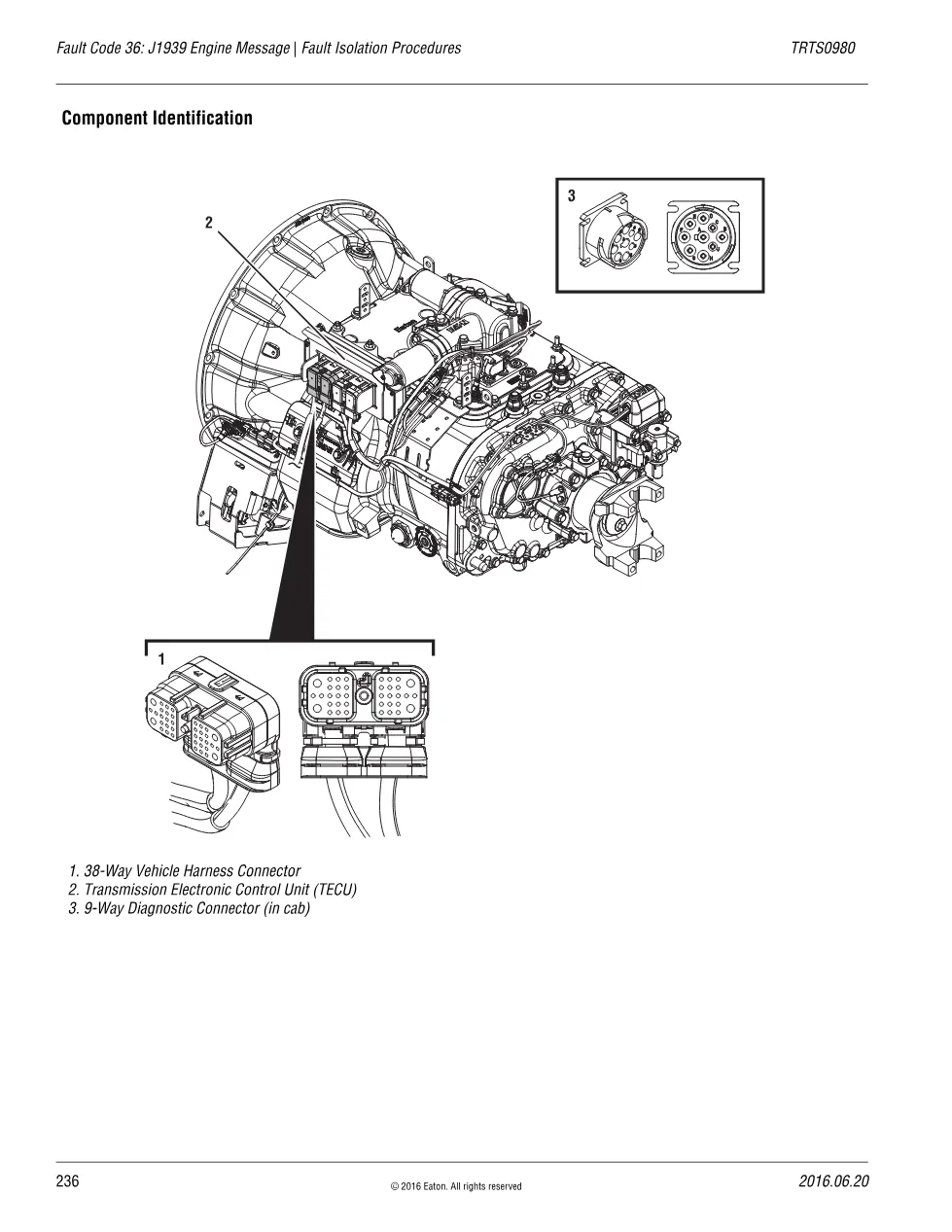

The reference covers Fuller Advantage Heavy Duty transmissions whose TECU exchanges shift and torque messages with the Engine ECU across the J1939 Data Link. Component identification lists the 38-Way Vehicle Harness Connector, the TECU and the 9-Way Diagnostic Connector. Unlike a full data-link loss, here the TECU can still reach other ECUs but not the engine, which points causes toward the Engine ECU, Engine Harness or terminating resistors. Manufacturer data is published on Eaton’s official Roadranger website.
Who needs this Fault Code 36 J1939 guide
Technicians and workshop owners diagnosing lost engine communication, a no-crank on J1939 Start Enable, or manual-synchronize fallback use this guide to separate an Engine ECU fault from data-link wiring faults. It confirms the fault clears only after the TECU receives messages across the data link for at least 10 seconds.
