Fault Code 33 troubleshooting is the step-by-step fault-isolation procedure for a low battery voltage supply to the TECU on the Eaton Fuller Advantage Heavy Duty transmission. This five-page section of publication TRTS0980 walks a technician from battery inspection and load testing through 38-Way connector resistance and voltage checks, using ServiceRanger to confirm the result. Each lettered step ends with a clear “go to” branch so the diagnosis stays repeatable.
Official document details
| Brand | Eaton |
|---|---|
| Model coverage | Fuller Advantage & Fuller Advantage Heavy Duty automated transmission |
| System / Group | DTCs – Fault Isolation Procedures |
| Publication no. | TRTS0980 |
| Year / Revision | 2016 (Rev. 2016.06.20) |
| Pages | 5 |
| File size | 0.4 MB |
| Format | |
| Language | English |
Fault Code 33 troubleshooting table of contents

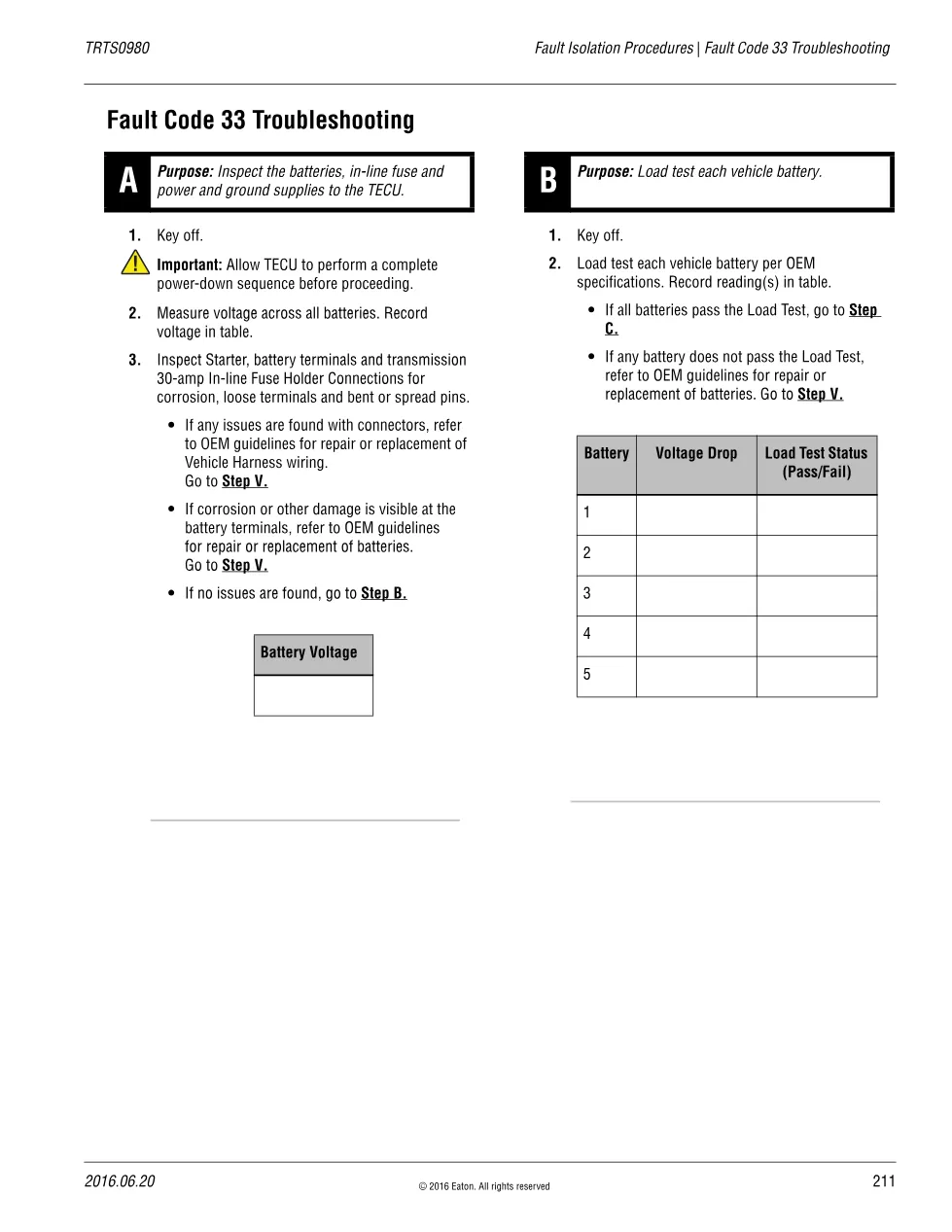

- Step A – Inspect batteries, in-line fuse and TECU power and ground supplies
- Step B – Load test each vehicle battery

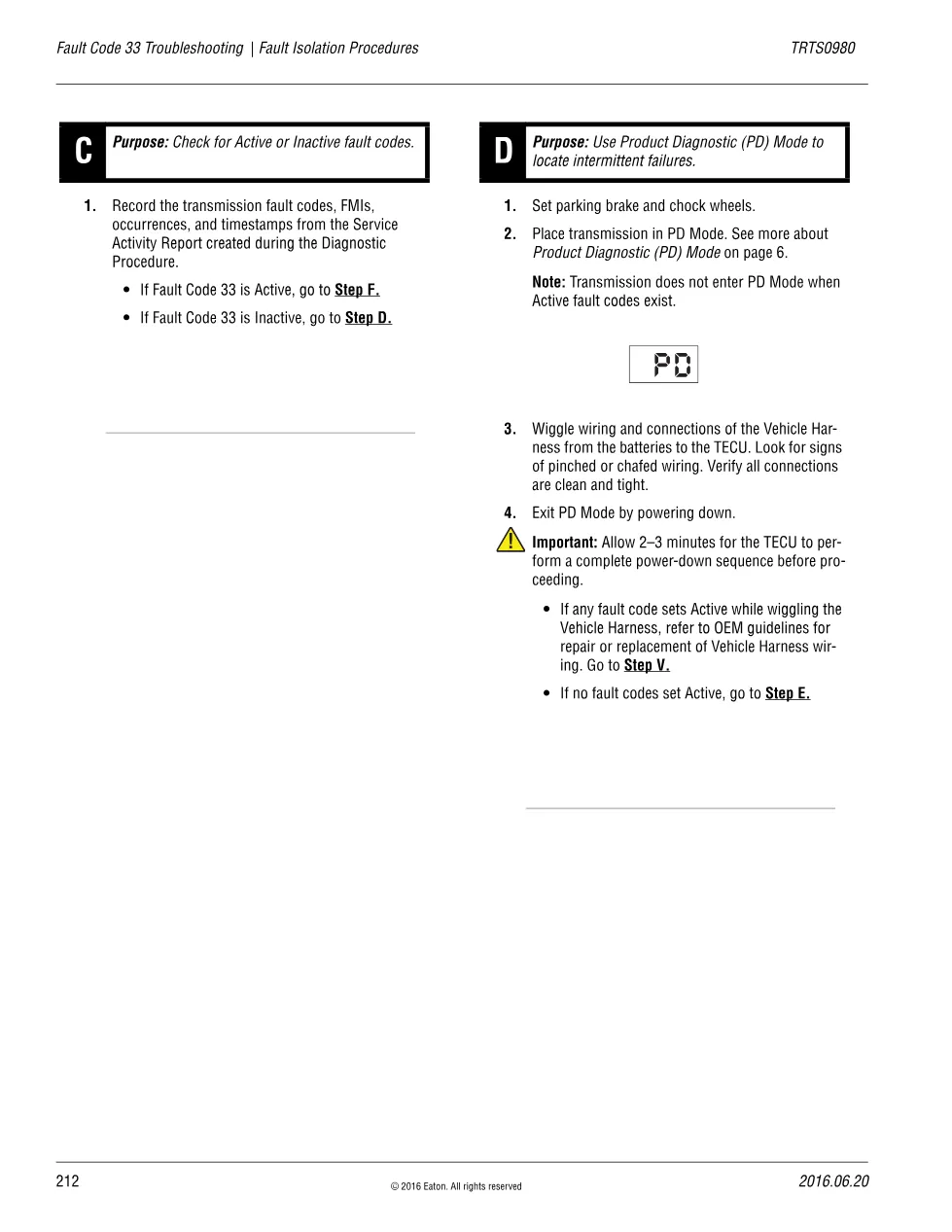

- Step C – Check for active or inactive fault codes
- Step D – Use Product Diagnostic (PD) Mode to locate intermittent failures

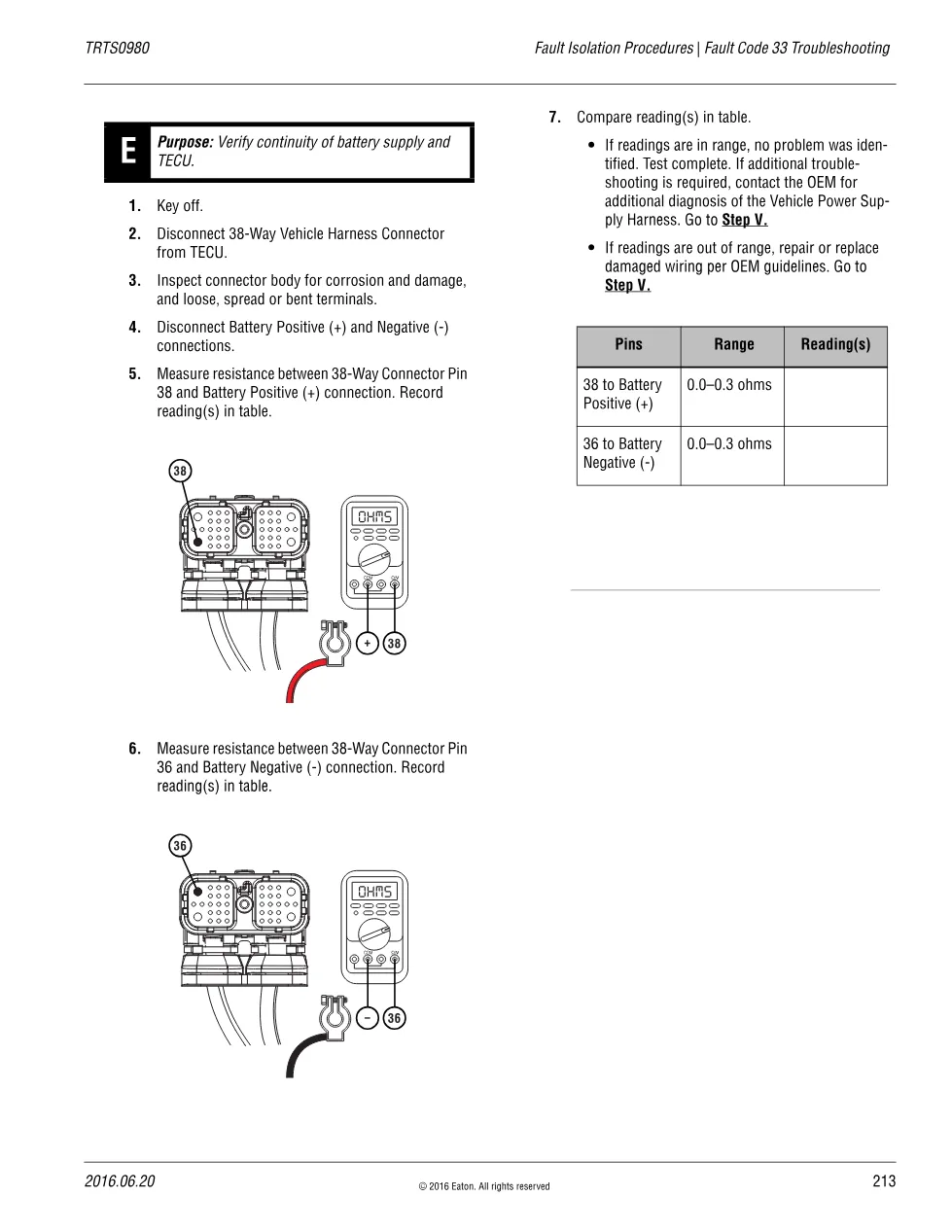

- Step E – Verify continuity of battery supply and TECU
- Step F – Verify battery voltage at the TECU
- Step G – Verify fault code status
- Step V – Verify repair
Applicable truck models covered
The procedure applies to heavy-duty trucks equipped with the Eaton Fuller Advantage or Fuller Advantage Heavy Duty automated transmission, whatever the chassis OEM. It references the 30-amp in-line fuse, the 38-Way Vehicle Harness Connector pins 38 and 36, and OEM battery and starter wiring, so the OEM chassis schematics are needed alongside it. Reference specifications are published on the manufacturer’s official Eaton transmissions website.
Who needs this Fault Code 33 troubleshooting manual
Diesel technicians and auto-electricians chasing a code 33 or intermittent no-start use this procedure to load test the batteries, measure the 0.0–0.3 ohm supply resistance and confirm battery voltage reaches the control unit before replacing the TECU.
The complete PDF, published under Eaton document TRTS0980, is available in the DiagTechPro manuals library; a free account is required to download it.
