This Eaton Fault Code 36 procedure is the official Fuller Advantage Heavy Duty transmission fault-isolation document (publication TRTS0980) used to diagnose lost J1939 communication between the Engine ECU and the Transmission Electronic Control Unit (TECU). The 5-page PDF gives technicians the exact resistance and continuity checks required to isolate the fault and verify the repair. All connector wiring and pin-outs are OEM proprietary, so the guide works alongside the vehicle manufacturer documentation.
Eaton Fault Code 36 document details
| Brand | Eaton |
|---|---|
| Model coverage | Fuller Advantage Heavy Duty and Fuller Advantage |
| System / Group | DTCs / Fault Isolation Procedures |
| Publication no. | TRTS0980 |
| Year / Revision | 2016.06.20 (© 2016 Eaton) |
| Pages | 5 |
| File size | 0.6 MB |
| Format | |
| Language | English |
Fault isolation steps included

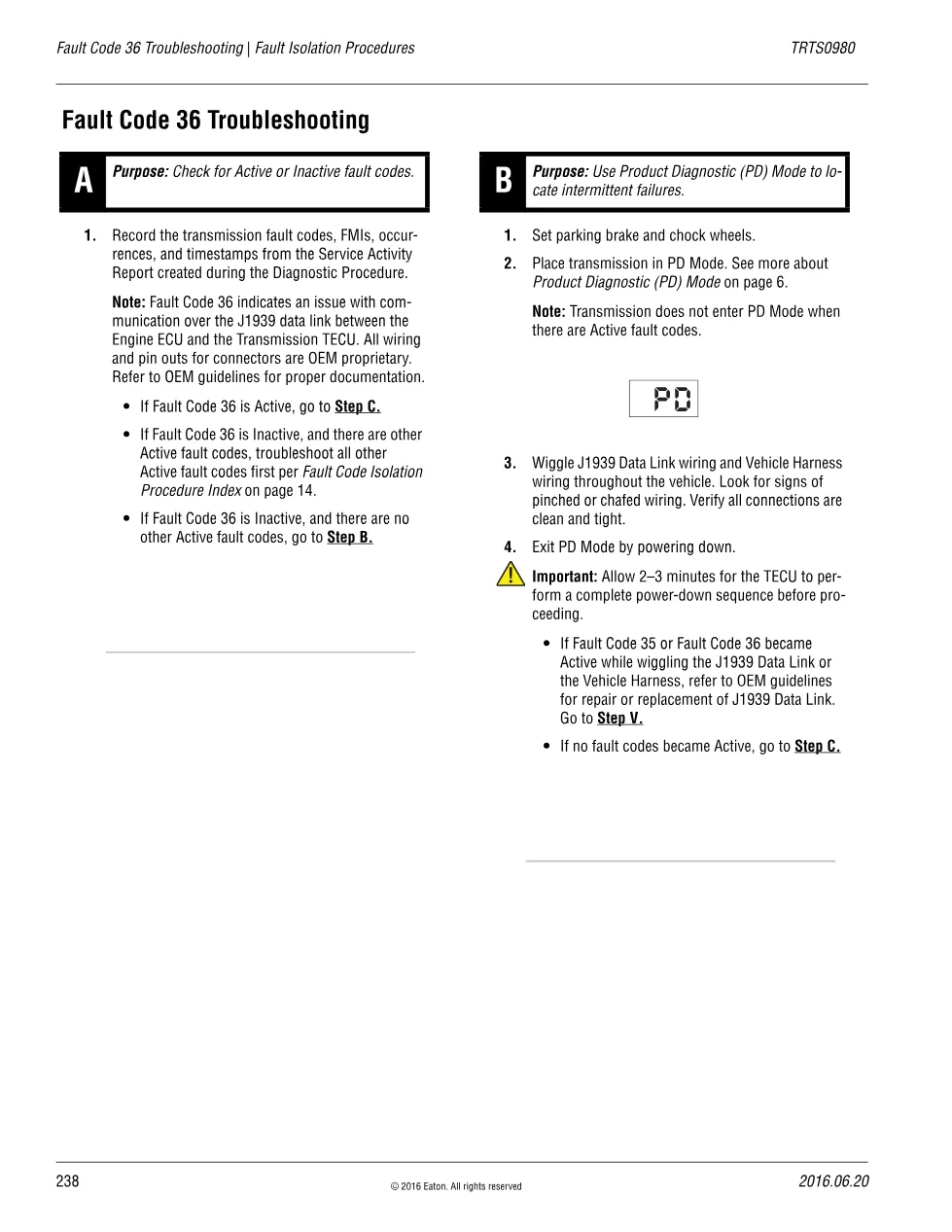

- Step A — Check for Active or Inactive fault codes
- Step B — Use Product Diagnostic (PD) Mode to locate intermittent failures

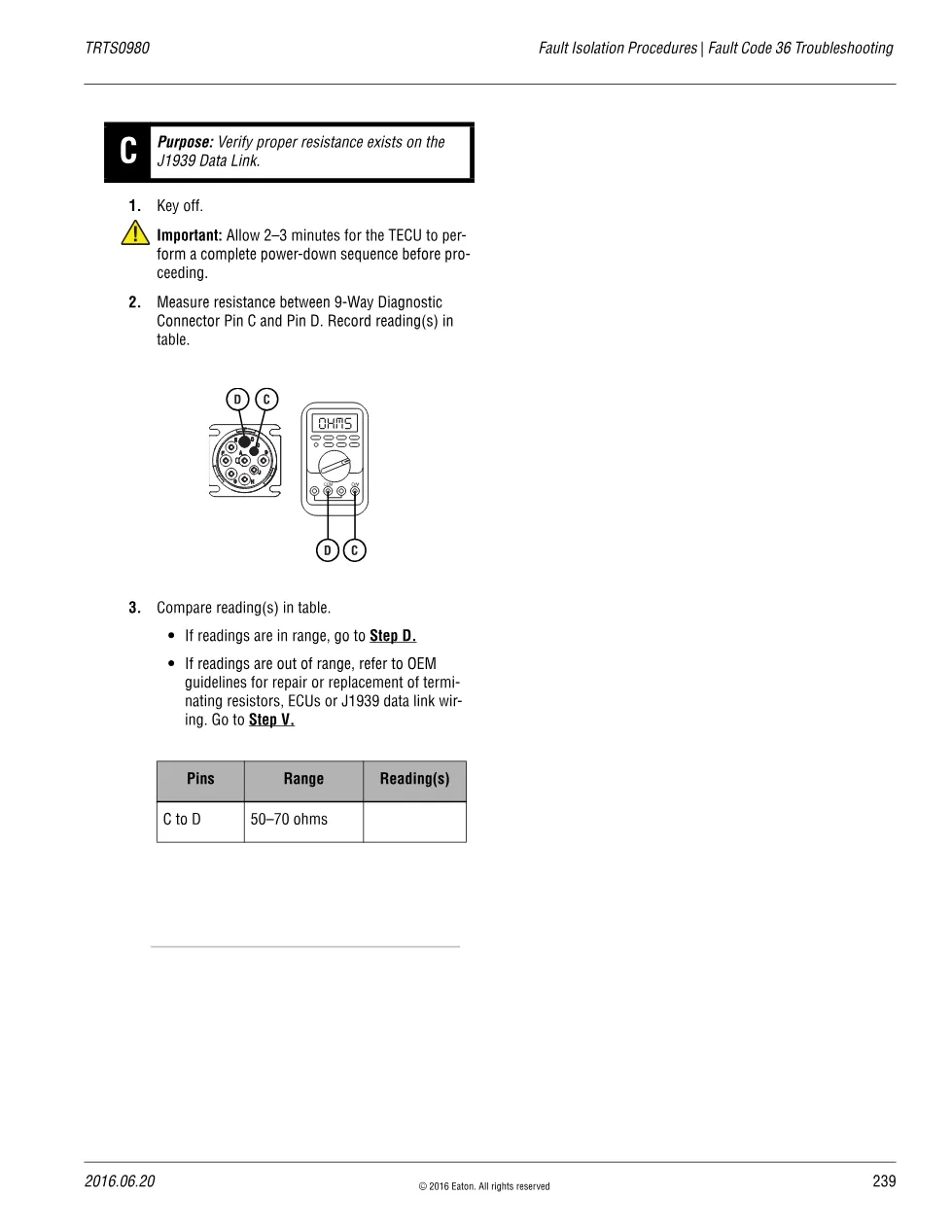

- Step C — Verify proper resistance on the J1939 Data Link (50–70 ohms)

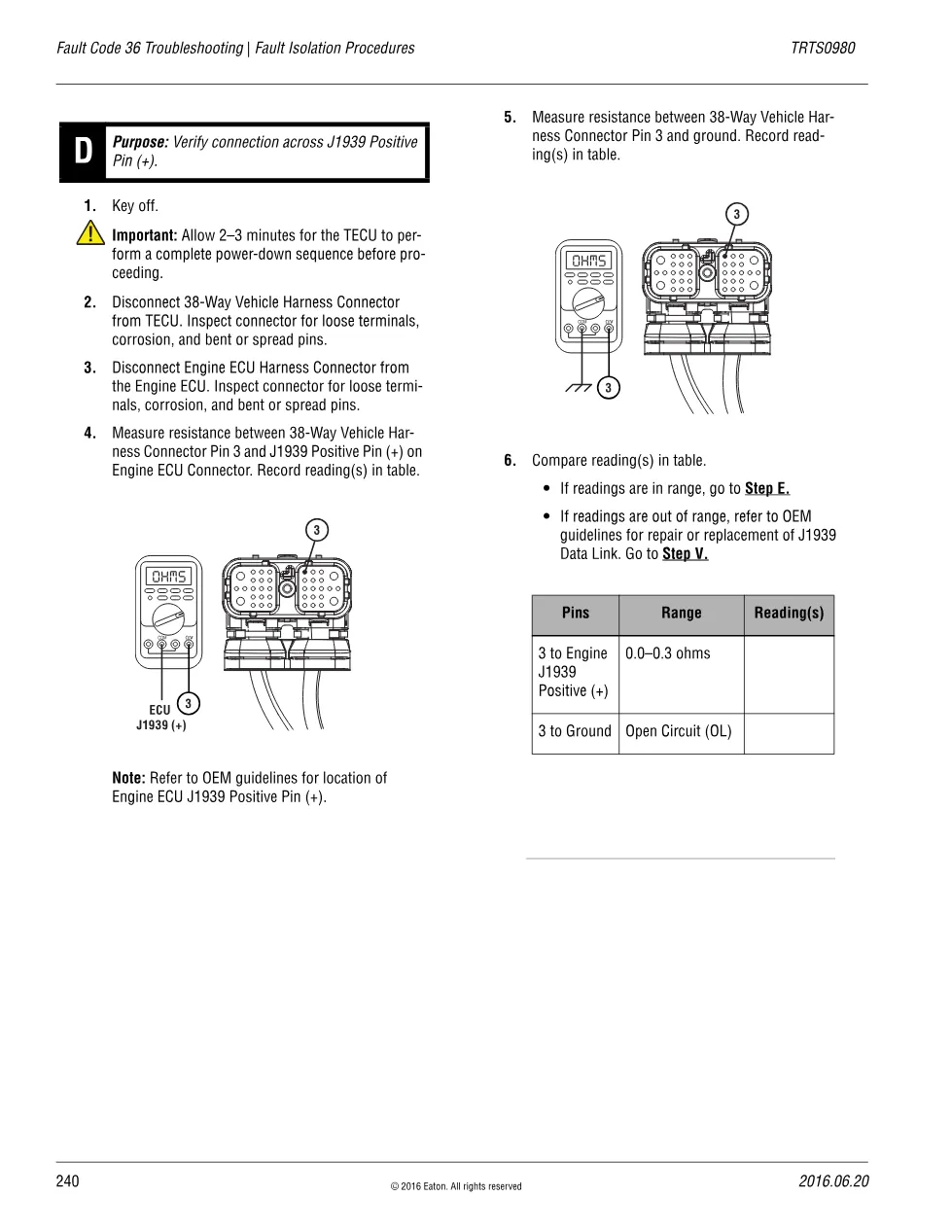

- Step D — Verify connection across the J1939 positive pin
- Step E — Verify connection across the J1939 negative pin
- Step V — Verify repair and clear codes with ServiceRanger
Applicable transmissions and connectors
The procedure applies to Fuller Advantage Heavy Duty automated transmissions that use a TECU, a 38-Way Vehicle Harness Connector and a 9-Way Diagnostic Connector in the cab. Because all wiring and pin-outs are OEM proprietary, the document repeatedly directs technicians to OEM guidelines for harness repair or replacement. Manufacturer model and connector data is published on Eaton’s official Roadranger website.
Who needs this Eaton Fault Code 36 manual
Heavy-duty driveline technicians and workshop owners chasing an active Fault Code 36, or an intermittent J1939 dropout to the engine, use this manual to confirm terminating-resistor values and clear the code correctly the first time.
The complete Fault Code 36 PDF is available in the DiagTechPro manuals library; a free account is required to download.
