This Eaton Fault Code 34 procedure is the official Fuller Advantage Heavy Duty fault-isolation document (publication TRTS0980) for diagnosing a weak battery-voltage supply to the transmission TECU. The 5-page PDF covers battery inspection, load testing, and continuity and voltage measurements from the batteries through the 38-Way Vehicle Harness to the TECU.
Eaton Fault Code 34 document details
| Brand | Eaton |
|---|---|
| Model coverage | Fuller Advantage Heavy Duty and Fuller Advantage |
| System / Group | DTCs / Fault Isolation Procedures |
| Publication no. | TRTS0980 |
| Year / Revision | 2016.06.20 (© 2016 Eaton) |
| Pages | 5 |
| File size | 0.5 MB |
| Format | |
| Language | English |
Fault isolation steps included

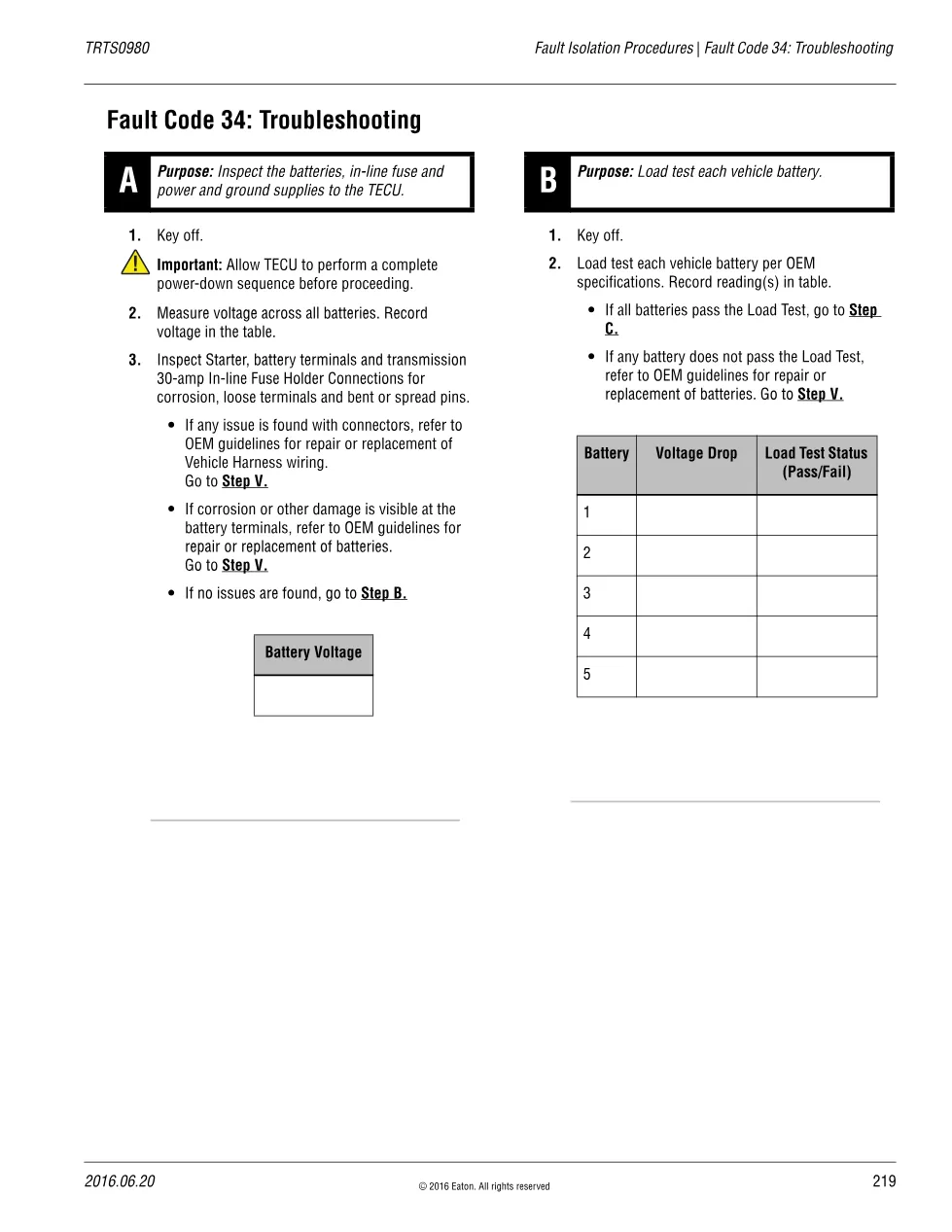

- Step A — Inspect batteries, in-line fuse and power/ground supplies
- Step B — Load test each vehicle battery per OEM specifications

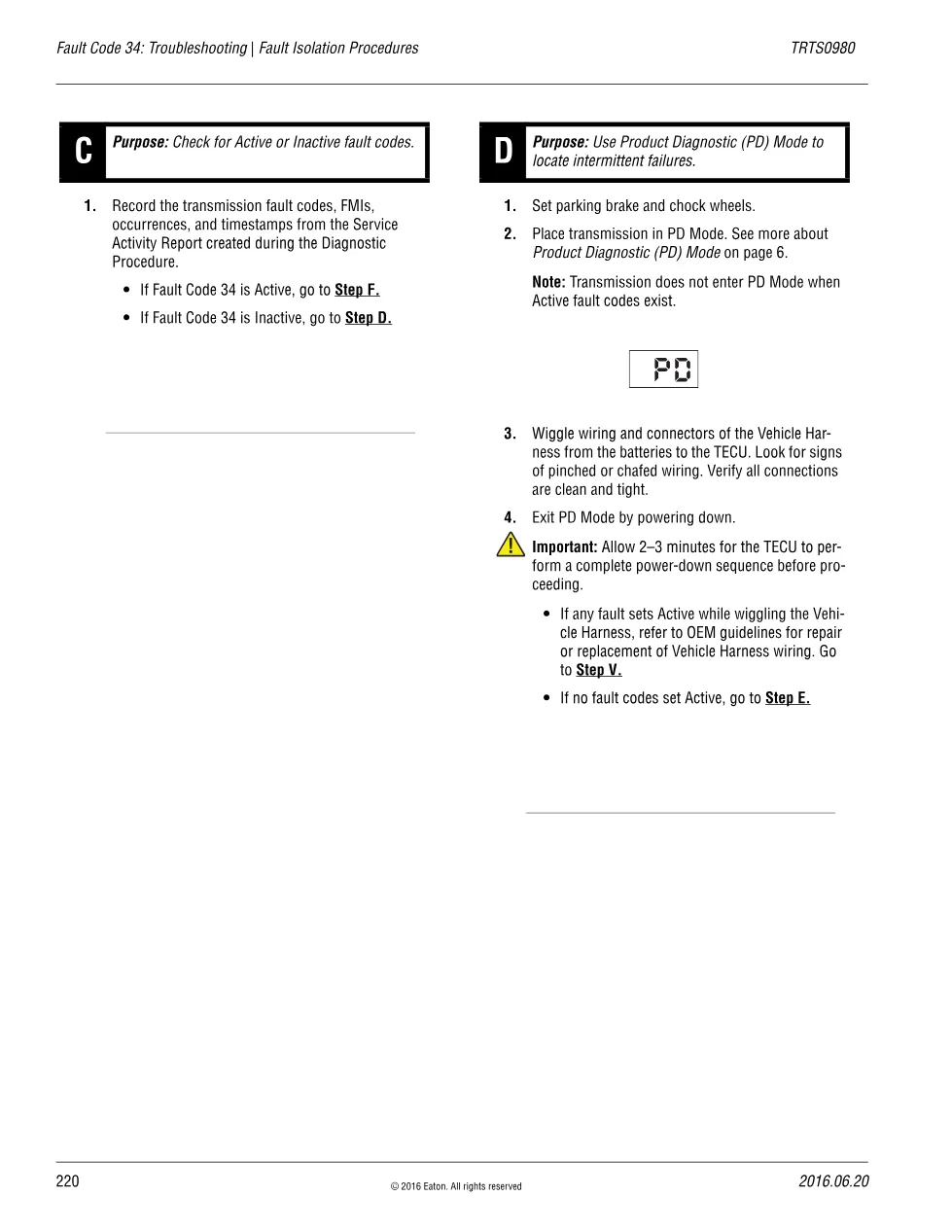

- Step C/D — Check fault codes and use Product Diagnostic (PD) Mode

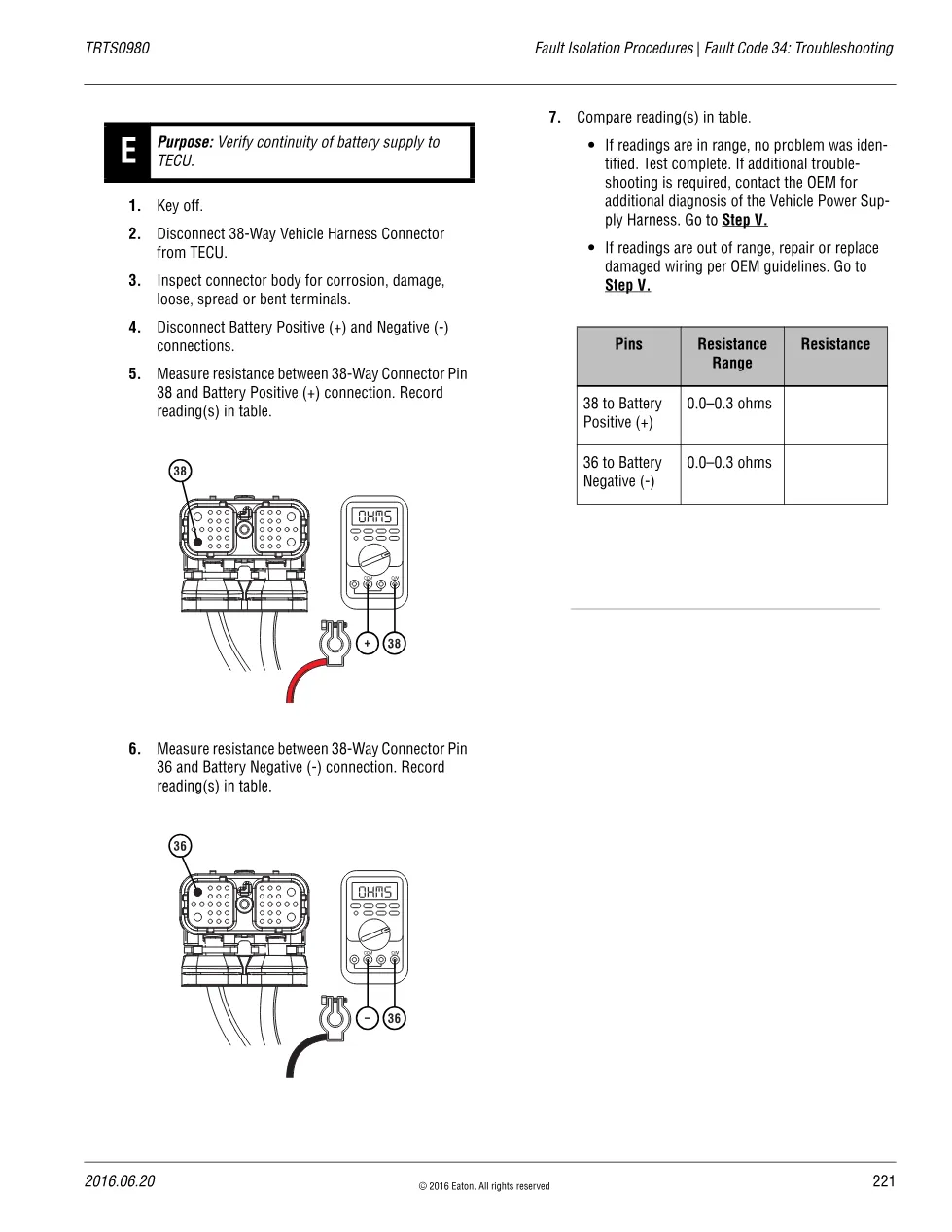

- Step E — Verify continuity of battery supply to the TECU (0.0–0.3 ohms)
- Step F — Verify battery voltage at the TECU (within 1.2 V of battery)
- Step G/V — Verify fault code status with ServiceRanger and confirm repair
Applicable transmissions and supply
The procedure covers Fuller Advantage Heavy Duty transmissions powered through the vehicle 30-amp in-line fuse holder, the 38-Way Vehicle Harness and the TECU. Because battery voltage and charging are OEM systems, repairs follow OEM guidelines. Technicians inspect the starter, battery terminals and fuse holder for corrosion, then load test each battery before checking continuity on pins 38 and 36. Manufacturer data is published on Eaton’s official Roadranger website.
Who needs this Eaton Fault Code 34 manual
Technicians and workshop owners diagnosing a no-crank, a failure to engage from neutral, or low battery voltage at the TECU use this manual to load test correctly and isolate the weak supply. It also shows when a code that stays active with all connections re-established points to a failed TECU.
