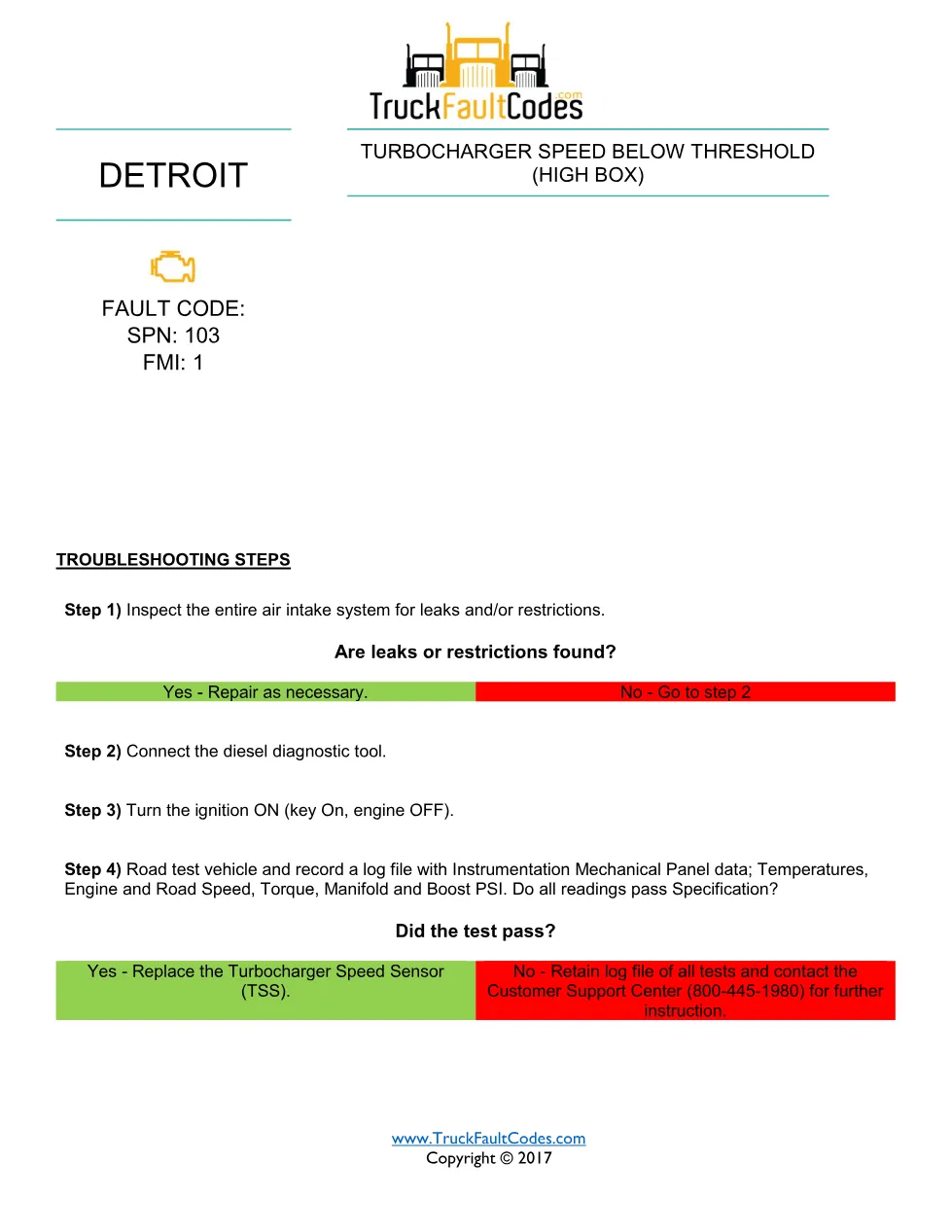

This Detroit turbocharger high box reference documents fault code SPN 103/FMI 1 (Turbocharger Speed Below Threshold (High Box)) for Detroit DD-series engines with a turbocharger speed sensor. It reproduces the original TruckFaultCodes.com fault tree, from the first check through the final repair, so the code can be confirmed and worked in the exact order the factory intended. Each step lists the measured value or check and the pass or fail branch that follows, matching the layout used in the source document.
Detroit turbocharger high box troubleshooting overview
This sheet handles a turbocharger speed reading below threshold in the high box. It starts with an air-intake leak and restriction inspection, then a road test logging temperatures, engine and road speed, torque, manifold and boost PSI. Passing readings direct replacing the TSS; failing readings are logged for the Customer Support Center. Follow the checks in sequence and verify the repair before clearing the code and releasing the vehicle.
Official document details
| Brand | Detroit |
| Model coverage | Detroit DD-series engines with a turbocharger speed sensor |
| System / group | DTCs — turbocharger speed sensor (TSS) |
| Fault code | SPN 103/FMI 1 |
| Source publication | TruckFaultCodes.com (© 2017) |
| Pages | 1 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification — SPN 103/FMI 1
- Air-intake leak and restriction inspection
- Connect the diesel diagnostic tool
- Road test with Instrumentation Mechanical Panel log
- Replace the TSS or retain the log and contact support
Applicable truck models
It applies to Detroit DD-series engines equipped with a turbocharger speed sensor. Always cross-check the reading against any companion codes before condemning a component. For the official product and service literature, visit the Detroit Diesel website.
Who needs this Detroit turbocharger high box manual
Mechanics who need the high-box road-test procedure to confirm a TSS replacement. It is written for shop use as a quick, printable reference to keep beside a diesel diagnostic tool during the job.
