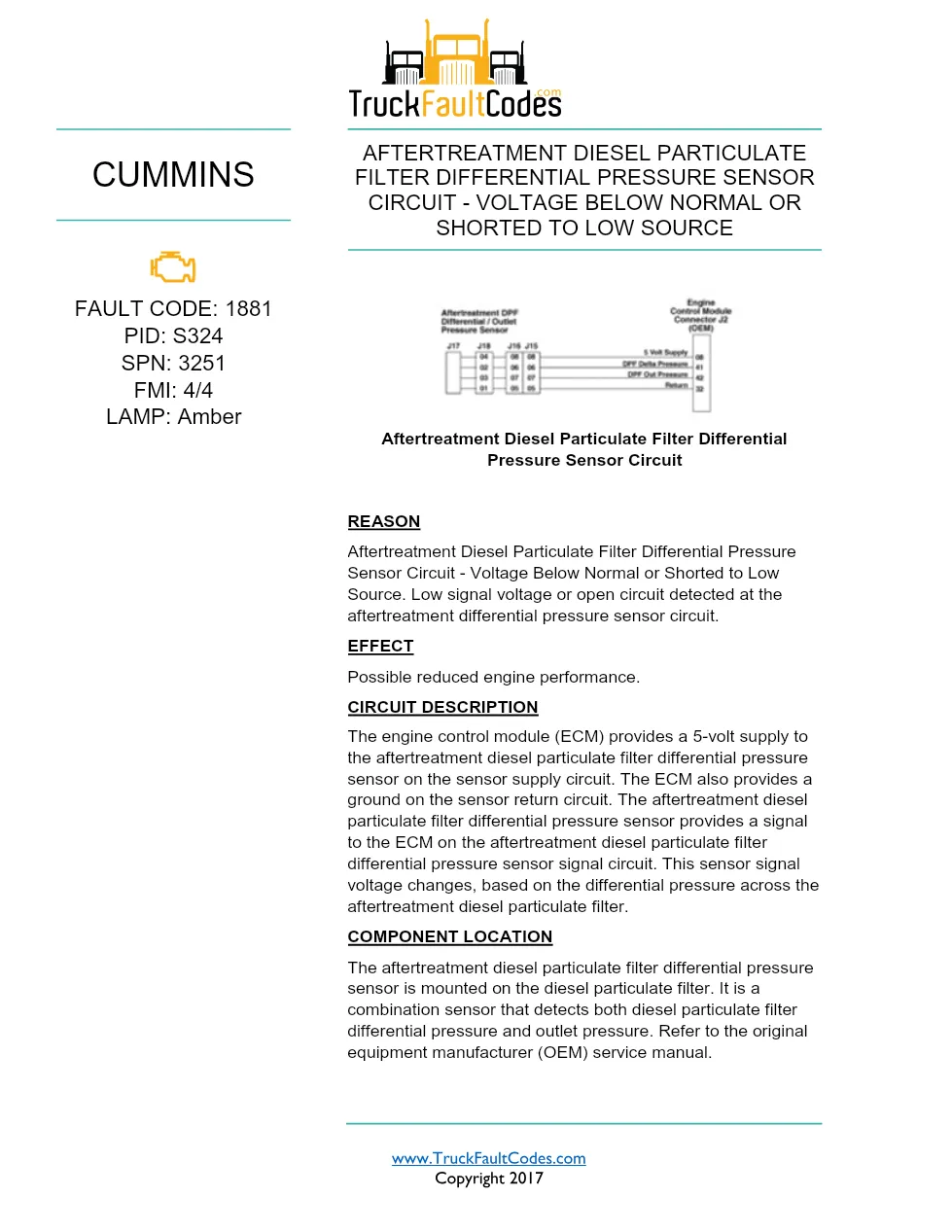

Cummins ISX12 DTC 1881 is a 13-page Cummins troubleshooting document for the ISX12 CM2350 (2013-17) / DTCs group. The extract identifies Aftertreatment Diesel Particulate Filter Differential Pressure Sensor Circuit – Voltage Below Normal or Shorted to Low Source. Low signal voltage or open circuit detected at the af and provides a structured diagnostic path for workshop technicians. Use the document with the correct engine application and diagnostic tool before deciding on a repair.
Official Cummins ISX12 DTC 1881 document details
| Brand | Cummins |
|---|---|
| Model coverage | ISX12 CM2350 (2013-17) / DTCs |
| System group | DTC troubleshooting |
| Fault identifier | Fault Code 1881 |
| Pages | 13 |
| Format | |
| Language | English |
Document table of contents
- Fault description, reason, and possible effect
- Diagnostic running and fault-setting conditions
- Connector, sensor, harness, and ECM inspection steps
- Repair validation and fault-clearing procedure

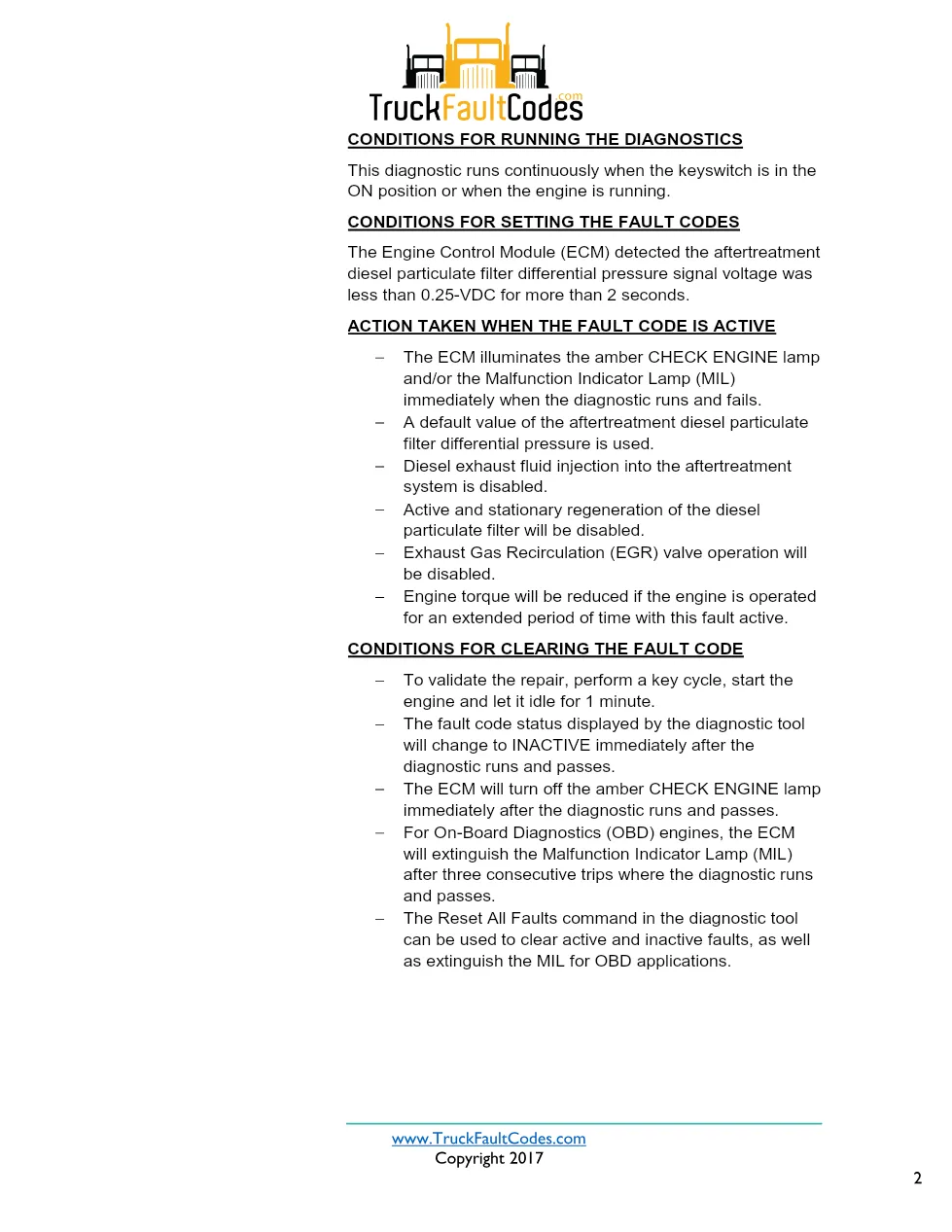

The extract describes the conditions that run the diagnostic and the conditions that set the code. It also identifies the component or circuit under test, the control-module response, and the checks required before a repair is confirmed. Technicians should follow the listed sequence rather than treating one symptom as proof of a failed part. The pages include inspection of connector condition, wiring integrity, circuit response, and the final check that the fault has become inactive. Where the procedure calls for measurements, use the specified connector identification and the applicable circuit information. This preserves the diagnostic order shown in the source and avoids replacing documented checks with assumptions.
Applicable truck models
This document is filed for Cummins ISX12 CM2350 (2013-17) / DTCs. The extract should be used only when the engine and fault-code application match the vehicle being diagnosed. For manufacturer information, visit the Cummins official website.
Who needs this Cummins ISX12 DTC 1881 manual
Workshop technicians and fleet maintenance staff can use this document when the matching code is active or when a repair needs confirmation. It supports a methodical review of the circuit, related connections, and the documented clear-fault conditions.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
