This Cummins ISB wiring document is a Spanish PDF with ECM wiring diagrams, connector pinouts, and fault code information for the ISB engine system. It shows OEM and Cummins responsibility areas, data links, sensors, lamps, switches, VP44 fuel pump control, and diagnostic circuit effects. The file is useful when tracing electrical faults, checking connector pins, or comparing fault codes with circuit behavior.
Official Cummins ISB wiring document details
| Brand | Cummins |
|---|---|
| Model coverage | ISB engine wiring diagram; ECM Part No. 3942335 shown in the extract |
| System/Group | General electrical, ECM, VP44 fuel system, diagnostic fault code information |
| Publication no. | Bulletin No. 3666325; Boletín 3150935 |
| Year/Revision | Revised 25/02/97; year otherwise unknown |
| Pages | 7 pages |
| File size | 4.5 MB |
| Format | |
| Language | Spanish |
Document table of contents

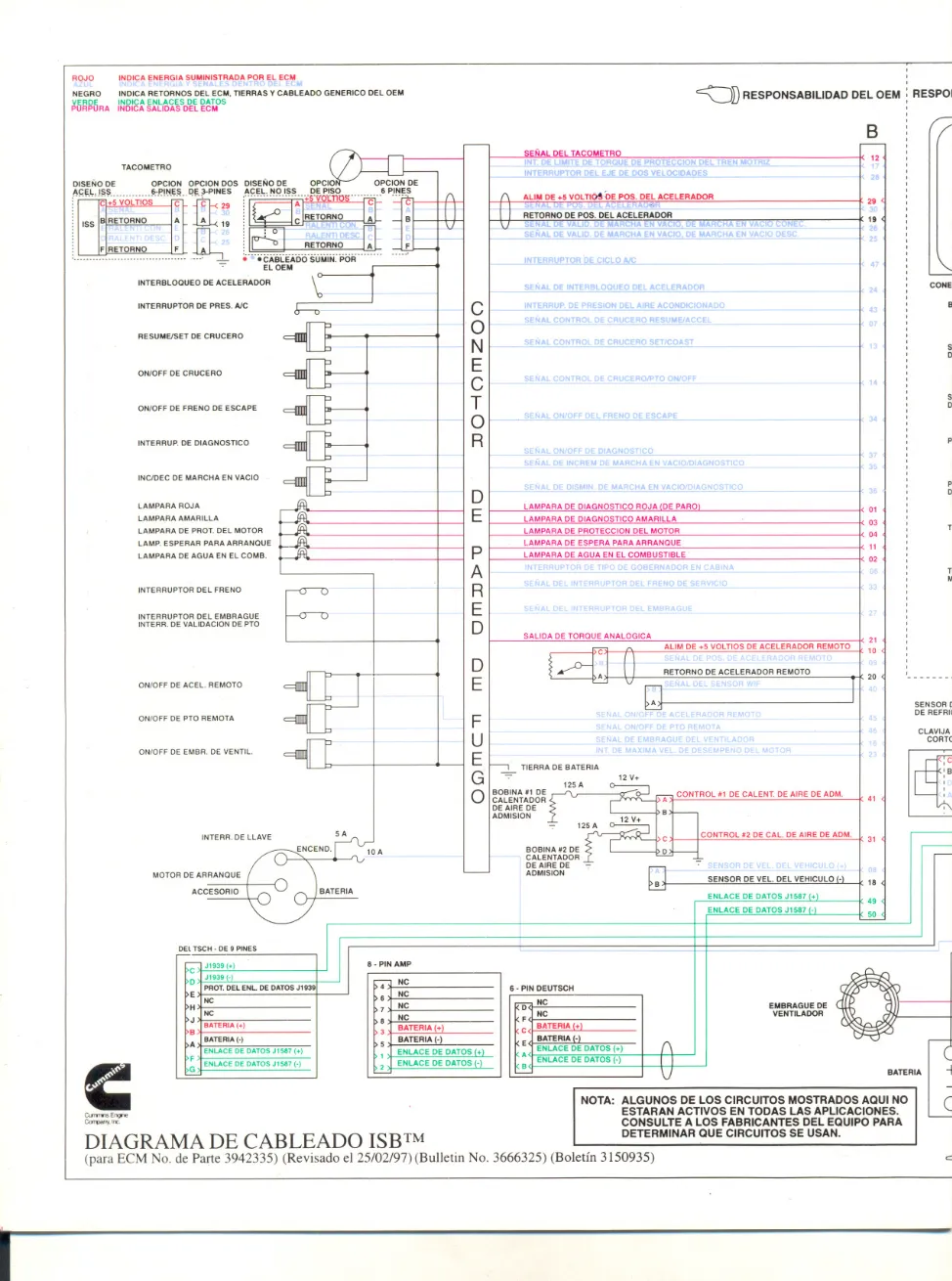

- DIAGRAMA DE CABLEADO ISB
- Color legend for ECM power, returns, data links, and ECM outputs

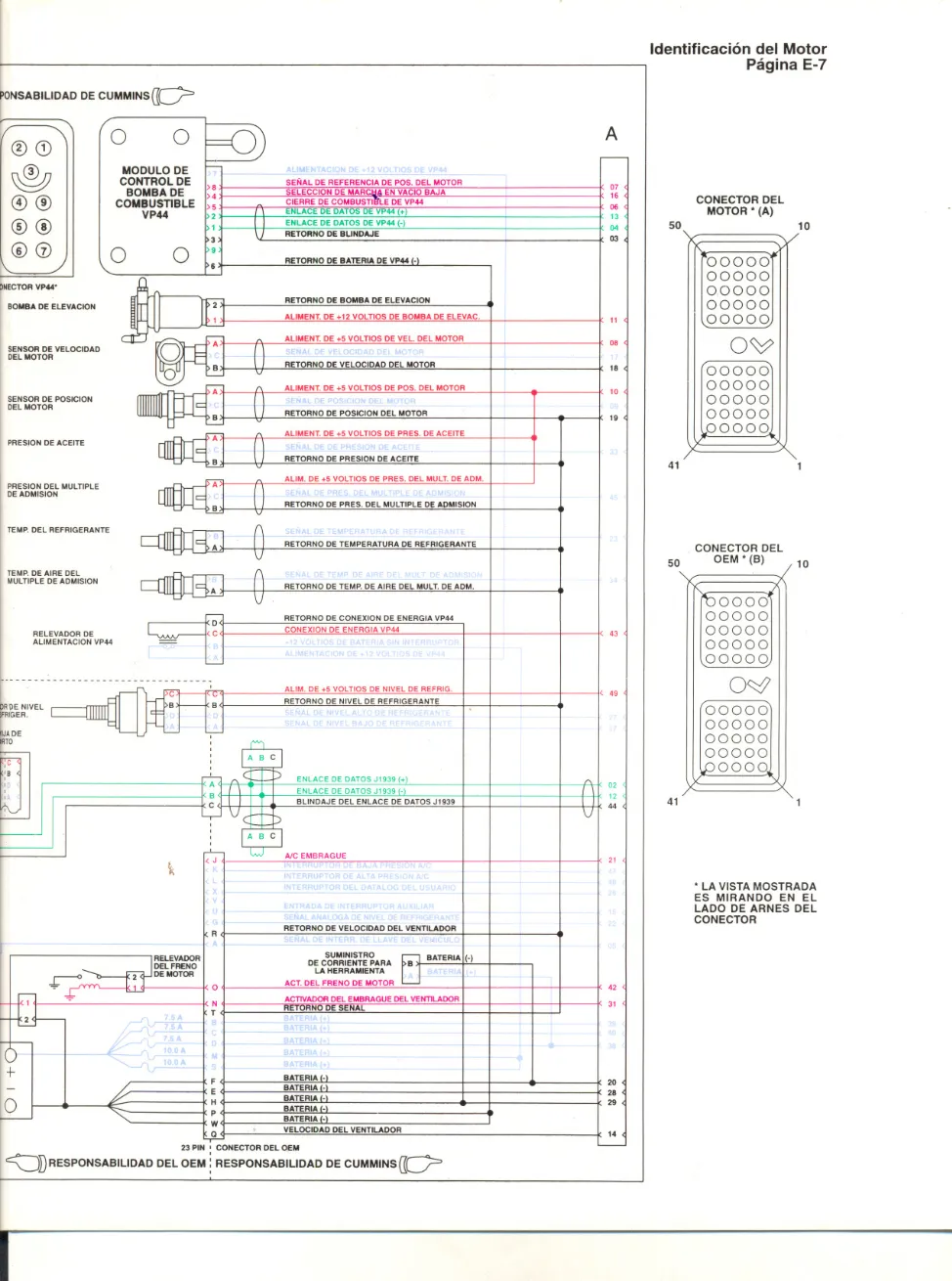

- OEM connector and engine connector pin identification
- J1587 data link and J1939 data link circuits
- VP44 fuel pump module, power relay, lift pump, and fuel shutoff circuits
- Engine speed sensor, engine position sensor, oil pressure, intake manifold pressure, coolant temperature, and intake manifold air temperature circuits
- Cab switches, cruise control, PTO, exhaust brake, fan clutch, diagnostic lamps, wait-to-start lamp, and water-in-fuel lamp circuits

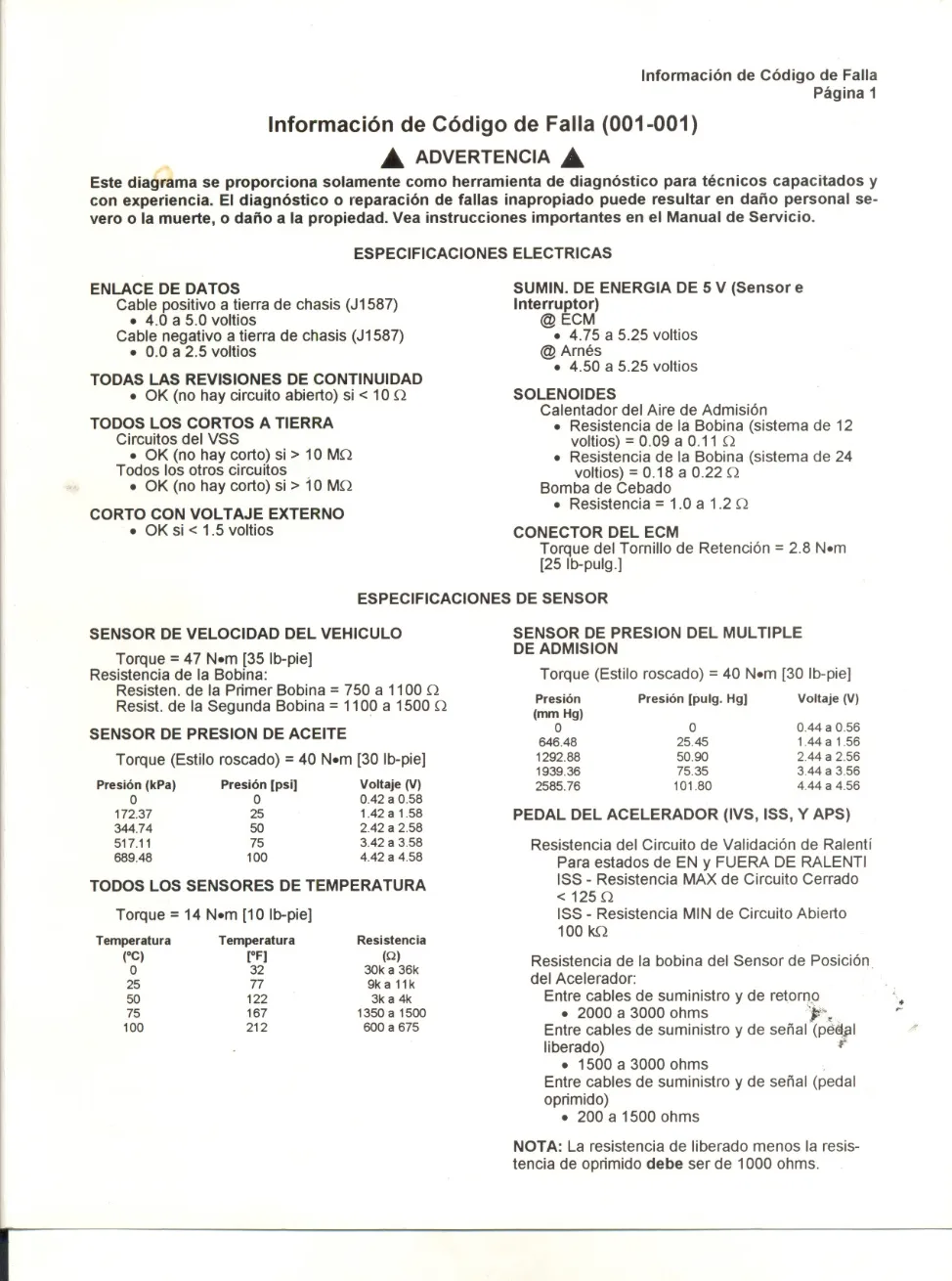

- Información de Código de Falla
- Fault code entries with lamp color, PID/SID/FMI references, circuit description, and engine effect
Applicable truck models
The extract identifies Cummins ISB engine electrical coverage, not a specific truck chassis list. It applies to ISB installations using the shown ECM Part No. 3942335 wiring, VP44 pump control, J1587 and J1939 data links, OEM harness circuits, and engine harness connectors where the equipment manufacturer enabled those circuits. Some circuits are noted as inactive in certain applications, so the OEM vehicle wiring diagram must be checked before repair decisions. For manufacturer information, visit Cummins official website.
Who needs this Cummins ISB wiring manual
Workshop owners, diesel electricians, and mechanics need this Cummins ISB wiring manual when diagnosing no-start, derate, lamp, throttle, PTO, fan clutch, intake heater, fuel pump, and sensor signal problems. It helps compare fault code information with connector pins, ECM power feeds, battery returns, and data link circuits.
