This 3-page PDF documents Cummins code 311 N14, the injector circuit on the Cummins M11 and N14 CELECT Plus (1995-98) engine platform. Published in the TruckFaultCodes.com fault code library (© 2017), it carries the yellow lamp, PID S001, SPN 734 and FMI 6 and service repair time code 00-604, and lays out the full factory troubleshooting tree.
Cummins code 311 N14 document details
| Brand | Cummins |
| Model coverage | M11 and N14 CELECT Plus (1995-98) |
| System / group | Injector Circuit — Fault Code 311 N14 |
| Publication reference | Bulletin 3666130 (Troubleshooting and Repair Manual, Industrial CELECT Plus System) |
| Year / revision | 1995-98 platform, TruckFaultCodes.com 2017 edition |
| Pages | 3 |
| File size | 0.22 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification (PID S001, SPN 734, FMI 6, yellow lamp)
- Circuit description
- Component location

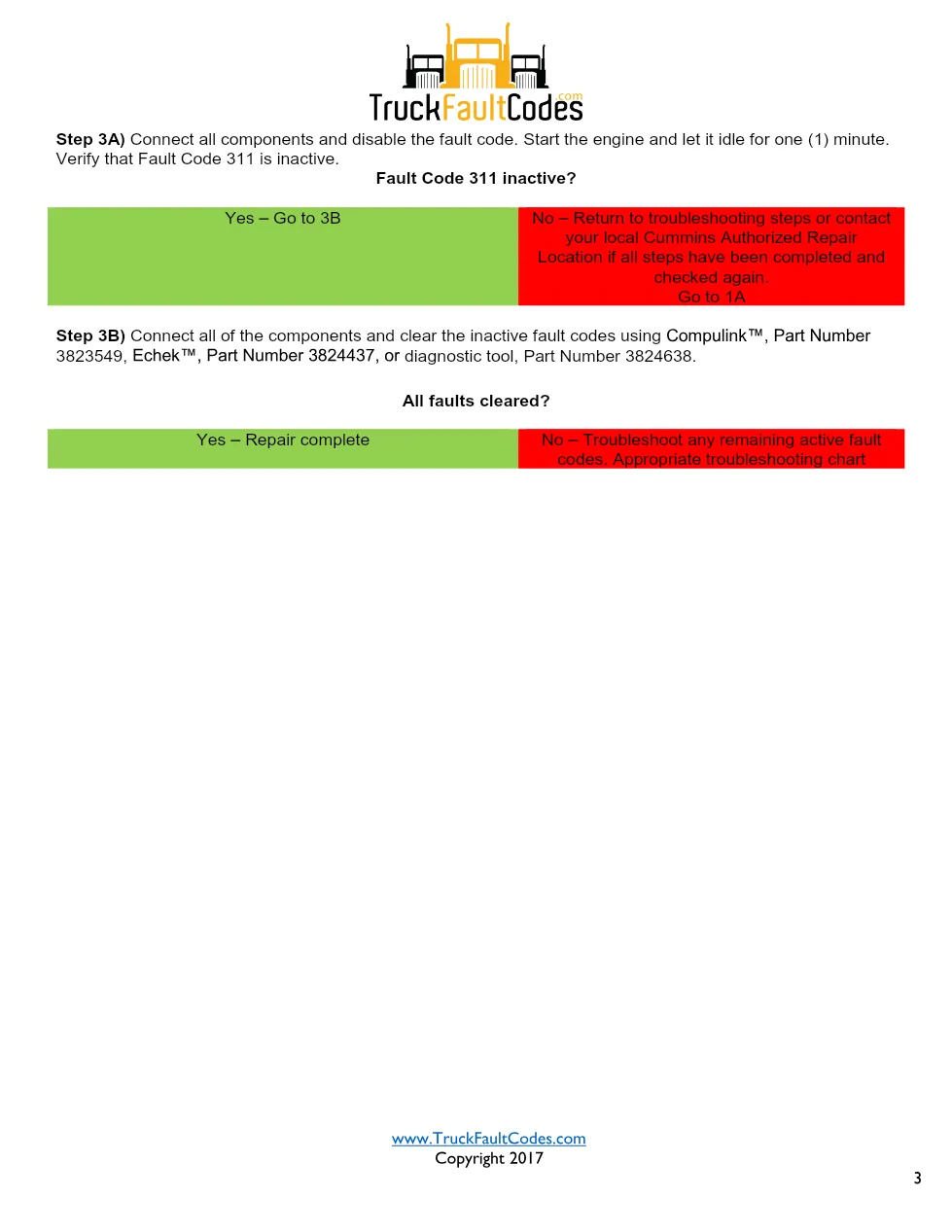

- Troubleshooting steps 1A through 3B
Circuit description and component location

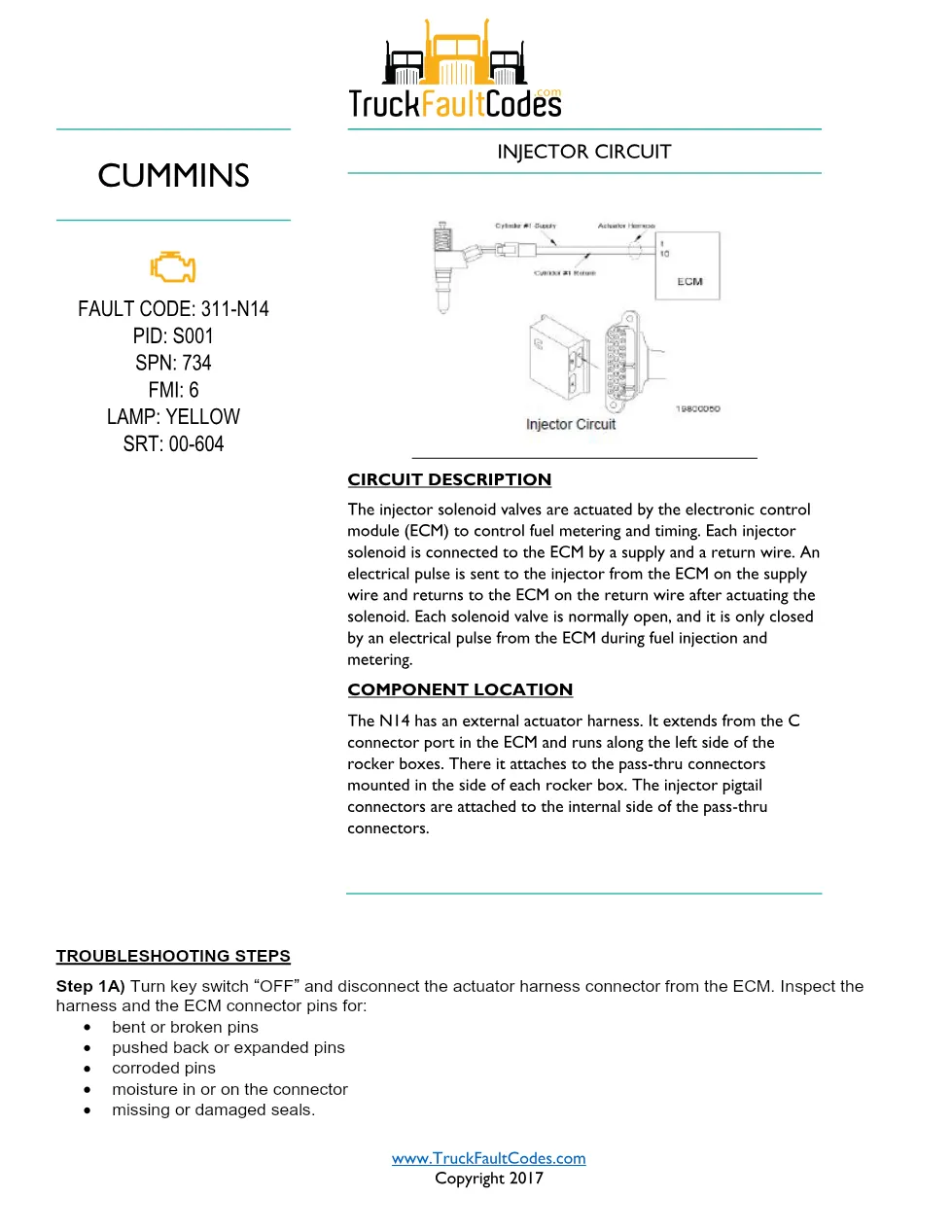

The injector solenoid valves are actuated by the ECM to control fuel metering and timing. Each solenoid is connected to the ECM by a supply wire and a return wire and is normally open, closing only on an electrical pulse from the ECM during injection. On the N14 an external actuator harness runs from the C connector port in the ECM along the left side of the rocker boxes to the pass-thru connectors, where the injector pigtail connectors attach.

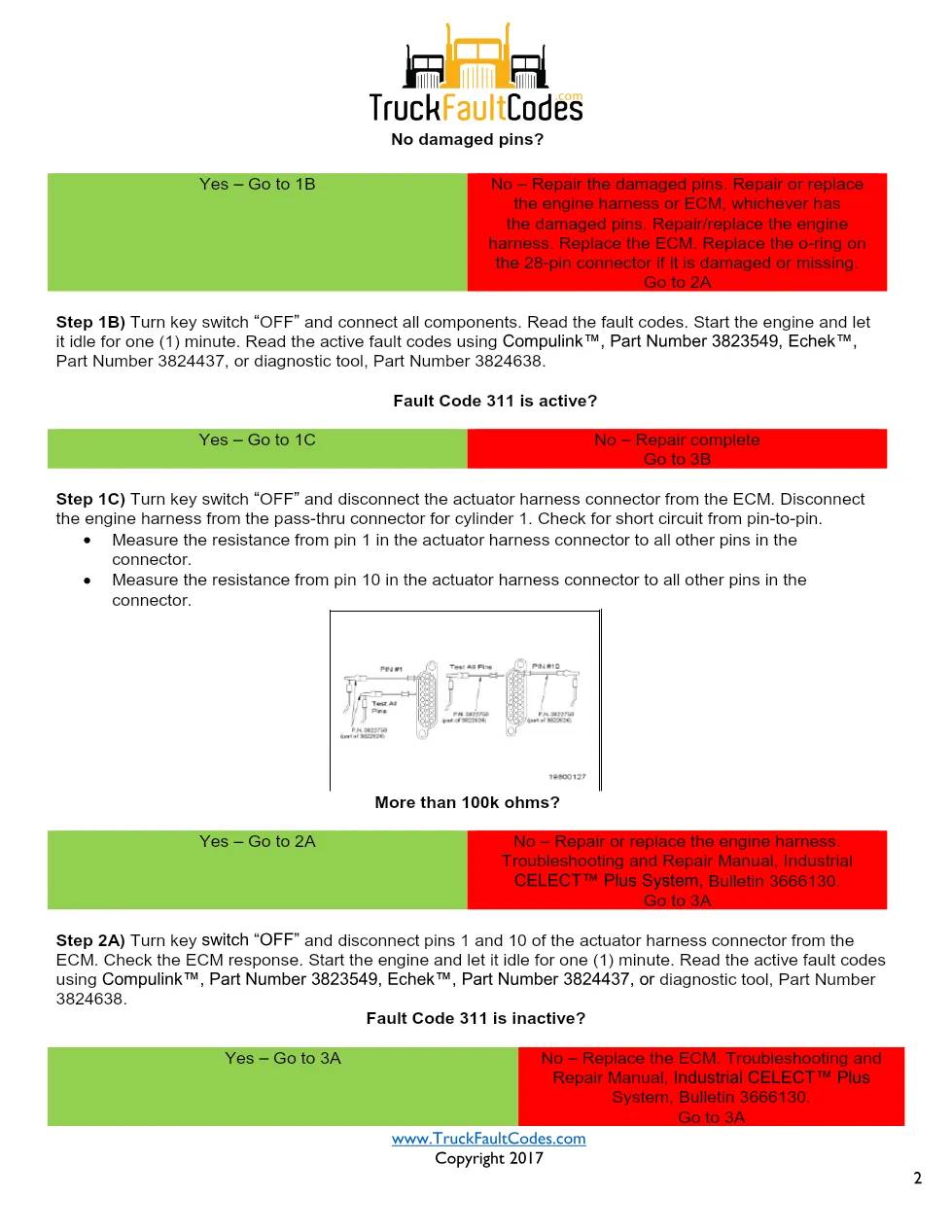

Troubleshooting inspects the actuator harness and 28-pin ECM connector for bent, corroded or pushed-back pins, then measures resistance from pin 1 and pin 10 to every other pin looking for more than 100k ohms before the ECM is replaced. All checks are made with a Cummins service tool such as Compulink, Echek or a diagnostic tool, and inactive codes are cleared once the repair is confirmed.
Applicable truck models and engines
This document applies to Cummins M11 and N14 CELECT Plus (1995-98) electronic engines and is filed under the CELECT Plus diagnostic trouble codes group, so it suits on-highway and industrial installations that run these engines. For engine specifications and dealer support, see the official Cummins support site at the Cummins engine support portal. The full PDF is part of the injector circuit chapter of the CELECT Plus fault code series held in the DiagTechPro manuals library.
Who needs this Cummins code 311 N14 manual
Truck technicians and workshop owners need this document when a yellow lamp warns of a injector circuit problem on M11 or N14 CELECT Plus engines, so they can follow the factory pin checks, resistance measurements and step-by-step decisions instead of guessing at parts.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
