This Cummins CELECT manual Chung is a Spanish electrical and diagnostic reference for CELECT engine control wiring, sensors, parameters, and fault codes. It is useful as a quick shop lookup when checking MEC circuits, OEM harness responsibilities, actuator connectors, sensor values, and warning-lamp fault effects.
Official Cummins CELECT manual Chung document details
| Brand | Cummins |
|---|---|
| Model coverage | L-10, M-11, N-14, N-14 C, and CELECT / PT Pacer / Pace harness references shown in the extract |
| System/Group | Chung; CELECT electronic control wiring, sensors, diagnostics, parameters, and fault codes |
| Publication no. | Not shown in the extract |
| Year/Revision | Unknown |
| Pages | 6 |
| File size | 4.2 MB |
| Format | |
| Language | Spanish |
Document table of contents

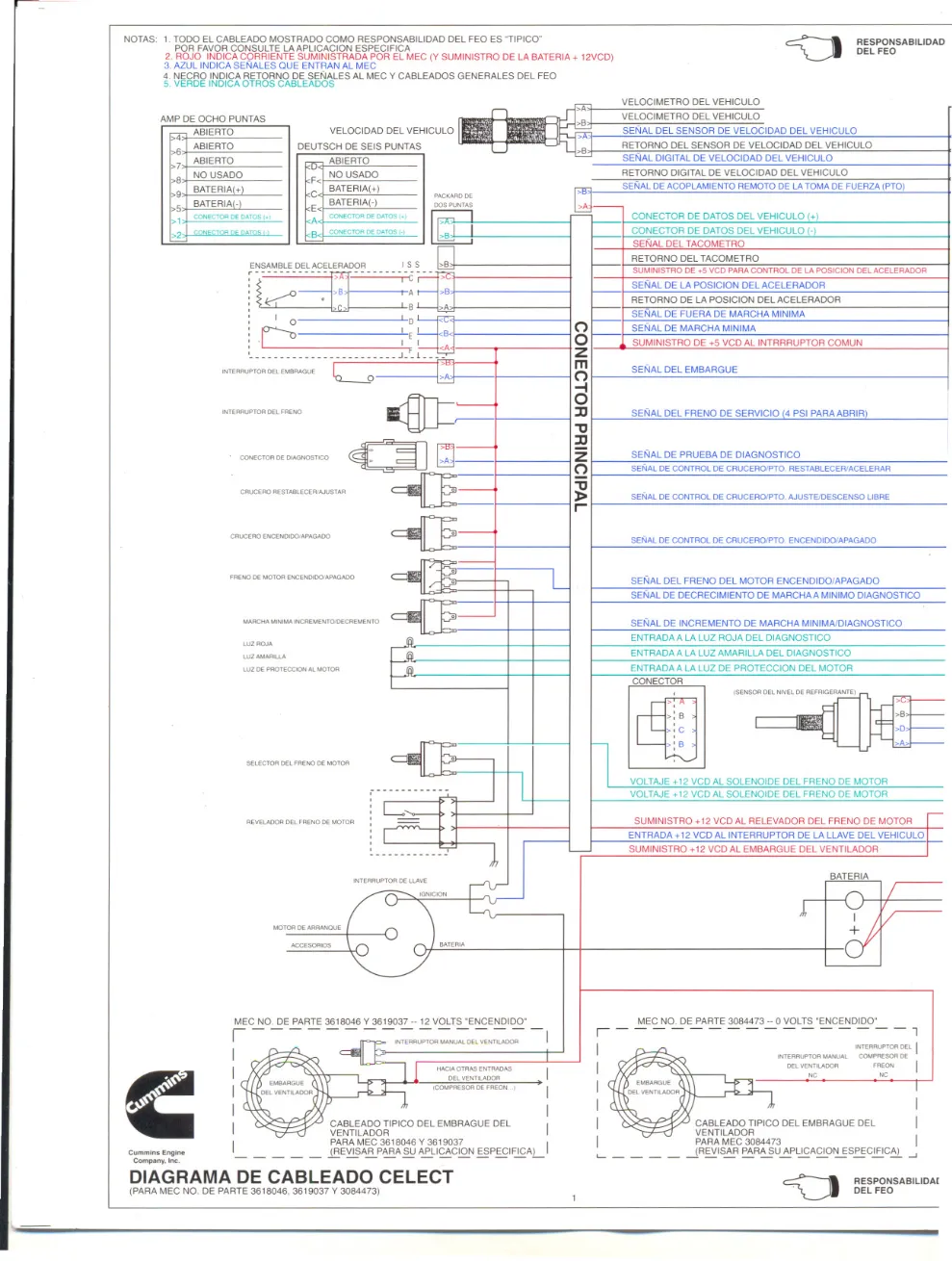

- Notas for typical OEM wiring, MEC-supplied current, signal inputs, signal returns, and other wiring color references
- Vehicle speed, diagnostic connector, accelerator assembly, clutch switch, brake switch, cruise control, PTO, engine brake, and idle increment/decrement circuits
- Red light, yellow light, engine protection light, starter motor, engine brake selector, engine brake relay, accessories, fan clutch, and vehicle data connector circuits

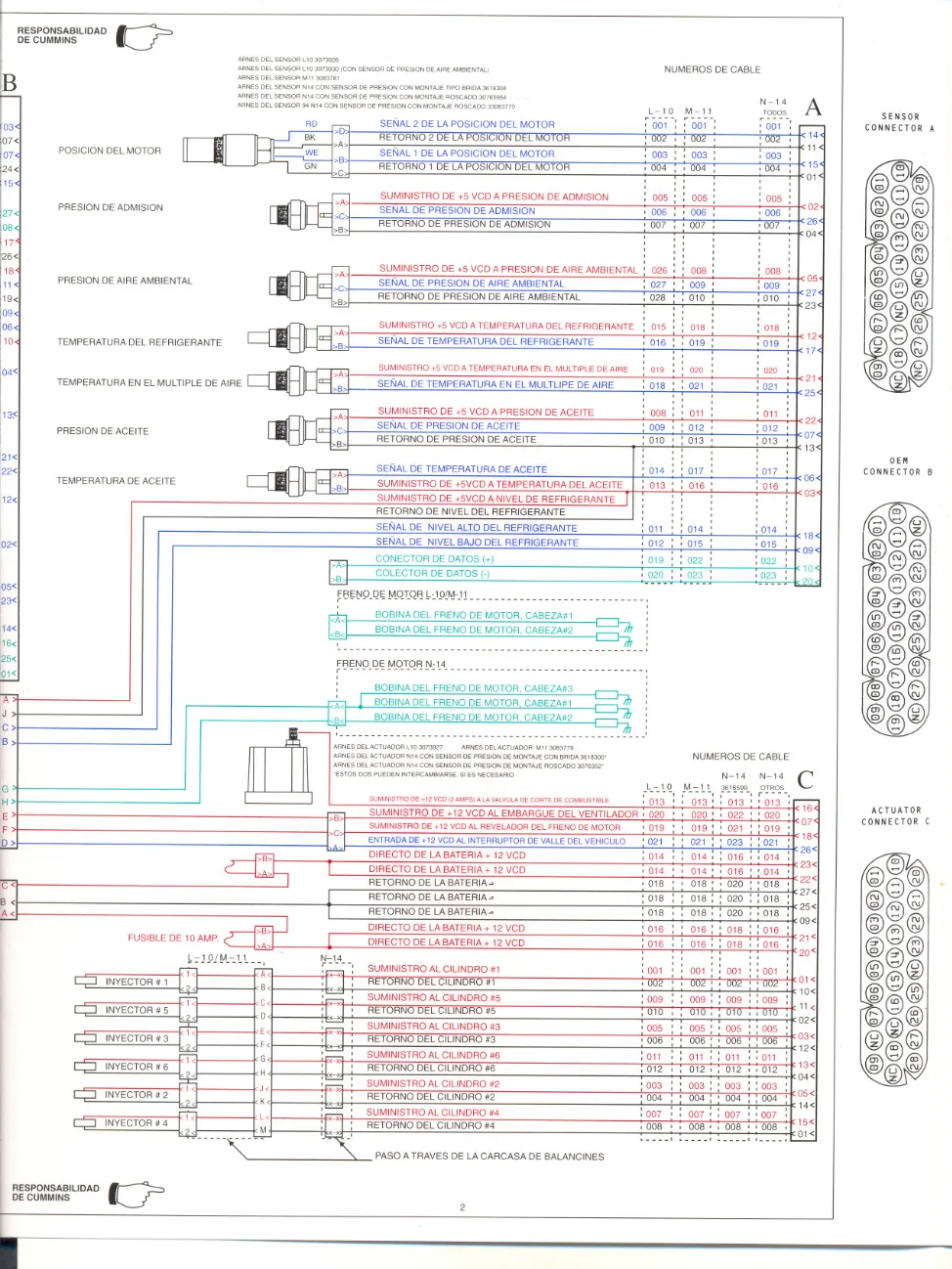

- Responsabilidad de Cummins sensor harness information, including Arnés del sensor L10, M11, N14, and sensor connector references
- Engine position, intake pressure, ambient air pressure, coolant temperature, intake manifold air temperature, oil pressure, and oil temperature sensor wiring

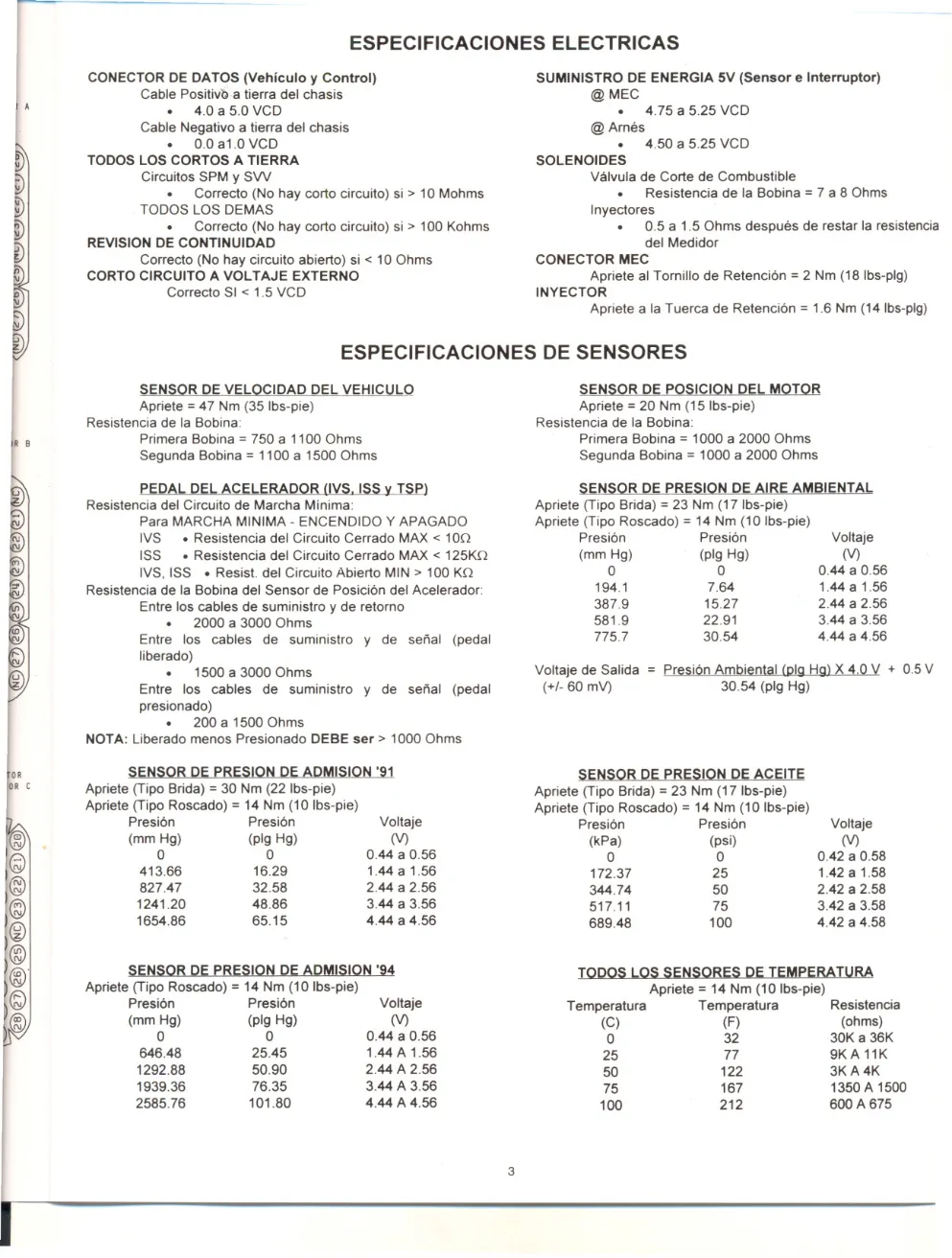

- Sensor checks for accelerator pedal resistance, Sensor de presión de admisión, Sensor de posición del motor, and Sensor de presión de aire ambiental
- Auditoría de cambios parameter codes for idle shutdown, cruise control, PTO, progressive shift, tire revolutions per mile, rear axle ratio, and output shaft gear teeth
- CELECT / PT Pacer / Pace cable repair kit reference, Part No. 3822926
- Fault code tables with PID(P), SID(S), FMI, warning light status, cause text, and engine effect descriptions
Applicable truck models
The extract identifies Cummins L-10, M-11, N-14, and N-14 C applications, plus CELECT / PT Pacer / Pace harness repair coverage. It also refers to OEM vehicle wiring for vehicle speed, tachometer, PTO, cruise control, clutch, service brake, fan clutch, engine brake, data connector, and diagnostic lamps, so final fitment depends on the specific truck application. For engine family and service information, see the official Cummins website.
Who needs this Cummins CELECT manual Chung
Workshop owners, diesel mechanics, and electrical diagnosticians need this Cummins CELECT manual Chung when tracing MEC power, grounds, sensor supply circuits, injector supply faults, fan clutch control, engine brake control, or CELECT fault-code effects. It is also relevant when comparing OEM responsibility wiring against Cummins sensor and actuator harness connector pinouts.
The full PDF is available in the DiagTechPro manuals library, free account required to download.
Applies to these truck models
This is the manufacturer document shared across 2 model families. It applies to:
