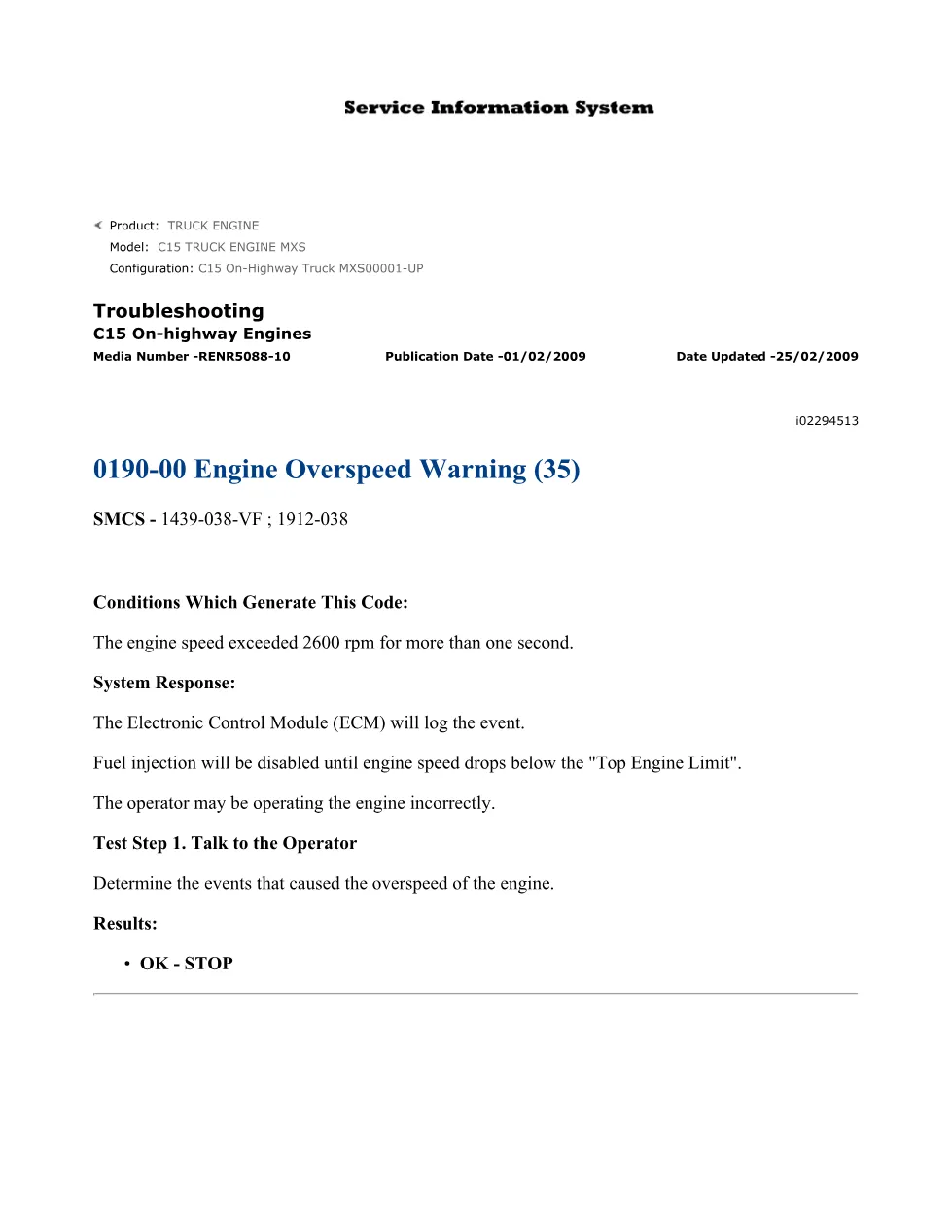

This document is a CAT C15 overspeed warning troubleshooting guide covering diagnostic trouble code 0190-00 Engine Overspeed Warning (35) for the C15 On-Highway Truck Engine. It explains the conditions that generate the code, the Electronic Control Module (ECM) system response, and the recommended diagnostic test step. The guide is published by Caterpillar as part of the RENR5088-10 troubleshooting media series.
Official CAT C15 overspeed warning document details
| Brand | CAT (Caterpillar) |
| Model coverage | C15 Truck Engine MXS (C15 On-Highway Truck MXS00001-UP) |
| System / Group | Engine Overspeed Warning — DTC 0190-00 (35); SMCS 1439-038-VF; 1912-038 |
| Publication no. | RENR5088-10 |
| Year / Revision | Published 01/02/2009, Updated 25/02/2009 |
| Pages | 1 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Document table of contents
- Conditions Which Generate This Code
- System Response
- Test Step 1. Talk to the Operator
Applicable truck models
This troubleshooting document applies to the Caterpillar C15 On-Highway Truck Engine, specifically the MXS serial number prefix (configuration MXS00001-UP). The C15 is a 15-liter inline six-cylinder diesel engine widely used in Class 8 heavy-duty trucks. Additional serial number prefixes referenced in the broader C15 DTC library include NKS and RKS configurations. The overspeed condition described occurs when engine speed exceeds 2600 rpm for more than one second, causing the ECM to log the event and disable fuel injection until engine speed drops below the Top Engine Limit. Operators and technicians should verify whether incorrect engine operation triggered the code before pursuing further diagnostics. For official Caterpillar technical resources, visit Caterpillar Support and Service.
Who needs this C15 overspeed warning manual
Diesel mechanics, fleet maintenance technicians, and workshop owners working on Caterpillar C15-powered trucks need this guide when diagnosing a logged 0190-00 overspeed event. It provides the exact trigger threshold, ECM behavior, and the first diagnostic step to determine the root cause.
The full PDF is available in the DiagTechPro manuals library. A free account is required to download.
