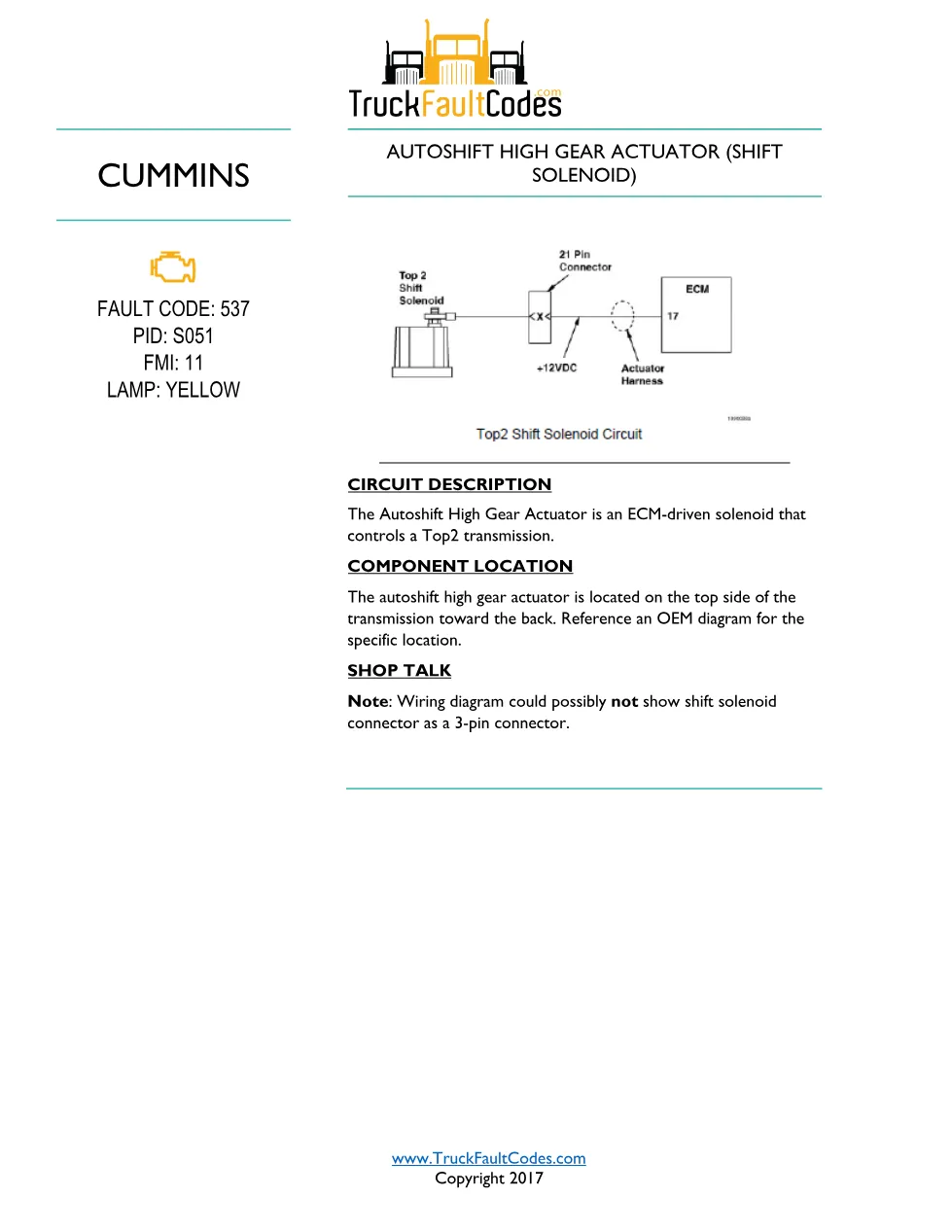

This autoshift high gear actuator guide covers Cummins Fault Code 537 (PID S051, FMI 11) on the M11 CELECT Plus, an ECM-driven shift solenoid controlling a Top2 transmission. The 6-page yellow-lamp sheet is a resistance and continuity troubleshooting chart.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | M11 CELECT Plus (1995-98) |
| System / group | Autoshift High Gear Actuator (Shift Solenoid) |
| Fault code | 537 |
| PID / SPN | S051 |
| FMI | 11 |
| Diagnostic lamp | Yellow |
| Pages | 6 |
| File size | 0.4 MB |
| Format | |
| Language | English |
| Source | Cummins fault code reference (TruckFaultCodes.com, 2017) |
Document table of contents
- Circuit description
- Component location
- Shop talk diagnostic notes
- Step-by-step troubleshooting
- Fault verification and clearing codes
high gear actuator tests

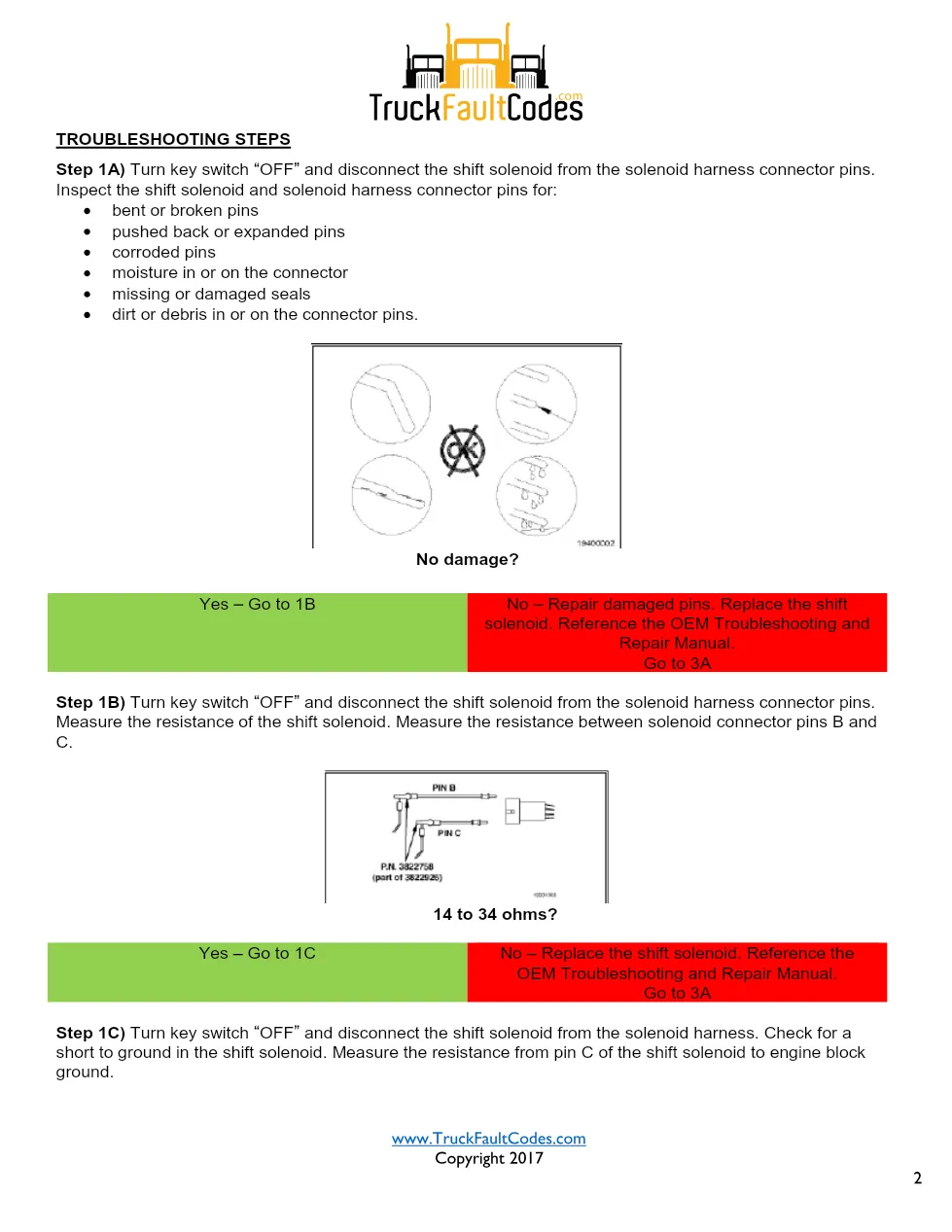

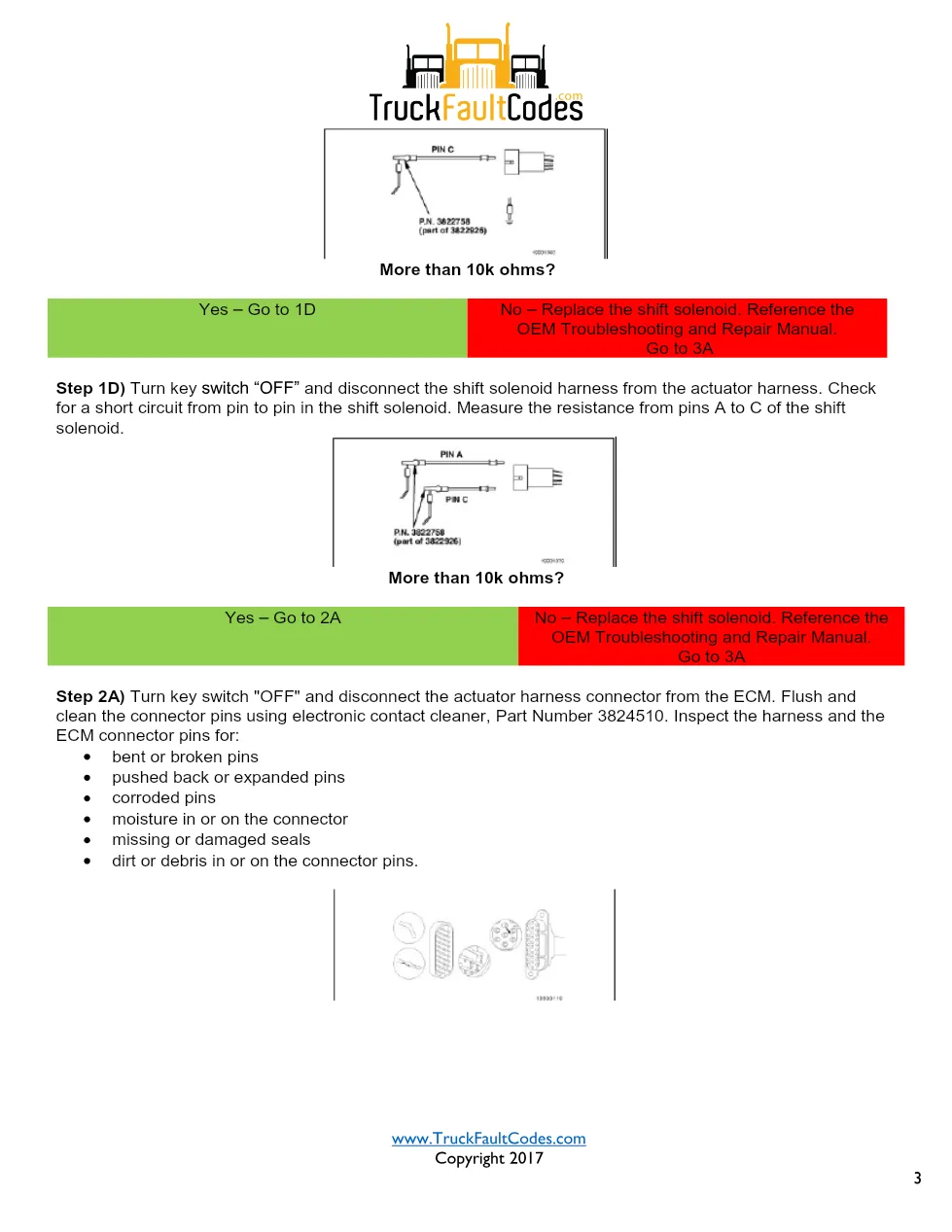

The solenoid on the top side of the transmission toward the back shifts a Top2 transmission into high gear under ECM control. The troubleshooting steps begin by disconnecting the shift solenoid from the harness connector pins and inspecting for bent, corroded, or pushed-back pins and moisture. The technician then measures solenoid resistance between connector pins B and C, expecting 14 to 34 ohms, and checks for a short to ground. Out-of-range readings direct replacement of the shift solenoid with reference to the OEM Troubleshooting and Repair Manual, while good readings move the diagnosis toward the harness and ECM connector.
Applicable truck models
It applies to Cummins M11 CELECT Plus (1995-98) engines driving a Top2 automated transmission. Because wiring diagrams vary, confirm the connector layout against the official Cummins website.
Who needs this high gear actuator manual
Drivetrain technicians diagnosing failed upshifts or open shift-solenoid circuits on M11-powered Top2 trucks use these resistance specifications.
