The 3406E electronic system overview is section P-1.0 of the SENR5582-06 troubleshooting manual, explaining how the 3176B, C-10, C-12 and 3406E truck engines are controlled electronically. It describes the Electronic Control Module (ECM), the Personality Module, engine governing, injection timing and Caterpillar Engine Monitoring.
Official document details
| Brand | Caterpillar (CAT) |
| Model coverage | 3176B, C-10, C-12 & 3406E truck engines (5EK, 1YN, 2PN, 6TS) |
| System / Group | Manuals — Electronic System Overview (P-1.0) |
| Publication no. | Media Number SENR5582-06 |
| Year / Revision | Published 01/07/1998, updated 08/09/2002 |
| Pages | 31 |
| File size | 0.7 MB |
| Format | |
| Language | English |
Document table of contents
- System Operation
- Electronic Controls (ECM and Personality Module)
- Engine Governor
- Timing Considerations
- Fuel Injection (FRC Fuel Pos, Rated Fuel Pos)
- Customer Parameters Effect on Engine Governing
- Caterpillar Engine Monitoring modes
- Diagnostic codes: Active and Logged
- Engine Snapshot and Trip Data
Applicable truck models covered
This overview applies to the 3176B, C-10, C-12 and 3406E electronically controlled truck engines, which replace the mechanical injection pump with an electronic unit injector in each cylinder. It explains how the ECM, engine sensors and vehicle interface work together, and how Engine Monitoring can be set to OFF, WARNING, DERATE or SHUTDOWN. For official specifications, see the Caterpillar official website.
Inside the 3406E electronic system overview

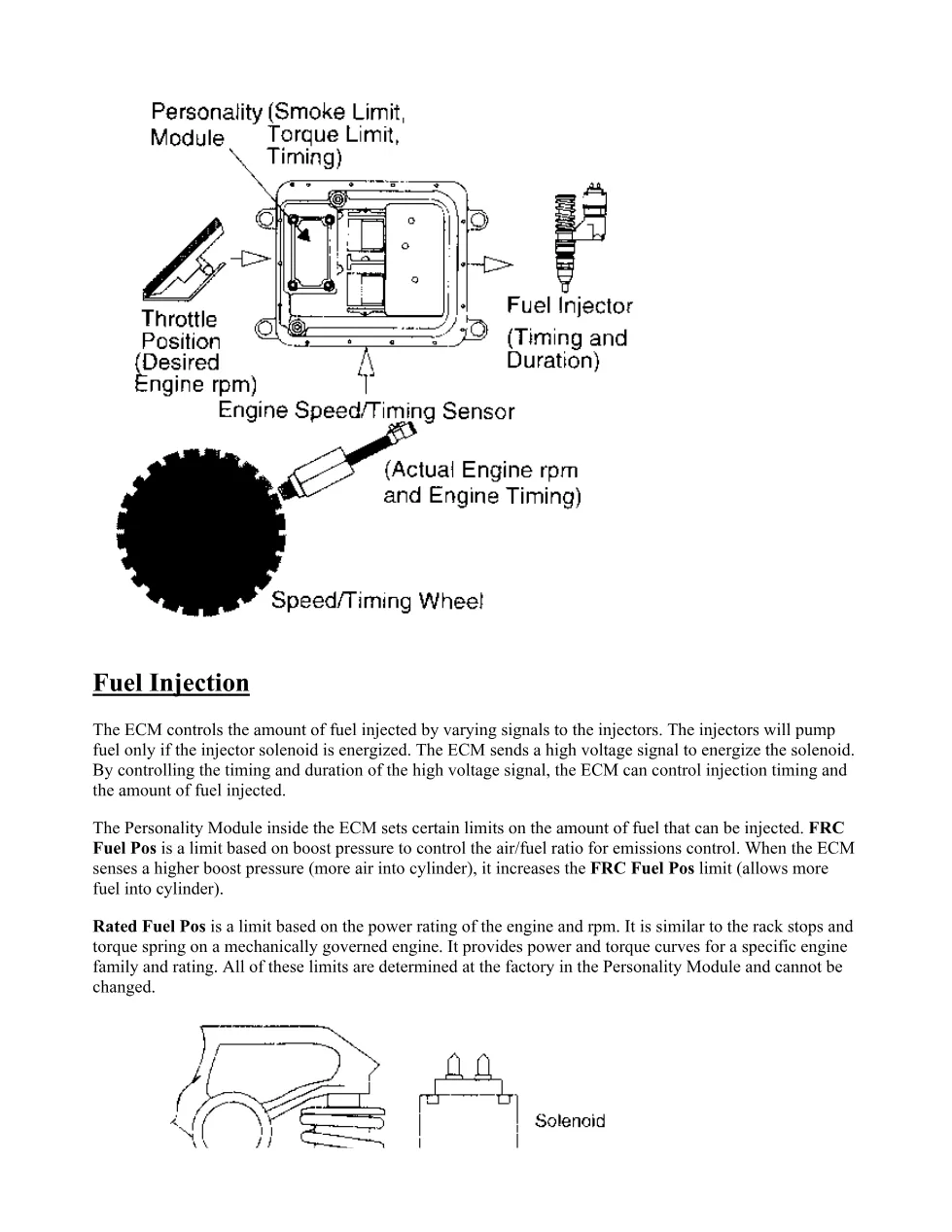

Media Number SENR5582-06 explains how the ECM meters fuel through the FRC Fuel Pos and Rated Fuel Pos limits, how injection timing is calculated from the speed/timing sensor, and how diagnostic codes are stored as Active or Logged. It also covers Engine Snapshot Data recorded around a fault event.
Who needs the electronic system overview
Technicians learning Caterpillar EUI engine control, and shops diagnosing power or emissions complaints, use this section to understand the system architecture before following circuit-level tests elsewhere in the manual.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
