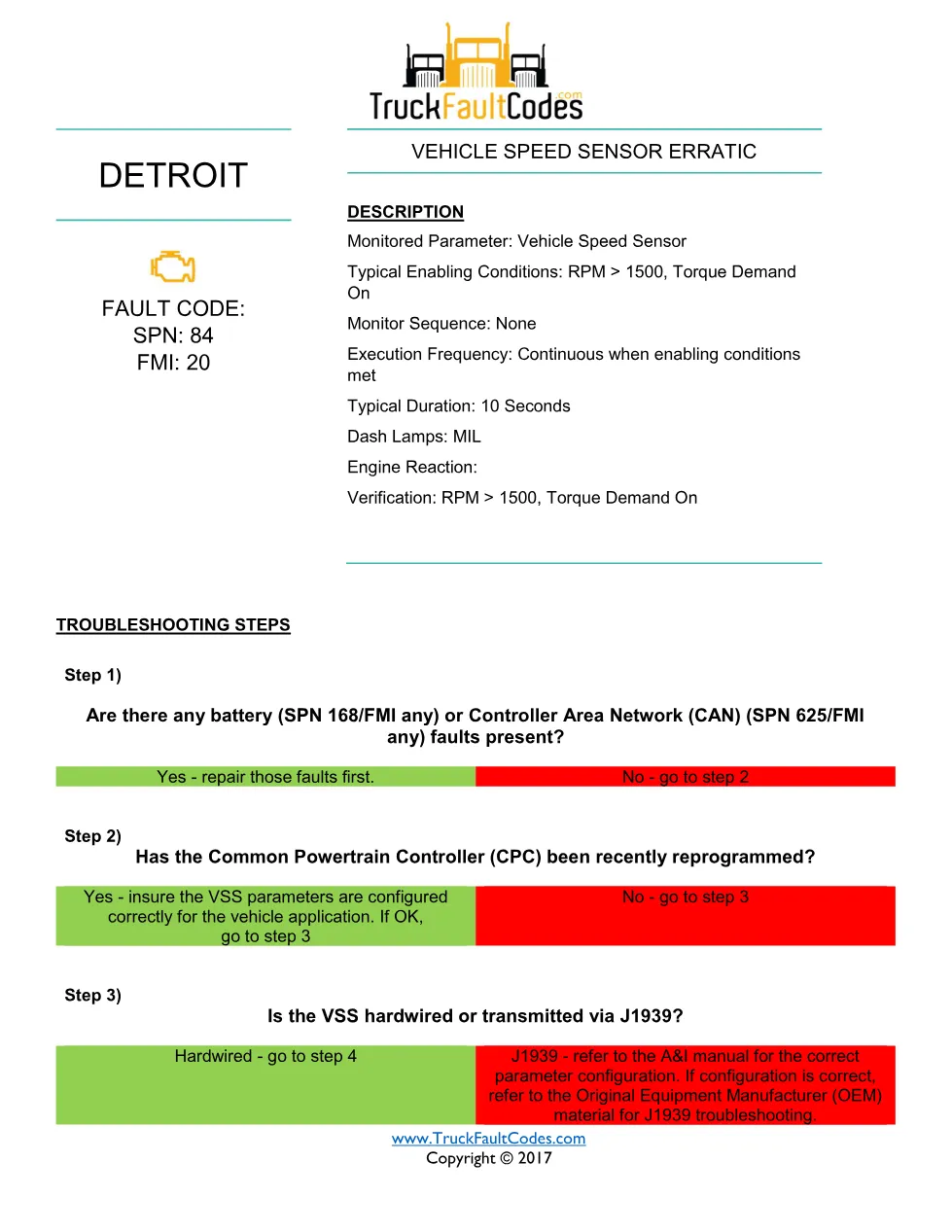

SPN 84 FMI 20 is the Detroit fault code for a vehicle speed sensor erratic on the DD Series wheel-based vehicle speed sensor circuit. This 2-page reference from the DiagTechPro library reproduces the official Detroit troubleshooting steps so a technician can work the fault in the correct order. It is a factory-style diagnostic guide, not a repair shortcut.
Official document details
| Brand | Detroit (Detroit Diesel) |
| Model coverage | DD13, DD15, DD16 – DD Series (EPA 2007–current) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Suspect Parameter Number | 84 |
| Failure Mode Identifier | 20 |
| Description | Vehicle Speed Sensor Erratic |
| Coverage / Revision | EPA07 / GHG14 |
| Pages | 2 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification and description
- Battery and CAN fault pre-checks
- Hardwired versus J1939 VSS configuration

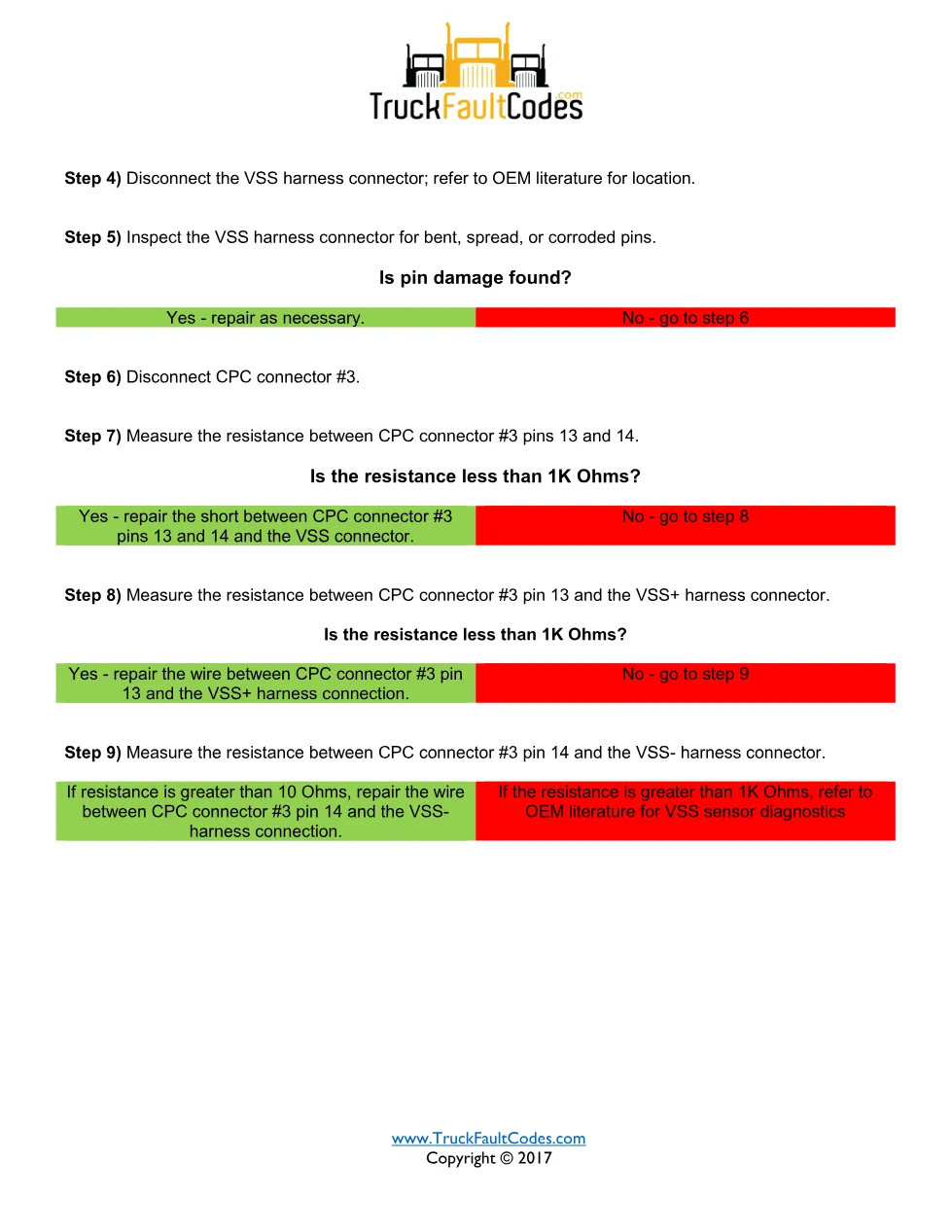

- CPC connector #3 resistance checks
- VSS+ and VSS- harness diagnostics
SPN 84 FMI 20 diagnostic overview
SPN 84 FMI 20 covers an erratic vehicle speed sensor signal on EPA07 and GHG14 trucks. After clearing battery (SPN 168) and CAN (SPN 625) faults, the technician confirms the hardwired or J1939 setup and measures resistance across CPC connector #3 pins 13 and 14 and the VSS+ and VSS- wiring. Each step is written as a yes or no decision, so the result of one measurement points directly to the next check or to the final repair action.
Applicable truck models and engines
It applies to Detroit DD13, DD15 and DD16 engines in the DD Series (EPA 2007 to current) family, and the same code is documented for the Series 60 (DDEC VI) platform. Vehicle speed can be hardwired to the Common Powertrain Controller or transmitted over J1939, so the guide points to the Application and Installation manual and OEM literature for chassis wiring. For factory support tools and warranty information, see Demand Detroit official resources.
Who needs this 84 FMI 20 manual
This document is for Detroit DD Series technicians who need the EPA07/GHG14 resistance thresholds for CPC connector #3 when the speed sensor reads erratically.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it, view every page, and print the decision steps for use at the workshop bench.
