This SPN 84 FMI 2 reference covers a Detroit DD Series erratic J1939 wheel-based vehicle speed signal from source #1 and the module checks it requires. It is part of the DiagTechPro truck manuals library and preserves the original TruckFaultCodes.com Detroit fault-code library (Copyright 2017).
Official document details
| Brand | Detroit |
|---|---|
| Model coverage | Detroit DD Series (EPA 2007-current) engines; the same fault-code procedure is also filed under the Detroit Series 60 (DDEC VI, EPA 2007) group. |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Fault code | SPN 84 / FMI 2 |
| Source | TruckFaultCodes.com Detroit fault-code library (Copyright 2017) |
| Pages | 1 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Erratic J1939 speed signal overview
- Battery and CAN pre-checks
- CPC reprogramming and VSS configuration
- ServiceLink module diagnostics

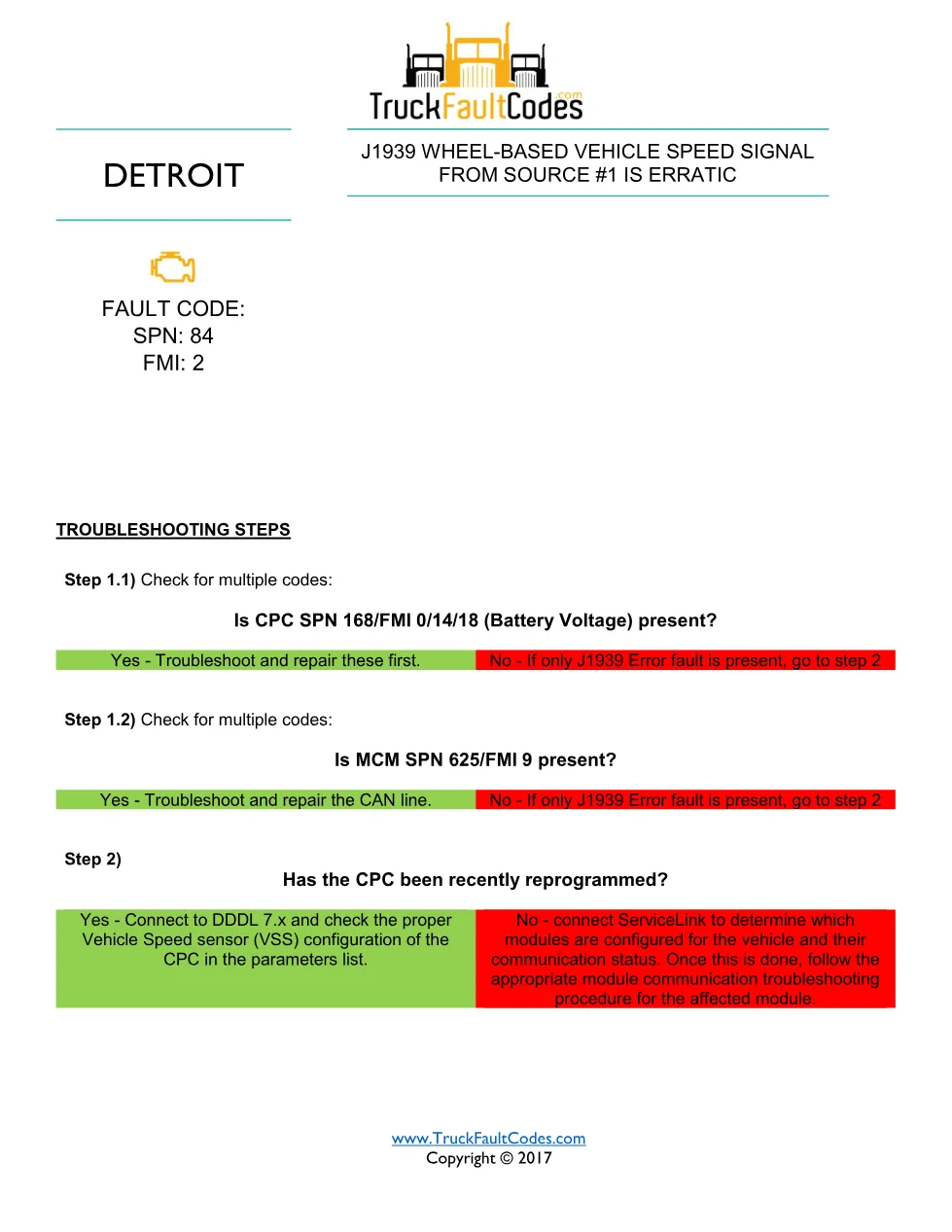

Diagnostic steps in the SPN 84 FMI 2 document
The technician checks for CPC battery-voltage codes (SPN 168) and an MCM SPN 625 FMI 9 CAN fault, repairing those first. If only the J1939 error is present, the document directs connecting DDDL 7.x to verify the vehicle speed sensor configuration when the CPC was recently reprogrammed, or ServiceLink to confirm which modules are configured and their communication status.
The J1939 wheel-based vehicle speed signal from source #1 is erratic condition on Detroit DD Series trucks is read and cleared with DiagnosticLink (formerly DDDL); the SPN and FMI pair identifies the exact circuit and failure mode. Confirm the code is active and capture freeze-frame data before running the pinpoint tests, then clear it and road-test the truck to verify the repair has held.
Applicable truck models and engines
This document applies to Detroit DD Series (EPA 2007-current) engines; the same fault-code procedure is also filed under the Detroit Series 60 (DDEC VI, EPA 2007) group. For factory service data, parts and warranty information, consult Detroit’s official DD engine support.
Who needs the SPN 84 FMI 2 manual
It is for DD Series technicians troubleshooting an intermittent datalink speed value rather than a hardwired sensor fault.
The complete PDF is available in the DiagTechPro manuals library; a free account is required to download it.
