This page covers the Detroit fault code SPN 5357 FMI 16, Fuel Quantity High Detected, on DD Platform engines. It documents the monitored parameter, the verification condition, and the 16-step factory troubleshooting flow for GHG14 builds.
Official document details
| Brand | Detroit |
| Model coverage | Detroit DD13, DD15 and DD16 (DD Platform) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Source | TruckFaultCodes.com |
| Year / Revision | 2017 (GHG14) |
| Pages | 3 |
| File size | 0.27 MB |
| Format | |
| Language | English |
SPN 5357 FMI 16 table of contents
- Fault description and 25% derate
- Monitored parameter and verification
- Intake manifold sensor checks
- EGR delta P voltage test
- Charge Air Cooler leak check

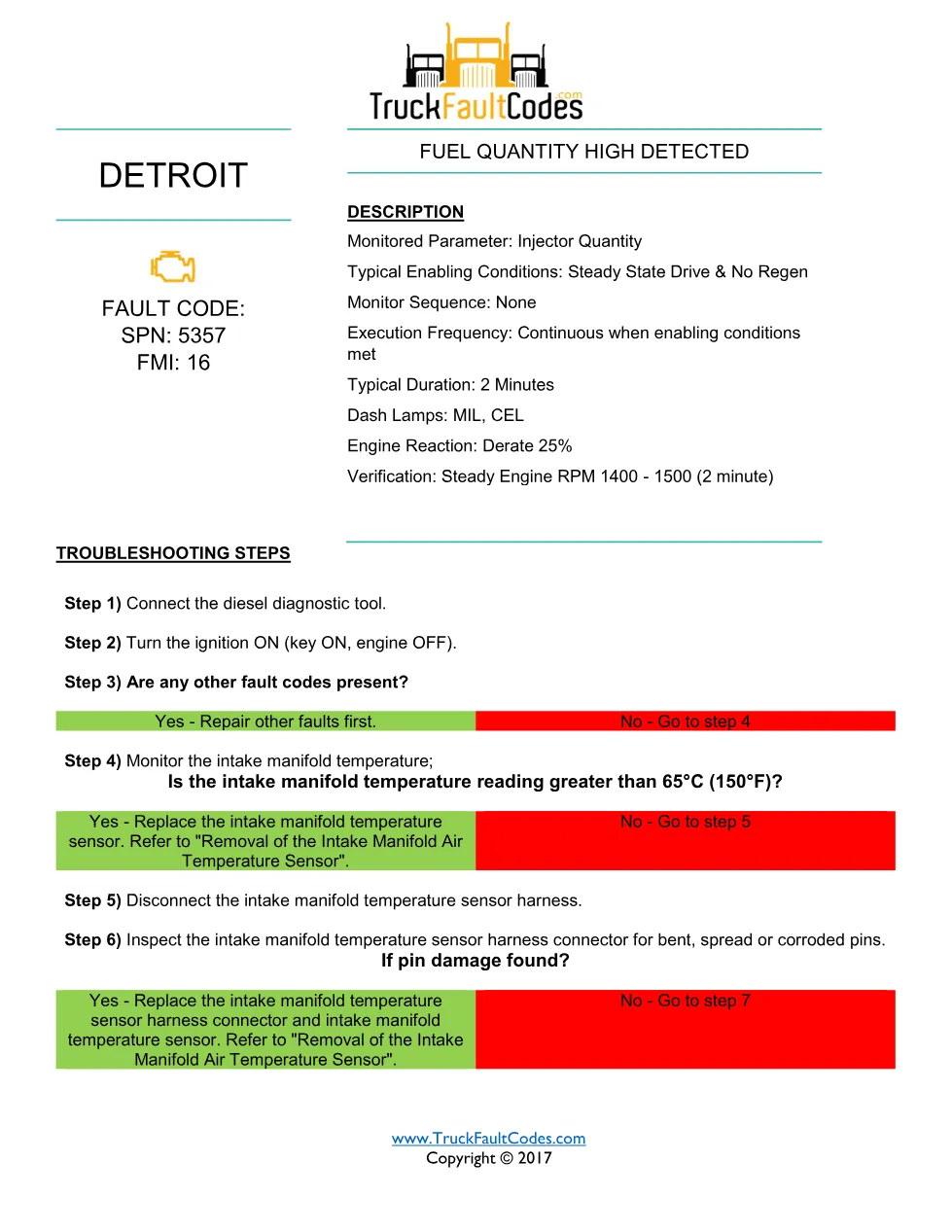

The monitored parameter is Injector Quantity, enabled during steady-state drive with no regen. Typical duration is 2 minutes, both MIL and CEL are on, and the engine reaction is a 25% derate. Verification is a steady engine RPM of 1400-1500 held for two minutes.

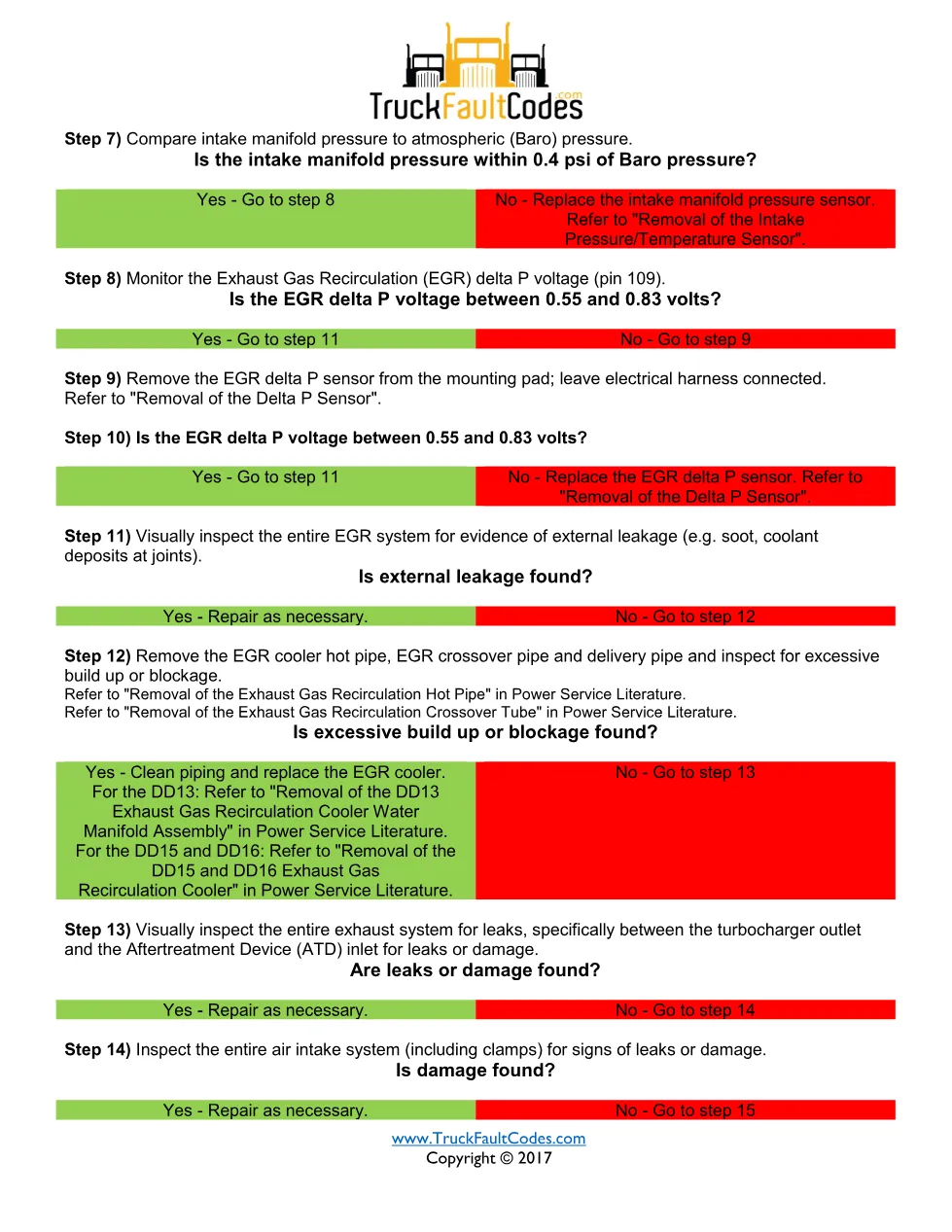

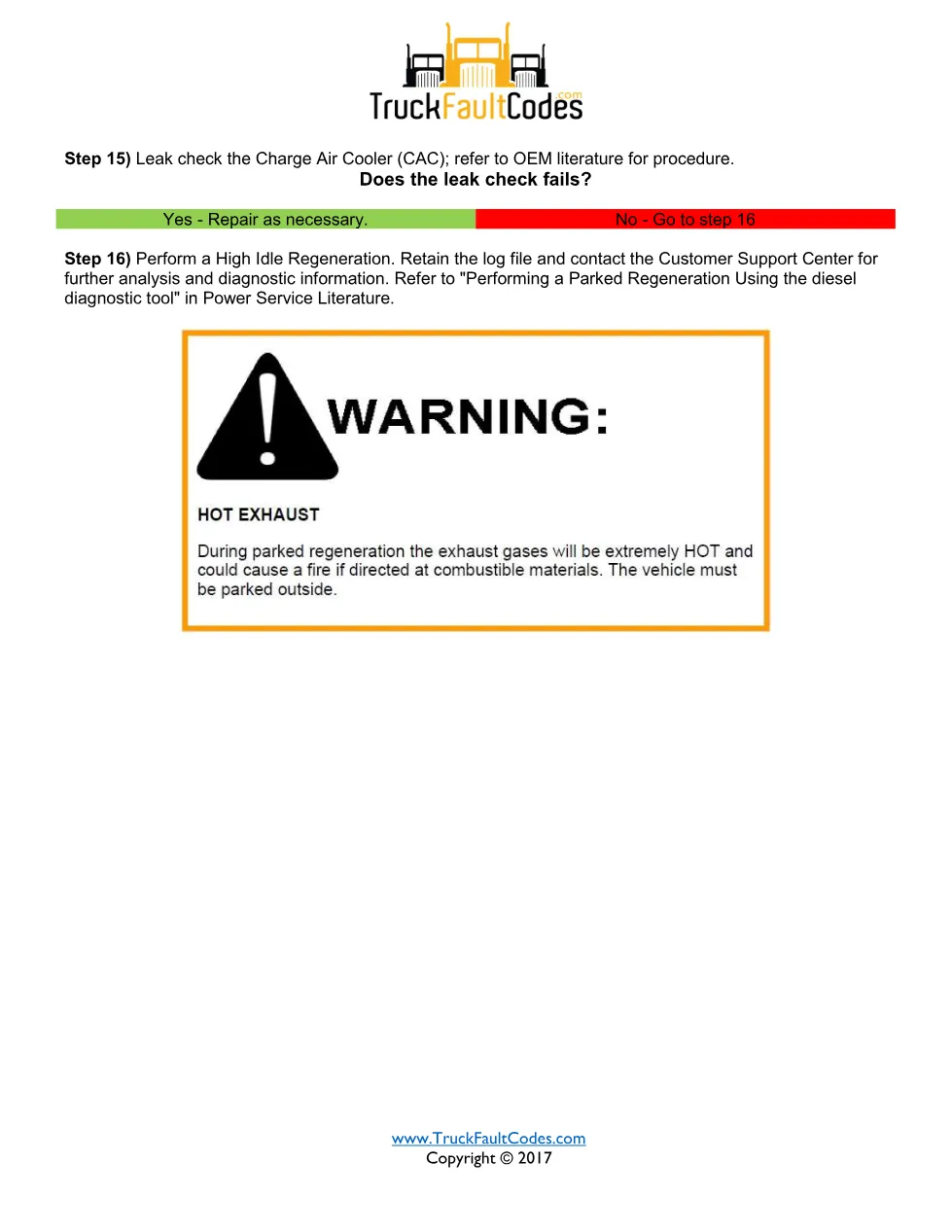

The troubleshooting flow first rules out other codes, then checks intake manifold temperature and the temperature/pressure sensors, compares intake manifold pressure to barometric pressure, measures EGR delta P voltage (0.55-0.83 volts on pin 109), inspects the EGR and exhaust systems for leaks or blockage, leak-checks the Charge Air Cooler, and closes with a high idle regeneration.
Applicable truck models
This guide applies to Detroit DD13, DD15 and DD16 engines under EPA 2007 / GHG14. EGR cooler removal differs between the DD13 and the DD15/DD16, and each step references Power Service Literature. For OEM specifications and dealer locations, visit Detroit’s official website.
Who needs this SPN 5357 FMI 16 manual
Diesel technicians investigating a 25% derate with excess fueling on DD Series engines use this document to work the intake, EGR and charge-air path methodically before condemning a sensor or the EGR cooler. The guide follows the factory decision-tree troubleshooting format.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
