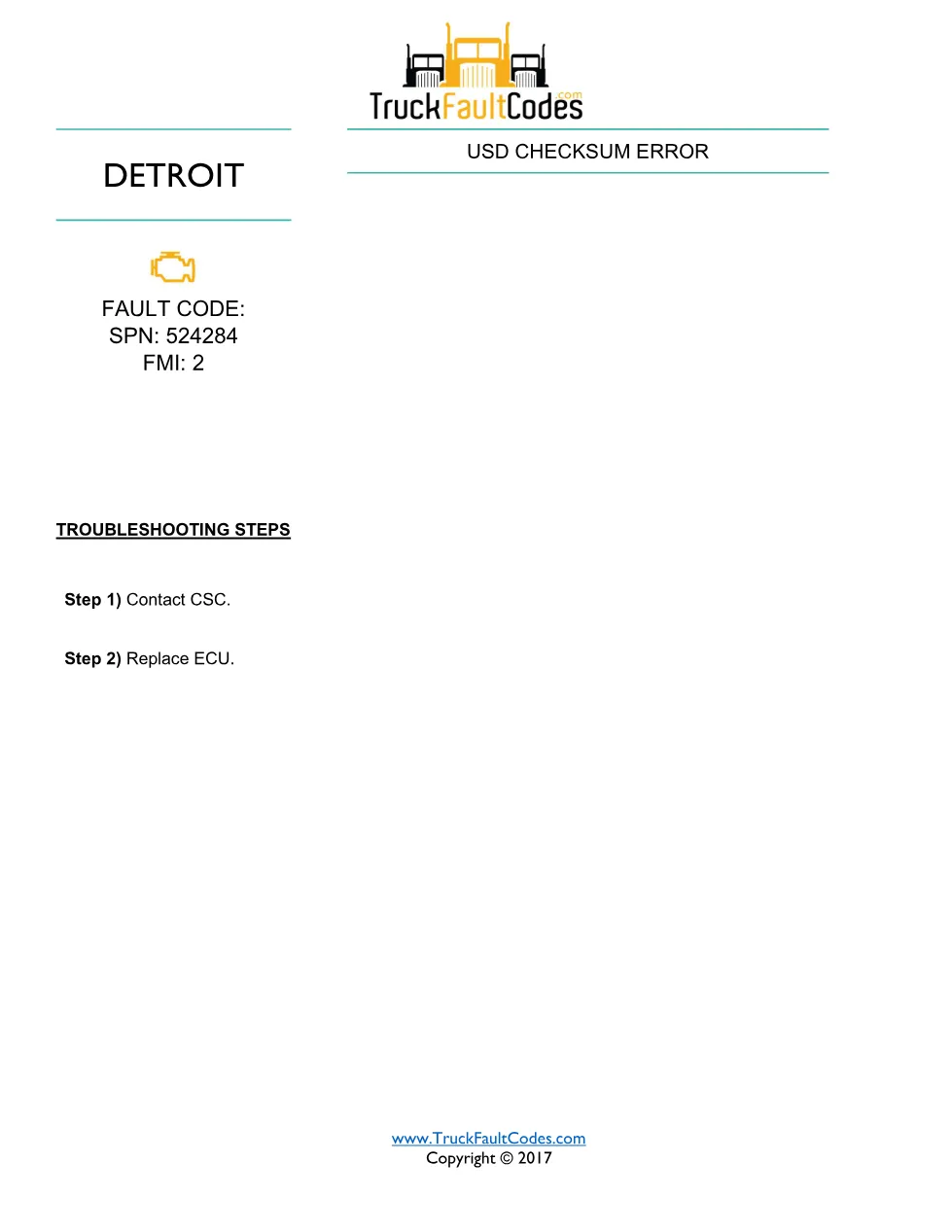

SPN 524284 FMI 2 is a Detroit DD Series diagnostic fault-code sheet that documents the USD Checksum Error condition and its factory troubleshooting sequence. The sheet lists the SPN and FMI identifiers, a short description of the condition, and the repair steps in the order Detroit recommends. It is a concise reference sheet, 1 page long, aimed at technicians who read the code with a scan tool and need to know the correct next step.
SPN 524284 FMI 2 troubleshooting overview
This sheet describes a USD Checksum Error in the control unit’s stored data. Because a checksum mismatch points to corrupted internal data rather than a serviceable harness, the factory procedure is to contact the Detroit Customer Support Center (CSC) and replace the ECU when directed.
Official document details
| Brand | Detroit (Detroit Diesel) |
| Model coverage | DD Series (EPA 2007-Current) |
| System / group | Diagnostic Trouble Codes (DTCs) |
| SPN | 524284 |
| FMI | 2 — USD Checksum Error |
| Source | TruckFaultCodes.com fault-code reference (Copyright 2017) |
| Pages | 1 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification: SPN and FMI header
- USD Checksum Error condition
- Troubleshooting Step 1: contact the Customer Support Center (CSC)
- Troubleshooting Step 2: replace the ECU
Applicable truck models
This code sheet applies across all model years of the Detroit DD Series (EPA 2007 to current), and Detroit cross-lists the same reference under both the DD Series and Series 60 (DDEC VI, EPA 2007) diagnostic trees. For factory service literature and warranty details, refer to the official Detroit Diesel website.
Who needs this 524284 FMI 2 manual
This reference is written for diesel technicians who verify the USD Checksum Error before escalating to the CSC and authorising an ECU replacement. Keep the 524284 FMI 2 sheet on hand so the code can be diagnosed and verified before it is cleared.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
