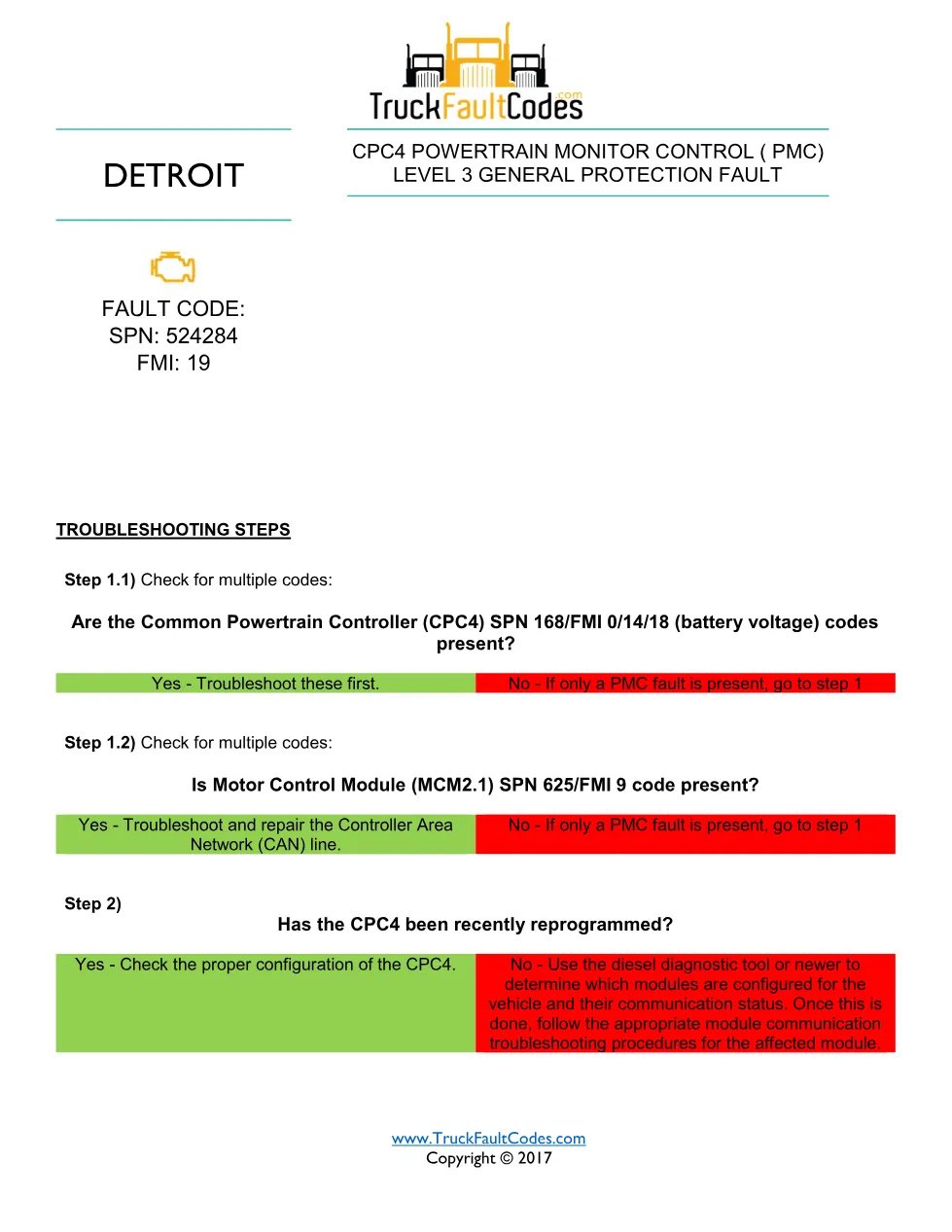

SPN 524284 FMI 19 is a Detroit DD Series diagnostic fault-code sheet that documents the CPC4 Powertrain Monitor Control (PMC) Level 3 General Protection Fault condition and its factory troubleshooting sequence. The sheet lists the SPN and FMI identifiers, a short description of the condition, and the repair steps in the order Detroit recommends. It is a concise reference sheet, 1 page long, aimed at technicians who read the code with a scan tool and need to know the correct next step.
SPN 524284 FMI 19 troubleshooting overview
This sheet covers the CPC4 Powertrain Monitor Control (PMC) Level 3 general protection fault. The procedure has the technician check for related Common Powertrain Controller (CPC4) battery-voltage codes (SPN 168) and Motor Control Module (MCM2.1) SPN 625 codes, then confirm CPC4 configuration and module communication status.
Official document details
| Brand | Detroit (Detroit Diesel) |
| Model coverage | DD Series (EPA 2007-Current) |
| System / group | Diagnostic Trouble Codes (DTCs) |
| SPN | 524284 |
| FMI | 19 — CPC4 Powertrain Monitor Control (PMC) Level 3 General Protection Fault |
| Source | TruckFaultCodes.com fault-code reference (Copyright 2017) |
| Pages | 1 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification: SPN and FMI header
- CPC4 Powertrain Monitor Control (PMC) Level 3 general protection fault description
- Step 1: check for CPC4 SPN 168 and MCM2.1 SPN 625 codes
- Step 2: verify CPC4 configuration and Controller Area Network (CAN) communication
Applicable truck models
This code sheet applies to Detroit DD Series engines (DD13, DD15 and DD16) built to GHG14 emissions specifications under the EPA 2007-Current platform, and Detroit cross-lists it under both the DD Series and Series 60 (DDEC VI, EPA 2007) diagnostic trees. For factory service literature and warranty details, refer to the official Detroit Diesel website.
Who needs this SPN 524284 FMI 19 manual
This reference is written for technicians diagnosing CPC4 powertrain monitor protection faults who need the battery-voltage and MCM2.1 communication checks. Keep the 524284 FMI 19 sheet on hand so the code can be diagnosed and verified before it is cleared.
