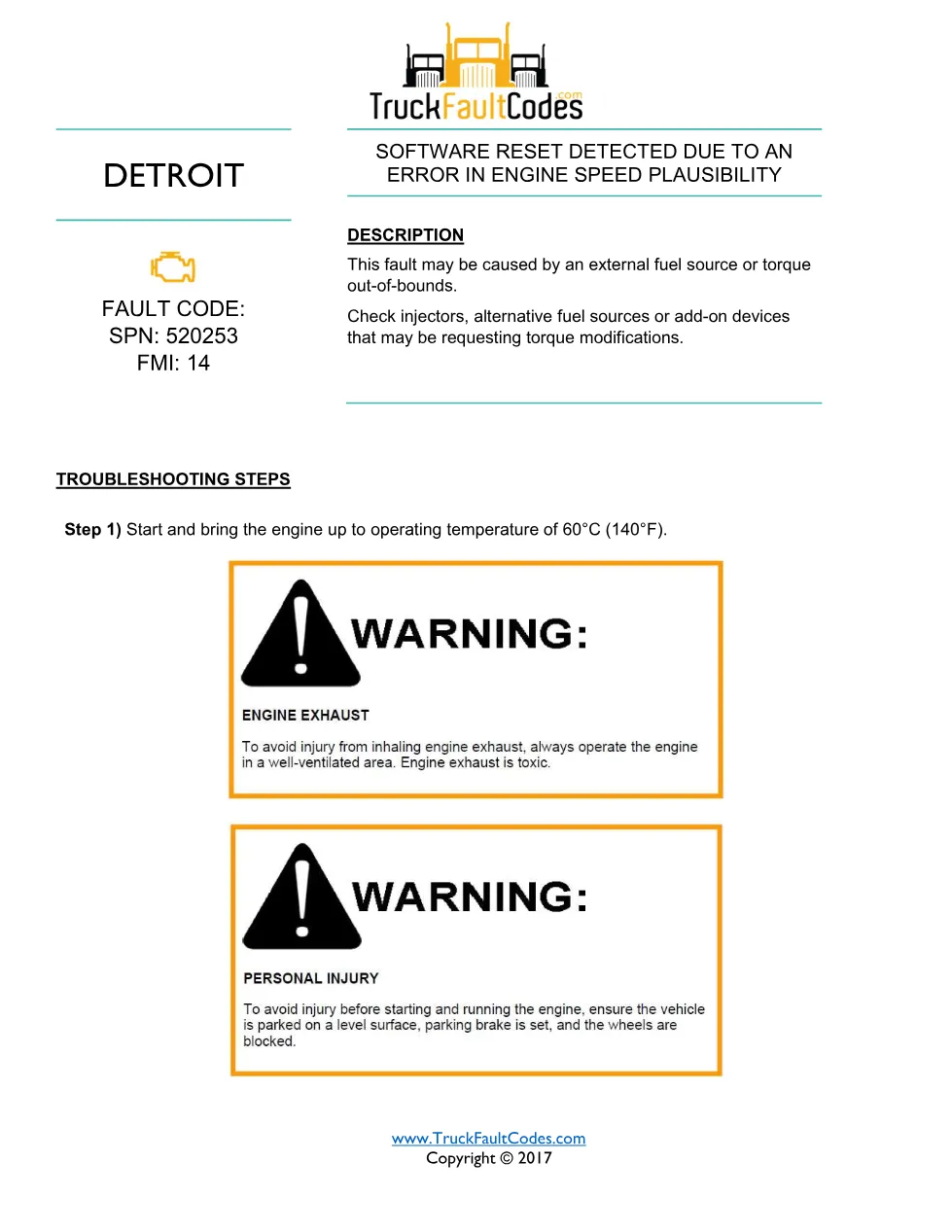

SPN 520253 FMI 14 is the Detroit Diesel fault-code service sheet that documents a software reset detected because of an engine-speed plausibility error. It links the reset to torque-request sources and guides an idle-speed-balance evaluation. This DiagTechPro library page summarizes what the 2-page PDF contains so a technician can confirm it is the right document before downloading.
Official document details
| Brand | Detroit (Detroit Diesel) |
|---|---|
| Model coverage | DD Series (EPA 2007-Current); Series 60 DDEC VI (EPA 2007) |
| System / group | GHG14 diagnostic trouble codes |
| Suspect Parameter Number | 520253 |
| Failure Mode Identifier | 14 |
| Source | TruckFaultCodes.com, © 2017 |
| Pages | 2 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents
- Description: engine-speed plausibility error
- Step 1: bring engine to operating temperature

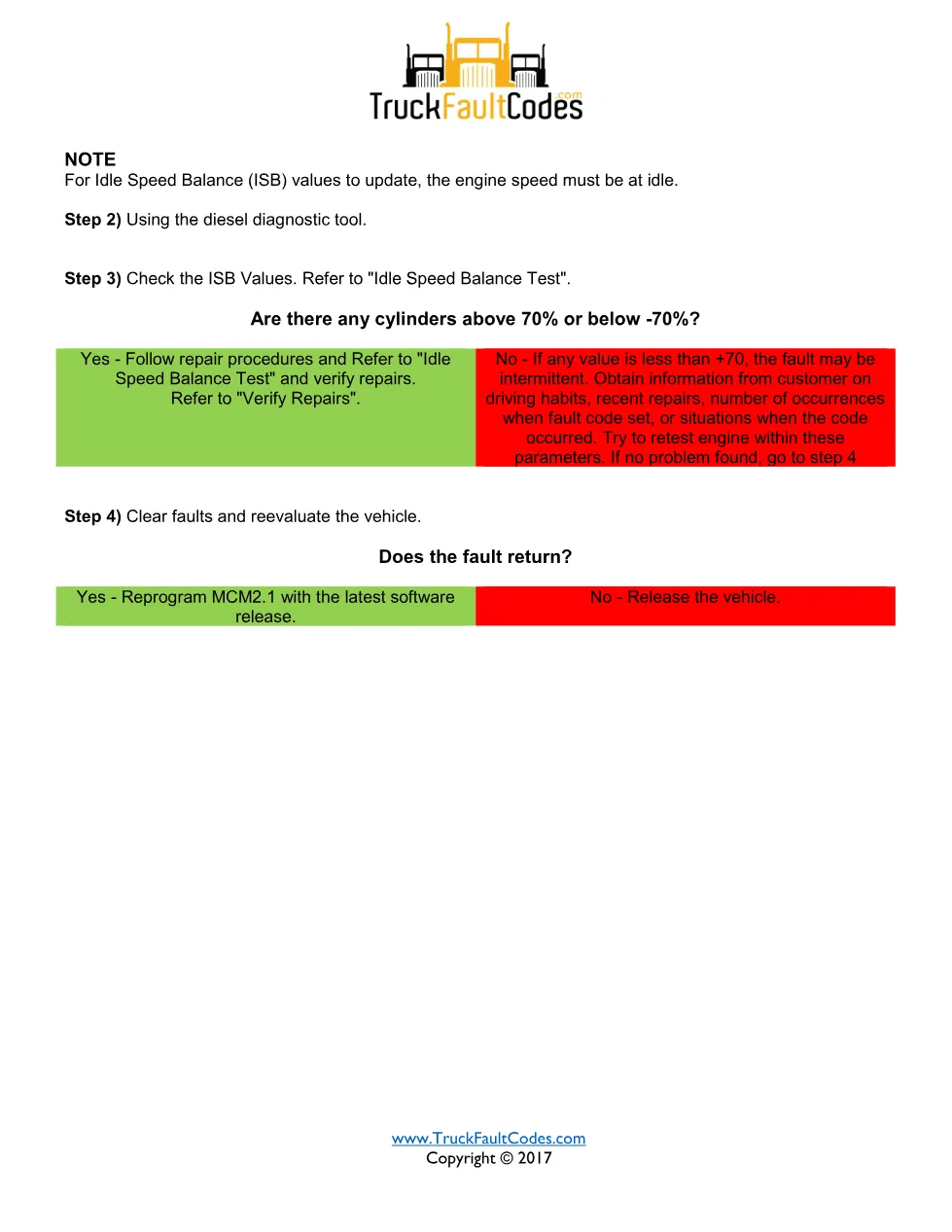

- Steps 2-3: read Idle Speed Balance values
- Step 4: clear faults and re-evaluate
- Corrective action: reprogram MCM2.1
SPN 520253 FMI 14 diagnostic summary
The sheet states the fault may be caused by an external fuel source or a torque request that is out of bounds, and asks the technician to check injectors, alternative fuel sources and add-on devices that may be requesting torque modifications. After the engine reaches operating temperature the diesel diagnostic tool is used to read Idle Speed Balance (ISB) values, looking for any cylinder above 70% or below -70%. When clearing the faults does not stop the code from returning, the procedure calls for reprogramming the MCM2.1 with the latest software release.
Applicable Detroit truck models
This fault-code sheet applies to Detroit DD Series engines certified to EPA 2007 and later emissions standards, and it is cross-listed under the Detroit Series 60 (DDEC VI, EPA 2007) diagnostic set. For full engine specifications and support details, see the official Detroit website.
Who needs this SPN 520253 FMI 14 manual
Technicians who see intermittent power resets on Detroit DD Series engines need this reference to decide between a fuelling problem, an aftermarket torque device, or a software update.
The complete PDF is available in the DiagTechPro manuals library; a free account is required to download it.
