SPN 520249 FMI 4 is the Detroit Diesel fault-code service sheet that documents an SCR inlet temperature-high reading in the aftertreatment system. It documents the monitored parameter, engine reaction, and the harness and sensor checks that follow. This DiagTechPro library page summarizes what the 1-page PDF contains so a technician can confirm it is the right document before downloading.
Official document details
| Brand | Detroit (Detroit Diesel) |
|---|---|
| Model coverage | DD Series (EPA 2007-Current); Series 60 DDEC VI (EPA 2007) |
| System / group | EPA10 diagnostic trouble codes |
| Suspect Parameter Number | 520249 |
| Failure Mode Identifier | 4 |
| Source | TruckFaultCodes.com, © 2017 |
| Pages | 1 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Monitored parameter and enabling conditions
- Engine reaction: 25% derate, MIL and CEL
- Step 2: check for SPN 3246/FMI 15
- Step 3: AS095 voltage wiggle test
- Steps 4-5: connector inspection and sensor replacement
SPN 520249 FMI 4 diagnostic summary

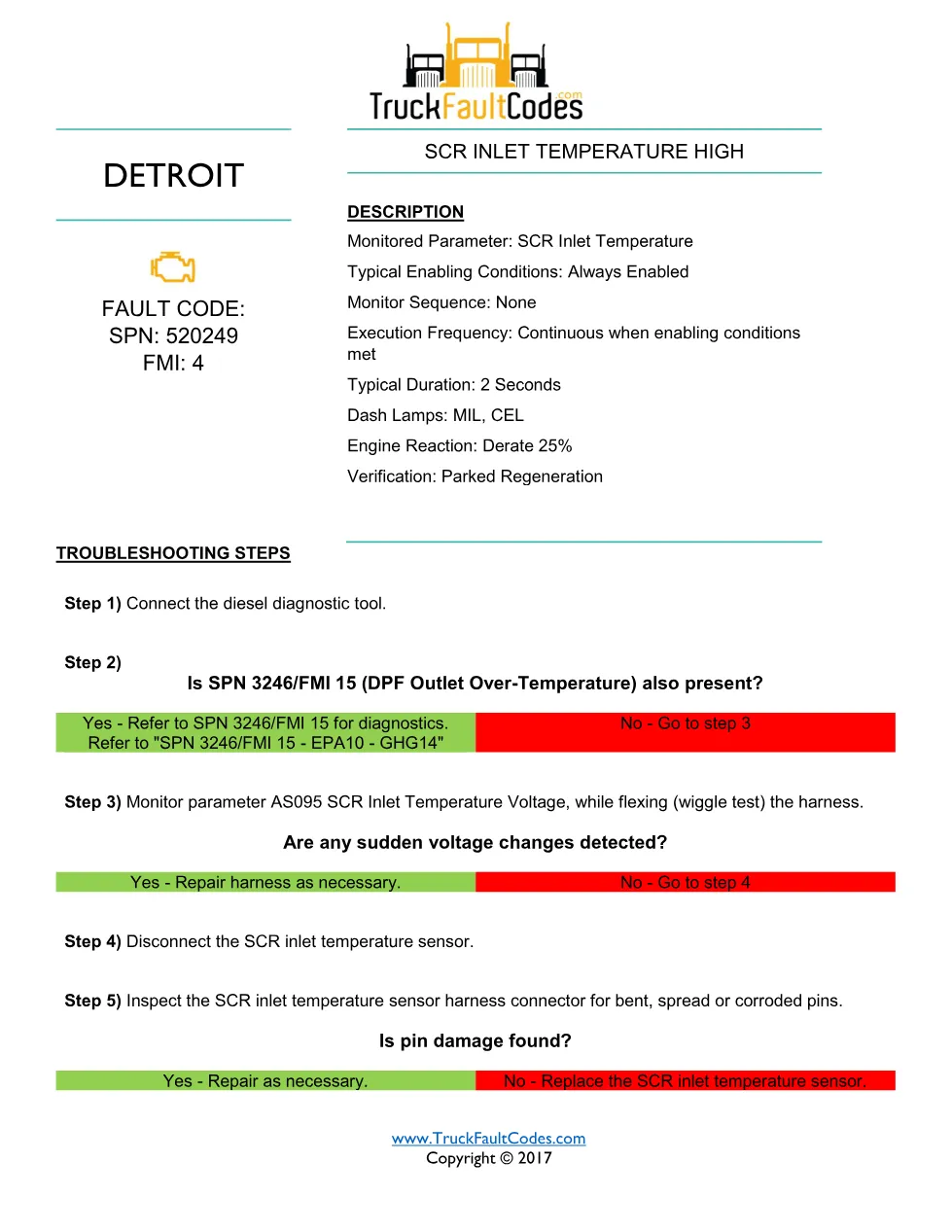

The document lists the monitored parameter as SCR inlet temperature, always enabled, evaluated continuously with a typical two-second duration, illuminating the MIL and CEL and producing a 25% derate, with parked regeneration used for verification. Diagnosis starts by confirming whether SPN 3246/FMI 15 (DPF outlet over-temperature) is also present, then monitors the AS095 SCR inlet temperature voltage during a harness wiggle test. If no sudden voltage changes appear, the technician inspects the SCR inlet temperature sensor connector for bent, spread or corroded pins before replacing the sensor.
