This SPN 3597 FMI 4 document is a Detroit DD Series fault-code procedure for the proportional valve bank 1 circuit failed low condition on EPA10 and GHG14 engines. It follows the resistance-to-ground checks that isolate a short in the front valve cover wiring.
Official document details
| Brand | Detroit |
| Model coverage | Detroit DD Series (EPA 2007-Current) |
| System / group | DD Series / DTCs |
| SPN | 3597 |
| FMI | 4 |

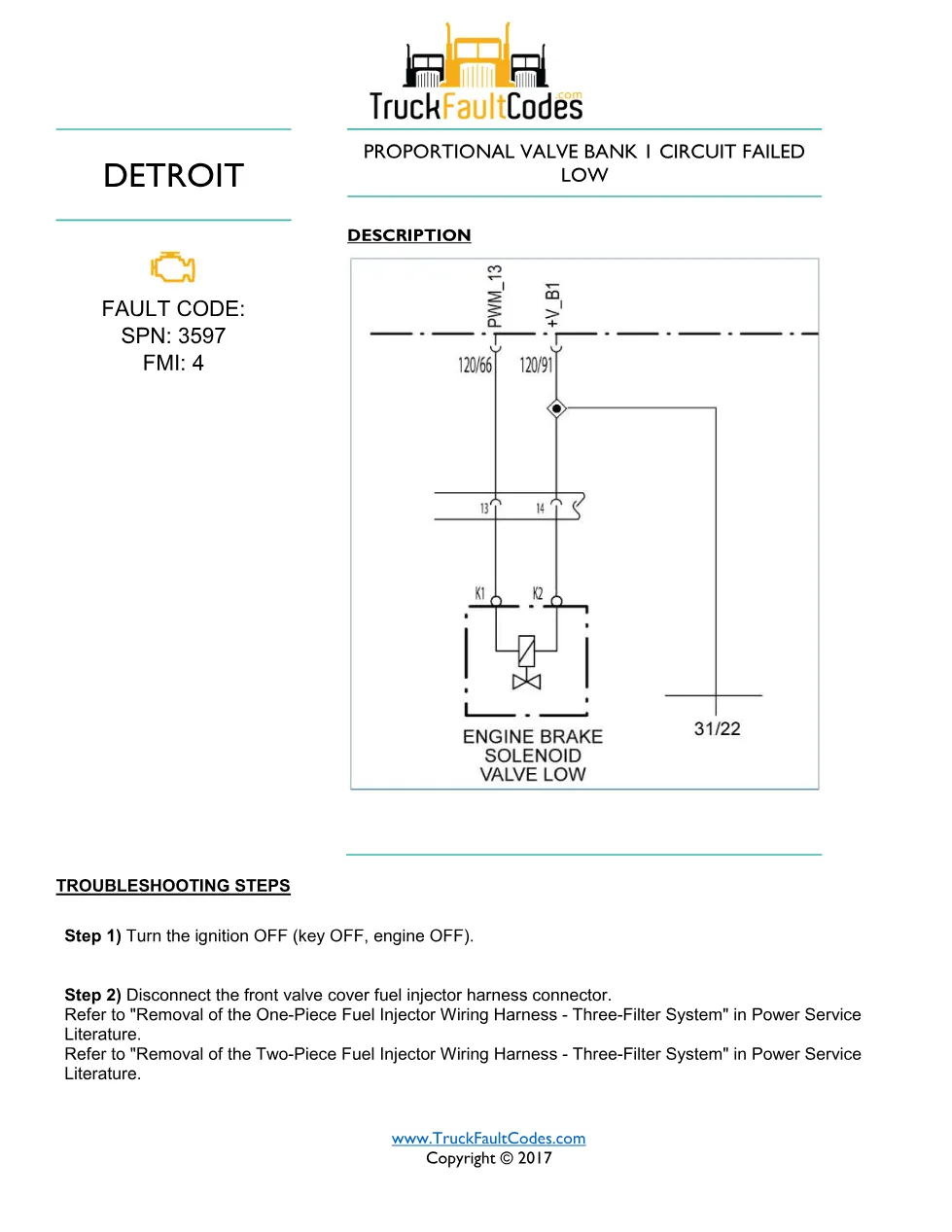

| Condition | proportional valve bank 1 circuit failed low |
| Emissions level | EPA10 and GHG14 |
| Source | Detroit Power Service Literature |
| Pages | 3 |
| File size | 0.3 MB |
| Format | |
| Language | English |
SPN 3597 FMI 4 troubleshooting steps
The routine removes the front valve cover fuel injector harness, then measures resistance to ground at the harness, the low engine brake solenoid, the engine 31-pin connector, and the air seal pressure regulator valve. A reading below one thousand ohms at each point directs you to replace the brake solenoid, repair a harness segment back to MCM pin 91 or 93, or replace the air seal pressure regulator valve.
- Fault description: proportional valve bank 1 circuit failed low

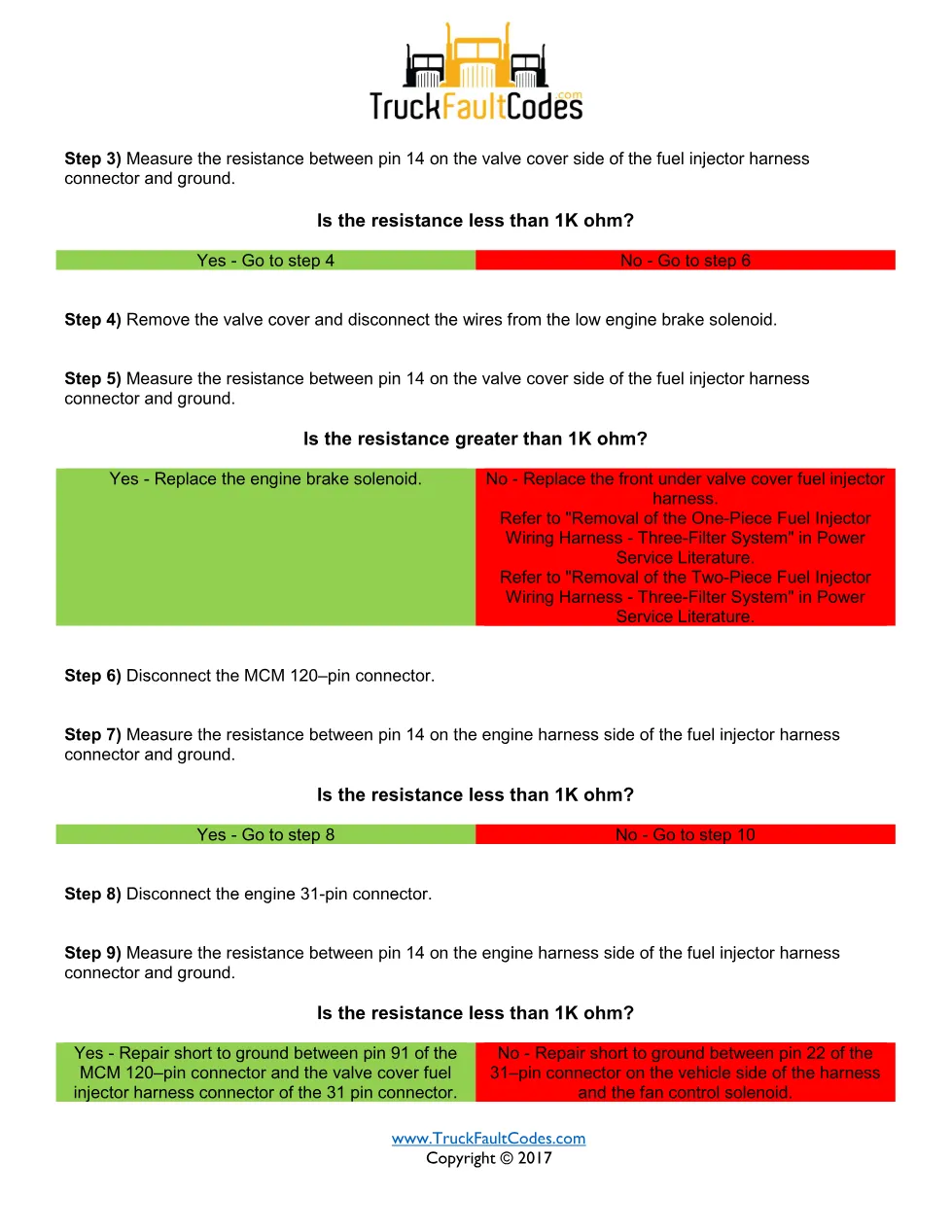

- Steps 1 to 3 – Front valve cover harness resistance to ground
- Steps 4 to 5 – Low engine brake solenoid isolation
- Steps 6 to 9 – MCM and engine 31-pin connector checks

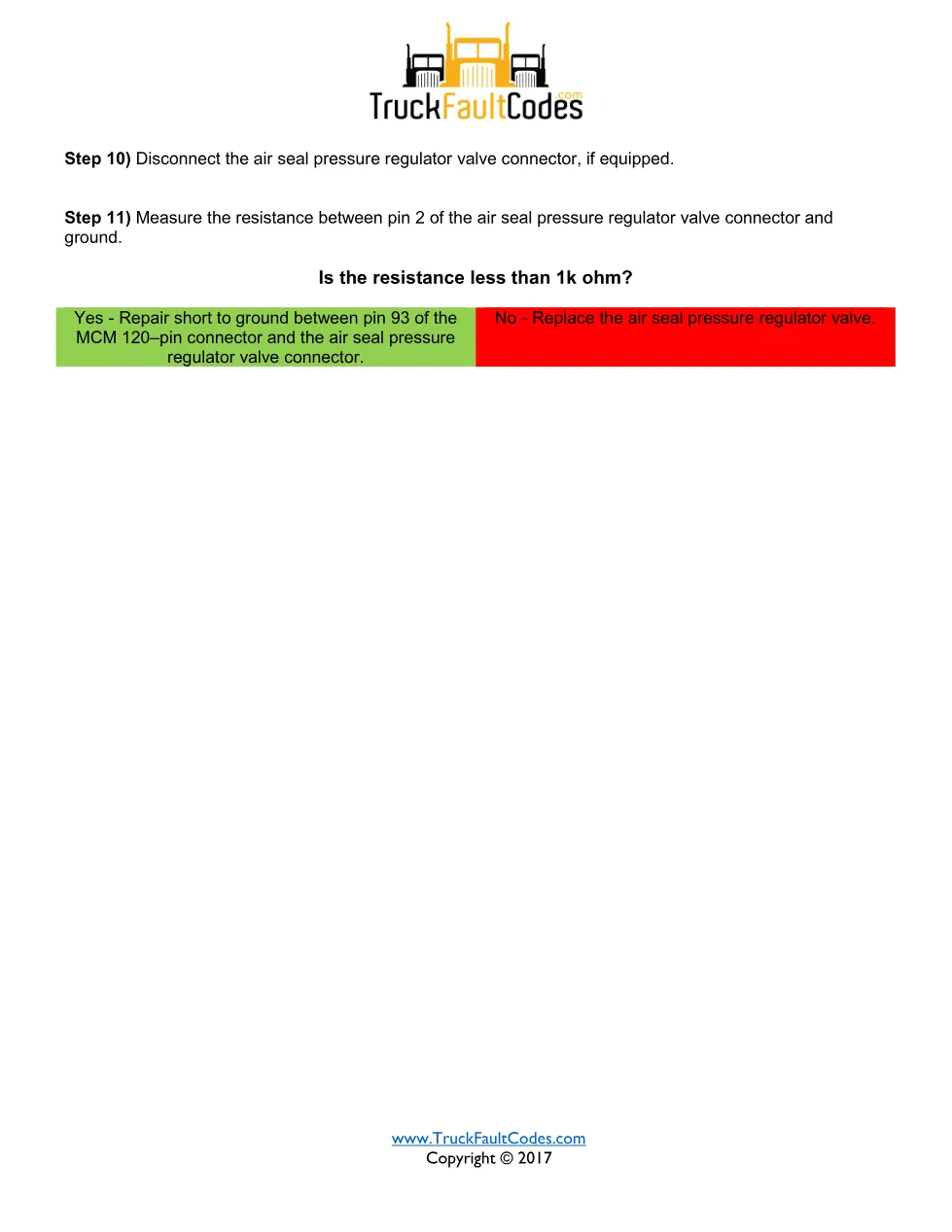

- Steps 10 to 11 – Air seal pressure regulator valve
Applicable truck models
This fault code applies to Detroit DD Series diesel engines on the EPA10 and GHG14 calibration managed by a Motor Control Module. Harness removal cites Detroit Power Service Literature for both one-piece and two-piece injector harnesses; verify the procedure on the official Detroit Diesel website.
Who needs this SPN 3597 FMI 4 manual
Diesel technicians and workshop owners tracing a bank 1 short on a Detroit engine use this document to walk the front valve cover wiring and confirm whether a solenoid, a harness, or the regulator valve is grounded before ordering parts.
The full PDF is available in the DiagTechPro manuals library, where a free account is required to download.
