This SPN 3563 FMI 4 document is a Detroit DD Series fault-code procedure for the intake manifold pressure circuit failed low condition across all model years. It follows the voltage and resistance checks made at the Motor Control Module.
Official document details
| Brand | Detroit |
| Model coverage | Detroit DD Series (EPA 2007-Current) |
| System / group | DD Series / DTCs |
| SPN | 3563 |
| FMI | 4 |
| Condition | intake manifold pressure circuit failed low |
| Emissions level | all model years |
| Source | Detroit Power Service Literature |
| Pages | 2 |
| File size | 0.2 MB |
| Format | |
| Language | English |
SPN 3563 FMI 4 troubleshooting steps
You disconnect the intake manifold pressure/temperature sensor connector, inspect it for bent, spread or corroded pins, then with the ignition on measure 4.5 to 5.5 volts across pins 2 and 4. Less than 4.5 volts points to an open back to MCM pin 58. With the MCM connector off, resistance from harness pin 1 to MCM pin 87 and to ground separates an open, a short to ground, or a failed sensor that must be replaced.
- Fault description: intake manifold pressure circuit failed low

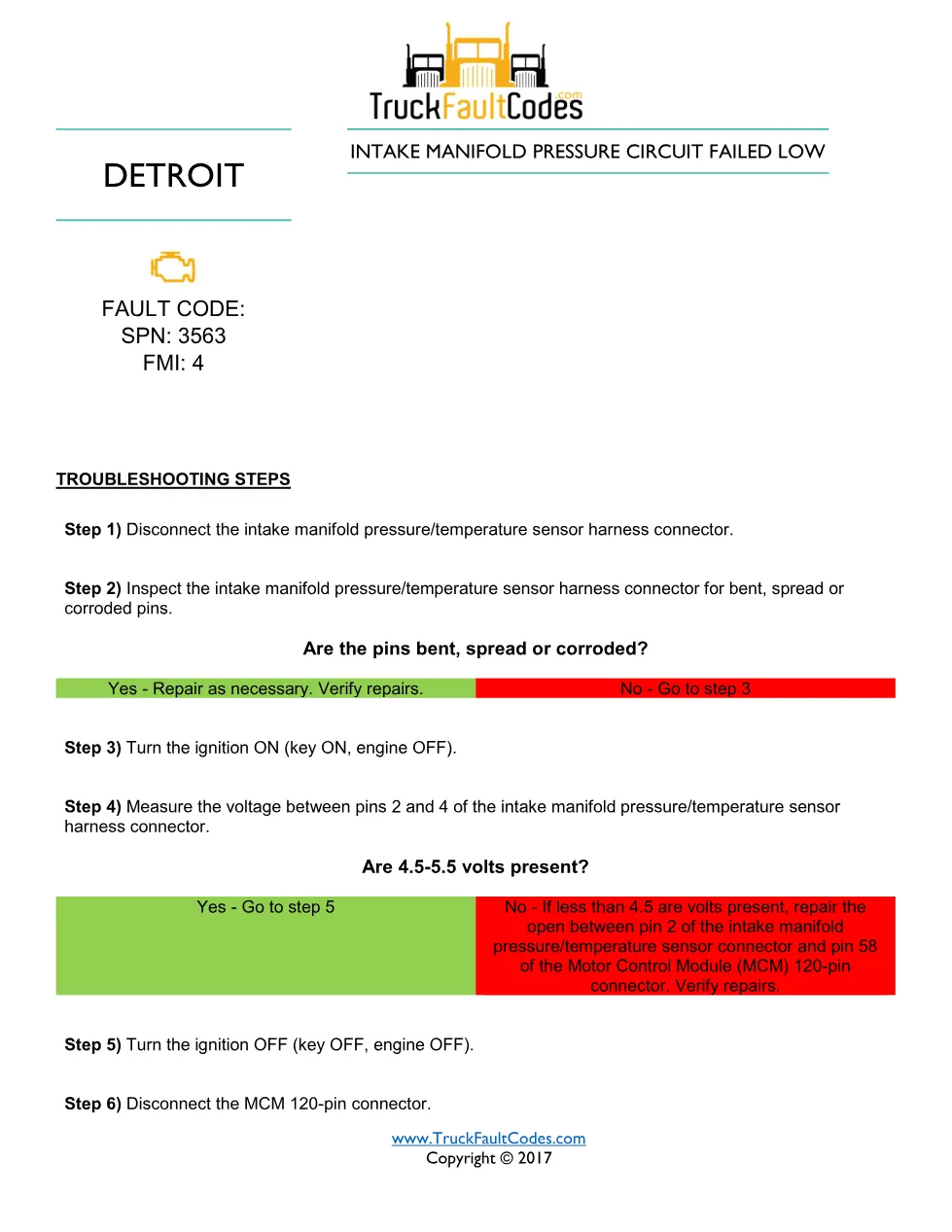

- Steps 1 to 2 – Disconnect connector and inspect pins
- Steps 3 to 4 – Supply voltage across pins 2 and 4
- Steps 5 to 6 – Disconnect the MCM 120-pin connector

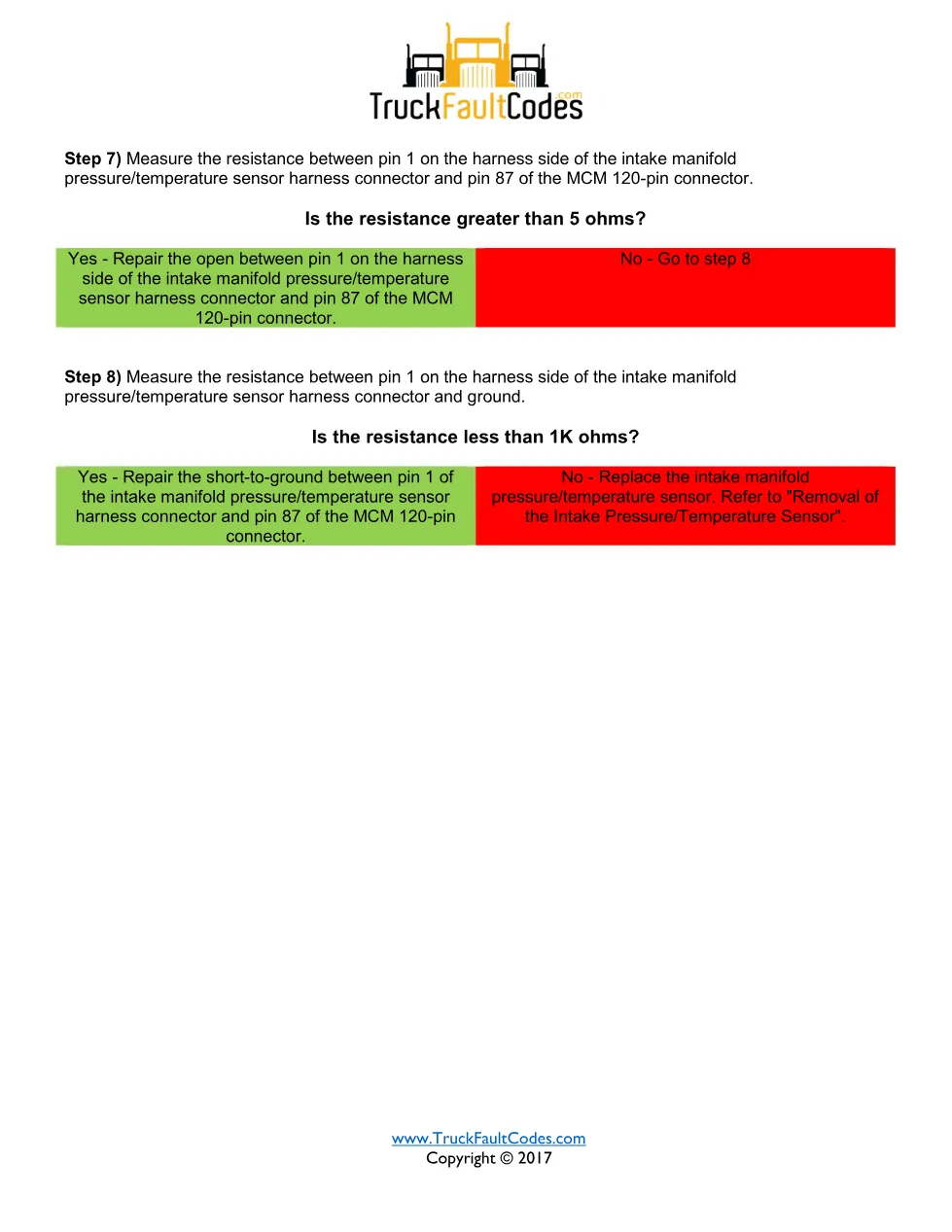

- Steps 7 to 8 – Resistance to MCM pin 87 and to ground
Applicable truck models
This fault code applies to Detroit DD Series diesel engines of all model years managed by a Motor Control Module and an intake manifold pressure/temperature sensor. Removal references Detroit Power Service Literature; confirm the pinout on the official Detroit Diesel website.
Who needs this SPN 3563 FMI 4 manual
Diesel technicians and workshop owners chasing a low intake pressure signal on a Detroit engine use this document to separate an open supply, a shorted wire, and a failed sensor before ordering parts.
