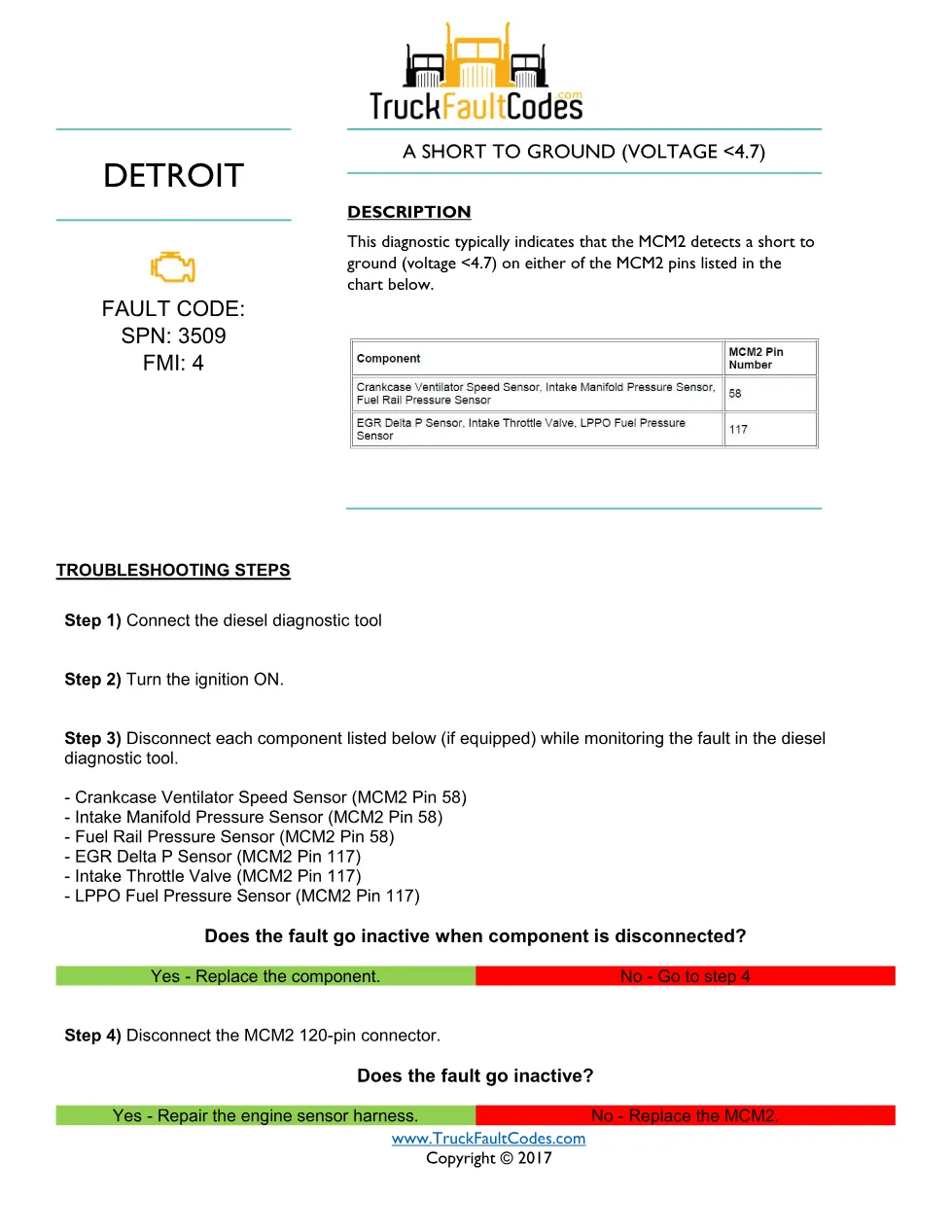

SPN 3509 EPA10 fault is documented in this Detroit DD Series fault code reference PDF, which covers the Sensor Supply Short To Ground condition on Detroit engines. The 2-page document lists the fault description, the step-by-step troubleshooting sequence and the connector measurements a technician uses to confirm the repair.
Official document details
| Brand | Detroit |
|---|---|
| Model coverage | Detroit DD Series (EPA 2007-Current) engines on the EPA10 platform using the MCM2 |
| System / group | DD Series (EPA 2007-Current) / DTCs |
| Diagnostic code | FMI 4 / SPN 3509 |
| Year / revision | Source dated 2017 |
| Pages | 2 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification: SPN 3509, FMI 4
- Sensor supply short to ground
- Affected MCM2 pin chart
- Component isolation with diagnostic tool
- Sensor-by-sensor disconnection
Applicable truck models and engines
This fault code applies to Detroit DD Series (EPA 2007-Current) engines on the EPA10 platform using the MCM2, and the DiagTechPro library also files it under the Series 60 (DDEC VI, EPA 2007) DTC set. The diagnostic references the Motor Control Module (MCM2) used on these Detroit powertrains. See the manufacturer’s Detroit official website for current engine specifications and dealer support.
SPN 3509 EPA10 fault troubleshooting overview
The document explains that the MCM2 has detected a short to ground, below 4.7 volts, on one of the MCM2 pins listed in its chart. With the diesel diagnostic tool connected and the ignition on, the technician disconnects each listed component in turn while monitoring the fault in the diagnostic tool to identify which circuit is at fault. This component-isolation approach separates a failing sensor from a shorted section of the engine sensor harness before any part is replaced.
Who needs this SPN 3509 EPA10 fault manual
Detroit-certified technicians, independent truck repair shops and fleet maintenance teams will use this reference to follow the factory diagnostic sequence with a diesel diagnostic tool before replacing any control module or sensor.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it, alongside the related Detroit Power Service Literature.
