The SPN 3251 FMI 0 fault code file is a Detroit EPA07 and GHG14 diagnostic sheet covering a Diesel Particulate Filter (DPF) inlet pressure hose assembly fault on DD Series engines. Compiled by TruckFaultCodes.com (© 2017) from Detroit Power Service Literature, this 4-page PDF gives technicians the exact troubleshooting order for DTC 3251-0. It is a field reference, not a substitute for the full factory manuals.
Official document details
| Brand | Detroit (Detroit Diesel) |
|---|---|
| Model coverage | DD13, DD15, DD16 |
| System / group | DD Series (EPA 2007-Current) — DTCs |
| Diagnostic code | DTC 3251-0, emission level EPA07 and GHG14 |
| Fault name | DPF Inlet Pressure Hose Assembly |
| Pages | 4 |
| File size | 0.4 MB |
| Format | |
| Source | TruckFaultCodes.com, from Detroit Power Service Literature |
| Language | English |
SPN 3251 FMI 0 fault summary
It isolates a DPF inlet pressure hose assembly problem by checking the P_DPF_IN sensor voltage, inspecting the hose for kinks and blockage, and road-testing the truck. Every step is laid out as a Yes/No decision branch, so you can follow the same path a Detroit dealer technician would without guessing.

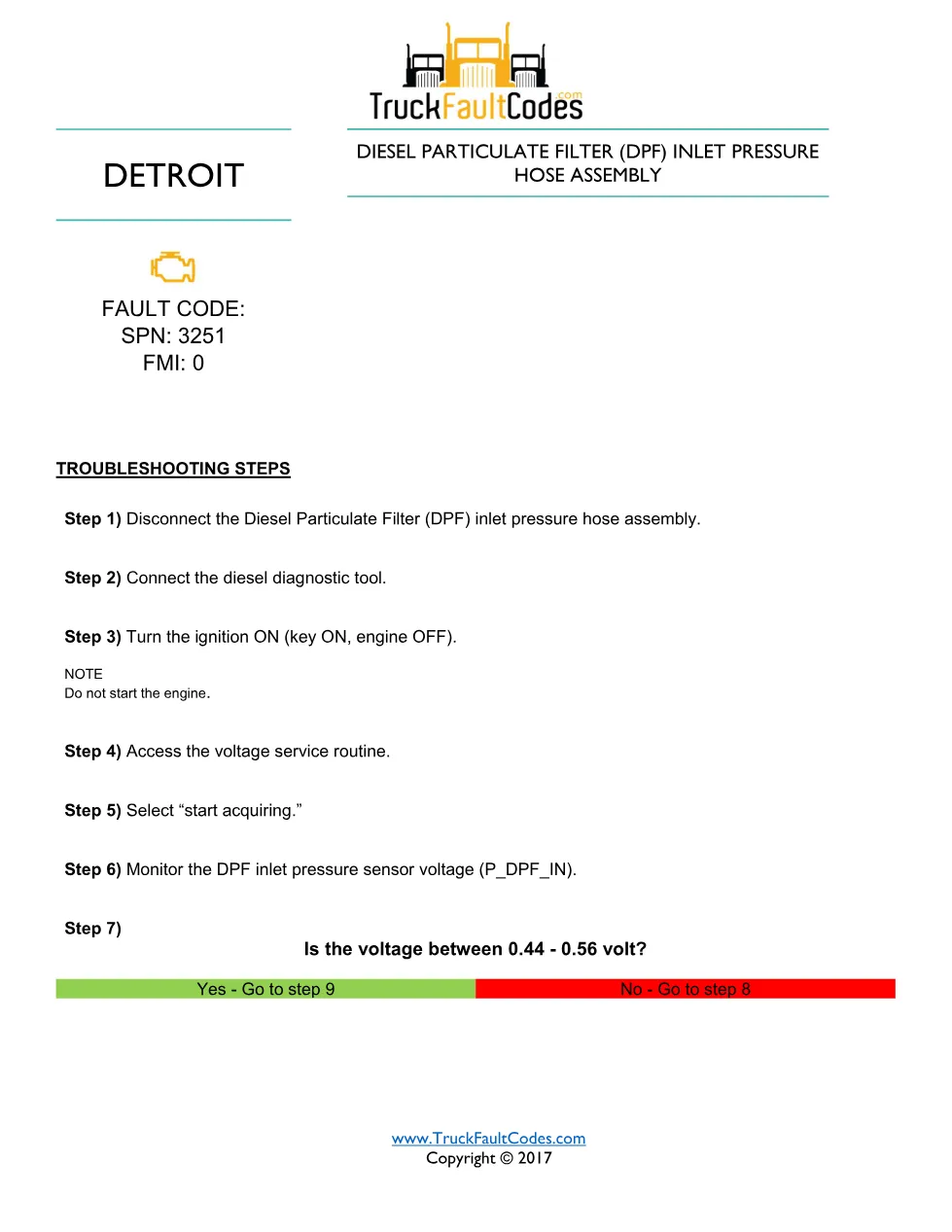

- Disconnecting the DPF inlet pressure hose assembly
- Monitoring P_DPF_IN sensor voltage (0.44 to 0.56 volt)

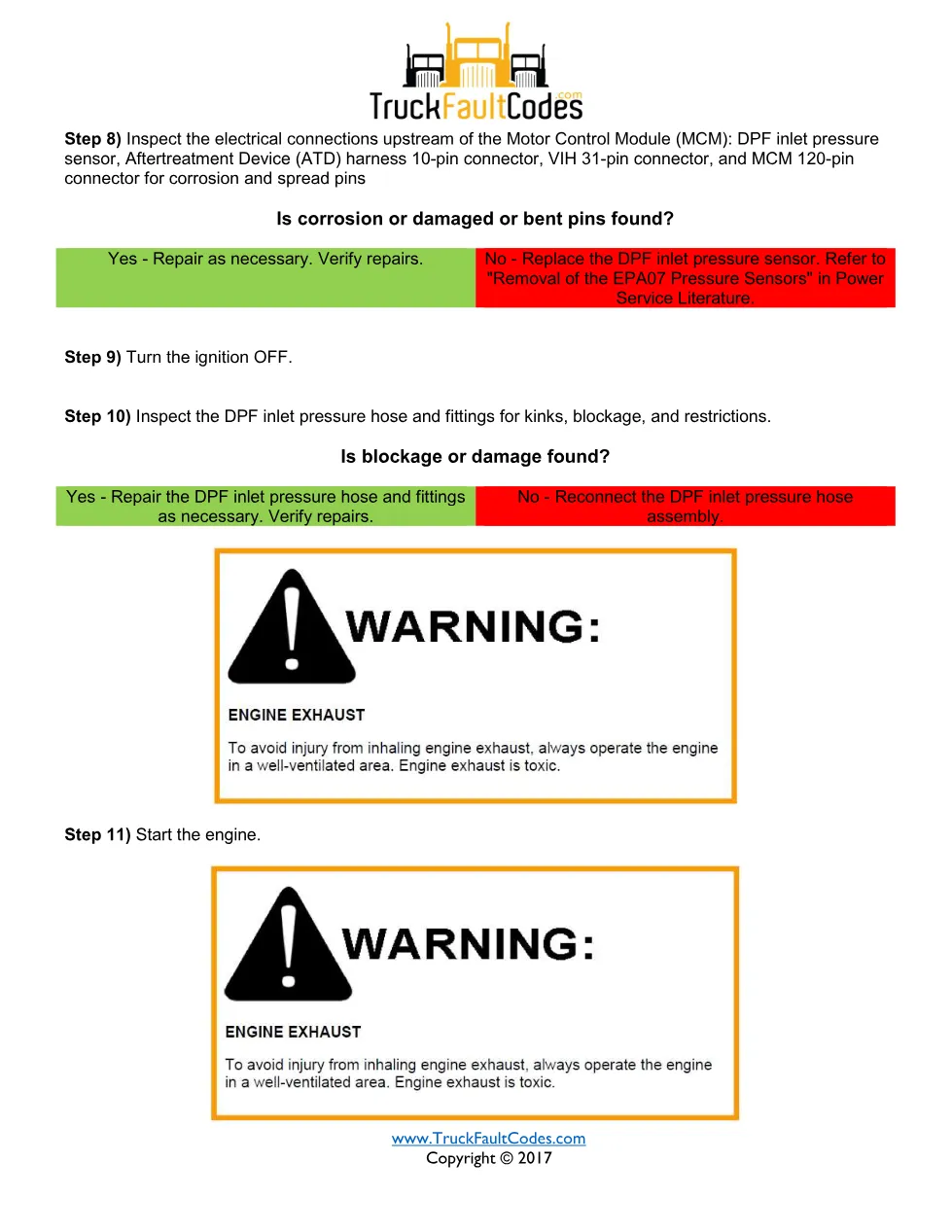

- Inspecting connectors upstream of the control module
- Checking the hose and fittings for kinks and blockage

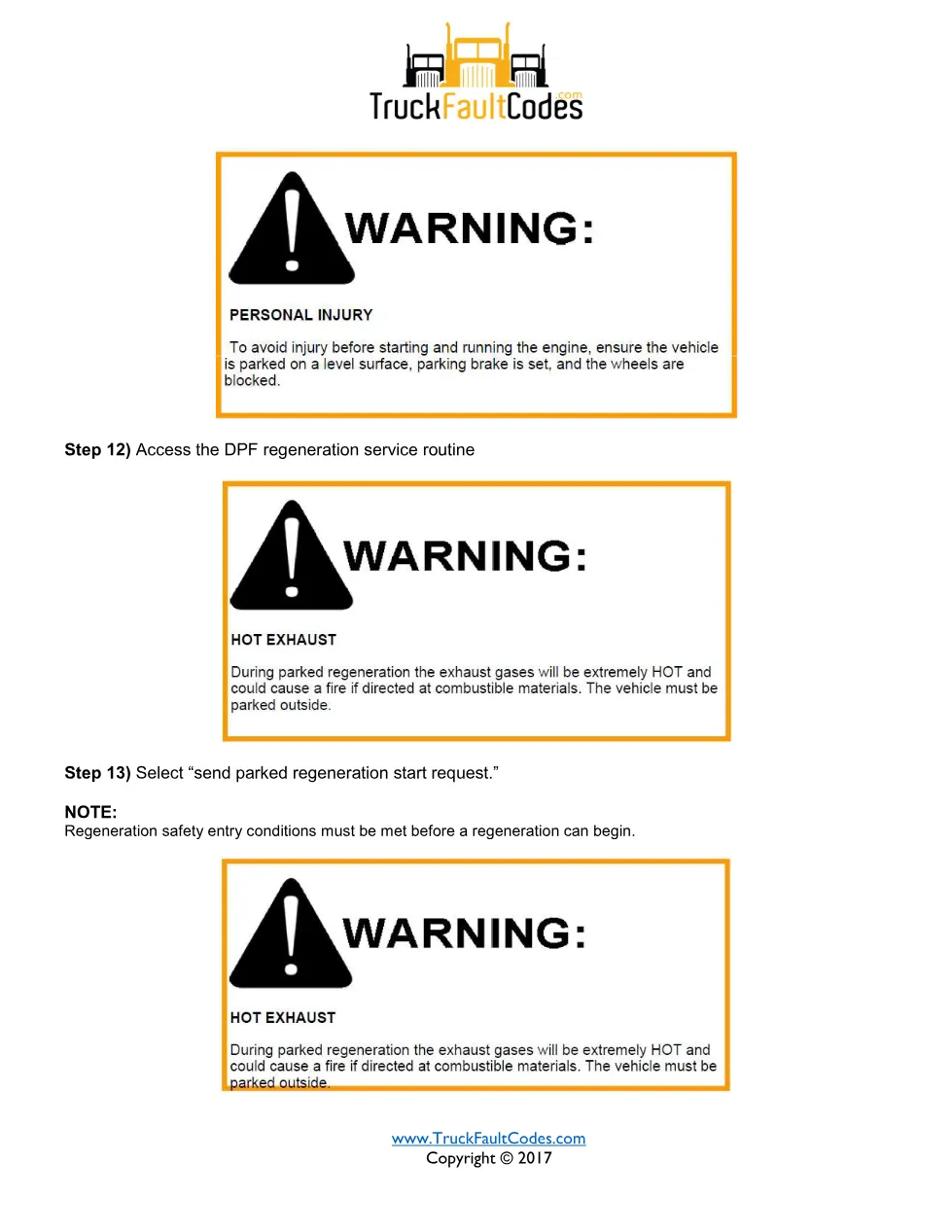

- Parked regeneration and road test
- Removing the ATD to check for soot loading
Applicable truck models and engines
This procedure applies to Detroit DD13, DD15 and DD16 engines in the DD Series (EPA 2007-Current) family. It covers both the EPA07 (MCM) and GHG14 (ACM2.1) control architectures. For engine specifications and dealer support, see the official Detroit engine support site.
Who needs this SPN 3251 FMI 0 manual
Fleet technicians, mobile diesel mechanics and DD Series owners diagnosing this code with a diesel diagnostic tool such as DDDL or DDRS will find the exact step order, pin numbers and pass/fail limits they need. Keep it beside the truck during the repair.
The complete 4-page PDF is available in the DiagTechPro manuals library; a free account is required to download it.
