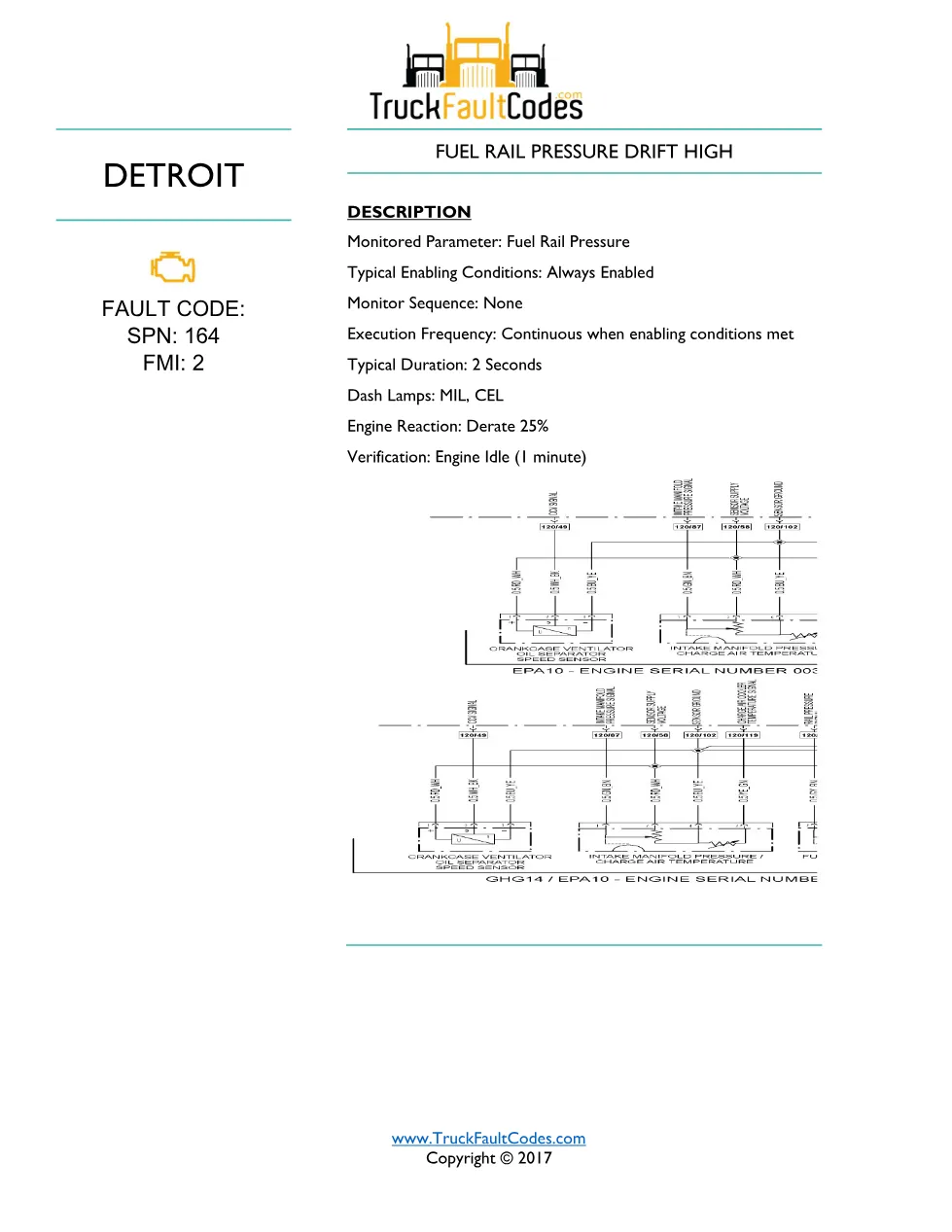

rail pressure drift high is the Detroit DD Series diagnostic trouble code for a fuel rail pressure sensor circuit concern, and this page documents its official fuel rail pressure sensor circuit troubleshooting sheet. The three-page sheet lists an always-enabled continuous monitor, a 2-second duration and a 25% engine derate with MIL and CEL, then walks the sensor and Motor Control Module (MCM) harness checks.
rail pressure drift high document details
| Brand | Detroit |
| Model coverage | DD Series — DD13, DD15, DD16 |
| System / group | DD Series (EPA 2007-Current) / DTCs |
| SPN | 164 |
| FMI | 2 |
| Fault | Fuel Rail Pressure Drift High |
| Emissions / revision | EPA07, GHG14 — Copyright 2017 |
| Pages | 3 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents
- Description, continuous monitor and engine derate
- Sensor disconnection and connector inspection
- Harness voltage measurement (pins 1 and 3)
- MCM 120-pin connector resistance checks
- Sensor or MCM replacement decision

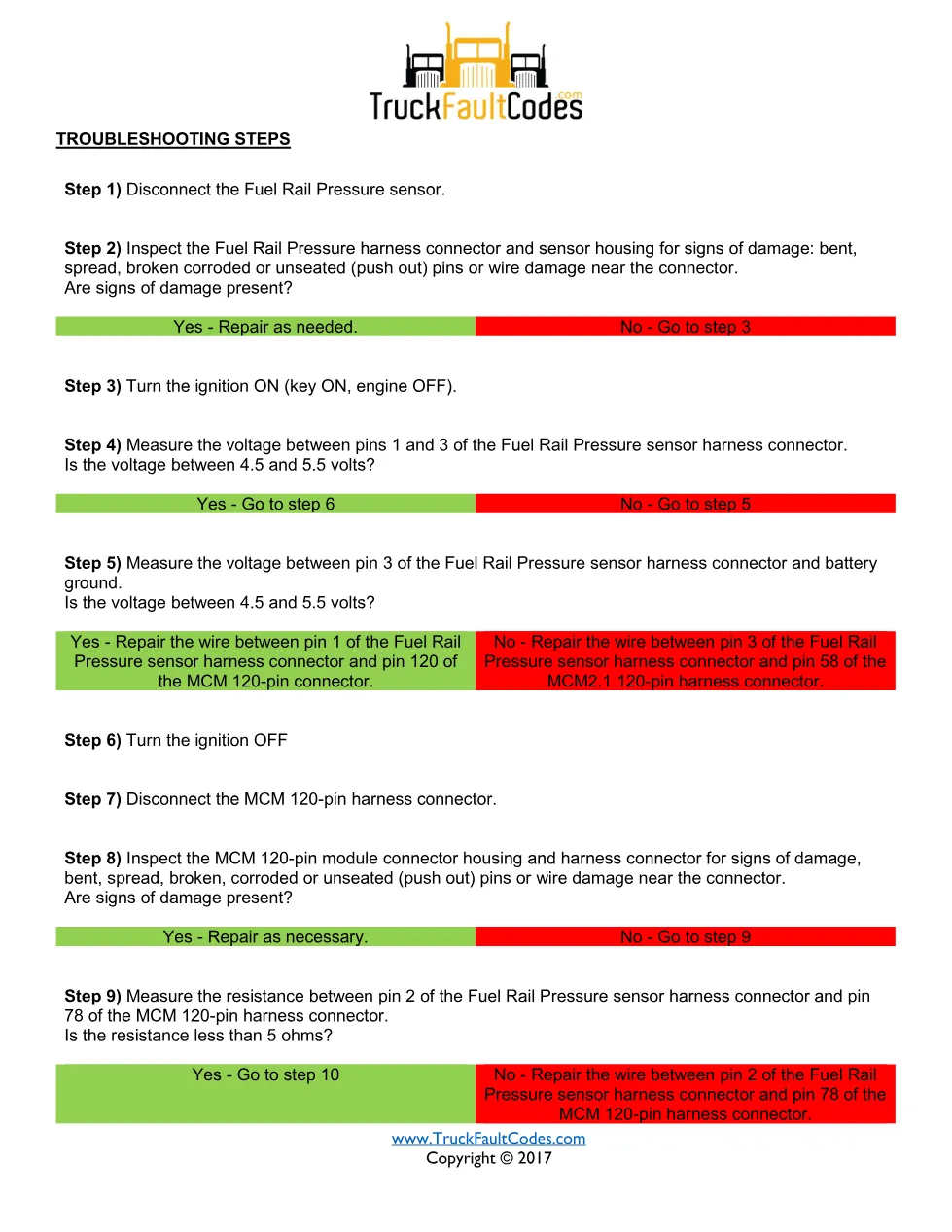

Troubleshooting steps summarised

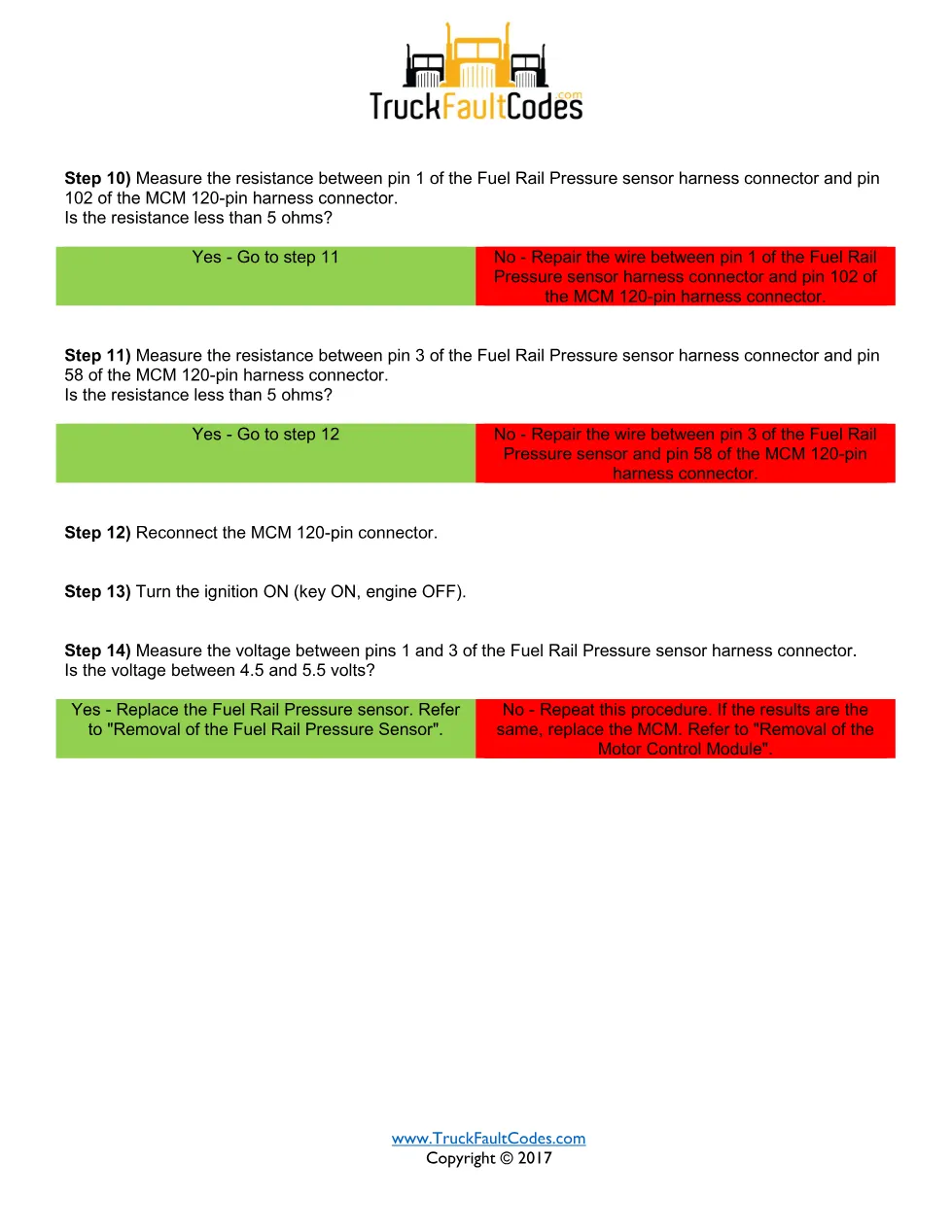

The technician disconnects and inspects the sensor, then with the ignition ON measures 4.5 to 5.5 volts between pins 1 and 3 of the harness connector. The procedure checks the supply and signal wiring to pins 102, 58 and 78 of the MCM 120-pin connector, confirms circuit resistance below 5 ohms and signal-to-supply resistance above 10K ohms, and re-tests before replacing the sensor or the MCM.
