This document is a PACCAR P1601A DTC code diagnostic reference for mechanics and workshop technicians servicing heavy-duty trucks equipped with MX EPA engines. Published by PACCAR, it outlines the fault detection criteria, diagnostic conditions, and repair verification procedures for P1601A trouble codes in EPA-compliant powertrains.
The PACCAR P1601A DTC code indicates a programmed data error in the PCI ECU (Powertrain Control Interface Engine Control Unit), a critical fault that prevents engine startup and vehicle operation.
Document details and specifications
| Brand | PACCAR |
| Model coverage | MX EPA 2004, MX EPA 2013 engines |
| System/Group | DTCs / MX Europe Engines (EPA 2004) |
| Publication no. | M033822 |
| Year/Revision | 08-20-2016 |
| Pages | 1 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Table of contents
- P1601 Set conditions
- Diagnostic condition
- Corresponding OBD readiness monitor
- Reset condition
- Repair verification steps
- Possible cause
- Additional information

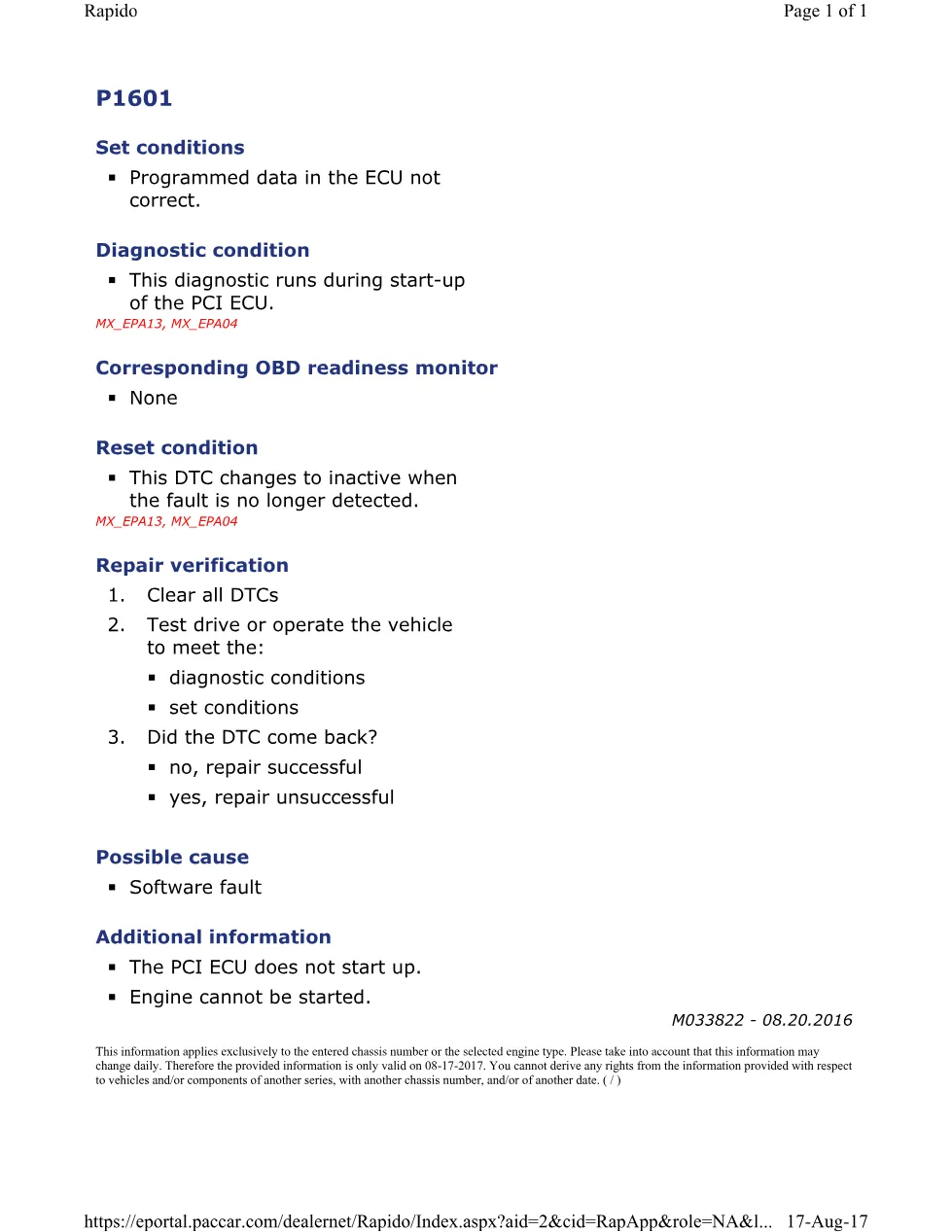

PACCAR P1601A DTC Code — Set Conditions and Diagnostics
The PACCAR P1601A DTC code triggers when programmed data stored in the ECU becomes corrupted or incorrect. This diagnostic runs automatically during PCI ECU startup and applies to both MX EPA 2004 and MX EPA 2013 engine variants. Unlike many other diagnostic trouble codes, the P1601A has no corresponding OBD readiness monitor; it operates as a standalone data integrity check.
The P1601A DTC code resets to inactive status only when the underlying fault is no longer detected. There is no separate reset condition; the code clears automatically upon successful repair and normal ECU operation.
Repair Verification for PACCAR P1601A DTC
To verify repair of a P1601A DTC code, follow the three-step procedure: (1) clear all active and pending diagnostic trouble codes, (2) test drive or operate the vehicle under conditions that meet both the diagnostic and set conditions specified in the manual, and (3) monitor whether the P1601A DTC code reappears. If the code does not return, the repair is successful; if it returns, further diagnosis is required.
The PACCAR P1601A DTC code indicates a software fault as the possible cause. Additional information notes that when this fault is present, the PCI ECU will not complete startup, and the engine cannot be started. This makes the code a critical priority for any truck unable to crank or fire.
Applies to these models
This diagnostic guide applies to PACCAR trucks and heavy equipment using MX EPA 2004 and MX EPA 2013 compliant diesel engines. For official PACCAR technical support and additional documentation, visit PACCAR official website.
Who needs this P1601A DTC code manual
Diesel mechanics, fleet technicians, and workshop owners diagnosing no-start conditions or ECU communication failures on PACCAR MX engines need this P1601A DTC code reference. The guide is essential for anyone performing electrical or software troubleshooting on EPA-regulated powertrains.
The complete P1601A DTC code diagnostic manual is available in the DiagTechPro manuals library. A free account is required to download the full PDF document.
