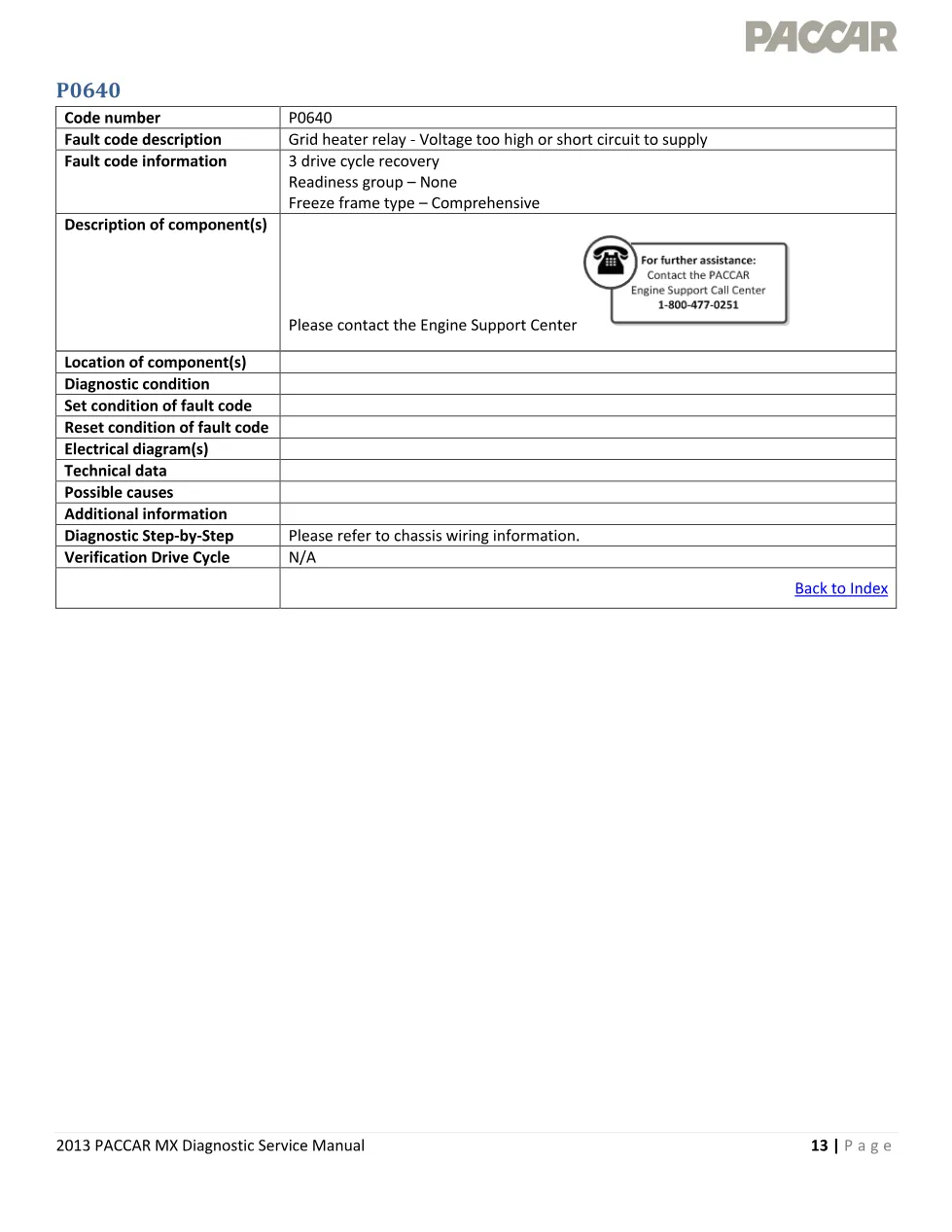

This PACCAR P0640 grid heater diagnostic reference is an official 2013 PACCAR MX engine service manual excerpt covering fault code P0640 for mechanics and technicians. Published by PACCAR as part of their MX Diagnostic Service Manual series, this single-page document provides essential diagnostic data for EPA2013-compliant heavy-duty truck engines.
The PACCAR P0640 code identifies a grid heater relay electrical fault—specifically voltage too high or a short circuit to the supply line. This document contains the complete fault code definition, diagnostic conditions, and recovery parameters needed for proper diagnosis.
Document details and specifications — PACCAR P0640 grid
| Brand | PACCAR |
| Model coverage | MX Engines (EPA2013) |
| System/Group | DTCs / MX Engines (EPA2013) |
| Year/Revision | 2013 |
| Pages | 1 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Table of contents
- Code number and fault description
- Fault code information and drive cycle recovery
- Readiness group classification
- Freeze frame type (Comprehensive)
- Description of component(s)
- Location of component(s)
- Diagnostic condition parameters
- Set condition of fault code
- Reset condition of fault code
- Electrical diagram(s)
- Technical data specifications
- Possible causes analysis
- Additional information and notes
- Diagnostic step-by-step procedures
- Verification and drive cycle instructions
Applies to these models
This PACCAR P0640 manual applies to PACCAR MX-series heavy-duty truck engines manufactured to EPA2013 emissions standards. The document provides fault code diagnostic procedures for grid heater relay voltage faults and supply-line short circuits. For additional engine documentation and technical support, visit PACCAR official.
Who needs this PACCAR P0640 grid heater manual
Heavy-duty diesel mechanics, truck technicians, and workshop owners diagnosing P0640 faults on PACCAR MX-powered trucks require this guide. The PACCAR P0640 diagnostic manual is essential for anyone performing electrical troubleshooting on grid heater relay systems or clearing EPA2013 engine codes.
The complete PACCAR P0640 PDF is available in the DiagTechPro manuals library. A free account is required to download this 2013 PACCAR MX Diagnostic Service Manual excerpt and access thousands of OEM service documents.
