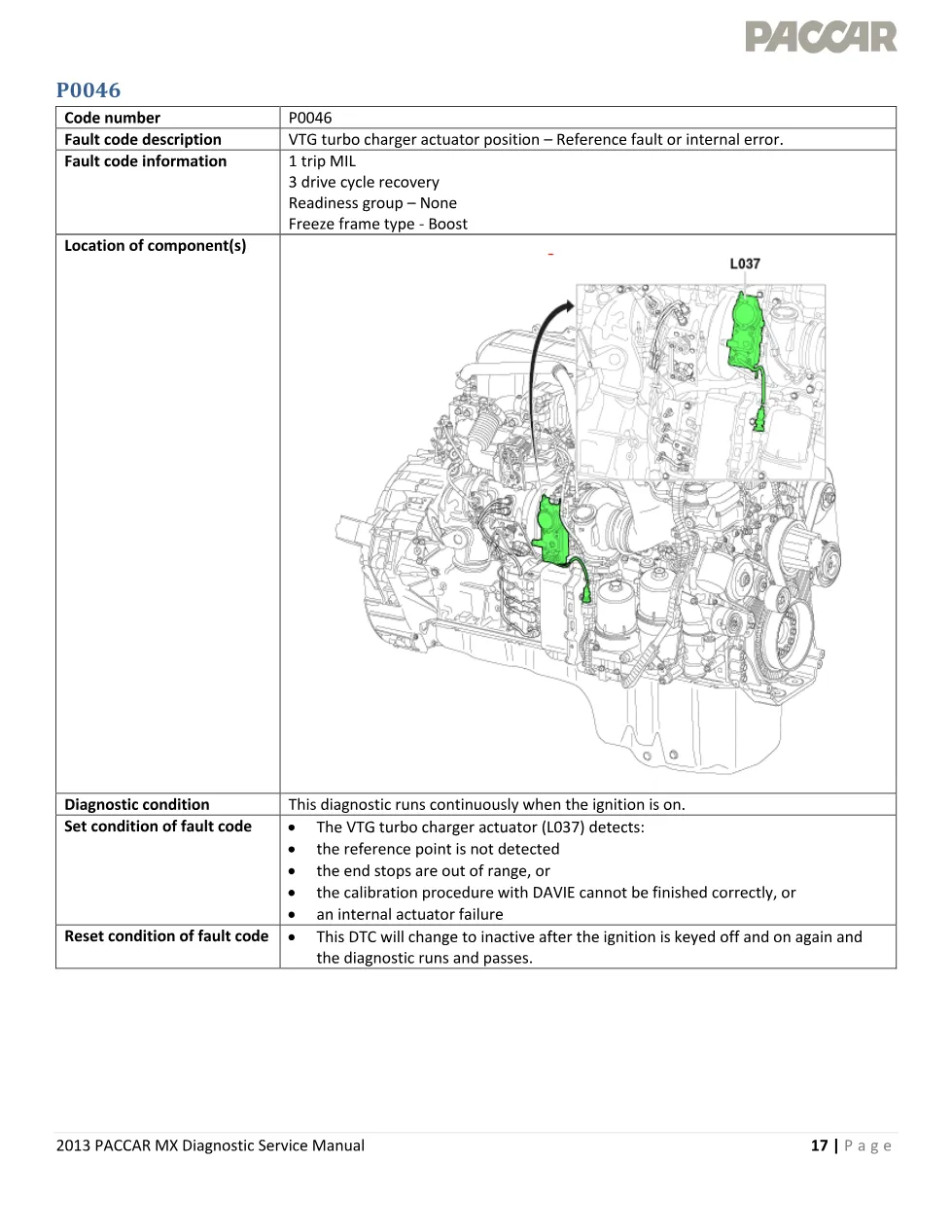

PACCAR MX P0046 is the fault code chapter the 2013 PACCAR MX Diagnostic Service Manual publishes for “VTG turbo charger actuator position – Reference fault or internal error”. The 5-page PDF is PACCAR’s own troubleshooting write-up for EPA2013 MX engines, reproduced exactly as the factory issued it.
Document details and coverage
| Brand | PACCAR |
|---|---|
| Group | DTCs / MX Engines (EPA2013) |
| Fault code | P0046 |
| Fault code information | 1 trip MIL, 3 drive cycle recovery, freeze frame type Boost |
| Source manual | 2013 PACCAR MX Diagnostic Service Manual |
| Pages | 5 |
| File size | 0.4 MB |
| Format | |
| Language | English |
What sets PACCAR MX P0046 active
The diagnostic runs continuously when the ignition is on. The VTG turbocharger actuator (L037) sets the code when the reference point is not detected, the end stops are out of range, the calibration procedure with DAVIE cannot be finished correctly, or an internal actuator failure is detected. The DTC changes to inactive after the ignition is keyed off and on again and the diagnostic runs and passes.
Component and wiring checks

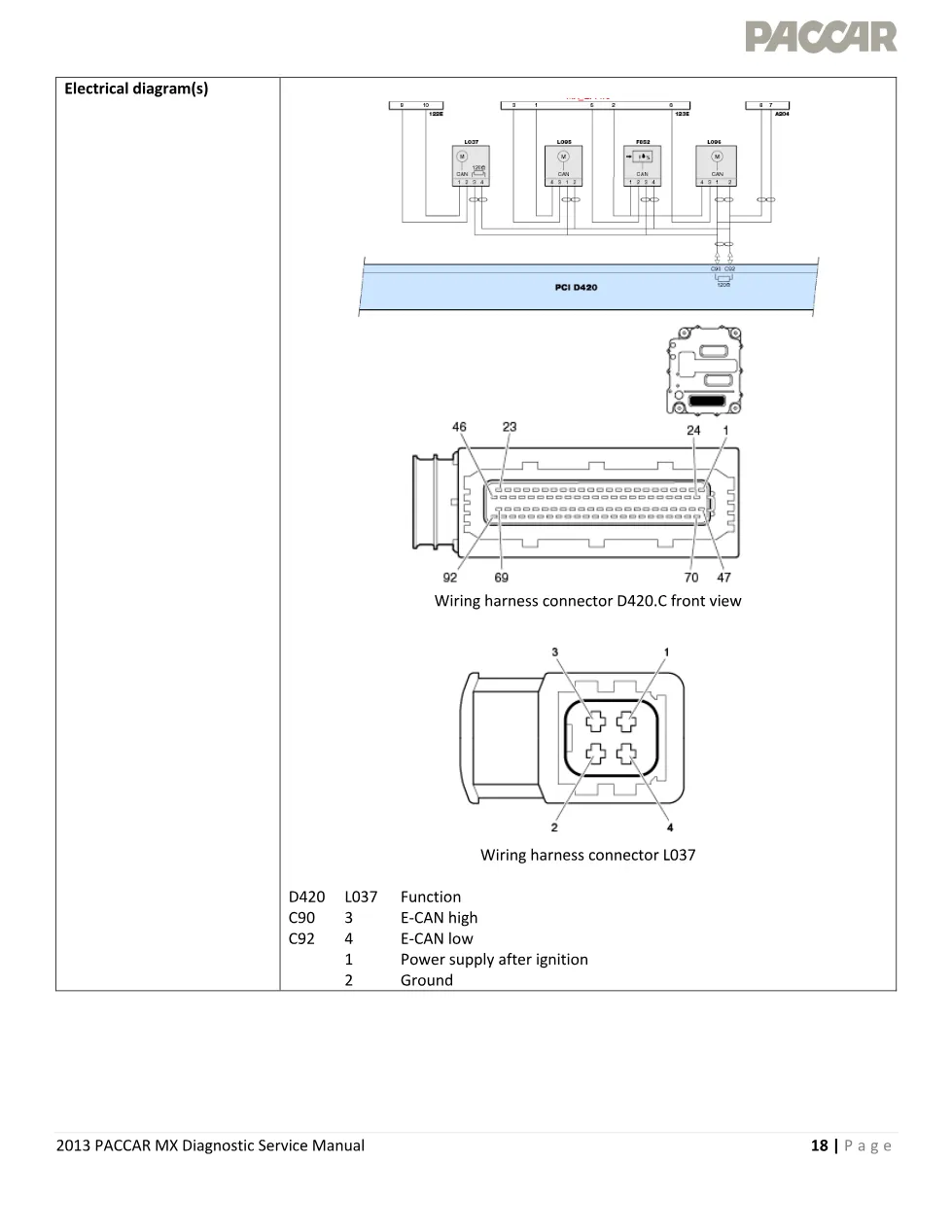

- PCI ECU connector D420.C pins C90 (E-CAN high) and C92 (E-CAN low) to actuator connector L037 pins 3 and 4
- Actuator pin 1 power supply after ignition and pin 2 ground

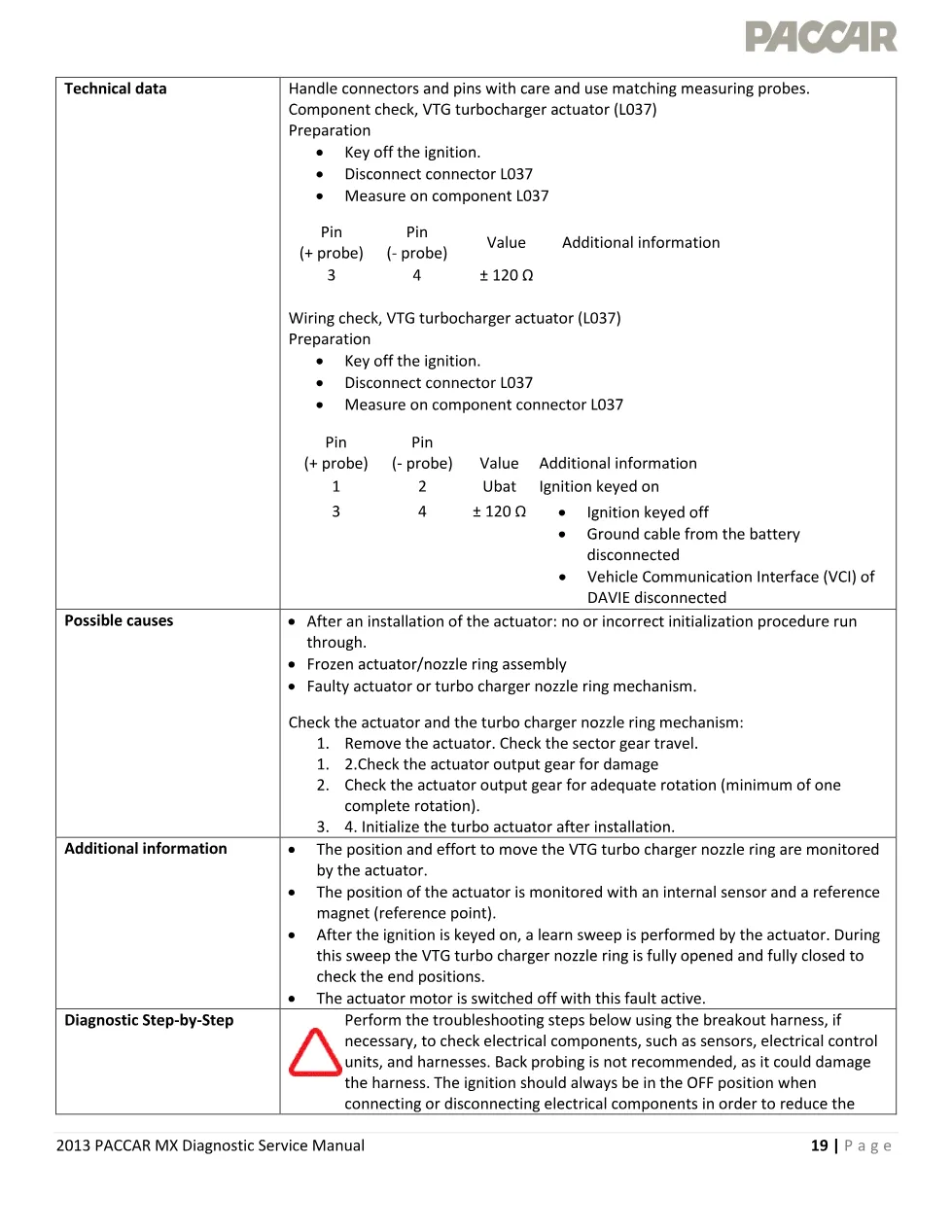

- Component check of about 120 Ω between actuator pins 3 and 4
Possible causes and repair notes
- No initialization procedure, or an incorrect one, after installing the actuator
- Frozen actuator and nozzle ring assembly
- Faulty actuator or turbocharger nozzle ring mechanism
The mechanical part of the procedure has the technician remove the actuator, check the sector gear travel, inspect the actuator output gear for damage, confirm at least one complete rotation of the output gear, then reinstall and reinitialize the turbo actuator. A damaged output gear means the turbo is replaced. Company and product background is on the official PACCAR website.
