This document is the 2013 PACCAR MX Diagnostic Service Manual covering PACCAR MX ambient pressure and internal ECU sensor diagnostics. Published by PACCAR for MX-series engines compliant with 2013 EPA emissions standards, it provides technicians with fault code definitions, component descriptions, and structured troubleshooting procedures for P2226 (Internal ECU Ambient Pressure – Data Erratic, Intermittent, or Incorrect at Ignition On).
The manual addresses the atmospheric pressure sensor and temperature sensor located within the PCI electronic control unit, explaining how these internal sensors affect engine torque delivery at high altitudes and ECU thermal monitoring.
Document details and specifications — PACCAR MX ambient
| Brand | PACCAR |
| Model coverage | MX series engines |
| System/Group | DTCs / MX Engines (EPA2013) |
| Publication number | 2013 PACCAR MX Diagnostic Service Manual, page 250–252 |
| Year/Revision | 2013 |
| Pages | 3 |
| File size | 0.5 MB |
| Format | |
| Language | English |
Table of contents
- Code number P2226 and fault code description
- Fault code information (trip count, MIL behavior, freeze frame type)

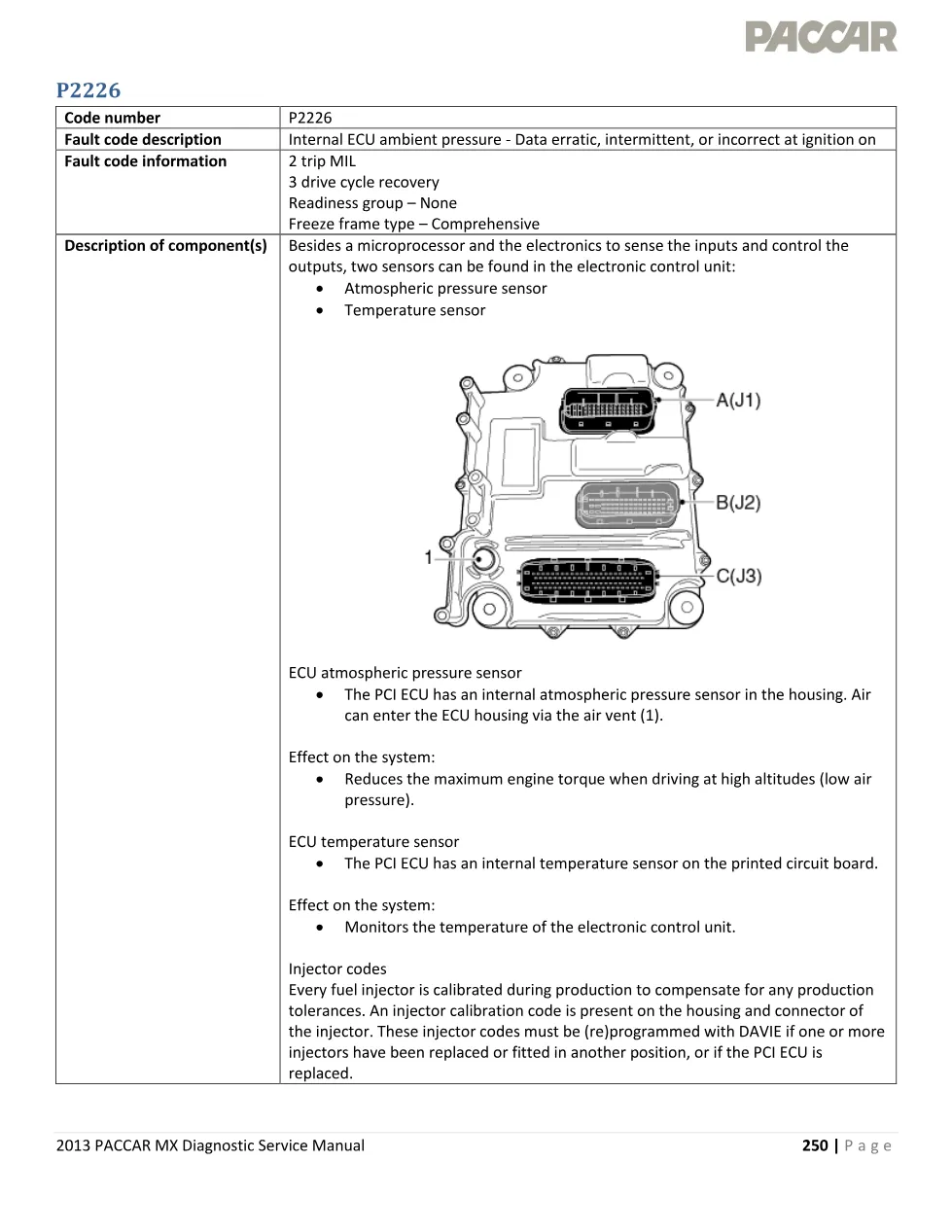

- Description of internal ECU components (atmospheric pressure sensor, temperature sensor)
- Effect on engine system and torque management
- Injector calibration codes and reprogramming requirements

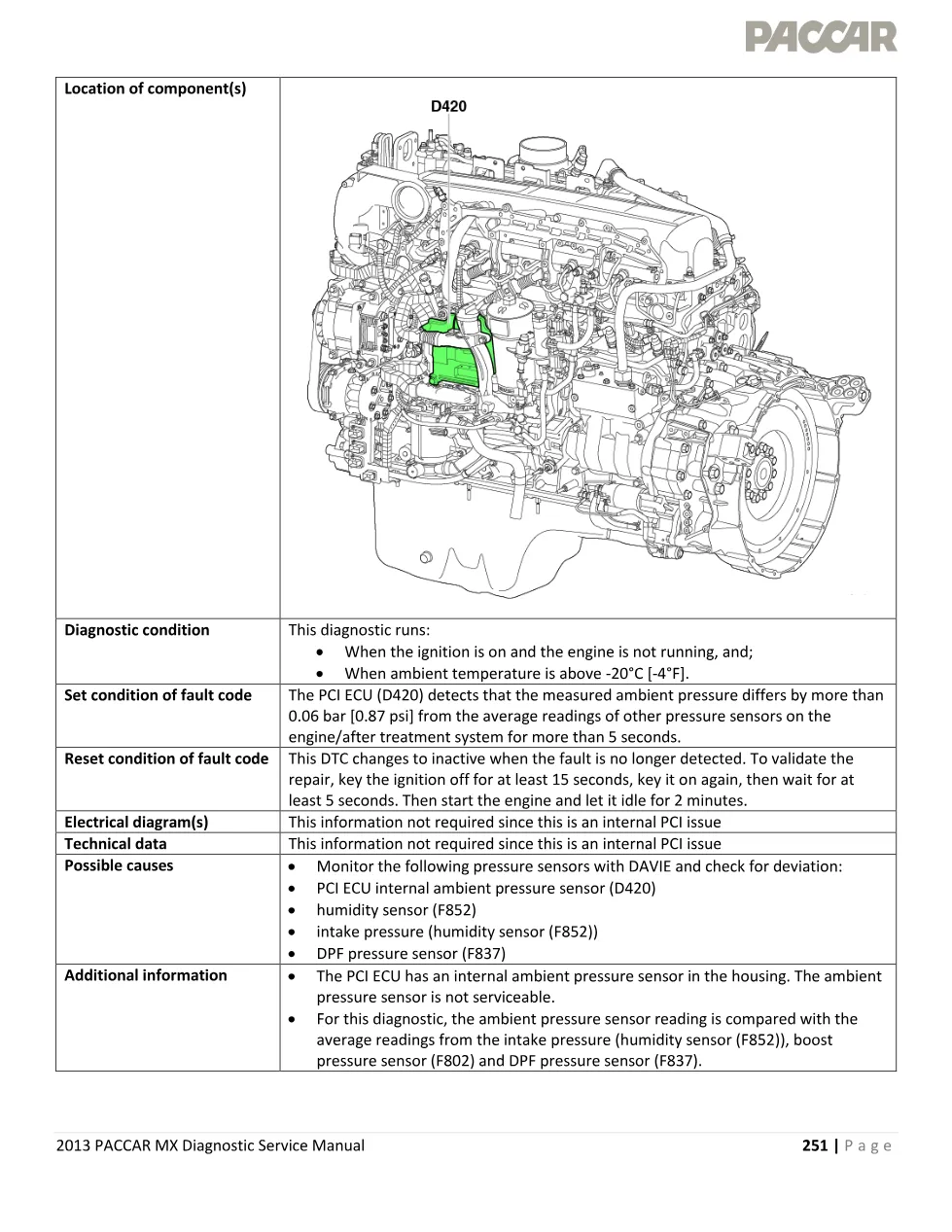

- Location of components
- Diagnostic conditions and running criteria
- Set condition and reset condition procedures
- Possible causes and pressure sensor comparison data
- Additional information on non-serviceable internal sensors

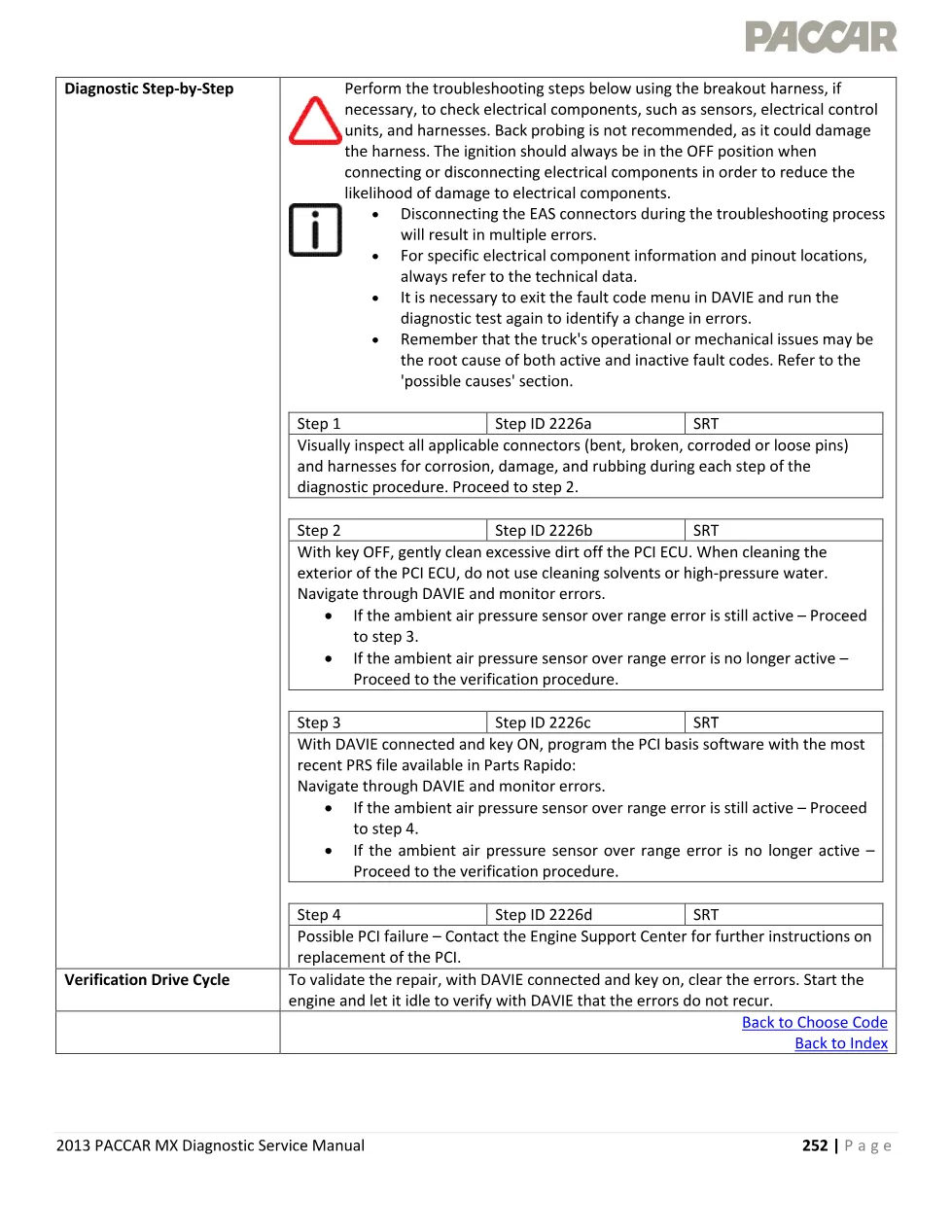

- Step-by-step diagnostic troubleshooting (Steps 1–4)
- Verification drive cycle and error clearance procedure
