This PACCAR J1939 databus diagnostic is a 7-page electrical system service manual from PACCAR for 2011 and newer truck cab systems. It provides a structured diagnostic approach for technicians troubleshooting multiple V-CAN databus gauge failures and automated transmission shifting problems. The manual uses standard shop equipment including volt-ohm meters to test J1939 data link integrity and component communication.
The PACCAR J1939 databus diagnostic document includes step-by-step testing protocols that determine whether the system terminating resistors meet required specifications and whether the data link itself is functional or compromised by electrical faults.
Document details and specifications — PACCAR J1939 databus
| Brand | PACCAR |
| Model coverage | 2011 and newer |
| System/Group | DTCs / Cab Electrical |
| Publication number | PM819003/KM815056 |
| Year/Revision | 09/16/2011 |
| Pages | 7 |
| File size | 0.5 MB |
| Format | |
| Language | English |
Table of contents

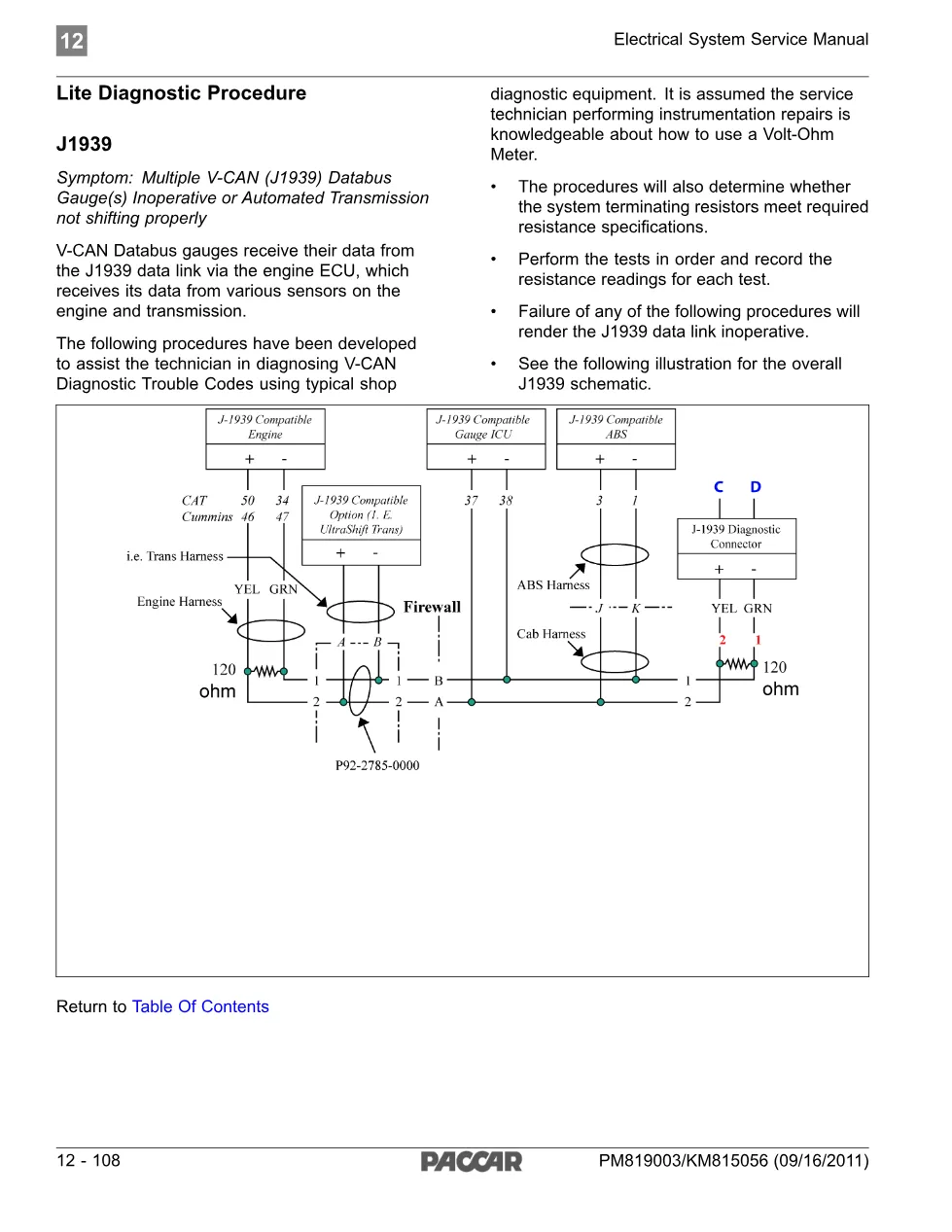

- Lite Diagnostic Procedure — J1939 databus overview and symptom diagnosis

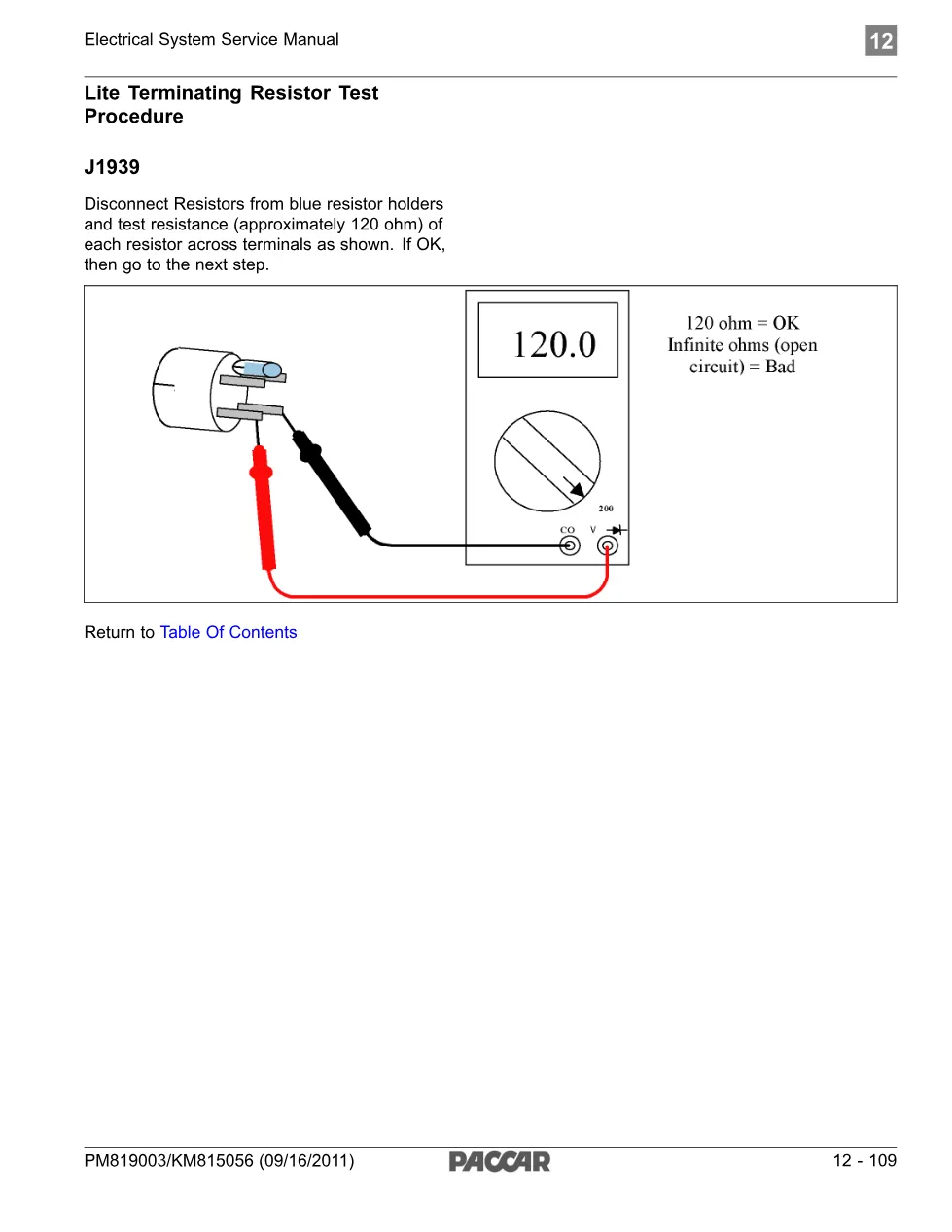

- Lite Terminating Resistor Test Procedure — verification of 120 ohm terminating resistors

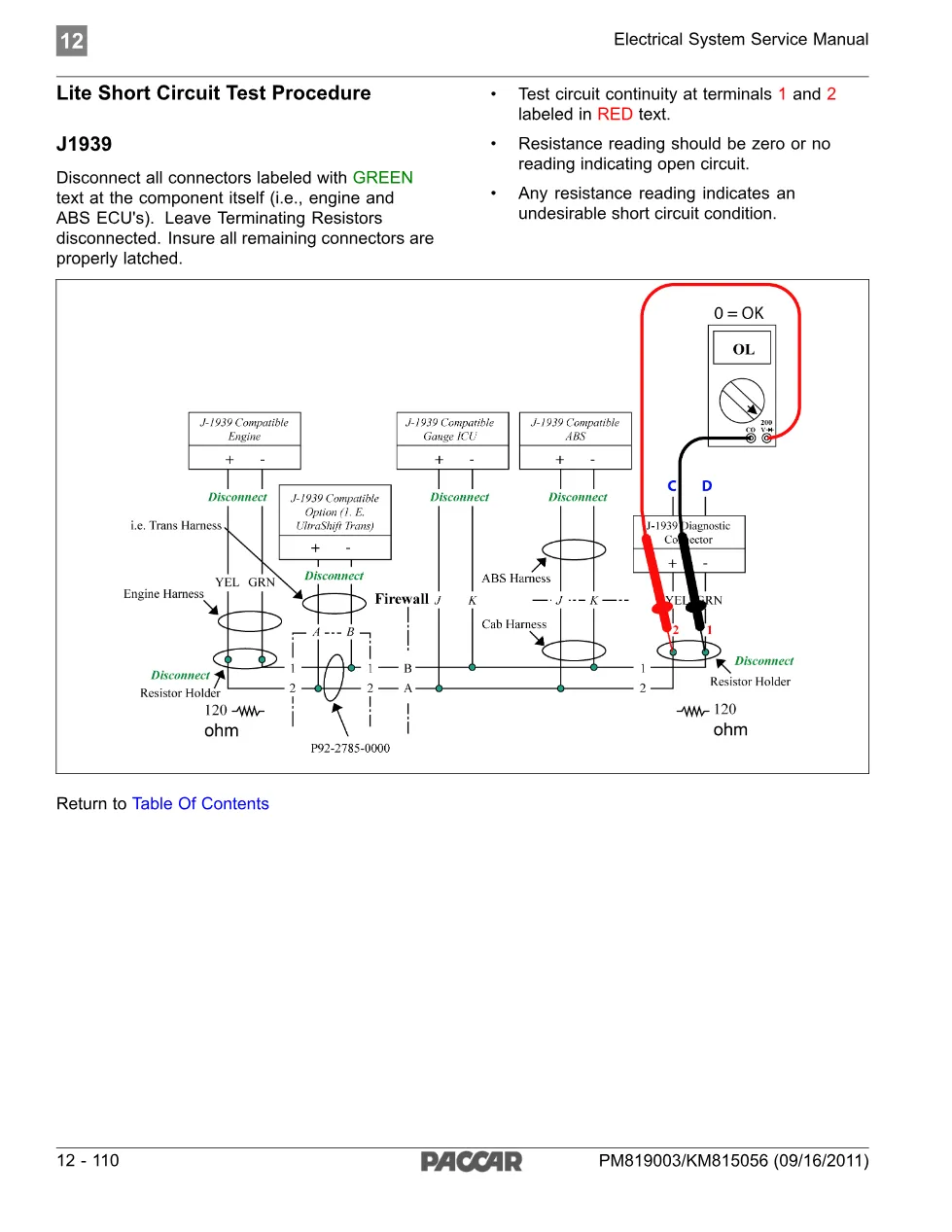

- Lite Short Circuit Test Procedure — continuity testing at databus terminals
- Lite Short to Chassis Ground Test Procedure — isolation testing from vehicle ground
- Lite Open Circuit Test Procedure — circuit resistance measurement at 60 ohm nominal
- Lite Diagnostic Procedures Conclusion — reconnection, functionality testing, and ECU communication verification
Applies to these models
This PACCAR J1939 databus diagnostic covers cab electrical systems on PACCAR-equipped trucks manufactured in 2011 and newer model years. It addresses diagnostics for engine ECU, ABS ECU, and transmission control module communication via the J1939 data link. The manual applies to any PACCAR truck experiencing V-CAN gauge inoperability or transmission shifting anomalies caused by J1939 databus faults. PACCAR official website
Who needs this J1939 databus diagnostic manual
Diesel mechanics and workshop technicians servicing PACCAR trucks must use this J1939 databus diagnostic procedure to isolate electrical faults in cab systems and databus wiring. Workshop owners managing electrical system repairs will benefit from the structured test sequence that eliminates guesswork and reduces diagnostic time on multiple gauge or transmission issues.
The complete J1939 databus diagnostic PDF is available in the DiagTechPro manuals library. A free account is required to download this and thousands of other truck service manuals.
