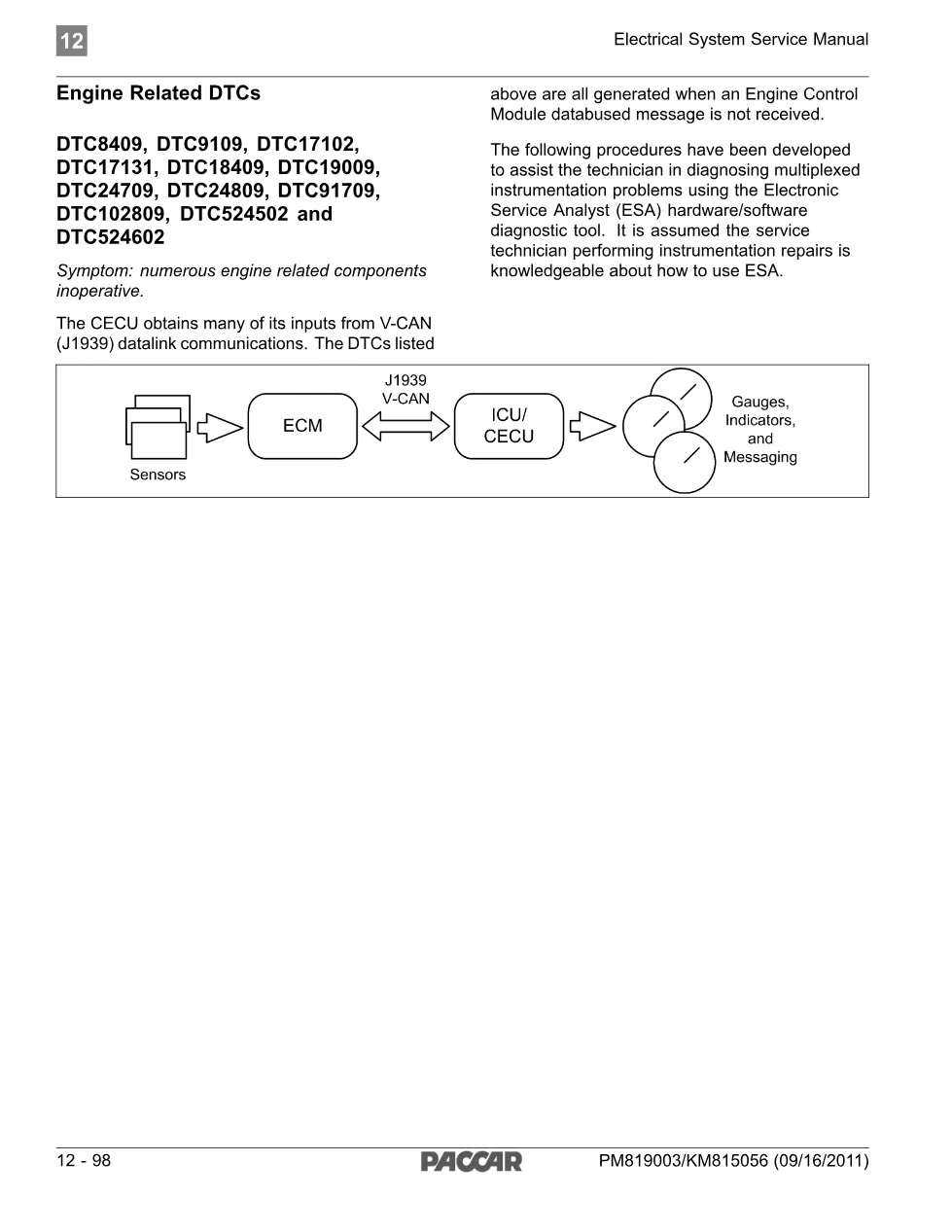

This PACCAR engine related diagnostic manual is an electrical system service guide published by PACCAR for cab and engine control system troubleshooting. It addresses twelve critical diagnostic trouble codes that indicate Engine Control Module communication failures or sensor faults affecting engine-related component operation. The document provides step-by-step diagnostic procedures using the Electronic Service Analyst (ESA) hardware and software tool.
Document details and specifications — PACCAR engine related
| Brand | PACCAR |
| Model coverage | 2011 and newer PACCAR vehicles |
| System/Group | DTCs / Cab Electrical System |
| Publication number | PM819003/KM815056 |
| Year/Revision | 09/16/2011 |
| Pages | 2 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Table of contents
- Engine Related DTCs: DTC8409, DTC9109, DTC17102, DTC17131, DTC18409, DTC19009, DTC24709, DTC24809, DTC91709, DTC102809, DTC524502, DTC524602
- Symptom: Numerous engine related components inoperative
- J1939 (V-CAN) datalink communication overview
- Electronic Service Analyst (ESA) diagnostic procedure

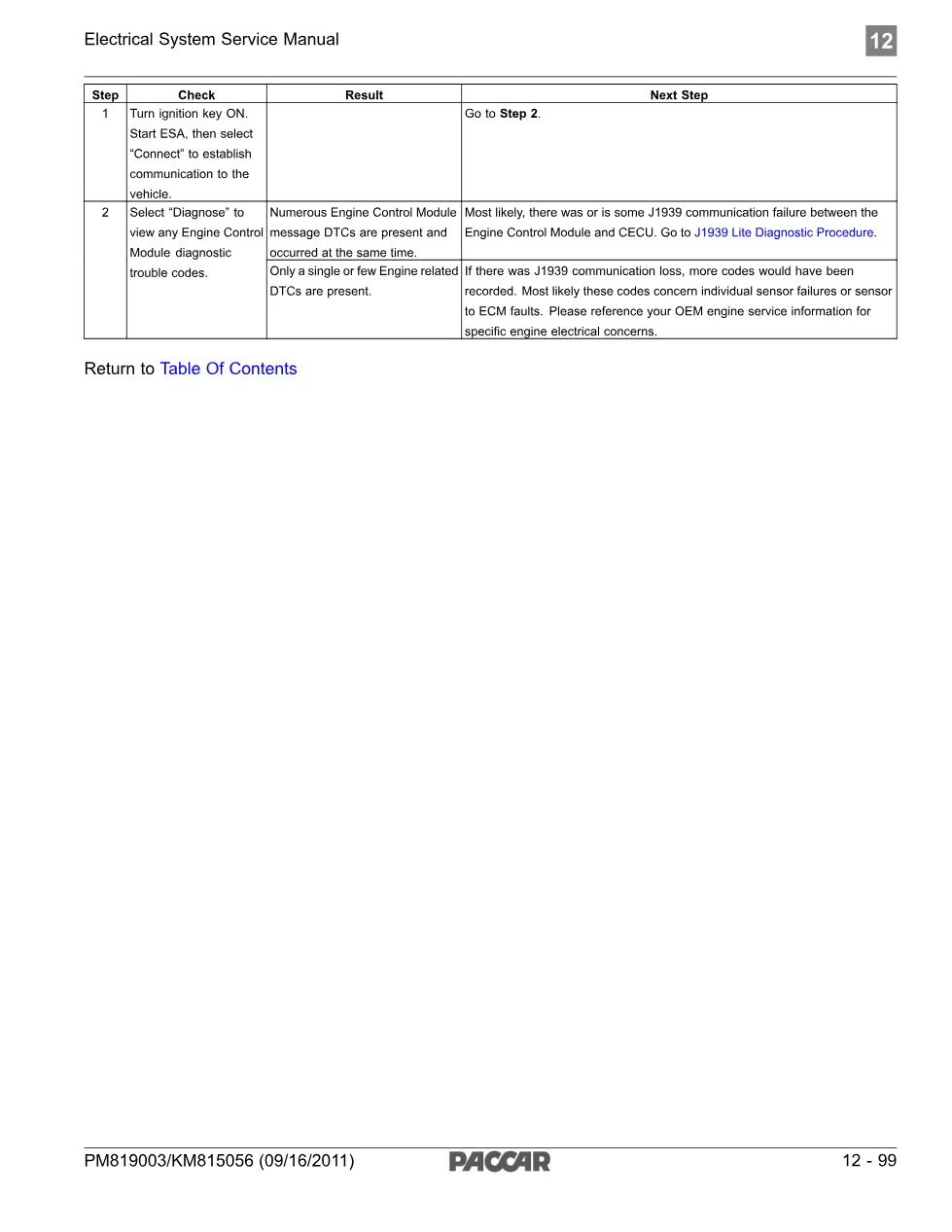

- Step-by-step diagnosis: ignition activation and ESA connection
- Engine Control Module message fault diagnosis
- J1939 Lite Diagnostic Procedure reference
Applies to these models
This manual applies to PACCAR equipped trucks from 2011 and newer model years, specifically addressing CECU (Cab Electronic Control Unit) and Engine Control Module communications via V-CAN J1939 datalink. Technicians diagnosing PACCAR engine related diagnostic on these vehicles will reference this guide. For official PACCAR technical documentation and support, visit PACCAR official website.
Who needs this engine related diagnostic manual
Truck mechanics and workshop owners diagnosing engine related diagnostic need this service manual. Technicians troubleshooting multiple simultaneous DTCs or sensor faults on 2011+ PACCAR vehicles must follow the documented J1939 datalink diagnostic procedures using ESA software to identify whether Engine Control Module communication has failed or individual sensor circuits require attention.
The complete engine related diagnostic manual (PM819003/KM815056) is available in the DiagTechPro manuals library. A free account is required to download the full 2-page PDF document.
