This PACCAR engine DTC 17102 diagnostic procedure manual covers the diagnosis and repair of Engine Control Module communication failures affecting cab electronics on PACCAR trucks from 2011 onward. Published by PACCAR, the document provides step-by-step troubleshooting instructions using the Electronic Service Analyst (ESA) hardware and software diagnostic tool to isolate J1939 multiplex datalink communication faults between the Engine Control Module and CECU (cab electronics control unit).
Document details and specifications — PACCAR engine DTC
| Brand | PACCAR |
| Model coverage | 2011 & Newer cab electronics |
| System/Group | DTCs / Cab (Engine Related) |
| Publication no. | PM819003/KM815056 |
| Year/Revision | 09/16/2011 |
| Pages | 2 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Table of contents

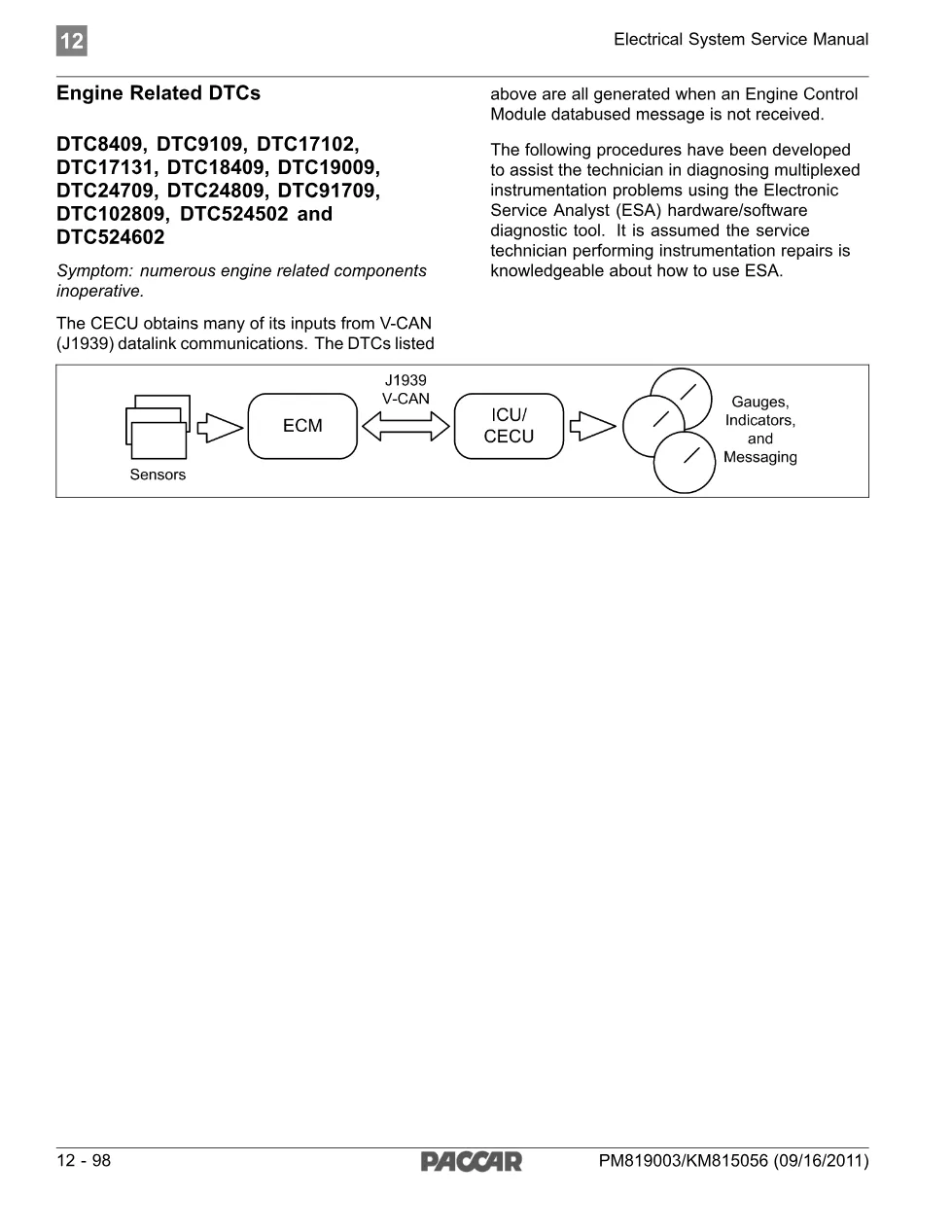

- Electrical System Service Manual — Engine Related DTCs
- DTC8409, DTC9109, DTC17102, DTC17131, DTC18409, DTC19009, DTC24709, DTC24809, DTC91709, DTC102809, DTC524502 and DTC524602
- Symptom: numerous engine related components inoperative
- J1939 V-CAN datalink communication diagnostics
- Electronic Service Analyst (ESA) diagnostic procedure
- Step-by-step troubleshooting workflow
Applies to these models
This manual applies to PACCAR trucks and cab electronics systems manufactured in 2011 and newer model years. The DTC 17102 code and related engine control module communication failures are specific to PACCAR’s J1939 multiplex datalink architecture. For official PACCAR service information and additional technical resources, visit PACCAR official website.
Who needs this PACCAR engine DTC 17102 manual
Diesel truck mechanics and workshop technicians diagnosing multiple engine-related fault codes on PACCAR trucks require this engine DTC 17102 procedure manual. The guide is essential for technicians using ESA diagnostic software to identify whether DTC 17102 and related codes originate from J1939 datalink communication loss or individual sensor failures.
The complete engine DTC 17102 manual is available in the DiagTechPro manuals library. A free account is required to download the full PDF document.
