This 2-page diagnostic document covers the intake manifold temperature DTCs fault code 0105-03, which flags a high-voltage condition on the intake manifold air temperature sensor circuit. It is intended for technicians diagnosing this specific trouble code on Caterpillar heavy-duty diesel engines.
Official intake manifold temperature DTCs document details
| Brand | Caterpillar (CAT) |
| Model coverage | C11, C13, C15 (All Others) |
| System / Group | Diagnostic Trouble Codes (DTCs) |
| Publication no. | 0105-03 |
| Year / Revision | Not specified |
| Pages | 2 |
| File size | 0.1 MB |
| Format | PDF (compressed) |
| Language | English |
Document table of contents

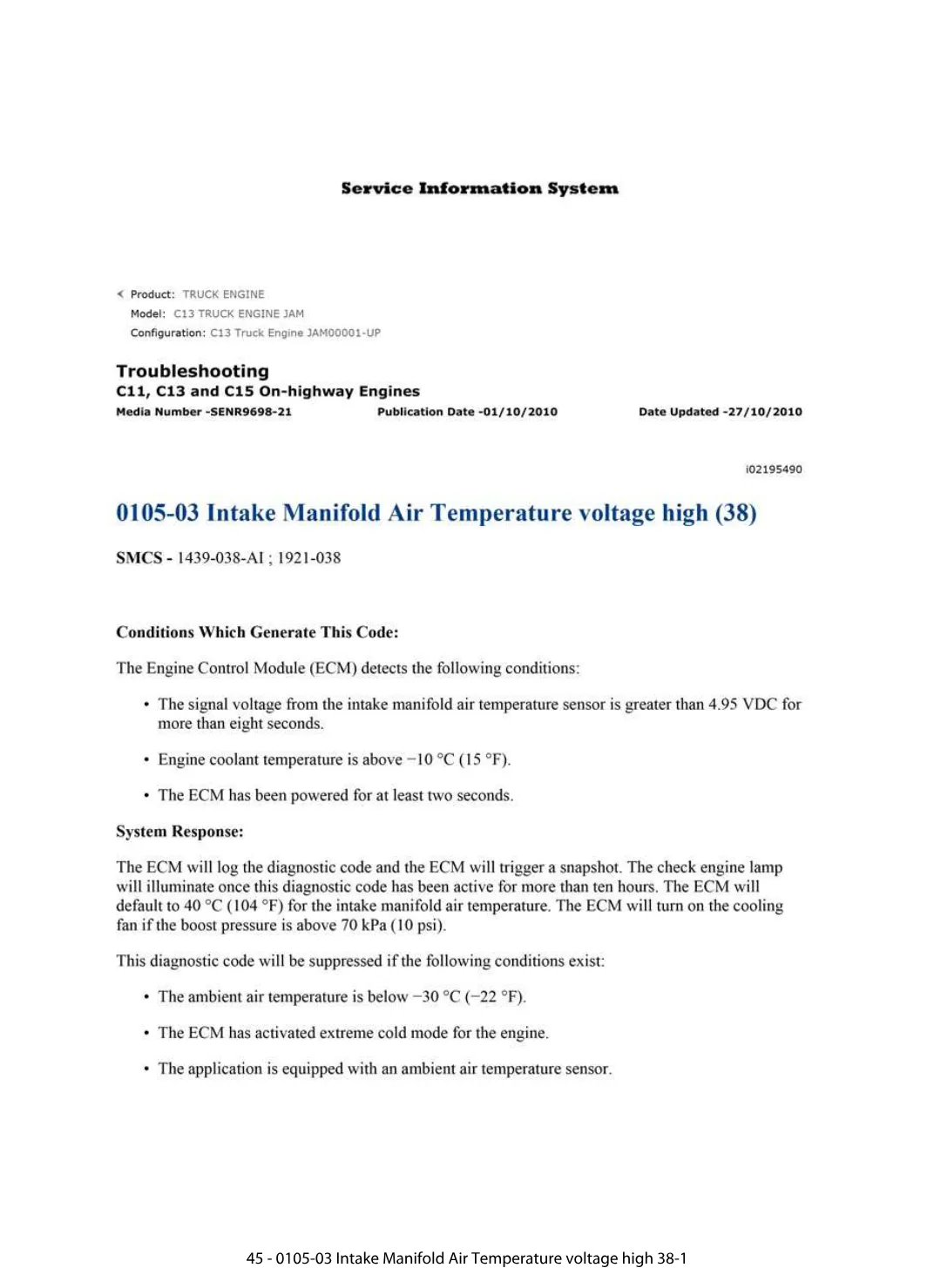

- 0105-03 Intake Manifold Air Temperature Voltage High — Page 1

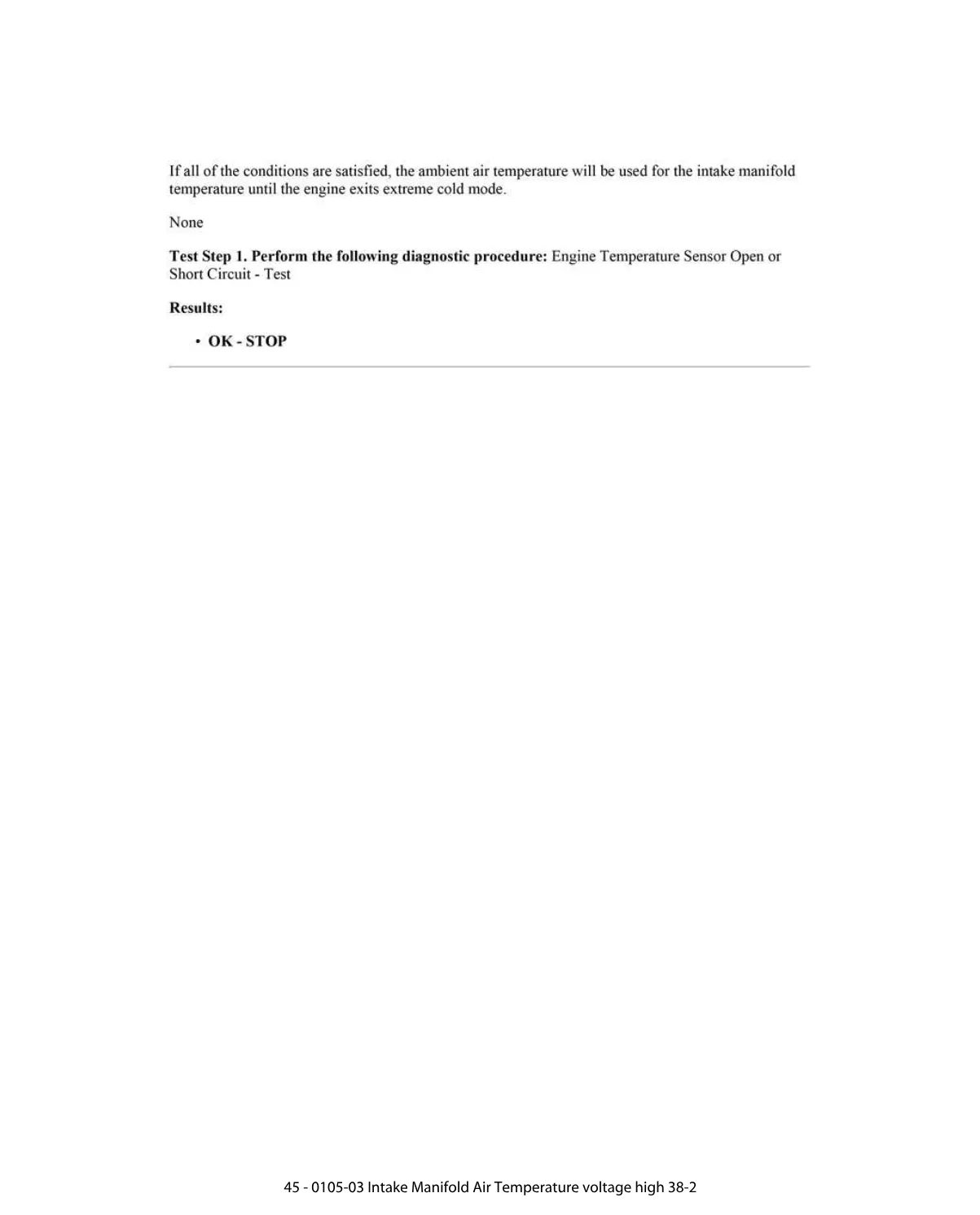

- 0105-03 Intake Manifold Air Temperature Voltage High — Page 2 (continued diagnostics)
Applicable truck models
This diagnostic reference applies to Caterpillar C11, C13, and C15 diesel engines classified under the “All Others” sub-group. These engines are widely installed in Class 8 on-highway trucks from manufacturers such as Peterbilt, Kenworth, and Western Star, as well as in select vocational and off-highway applications. The DTC 0105-03 specifically addresses a high-voltage reading from the intake manifold air temperature sensor, which can indicate an open circuit, a failed sensor, or a wiring fault in the sensor harness. Workshops servicing any truck or machine equipped with these CAT engine platforms should keep this reference on hand. For additional Caterpillar service literature and parts information, visit Caterpillar Official Support.
Who needs this manifold temperature DTCs manual
Diesel technicians and workshop owners troubleshooting a code 38 (voltage high) on the intake manifold air temperature circuit in CAT C11, C13, or C15 engines will find this document essential. It provides the specific fault description and diagnostic steps needed to resolve DTC 0105-03 efficiently.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
