This fault code 94 troubleshooting manual gives the Eaton procedure for Fault Code 94 (or 64) on the Fuller Advantage transmission, isolating an ECA power supply, battery or clutch fault through load tests and voltage checks. It is part of Eaton publication TRTS0980, Fault Isolation Procedures, and runs from Step A through repair verification in Step V.
Fault code 94 troubleshooting document details
| Brand | Eaton |
|---|---|
| Model coverage | Fuller Advantage Heavy Duty automated transmission |
| System / Group | DTCs — ECA Power Supply |
| Publication no. | TRTS0980 |
| Year / Revision | 2016.06.20 |
| Pages | 6 |
| File size | 0.6 MB |
| Format | |
| Language | English |
Document table of contents
- Record fault codes and update software
- Perform a Load Test on each vehicle battery
- Inspect power and ground supply to the ECA
- Verify battery voltage and polarity at the ECA
- Load Test the power and ground supply
- Inspect clutch, Release Bearing and Cross Shaft
- Verify repair (Step V)

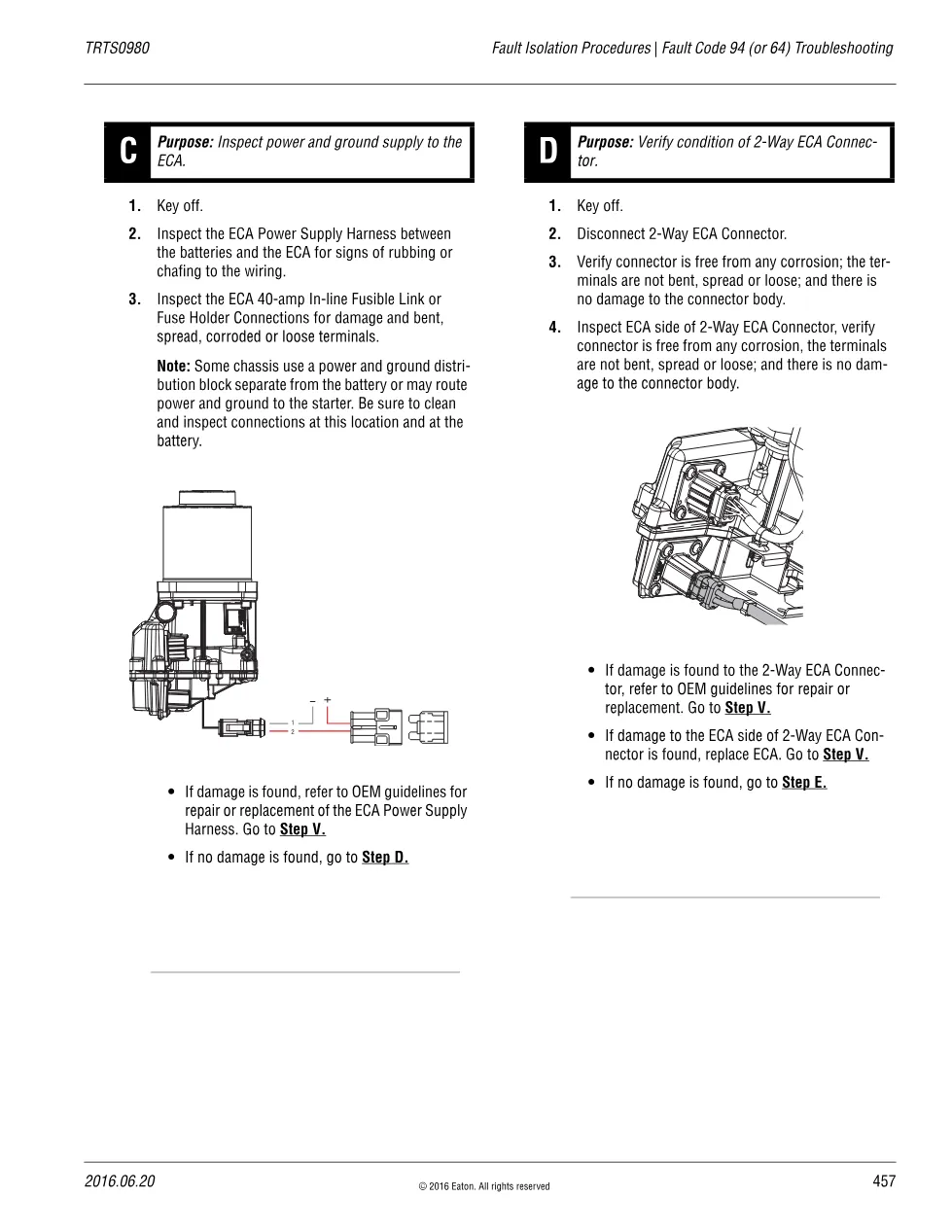

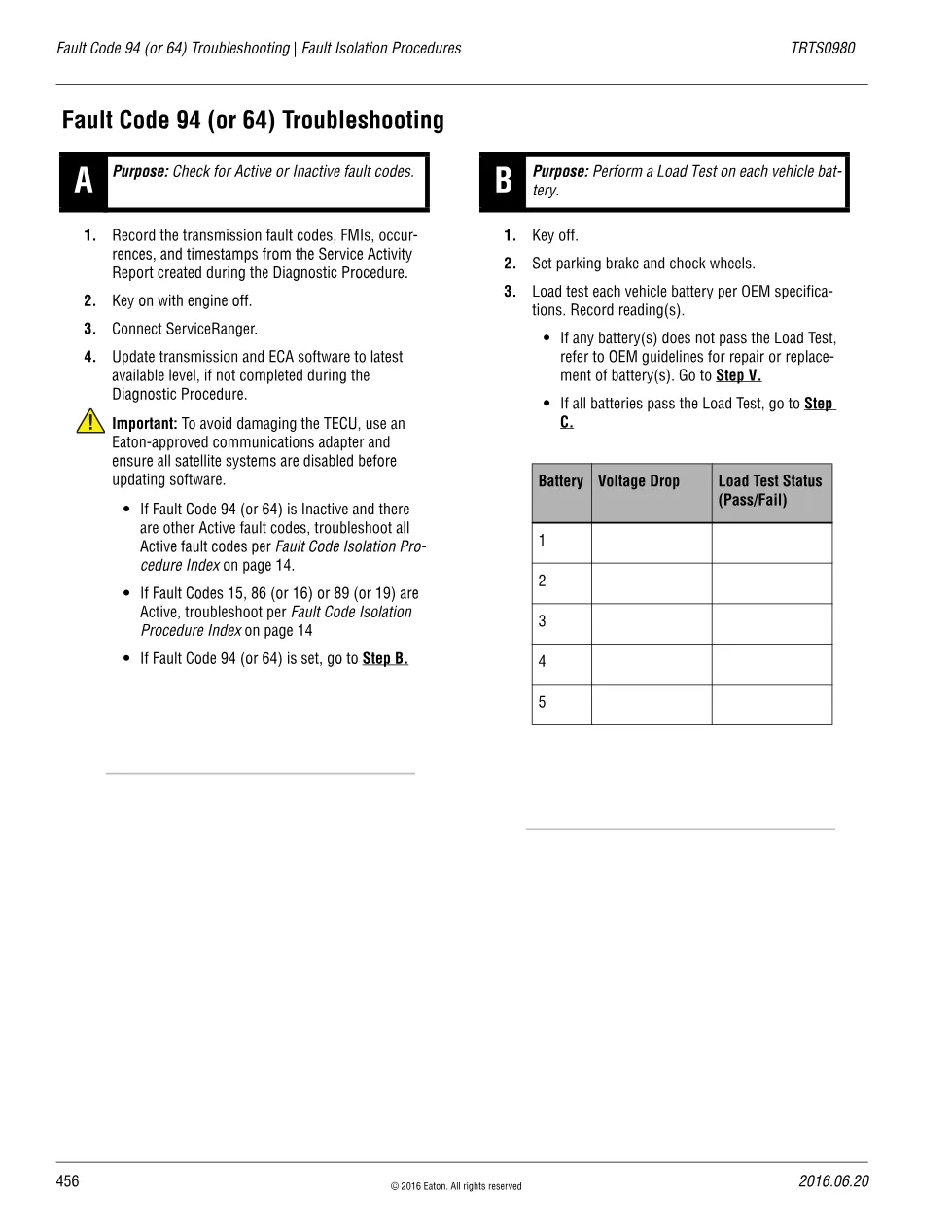

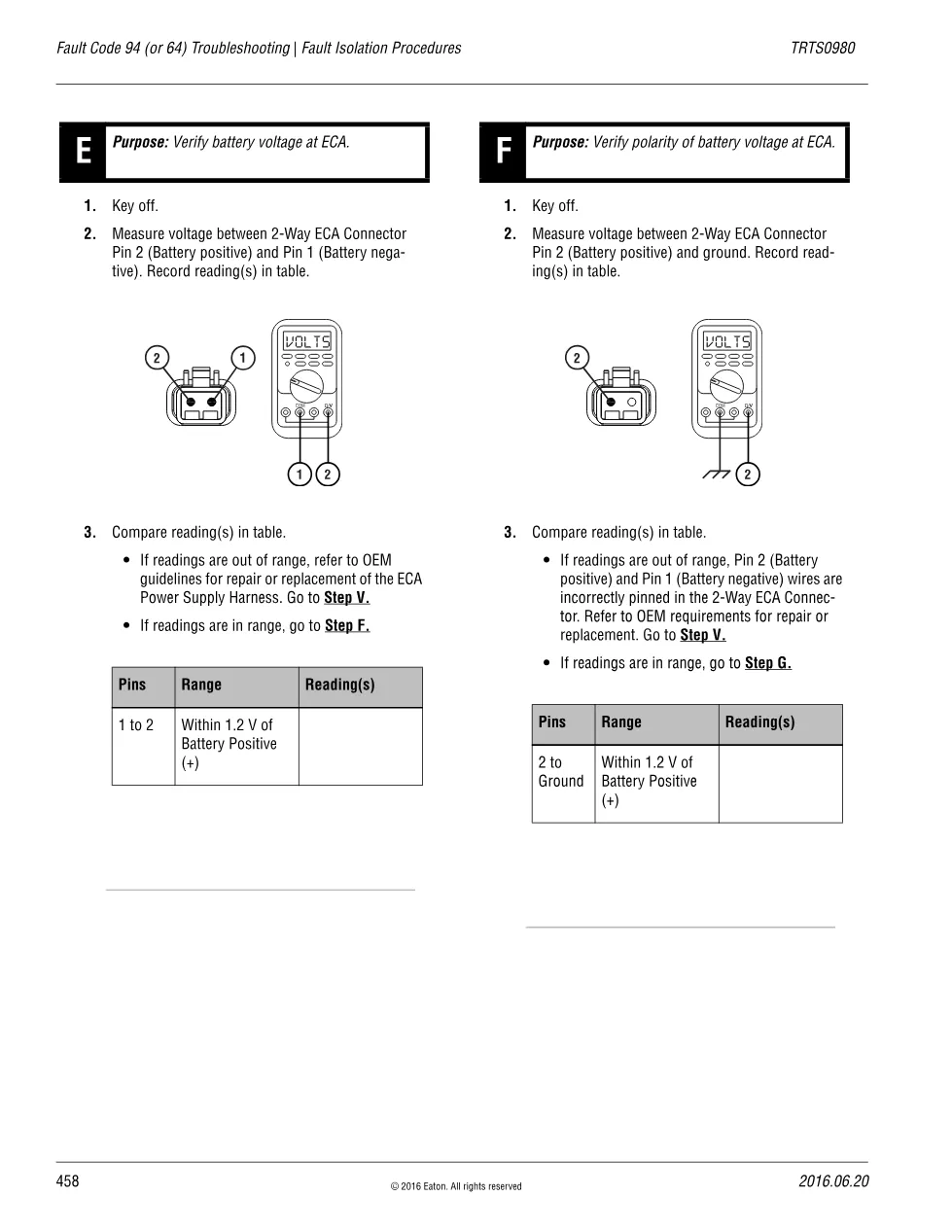

The procedure begins by recording fault data and load testing each vehicle battery per OEM specifications. Battery voltage at the 2-Way ECA Connector Pin 2 to Pin 1, and Pin 2 to ground, must read within 1.2 volts of battery positive. A five-minute harness load test with a sealed-beam headlamp or blower motor verifies the ECA Power Supply Harness carries load with the 40-amp fuse installed, before the sheet moves to clutch and Cross Shaft inspection.
Applicable truck models
This covers Eaton Fuller Advantage Heavy Duty transmissions drawing non-switched power through the ECA Power Supply Harness. Depending on the FMI the steps inspect the Heavy-Duty ECA Clutch, Release Bearing, Clutch Release Yoke and Cross Shaft, referencing the Heavy-Duty Clutch Service Manual CLSM0200. Confirm the applicable build with the manufacturer on the Eaton official website.
Who needs this fault code 94 troubleshooting guide
Technicians diagnosing weak battery power, a chafed power harness or a binding clutch cross shaft use this sequence to confirm the source before replacing the ECA, clutch or harness.
