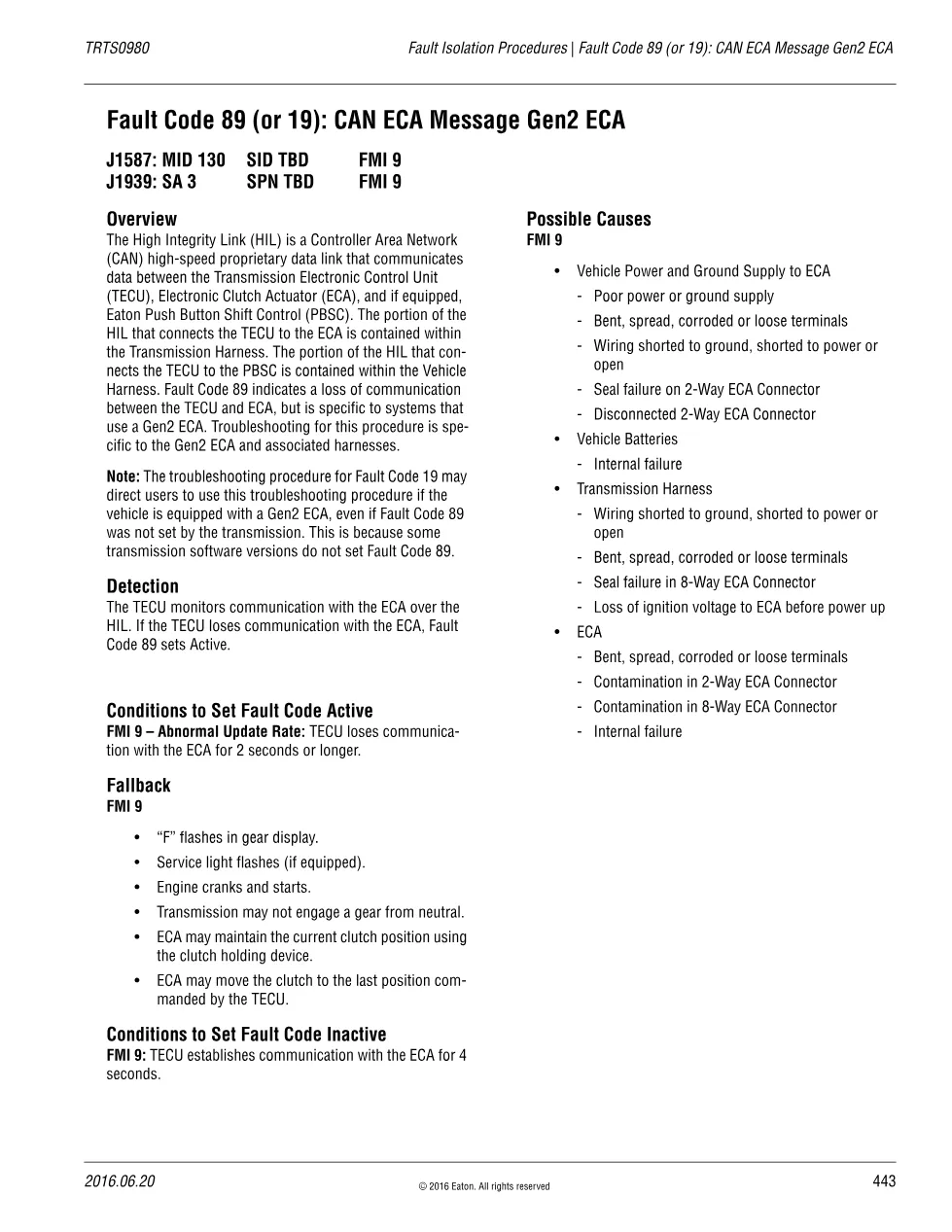

Eaton fault code 89 is documented in this factory Eaton service bulletin for Fuller Advantage Heavy Duty automated transmissions. Fault Code 89 indicates the TECU lost communication with the Gen2 Electronic Clutch Actuator (ECA) over the High Integrity Link for two seconds or longer. Publication TRTS0980 lists what sets the code, the driver fallback, and the fault isolation steps a technician follows.
Official document details
| Brand | Eaton |
| Model coverage | Fuller Advantage Heavy Duty automated transmission |
| System / group | Diagnostic Trouble Codes (DTCs) |
| Fault code | 89 (or 19) – CAN ECA Message Gen2 ECA |
| Identifiers | J1587 MID 130, J1939 SA 3 (FMI 9) |
| Publication no. | TRTS0980 |
| Revision | 2016.06.20 |
| Pages | 3 |
| File size | 1.0 MB |
| Format / language | PDF, English |
Eaton fault code 89 fault isolation steps
The document lists the J1587 and J1939 identifiers, the conditions that set the code active and inactive, the driver fallback behavior, and the possible causes a technician should inspect.
- Overview and system description
- Detection method
- Conditions to set the fault code active
- Fallback and driver warnings
- Conditions to set the fault code inactive
- Possible causes

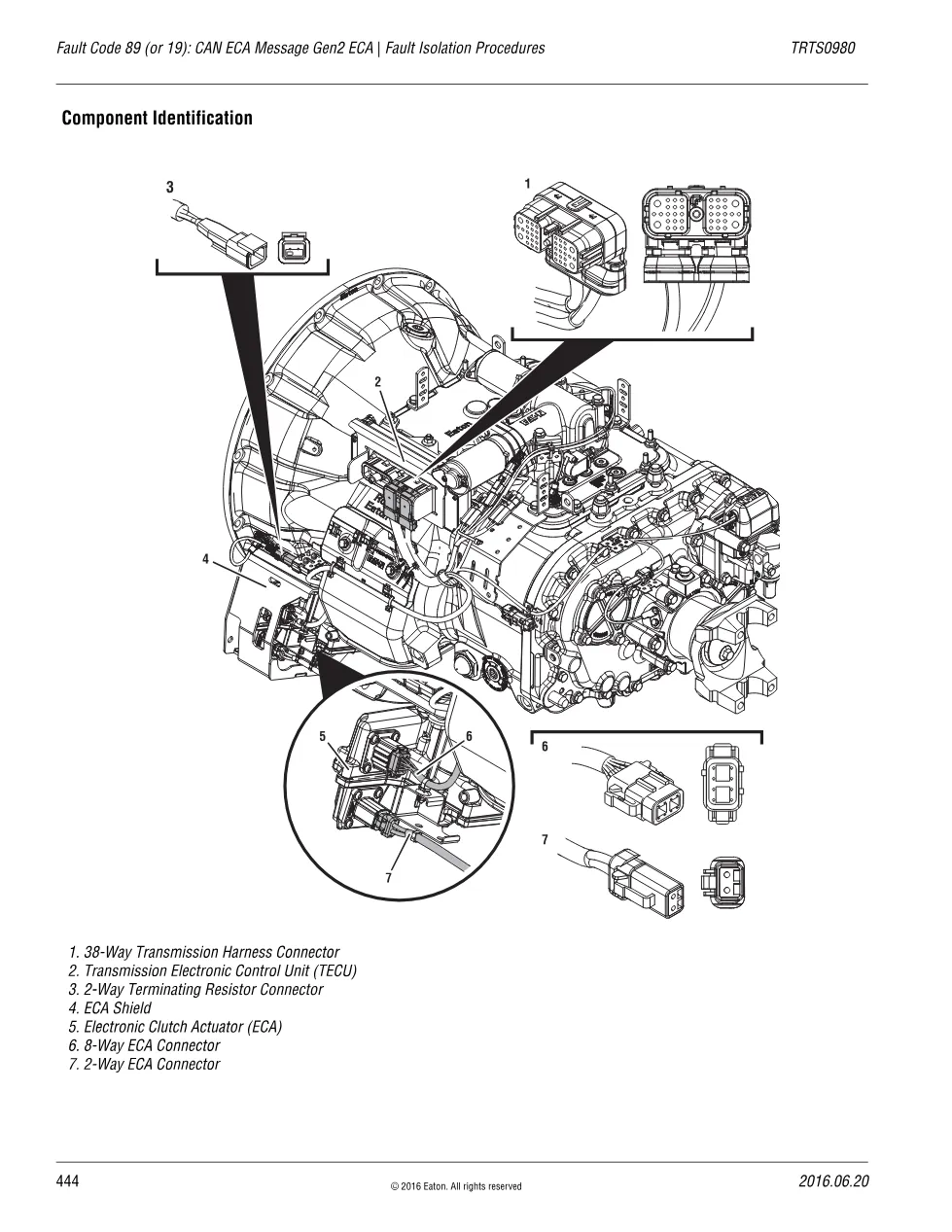

- Component identification
Applicable trucks and transmissions
This page belongs to the Fuller Advantage Heavy Duty diagnostic trouble code set within publication TRTS0980. The procedures apply to heavy-duty trucks fitted with the Eaton Fuller Advantage automated transmission and its Transmission Electronic Control Unit (TECU), including on-highway tractors and vocational trucks that use the X-Y Shifter and Electronic Clutch Actuator. For OEM wiring and configuration data, cross-reference the manufacturer information on Eaton’s official website.
Who needs this fault code 89
Fleet technicians, drivetrain specialists and workshop owners diagnosing code 89 (or 19) on a Fuller Advantage gearbox rely on fault code 89 data to confirm the root cause before replacing parts. Using the official Eaton values avoids guesswork on the High Integrity Link and shortens repair time.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
