Eaton fault code 75 is documented in this factory Eaton service bulletin for Fuller Advantage Heavy Duty automated transmissions. Fault Code 75 indicates the driver powered the system down before selecting neutral; when the code is inactive, no repair is required. Publication TRTS0980 lists what sets the code, the driver fallback, and the fault isolation steps a technician follows.
Official document details
| Brand | Eaton |
| Model coverage | Fuller Advantage Heavy Duty automated transmission |
| System / group | Diagnostic Trouble Codes (DTCs) |
| Fault code | 75 – Troubleshooting |
| Identifiers | J1587 MID 130 SID 60, J1939 SA 3 SPN 560 (FMI 14) |
| Publication no. | TRTS0980 |
| Revision | 2016.06.20 |
| Pages | 1 |
| File size | 0.03 MB |
| Format / language | PDF, English |

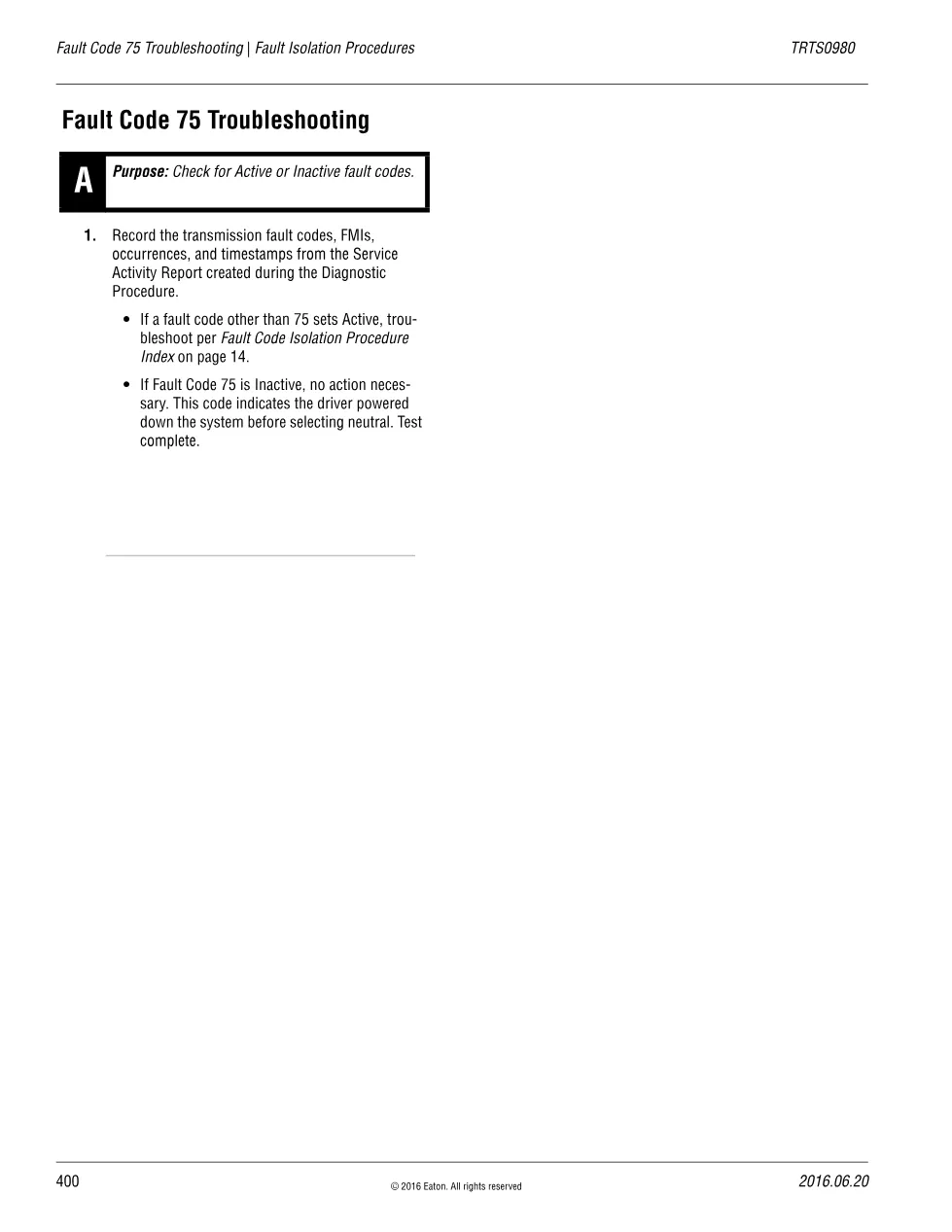

Eaton fault code 75 fault isolation steps
The procedure begins by recording fault codes, FMIs, occurrences and timestamps from the ServiceRanger Service Activity Report, then walks lettered test steps to isolate the cause before verifying the repair.
- Diagnostic Procedure reference
- Recording fault codes, FMIs and timestamps
- Lettered Fault Isolation Procedure steps
- Purpose of each test step
- Verify repair (Step V)
Applicable trucks and transmissions
This page belongs to the Fuller Advantage Heavy Duty diagnostic trouble code set within publication TRTS0980. The procedures apply to heavy-duty trucks fitted with the Eaton Fuller Advantage automated transmission and its Transmission Electronic Control Unit (TECU), including on-highway tractors and vocational trucks that use the X-Y Shifter and Electronic Clutch Actuator. For OEM wiring and configuration data, cross-reference the manufacturer information on Eaton’s official website.
Who needs this fault code 75
Fleet technicians, drivetrain specialists and workshop owners diagnosing code 75 on a Fuller Advantage gearbox rely on fault code 75 data to confirm the root cause before replacing parts. Using the official Eaton values avoids guesswork on the X-Y Shifter and shortens repair time.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
