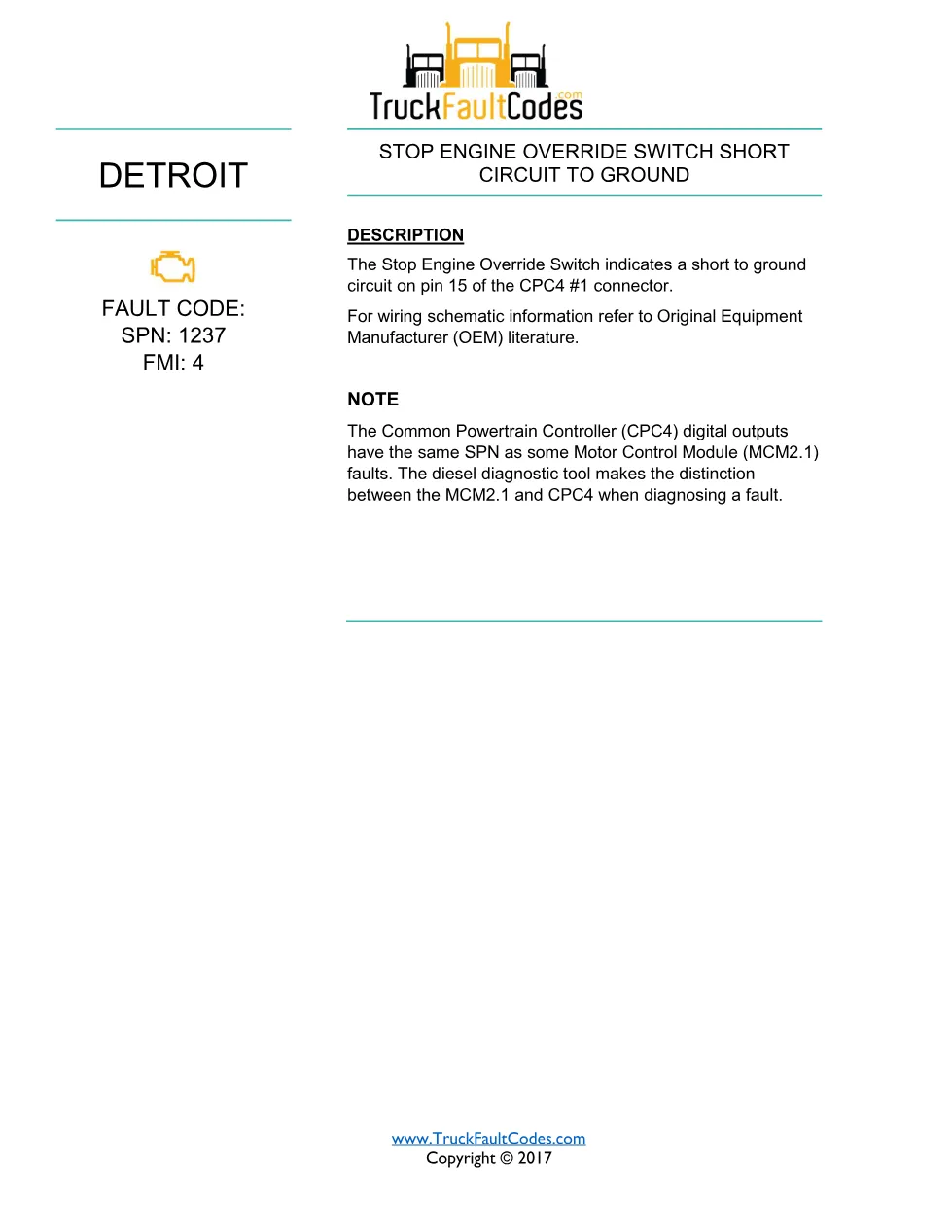

The Detroit stop engine override troubleshooting sheet documents Detroit fault code SPN 1237 FMI 4, which sets when the stop engine override switch has a short circuit to ground. This 1-page PDF belongs to the Detroit DD Series (EPA 2007-Current) DTC library and guides a technician through the confirmation and repair sequence for the code. It is drawn from Detroit Power Service Literature and republished by TruckFaultCodes.com (2017).
It explains that the fault indicates a short to ground on pin 15 of the CPC4 #1 connector, notes that CPC4 digital outputs share SPNs with some MCM2.1 faults so the diagnostic tool makes the distinction, and directs the technician to OEM wiring schematics for the affected circuit.
Detroit stop engine override document details
| Brand | Detroit |
| Model coverage | DD Series (EPA 2007-Current) |
| System / Group | Diagnostic Trouble Codes (DTCs) |
| Fault code | SPN 1237 FMI 4 |
| Source | Detroit Power Service Literature |
| Pages | 1 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code description
- CPC4 #1 connector pin 15 short to ground
- MCM2.1 versus CPC4 fault distinction
- OEM wiring schematic reference
Applicable truck models
This fault code troubleshooting procedure applies to Detroit DD Series engines built to EPA 2007 and later emissions standards, covering GHG14 (2014) configurations within the DD Series DTC set. Use it alongside a diesel diagnostic tool such as DiagnosticLink or ServiceLink to read live data and confirm the code before any parts are replaced. For engine coverage and official service resources, visit the Detroit Diesel official website.
Who needs this Detroit stop engine override manual
Fleet technicians, mobile diesel mechanics and workshop owners rely on this reference before opening the SPN 1237 FMI 4 code with a scan tool. Following the documented sequence avoids replacing good parts and clarifies whether the concern lies in wiring, a sensor, or a mechanical component.
The full SPN 1237 FMI 4 PDF is available in the DiagTechPro manuals library; a free account is required to download.
