Detroit SPN 625 GHG14 is the Detroit DD Series diagnostic fault-code sheet (SPN 625 / FMI 2) that documents a CPC4 message that is not received or has stopped arriving on the CAN communication network. This 5-page PDF, drawn from the Detroit / Detroit Diesel Corporation (DDC) troubleshooting reference (© 2017), gives the workshop the exact measured checks needed to confirm and repair the fault rather than guess at it.
Detroit SPN 625 GHG14 document details
| Brand | Detroit (Detroit Diesel Corporation) |
| Model coverage | DD Series (EPA 2007-Current); Series 60 (DDEC VI, EPA 2007) |
| System / Group | Diagnostic Trouble Codes (DTCs) – SPN 625 / FMI 2 |
| Source | Detroit / DDC diagnostic troubleshooting reference |
| Year / Revision | © 2017 |
| Pages | 5 |
| File size | 0.31 MB |
| Format | |
| Language | English |
Document table of contents

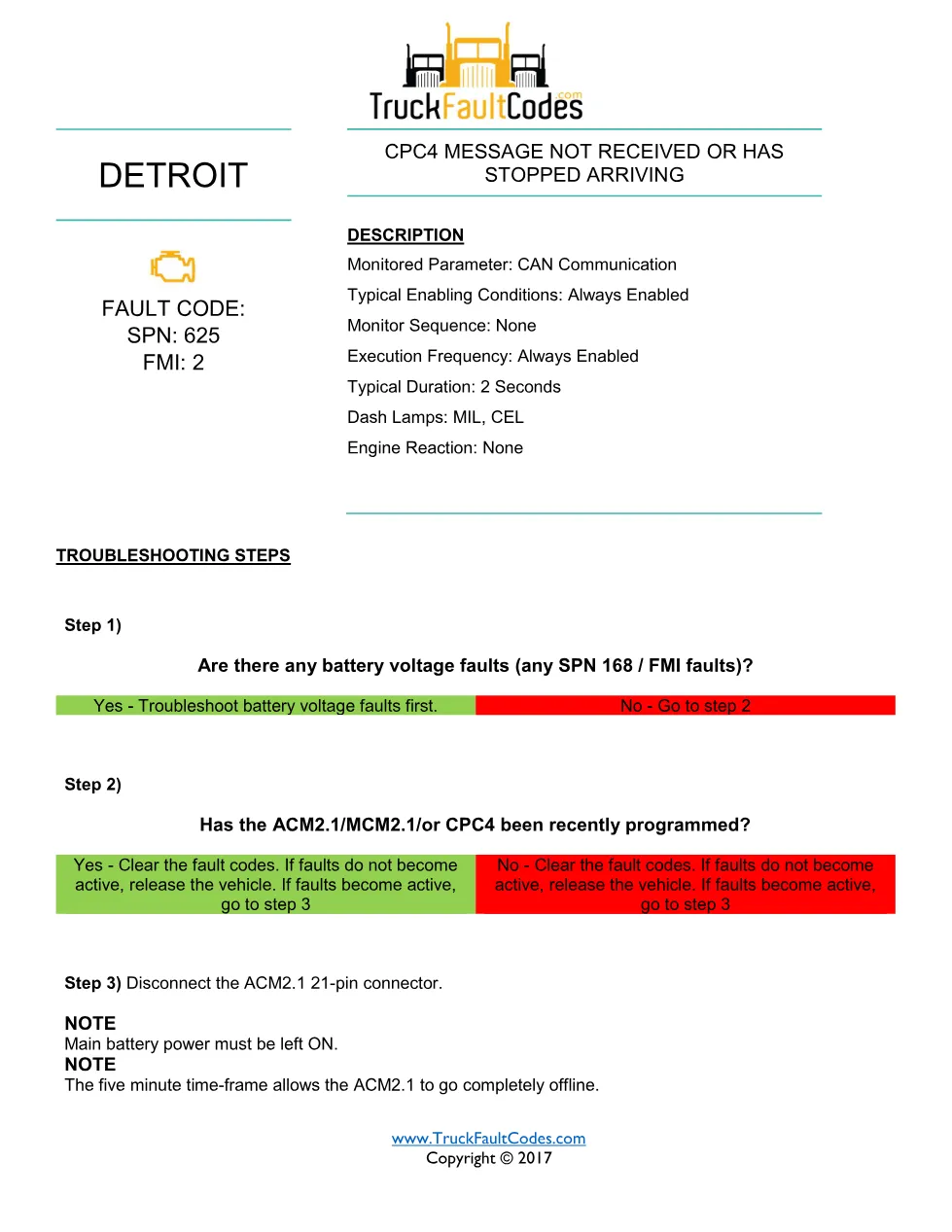

- Fault code definition (SPN 625, FMI 2)
- Description and monitored parameters
- Dash lamps and duration
- Troubleshooting steps

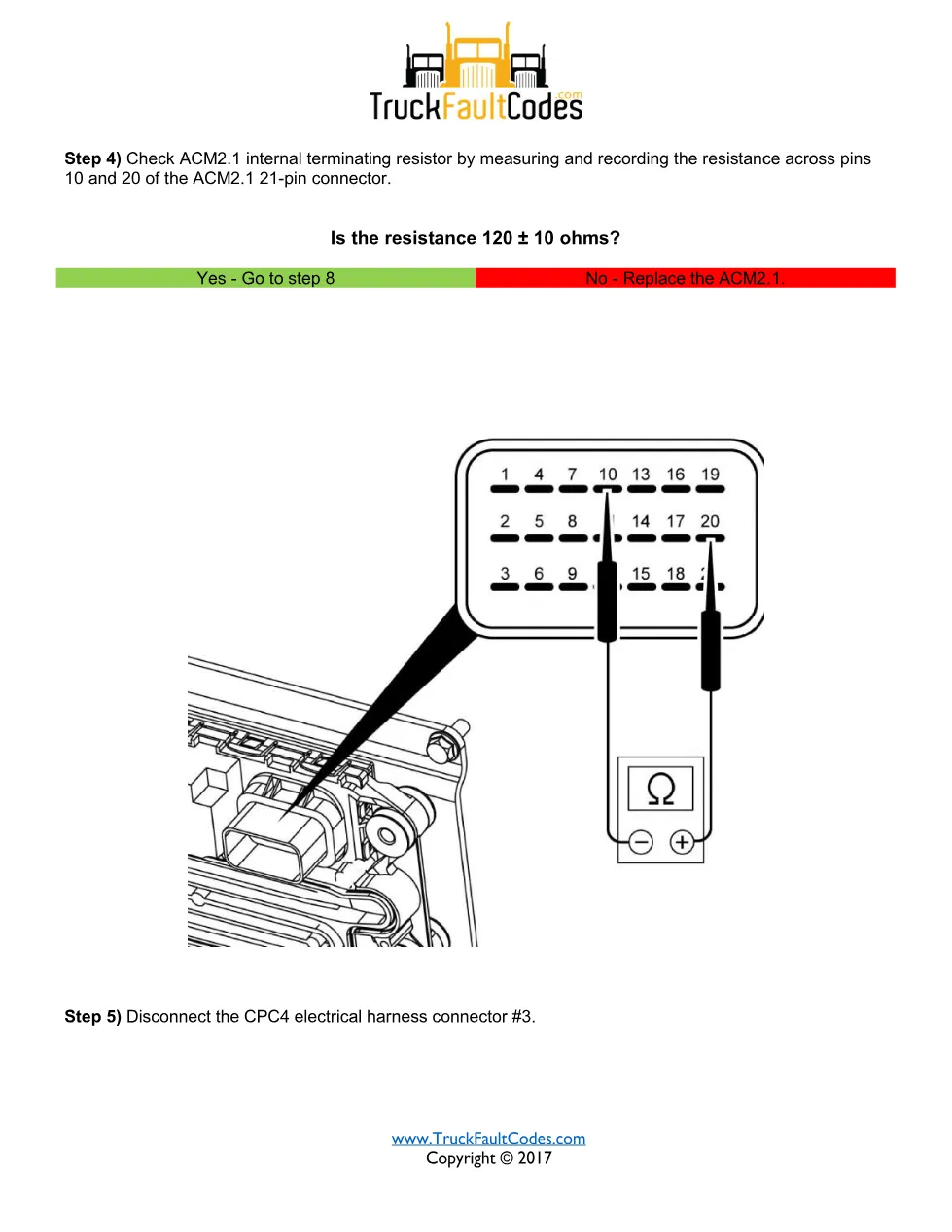

- ACM2.1 21-pin connector checks
- Battery-power note
Fault definition and diagnosis
The monitored parameter is CAN communication with MIL and CEL lamps and a two-second typical duration. The technician first checks for battery-voltage faults (SPN 168), confirms whether the ACM2.1, MCM2.1 or CPC4 was recently programmed, clears the codes to see if they return active, and then disconnects the ACM2.1 21-pin connector, noting that main battery power must be removed before continuing. The sheet also directs that the codes be cleared and the vehicle released if the fault does not return active after reprogramming.
Applicable truck models
It applies to GHG14 Detroit DD Series engines (EPA 2007 to current) built with the ACM2.1, MCM2.1 and CPC4 control modules. For engine specifications and authorised service information, see the official Detroit engine website.
Who needs the Detroit SPN 625 GHG14 manual
Diesel technicians and workshop owners diagnosing this Detroit DTC with DiagnosticLink or ServiceLink use it to follow the manufacturer sequence step by step, and to confirm the SPN 625 / FMI 2 repair before returning the truck to service.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
