Detroit MCM SPN 609 is the Detroit DD Series diagnostic fault-code sheet (SPN 609 / FMI 12) that documents a Motor Control Module (MCM) that has failed or been programmed incorrectly. This 1-page PDF, drawn from the Detroit / Detroit Diesel Corporation (DDC) troubleshooting reference (© 2017), gives the workshop the exact measured checks needed to confirm and repair the fault rather than guess at it.
Detroit MCM SPN 609 document details
| Brand | Detroit (Detroit Diesel Corporation) |
| Model coverage | DD Series (EPA 2007-Current); Series 60 (DDEC VI, EPA 2007) |
| System / Group | Diagnostic Trouble Codes (DTCs) – SPN 609 / FMI 12 |
| Source | Detroit / DDC diagnostic troubleshooting reference |
| Year / Revision | © 2017 |
| Pages | 1 |
| File size | 0.21 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code definition (SPN 609, FMI 12)
- Parameter reset procedure
- Vehicle configuration verification
- MCM replacement decision
- Removal of the Motor Control Module reference
Fault definition and diagnosis

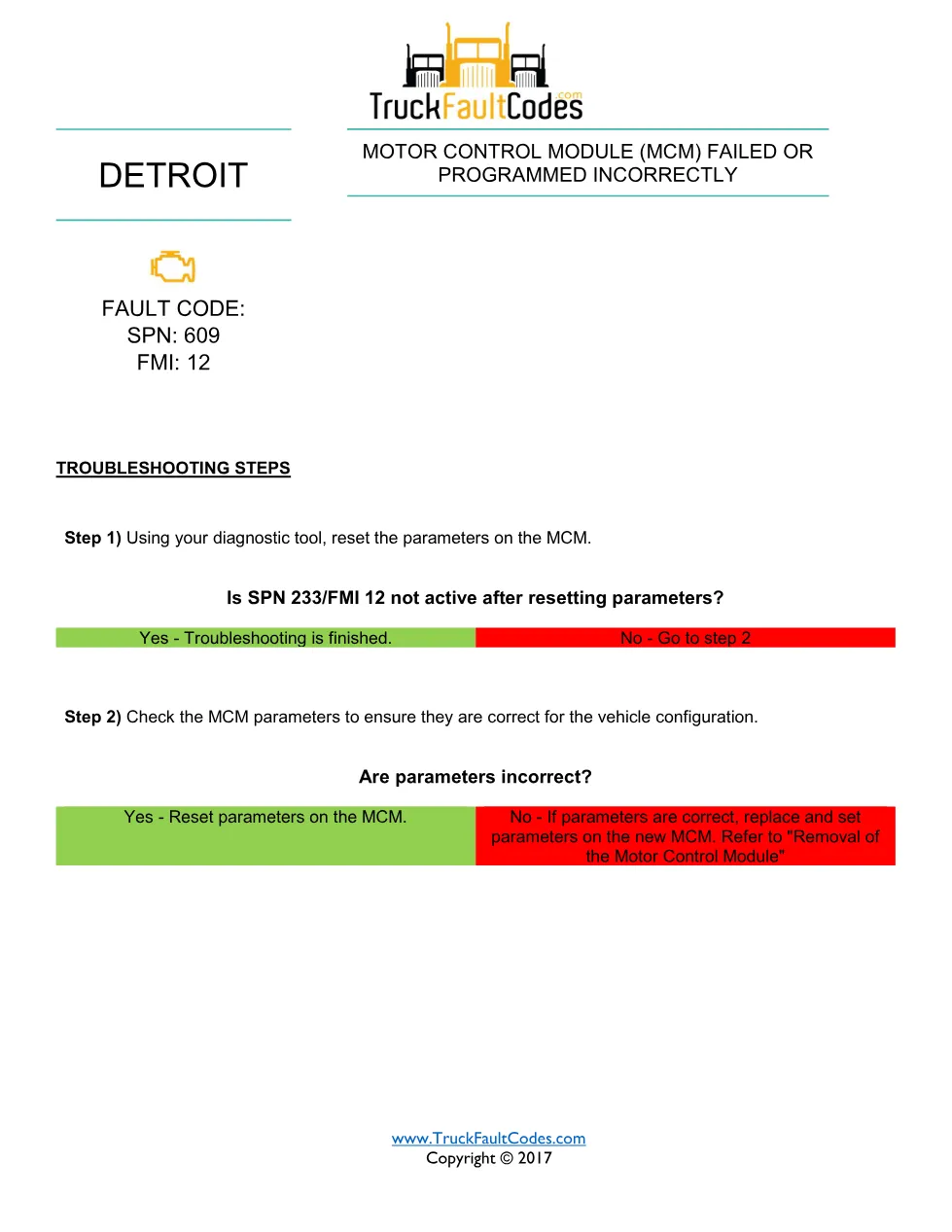

Using the diagnostic tool, the technician resets the parameters on the Motor Control Module and confirms whether SPN 233/FMI 12 is no longer active. If the code remains, the MCM parameters are checked against the vehicle configuration and reset where incorrect; if the parameters are already correct, the module is replaced and the parameters are set on the new MCM per the removal procedure referenced in the sheet.
Applicable truck models
It applies to Detroit DD Series engines (EPA 2007 to current) and Series 60 (DDEC VI, EPA 2007) engines controlled by the Motor Control Module. For engine specifications and authorised service information, see the official Detroit engine website.
Who needs the Detroit MCM SPN 609 manual
Diesel technicians and workshop owners diagnosing this Detroit DTC with DiagnosticLink or ServiceLink use it to follow the manufacturer sequence step by step, and to confirm the SPN 609 / FMI 12 repair before returning the truck to service.
