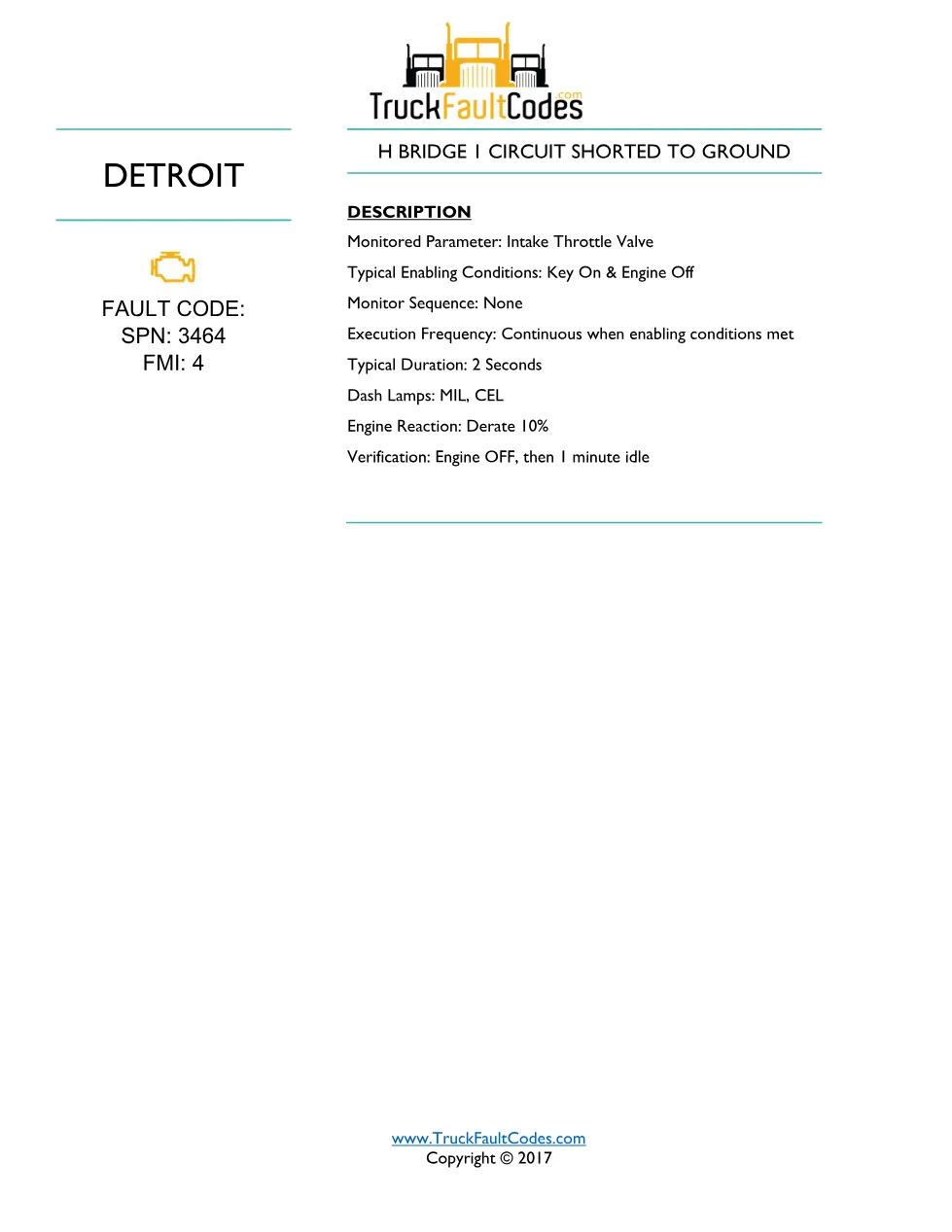

This Detroit H bridge ground troubleshooting sheet documents fault code SPN 3464/FMI 4, H-Bridge 1 Circuit Shorted to Ground, on Detroit DD Series engines. The one-page document records the fault definition, monitored parameter and engine reaction for the intake throttle valve driver. It is a concise reference for identifying the short.
Official document details
| Brand | Detroit |
|---|---|
| Model coverage | DD Series diesel engines (DD13, DD15, DD16), EPA 2007 and newer |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Fault code | SPN 3464 / FMI 4 |
| Emission tier | EPA10 / GHG14 |
| Publication no. | Detroit Power Service Literature (via TruckFaultCodes.com, © 2017) |
| Pages | 1 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Detroit H bridge ground table of contents
- Fault code identification: SPN 3464, FMI 4
- Fault name: H-Bridge 1 Circuit Shorted to Ground
- Monitored parameter: intake throttle valve
- Dash lamps (MIL, CEL) and 10% derate
- Enabling conditions: key on, engine off
Applicable truck models
This document applies to Detroit DD Series diesel engines certified to EPA10 and GHG14 standards, covering the H-bridge 1 driver circuit that controls the intake throttle valve. The code sets when that circuit shorts to ground. See Detroit’s official service literature portal for the authoritative Detroit repair procedures.
