The Detroit DEF tank temperature fault sheet is the official Detroit DD Series diagnostic for a low DEF tank-temperature reading, stored under SPN 3363 FMI 1 for EPA10, GHG14 calibrations. It records the monitored parameter DEF Tank Temperature, dash lamps MIL, verification by Parked Regeneration, exactly as published by TruckFaultCodes.com (© 2017).
Official document details
| Brand | Detroit |
|---|---|
| Model coverage | Detroit DD Series diesel engines (EPA 2007-current) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Fault code | SPN 3363 / FMI 1 |
| Fault condition | Diesel Exhaust Fluid (DEF) Tank Temperature – Low |
| Monitored parameter | DEF Tank Temperature |
| Dash lamps | MIL |
| Verification | Parked Regeneration |
| Emissions calibration | EPA10, GHG14 |
| Source / Publisher | TruckFaultCodes.com |
| Year / Revision | 2017 |
| Pages | 2 |
| File size | 0.2 MB |
| Format | |
| Language | English |

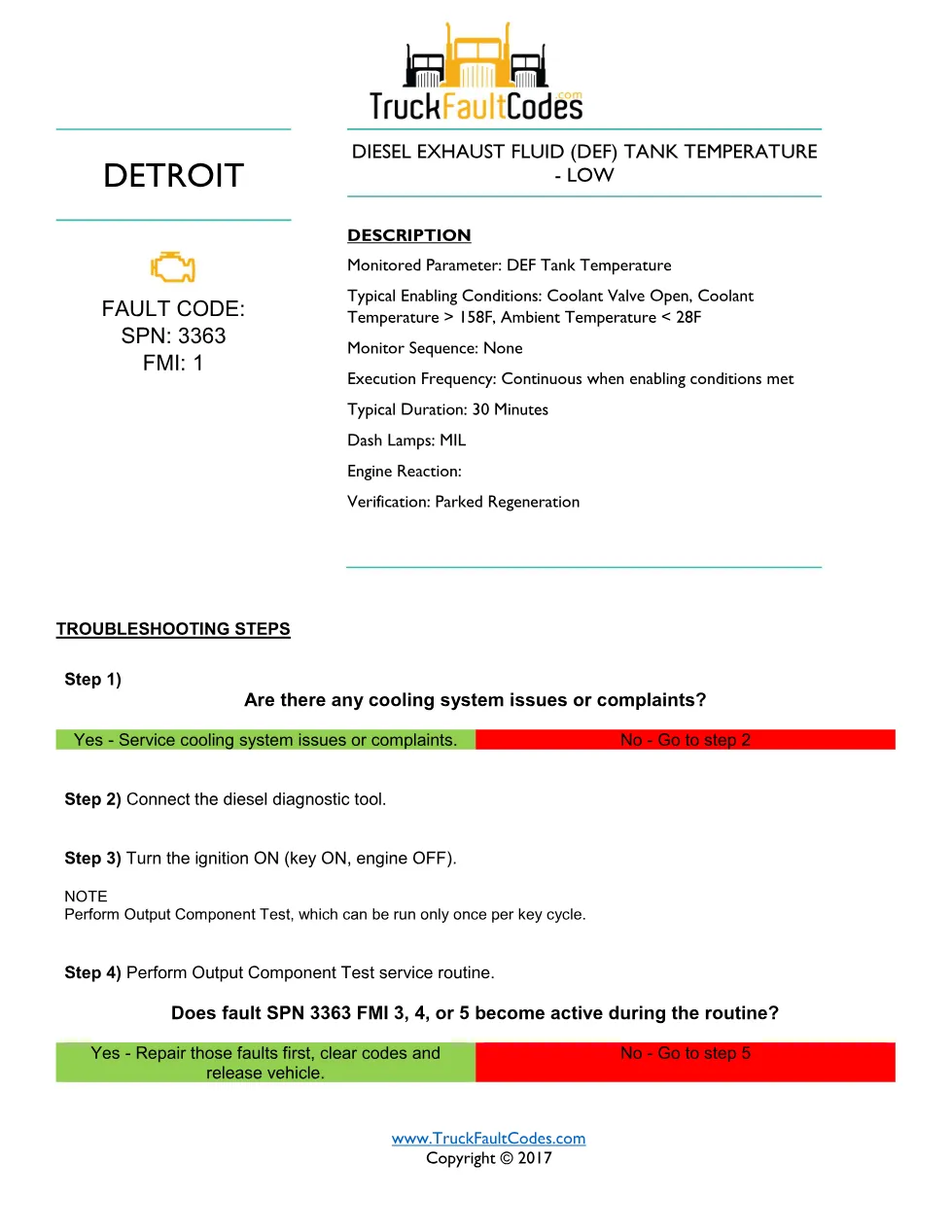

Document table of contents
- Fault code identification: SPN 3363, FMI 1
- Description and monitored parameter
- Typical enabling conditions
- Troubleshooting steps
- Component inspection and repair verification

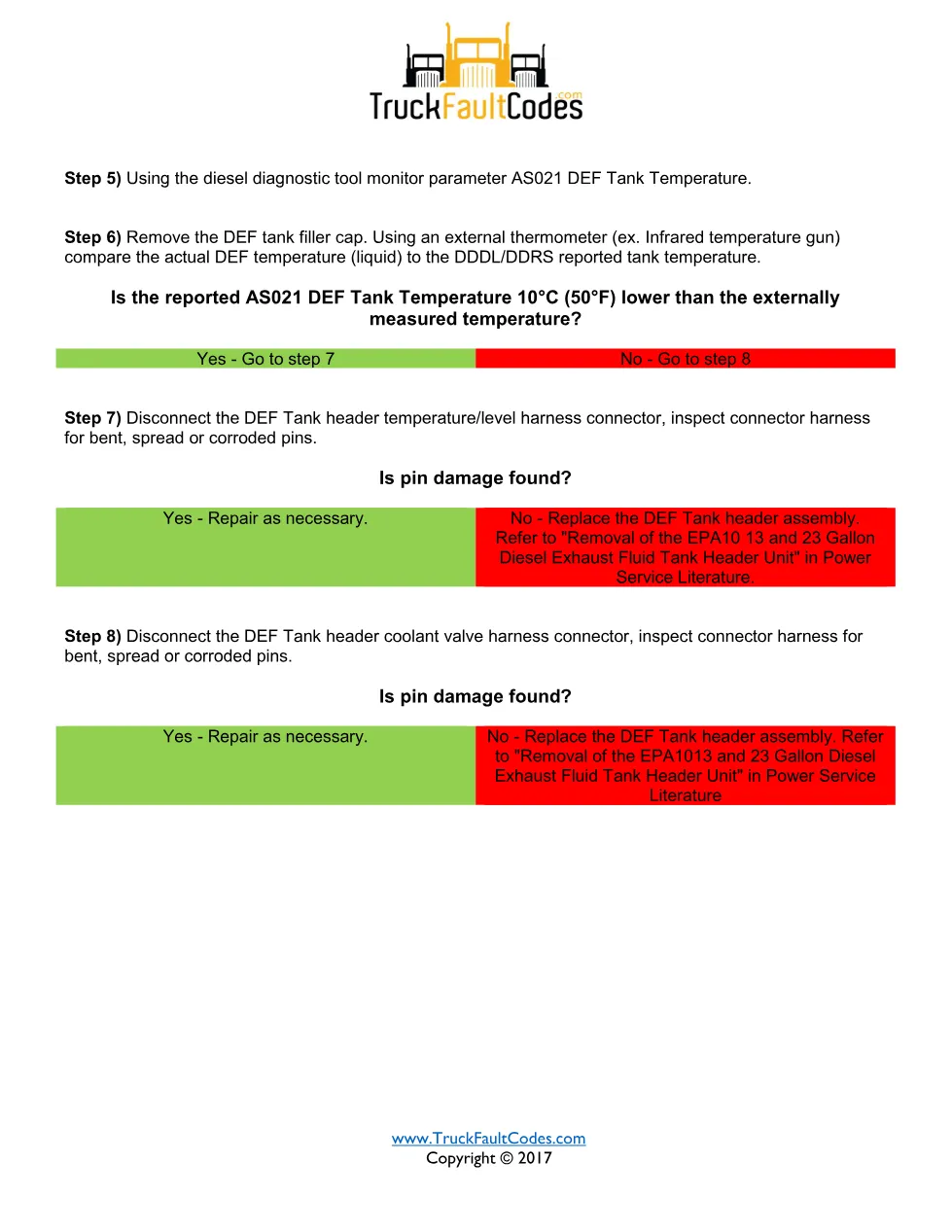

Detroit DEF tank temperature troubleshooting steps
The sheet has the technician rule out cooling-system complaints, monitor parameter AS021 DEF Tank Temperature with the diesel diagnostic tool, compare it against an external thermometer, then inspect the DEF tank header temperature/level connector and replace the DEF tank header assembly per Power Service Literature if needed.
Applicable truck models
This code sheet applies to trucks powered by Detroit DD Series diesel engines built to the EPA10, GHG14 emissions calibration; always match the SPN 3363 FMI 1 listing to the vehicle’s own engine family before repair. Confirm the emissions family on the vehicle emissions label, because aftertreatment and dosing hardware differs between the EPA07, EPA10 and GHG14 builds and a mismatched procedure can send you to the wrong component. For engine coverage and dealer service information, see the Detroit Diesel official website.
Who needs this Detroit DEF tank temperature manual
Fleet technicians and independent workshops that service Detroit DD Series engines use this Detroit DEF tank temperature reference to confirm the code, its enabling conditions and the correct repair before replacing parts. It is written for the mechanic making the repair decision, not the driver, and pairs with the wiring diagrams and component removal procedures Detroit publishes in Power Service Literature.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
