The Detroit DEF system circuit fault sheet is the official Detroit DD Series diagnostic for a DEF dosing supply circuit that failed open, stored under SPN 3361 FMI 5 for GHG14 calibrations. It records the monitored parameter DEF Dosing Unit Voltage, dash lamps None, engine reaction Derate 25%, verification by SCR ADS Self-check, exactly as published by TruckFaultCodes.com (© 2017).
Official document details
| Brand | Detroit |
|---|---|
| Model coverage | Detroit DD Series diesel engines (EPA 2007-current) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Fault code | SPN 3361 / FMI 5 |
| Fault condition | Diesel Exhaust Fluid (DEF) System Circuit Failed Open |
| Monitored parameter | DEF Dosing Unit Voltage |
| Dash lamps | None |
| Engine reaction | Derate 25% |
| Verification | SCR ADS Self-check |
| Emissions calibration | GHG14 |
| Source / Publisher | TruckFaultCodes.com |
| Year / Revision | 2017 |
| Pages | 3 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification: SPN 3361, FMI 5
- Description and monitored parameter
- Typical enabling conditions
- Troubleshooting steps
- Component inspection and repair verification
Detroit DEF system circuit troubleshooting steps

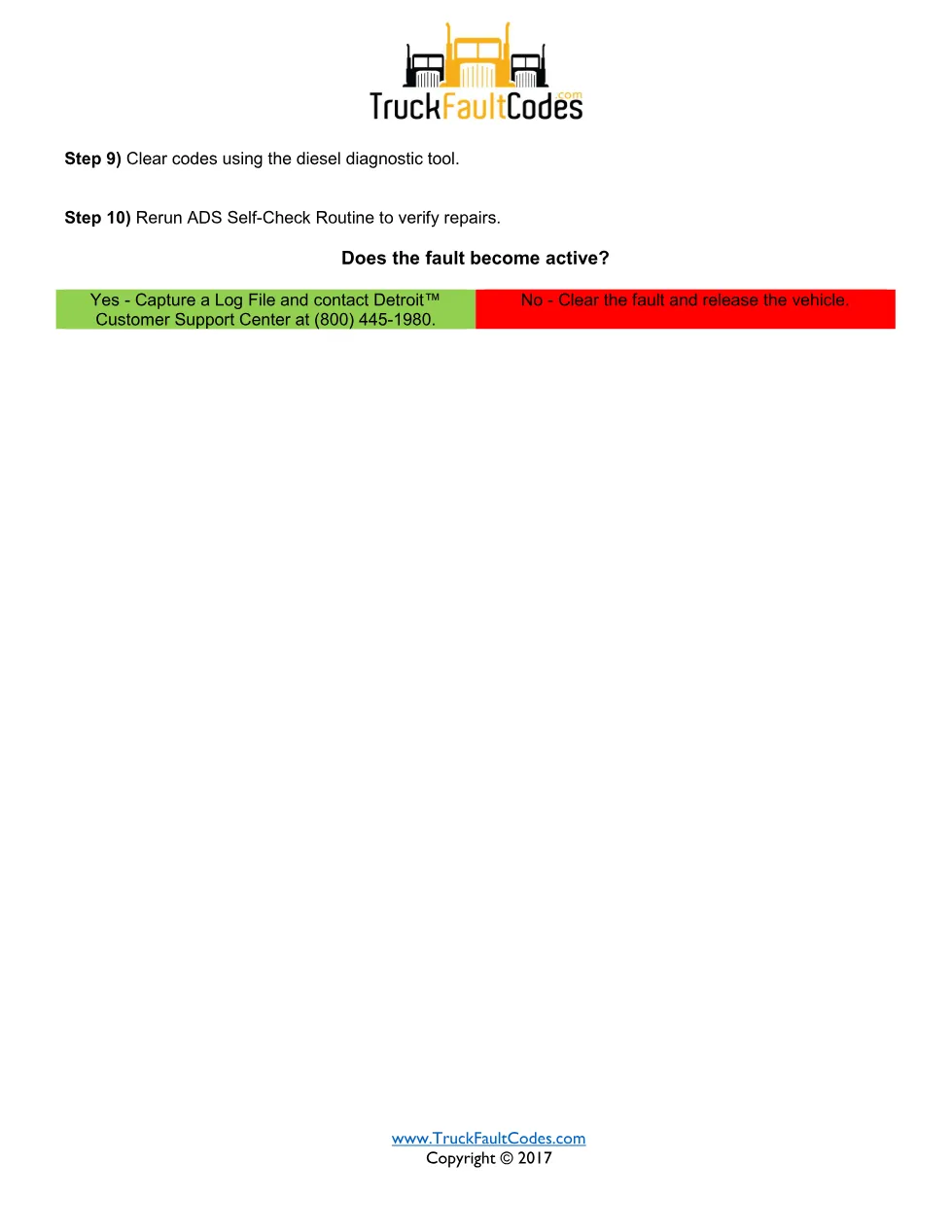

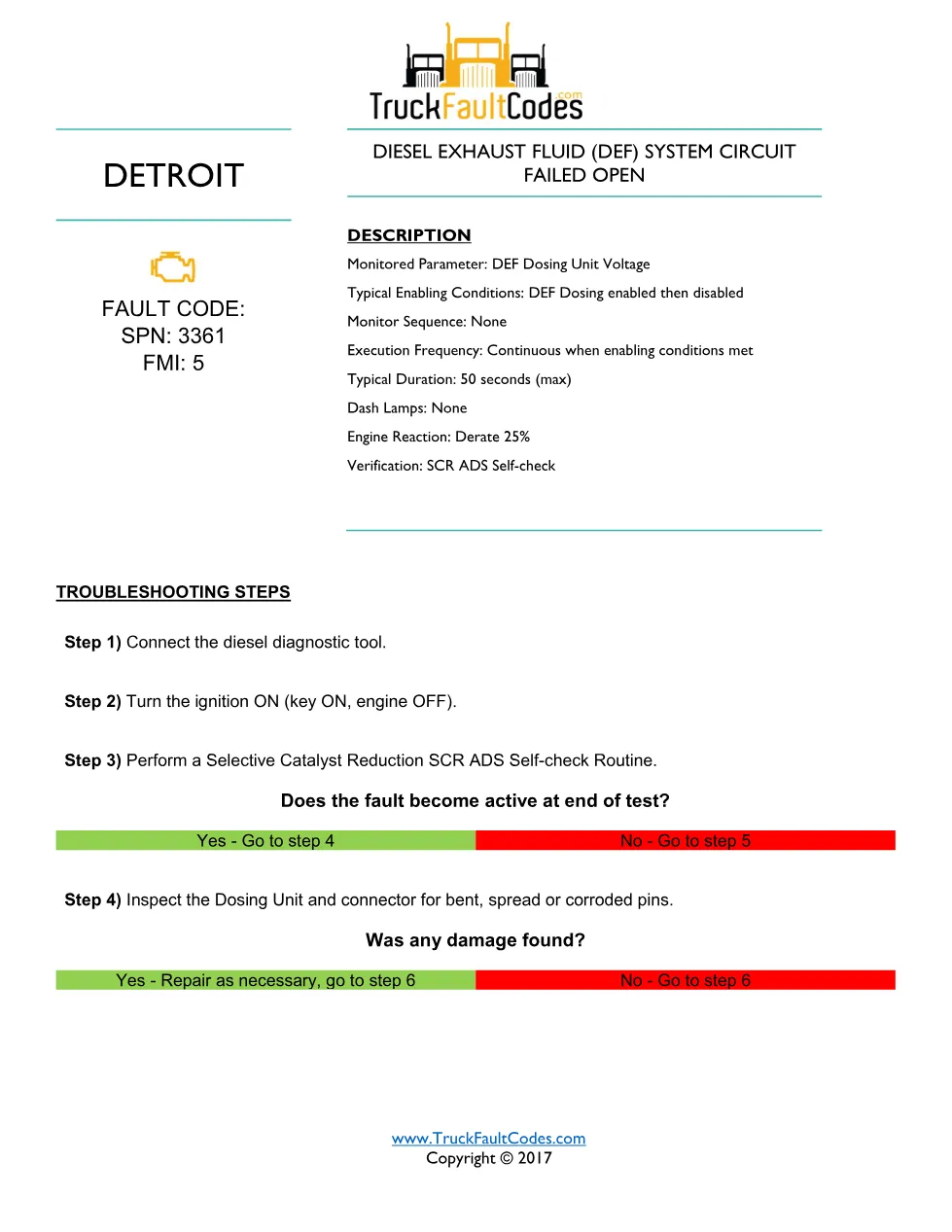

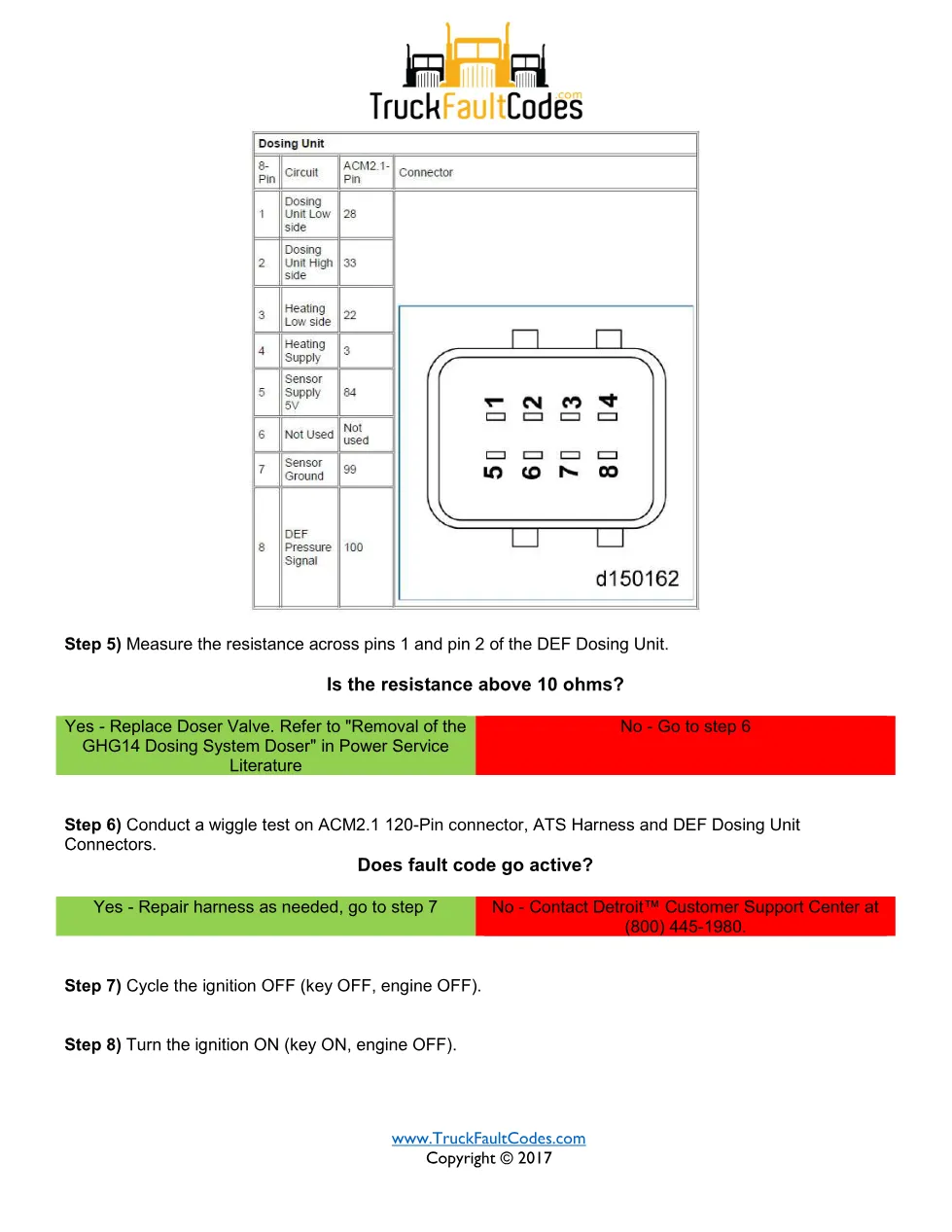

The sheet checks DEF Dosing Unit voltage after dosing is enabled and disabled, has the technician run the SCR ADS Self-check, and inspects the dosing-unit supply circuit for an open before repairing the harness or replacing the unit.
