The Detroit DEF heater open document is a Detroit fault code reference that explains a Diesel Exhaust Fluid (DEF) line heater 5 circuit that has failed open, published for DD Series engines under SPN 5488 FMI 5 (GHG14). It gives workshop technicians the diagnostic sequence used to confirm the condition and return the truck to service, sourced from Detroit Power Service Literature.
Official document details
| Brand | Detroit (Detroit Diesel) |
| Model coverage | DD Series (EPA 2007-Current) and Series 60 (DDEC VI) |
| System / Group | Diagnostic Trouble Codes (DTCs) |
| Fault code | SPN 5488 / FMI 5 |
| Emissions family | GHG14 |
| Pages | 2 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification — SPN 5488 / FMI 5
- Dosing Unit disconnection
- Harness voltage measurement

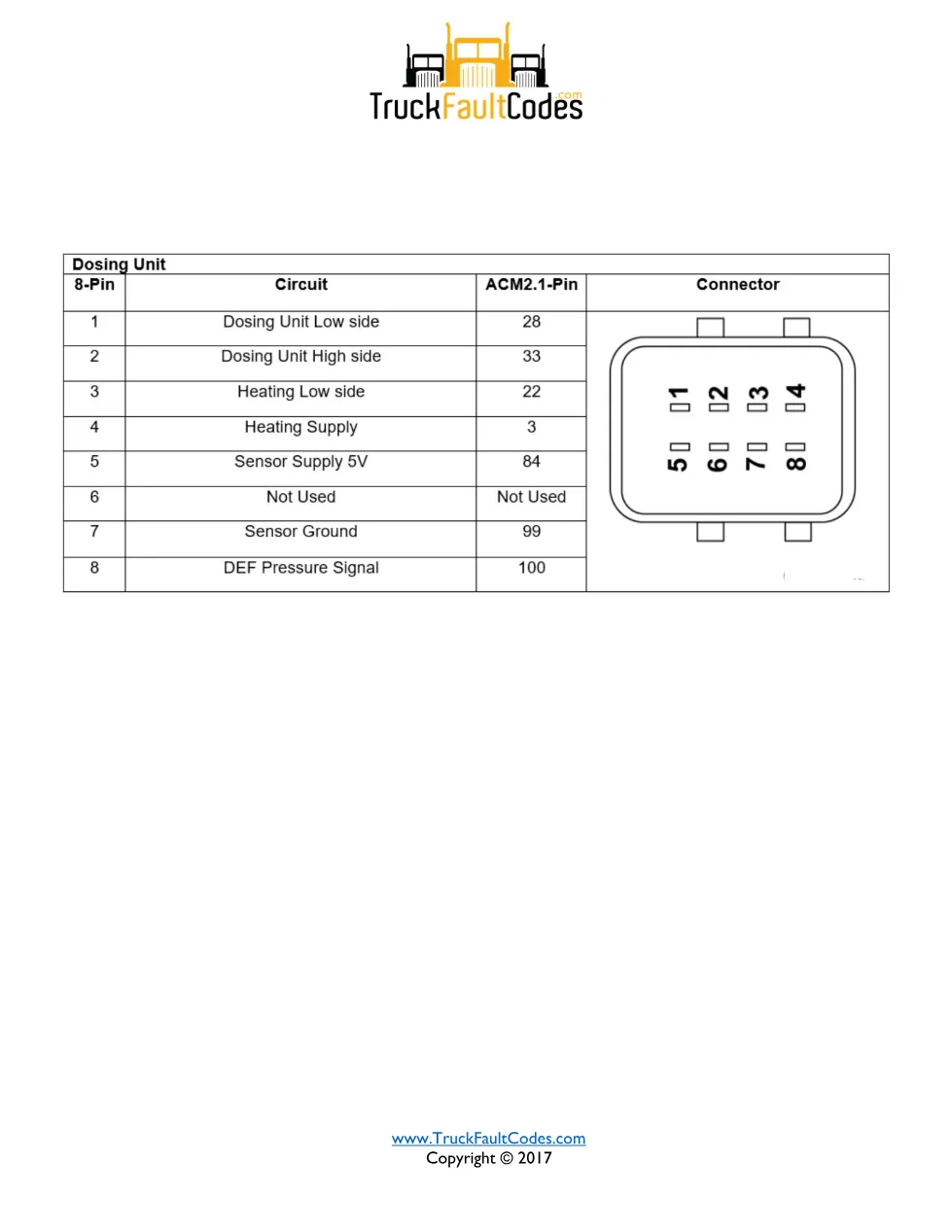

- ACM2.1 120-pin resistance check
- Open wire repair
Troubleshooting the Detroit DEF heater open code

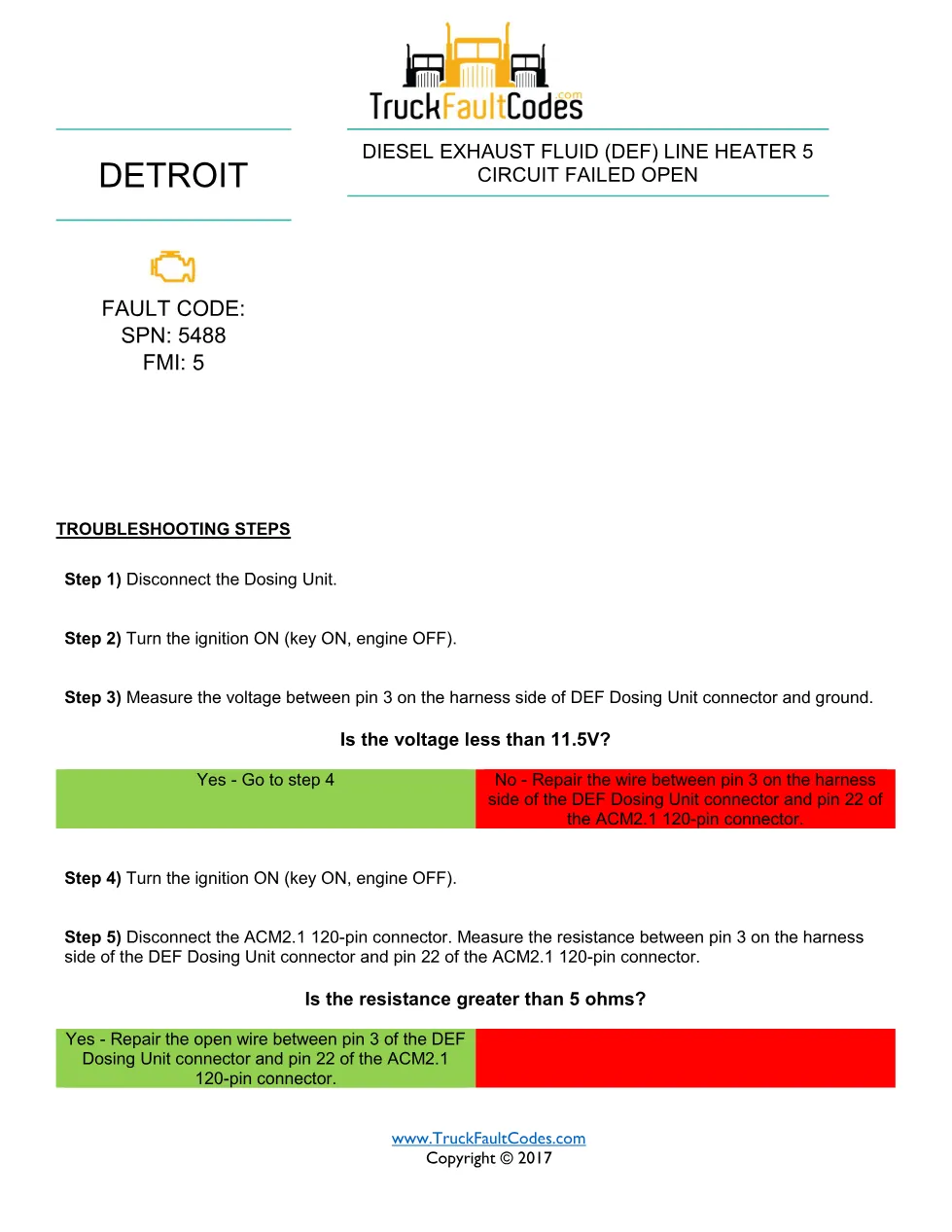

The technician disconnects the Dosing Unit, turns the ignition on and measures the voltage between pin 3 of the DEF Dosing Unit connector and ground; a reading at or below 11.5 volts moves the test forward, while a higher reading points to wiring back to pin 22 of the ACM2.1 120-pin connector. The ACM2.1 connector is then disconnected and resistance is measured across that same wire to confirm and repair an open circuit.
Applicable truck models and engines
This diagnostic sheet applies to Detroit DD Series diesel engines built to EPA 2007 through current emissions standards, and the covered fault also appears on Series 60 (DDEC VI) applications listed in the source. Confirm the exact engine family and calibration against the vehicle before making repairs, and cross-check the specifications on the official Demand Detroit website.
Who needs this Detroit DEF heater open manual
Heavy-duty truck technicians, fleet maintenance staff and workshop owners diagnosing SPN 5488 FMI 5 with a diesel diagnostic tool will use this sheet to follow the correct steps rather than replacing parts by guesswork.
