The Detroit DEF heater low document is a Detroit fault code reference that explains a Diesel Exhaust Fluid (DEF) line heater 5 circuit that has failed low, published for DD Series engines under SPN 5488 FMI 4 (GHG14). It gives workshop technicians the diagnostic sequence used to confirm the condition and return the truck to service, sourced from Detroit Power Service Literature.
Official document details
| Brand | Detroit (Detroit Diesel) |
| Model coverage | DD Series (EPA 2007-Current) and Series 60 (DDEC VI) |
| System / Group | Diagnostic Trouble Codes (DTCs) |
| Fault code | SPN 5488 / FMI 4 |
| Emissions family | GHG14 |
| Pages | 2 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification — SPN 5488 / FMI 4
- Line heater / Dosing Unit disconnection
- Harness pin inspection
- ACM2.1 120-pin resistance check
- Dosing Unit replacement
Troubleshooting the Detroit DEF heater low code

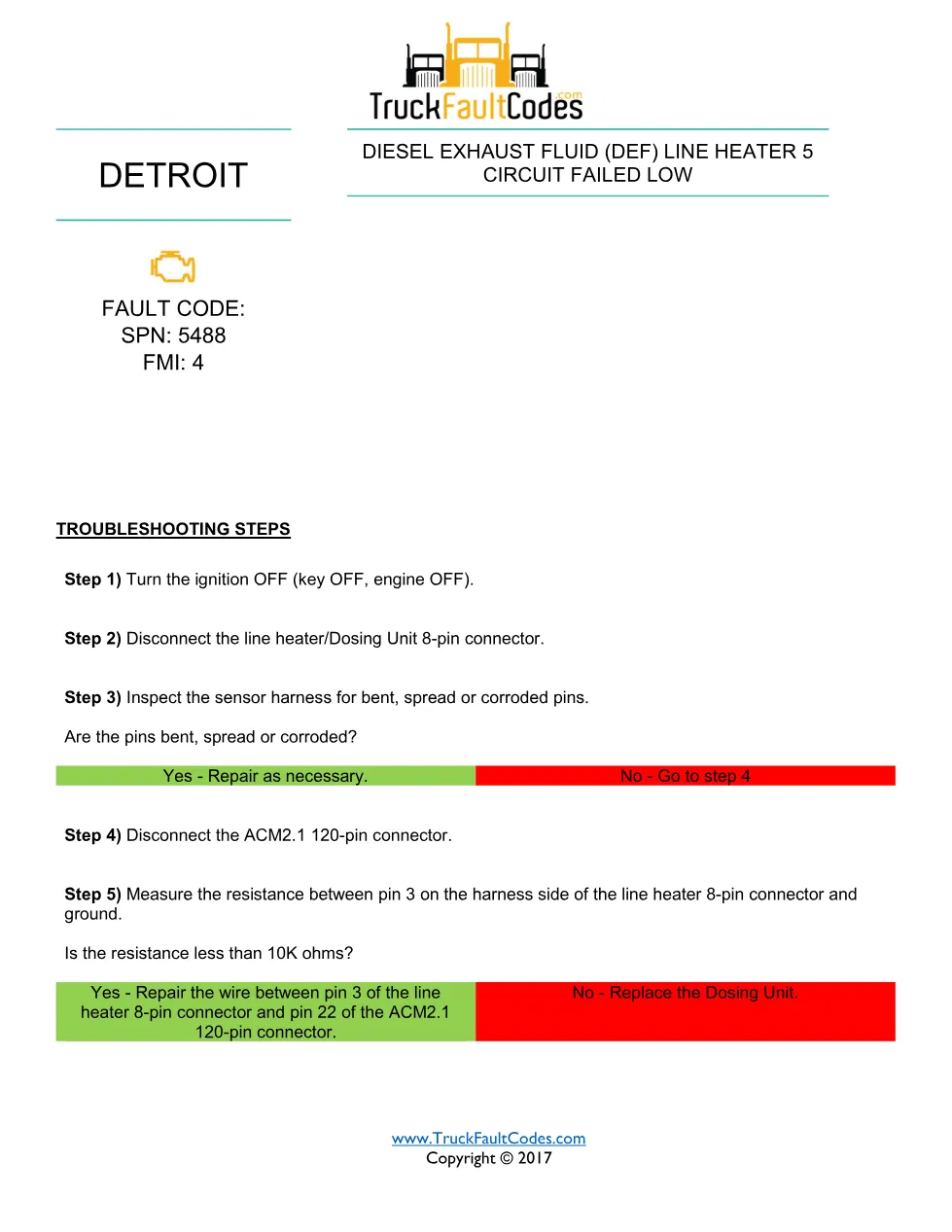

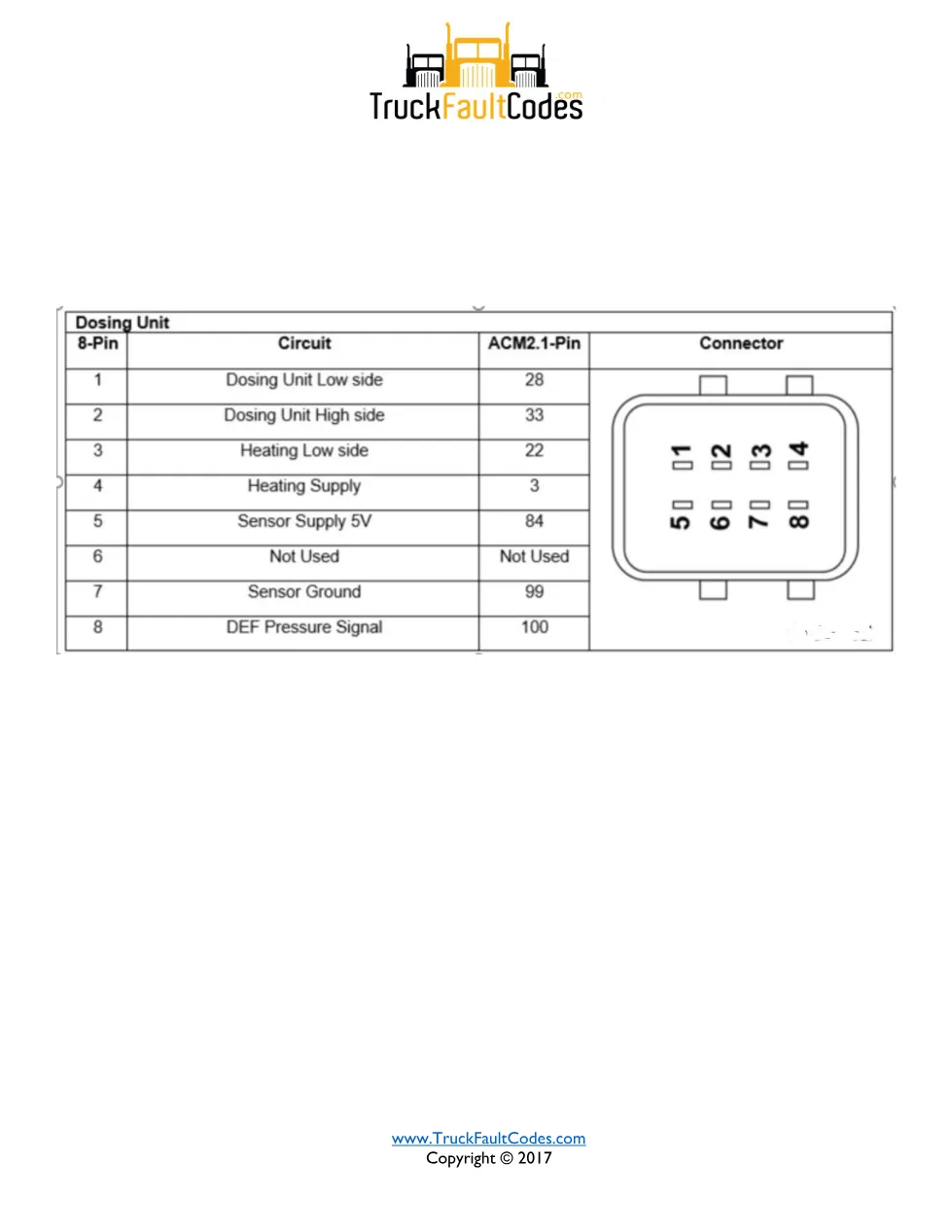

With the ignition off, the technician disconnects the line heater and Dosing Unit 8-pin connector and inspects the harness for bent, spread or corroded pins. The ACM2.1 120-pin connector is then disconnected and resistance is measured between pin 3 of the 8-pin connector and ground; a low reading calls for repairing the wire to pin 22 of the ACM2.1 connector, while a normal reading points to replacing the Dosing Unit.
Applicable truck models and engines
This diagnostic sheet applies to Detroit DD Series diesel engines built to EPA 2007 through current emissions standards, and the covered fault also appears on Series 60 (DDEC VI) applications listed in the source. Confirm the exact engine family and calibration against the vehicle before making repairs, and cross-check the specifications on the official Demand Detroit website.
Who needs this Detroit DEF heater low manual
Heavy-duty truck technicians, fleet maintenance staff and workshop owners diagnosing SPN 5488 FMI 4 with a diesel diagnostic tool will use this sheet to follow the correct steps rather than replacing parts by guesswork.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
