CAT C15 03-05 — Service Manual RENR5088-10

This 17-page CAT C15 03-05 manual provides the complete diagnostic procedure for resolving low and high injector current fault codes on Caterpillar C15 on-highway truck engines (MXS configuration). It covers DTC 0003-05 Cylinder #3 Injector Current Low and directs technicians through the full Injector Solenoid Circuit Test, including open-circuit and short-circuit checks at the ECM, valve cover connectors, and injector harness.

Official CAT C15 03-05 document details

Brand Caterpillar (CAT)
Model coverage C15 Truck Engine MXS (C15 On-Highway Truck MXS00001-UP)
System / Group Electronic Unit Injector (EUI) Solenoid Circuit — SMCS 1290-038
Publication no. RENR5088-10
Year / Revision Published 01/02/2009, Updated 25/02/2009
Pages 17
File size 0.3 MB
Format PDF
Language English

Document table of contents

  • 0003-05 Cylinder #3 Injector Current Low (73) — Conditions, System Response
  • Injector Solenoid Circuit — Test (System Operation Description)
  • Diagnostic codes covered: 1-05 through 6-06 (all six cylinders, low and high current)
  • Electronic Unit Injector illustration and C15 engine schematic
  • P2 ECM connector pinout and valve cover connector terminal identification
  • Test Step 1: Inspect Electrical Connectors and Wiring
  • Test Step 3: Check the Variation of the Injectors between Cylinders (Cylinder Cutout Test)
  • Test Step 4: Injector Solenoid Test — OK / Open / Short results
  • Test Step 5: Check Harness between ECM and Valve Cover Base for Open Circuit
  • Test Step 7: Check the ECM for an Open Circuit
  • Test Step 8: Check ECM and Harness for a Short Circuit
  • Resistance measurement at P2 connector — return line short diagnosis

Applicable truck models

This manual applies to Caterpillar C15 on-highway truck engines with MXS, NKS, or RKS serial number prefixes. The engines use mechanically actuated, electronically controlled Electronic Unit Injectors (EUI) driven by a 105-volt pulse from the ECM. The P2 ECM connector pinout and valve cover connector terminal layout are specific to C15 configurations. Diagnostics require Caterpillar Electronic Technician (Cat ET) software and a 257-8718 Adapter Cable Assembly (120-pin breakout). For official product support, visit Caterpillar Support.

Who needs this CAT C15 03-05 manual

Diesel mechanics and workshop owners diagnosing misfires, low power, or active injector current fault codes on C15-powered trucks need this document. It walks through every electrical test from connector inspection to ECM-level short-circuit verification, with safety warnings about the 90–120 volt injector system present throughout.

The full PDF is available in the DiagTechPro manuals library, free account required to download.

Related manuals library

CAT C15 03-05 — Service Manual RENR5088-10 1 / 3

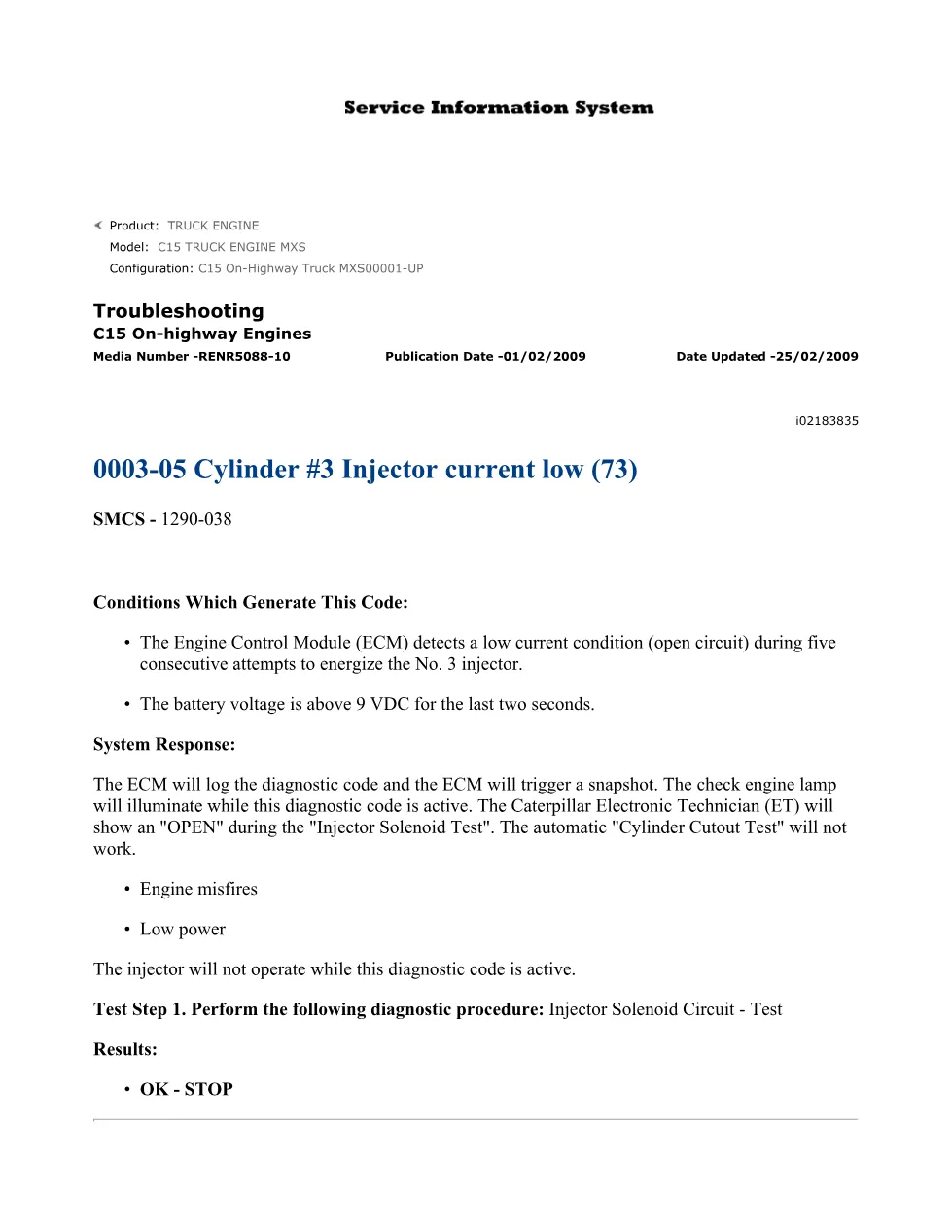

CAT C15 03-05 — Service Manual RENR5088-10 - preview page 1 of 3

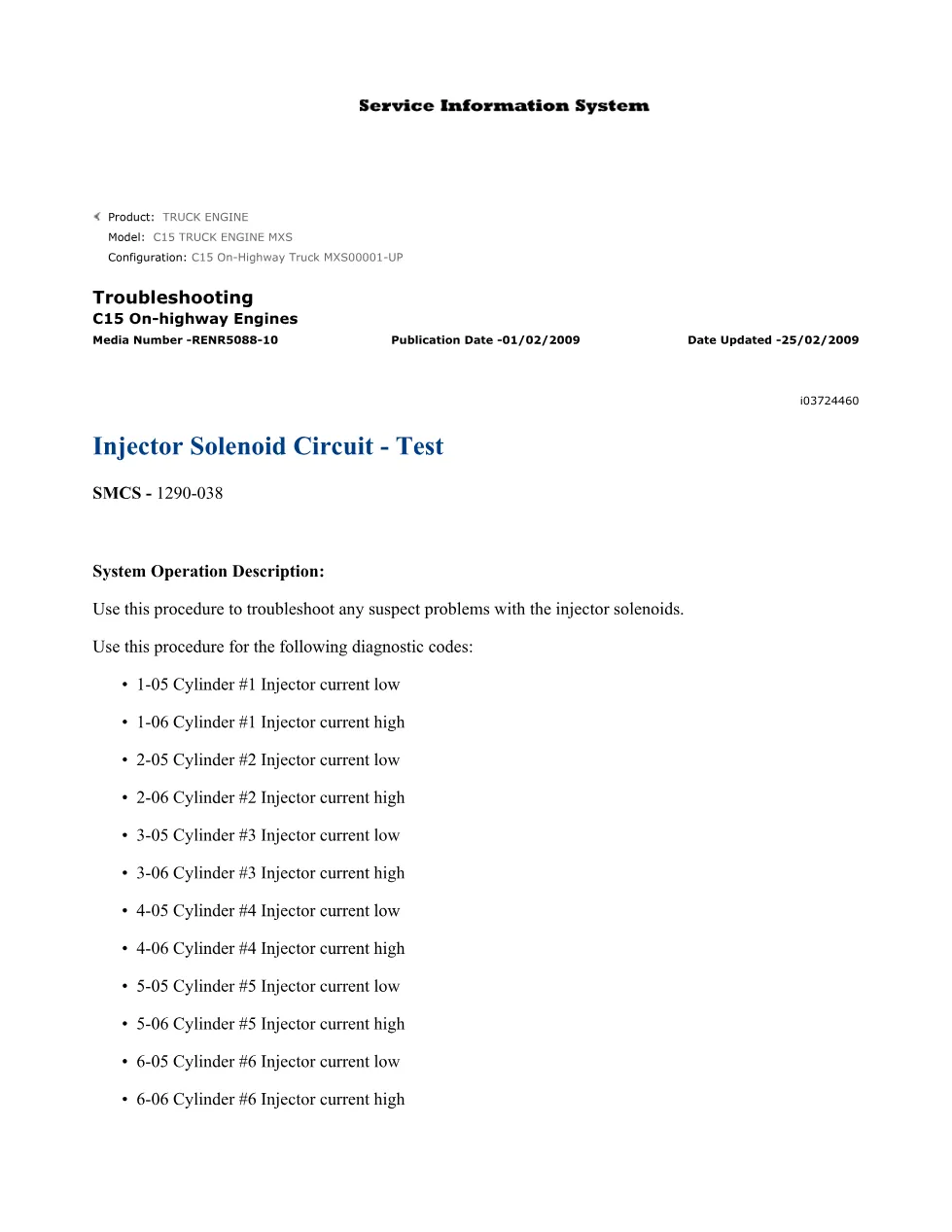

CAT C15 03-05 — Service Manual RENR5088-10 - preview page 2 of 3

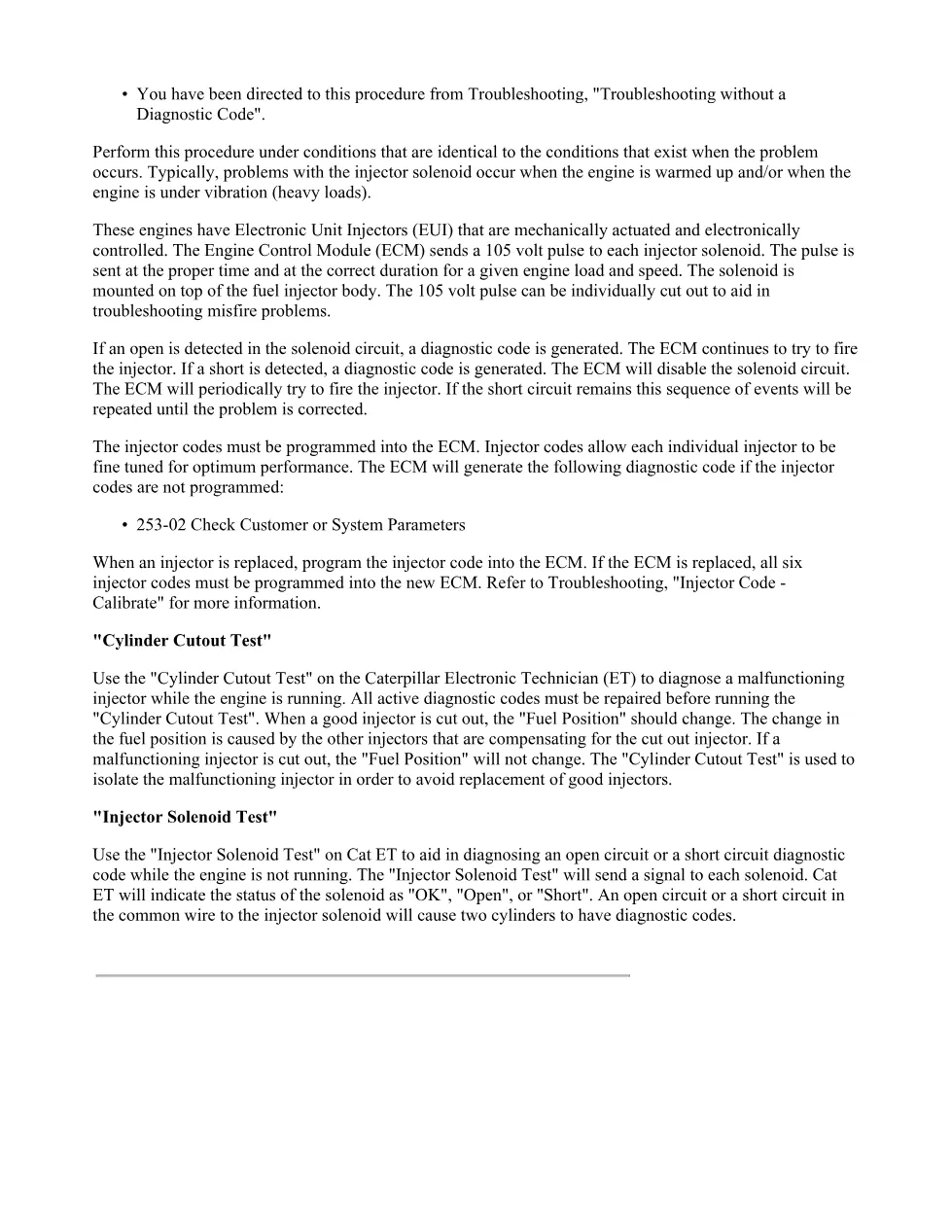

CAT C15 03-05 — Service Manual RENR5088-10 - page 3 is available after signing in
Free preview - 2 of 3 pages. Sign in to download the full PDF. Create a free account to download the full PDFNo credit card required · Instant download
