This 2-page troubleshooting document addresses a CAT C10 0005-11, specifically diagnostic trouble code 0005-11 Cylinder #5 Injector Current Fault (74), applicable to 3406E, C-10 and C-12 on-highway truck engines. It explains the conditions that generate the code, the system response from the Engine Control Module (ECM), possible performance effects, and the recommended test procedure to resolve the issue.
Official CAT C10 0005-11 document details
| Brand | Caterpillar (CAT) |
|---|---|
| Model coverage | C-12 Truck Engine 9NS00001-UP; also covers 3406E and C-10 on-highway engines (prefixes 8YS, 9NS, 5DS, 1LW) |
| System / Group | Fuel Injection — Diagnostic Trouble Codes (DTCs), SMCS 1290-038 |
| Publication no. | RENR1328-08 |
| Year / Revision | Published 01/10/2008, updated 16/10/2008 |
| Pages | 2 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Document table of contents

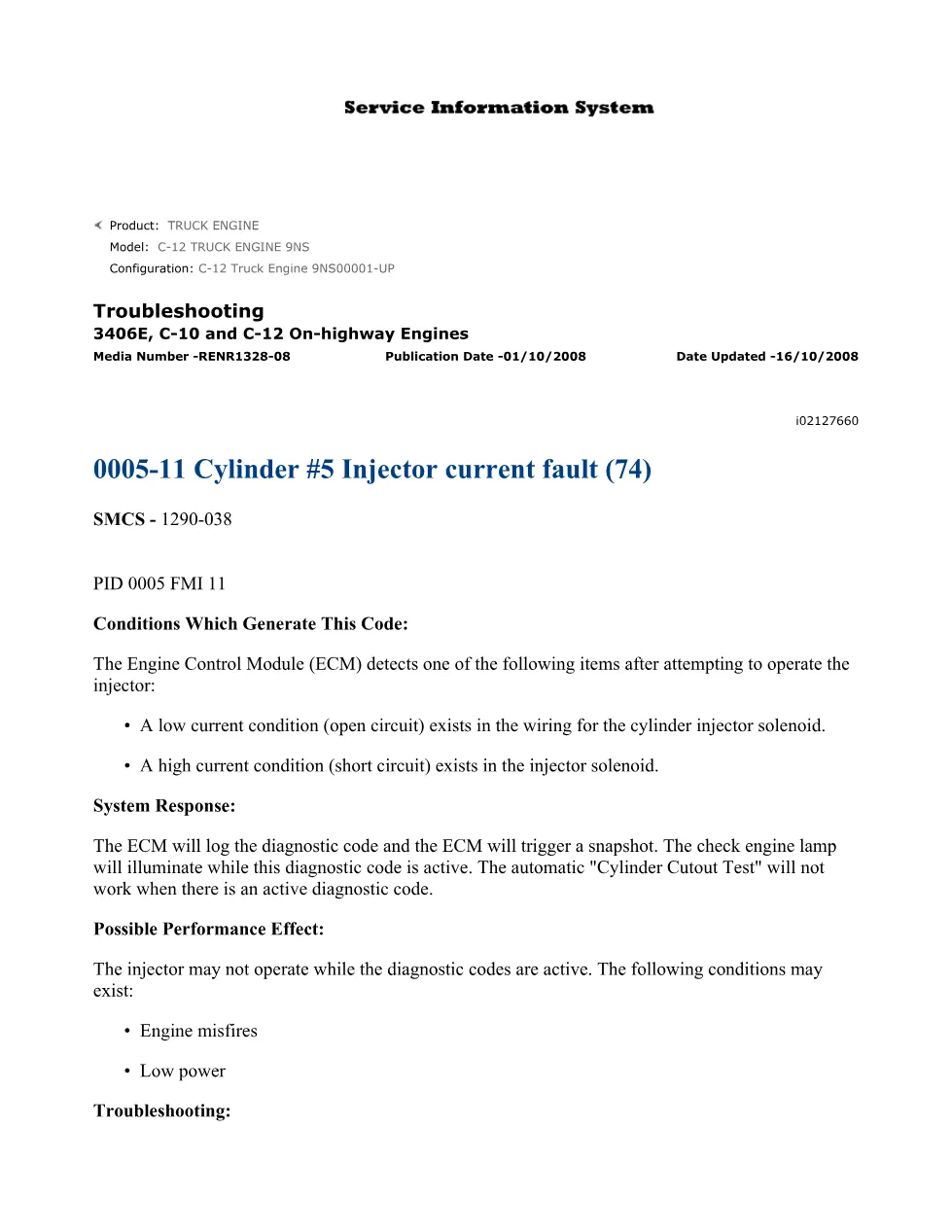

- Conditions Which Generate This Code — open circuit (low current) or short circuit (high current) in the Cylinder #5 injector solenoid wiring
- System Response — ECM logging, snapshot trigger, check engine lamp behavior, automatic Cylinder Cutout Test disabled
- Possible Performance Effect — engine misfires, low power
- Troubleshooting — Test Step 1: Perform “Injector Solenoid Circuit – Test”
Applicable truck models
This guide applies to Caterpillar truck engines in the 3406E, C-10, and C-12 families configured for on-highway use. The specific configuration referenced is the C-12 Truck Engine serial prefix 9NS (9NS00001-UP), but the document also lists prefixes 8YS, 5DS, and 1LW. These engines are found in Class 8 trucks from multiple OEMs. For official parts lookup and further technical resources, visit Caterpillar Support.
Who needs this CAT C10 0005-11 manual
Fleet mechanics and independent workshop owners diagnosing a PID 0005 FMI 11 code on Caterpillar 3406E, C-10, or C-12 engines will find this document essential. It provides the exact ECM behavior, performance symptoms, and the single prescribed test step needed to isolate the Cylinder #5 injector solenoid circuit problem.
